ECLIPSE 009HD with Ascent GT Pro VTX 4W

Description

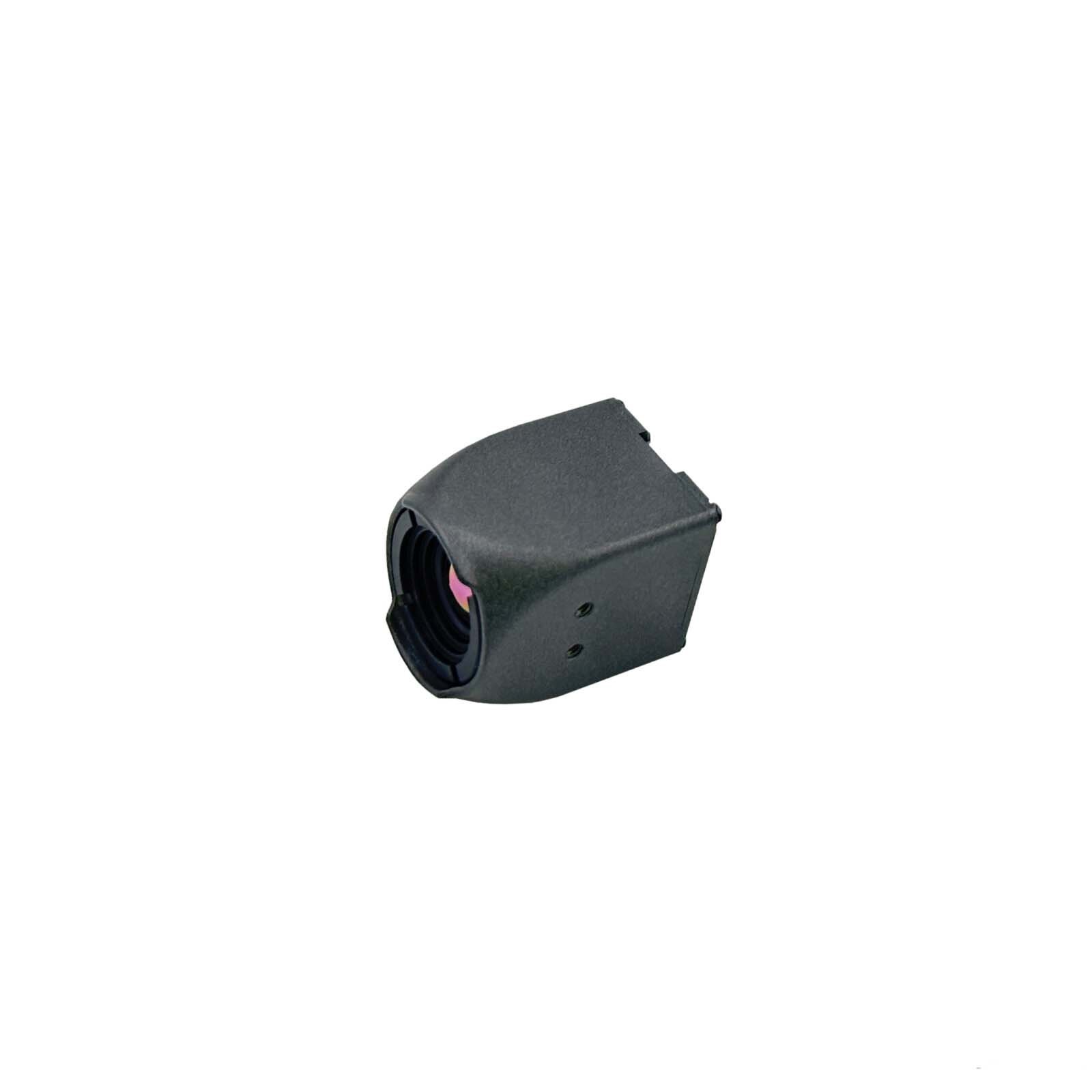

ECLIPSE 009HD thermal imaging camera with Ascent GT Pro VTX 4W is designed to be connected to digital HD video transmitters and can transmit both digital and analog signals via a UVC interface. The working resolution of 960*768 with a frame refresh rate of 50Hz guarantees high-quality data transmission. The third generation of Pixelpump-Gen3 technology makes the image sharper and more detailed, which increases the visibility of heat sources. The 9.1mm lens with F1.0 aperture is ideal for working in dark or low light conditions. The camera maintains stable operation in harsh environments ranging from -20°C to 50°C. The OSD remote or UVC interface provides access to brightness, contrast, color palette and horizontal, vertical or diagonal mirroring settings to meet different user needs.

The Ascent GT Pro VTX transmitter supports 3 channels and operates in the frequency range of 5.650-5.924GHz. With 4W of power, it can broadcast 1080p/60fps images over a long distance. Two MMCX antennas reliably transmit the signal without interruption.

Features

• Combined with a digital HD video transmission system, it delivers high quality images
• 960*768 resolution with Pixelpump-Gen3 technology ensures detailed thermal data transmission
• Reliable operation in harsh environments from -20°C to 50°C
• Clear video in low light thanks to F1.0 aperture
• Detailed adjustment of image parameters via OSD remote control or UVC interface
• Ability to transmit signal in digital and analog mode simultaneously
• Ascent GT Pro VTX 4W with two included antennas efficiently transmits a continuous signal in the frequency range of 5.650-5.924GHz

Specifications

Eclipse 009HD camera

• Resolution: 960*768 (Pixelpump)
• Frame rate: 50Hz
• Power supply voltage: 4.5V-20V
• Power consumption: <1.5W
• FOV: 48.3°(H)*38.6°(V)
• Lens: F1.0/9.1mm
• Adjustment method: UVC/ADKEY
• Brightness/Contrast: 0-100 (optional)
• Palette: 0-4 (optional)
• Digital zoom: 1.0-4.0× stepless (adjustable via UVC)
• Mirroring: horizontal, vertical, diagonal
• Output: Avatar/Ascent VTX system + UVC (simultaneously)
• Operating temperature: -20°C-50°C

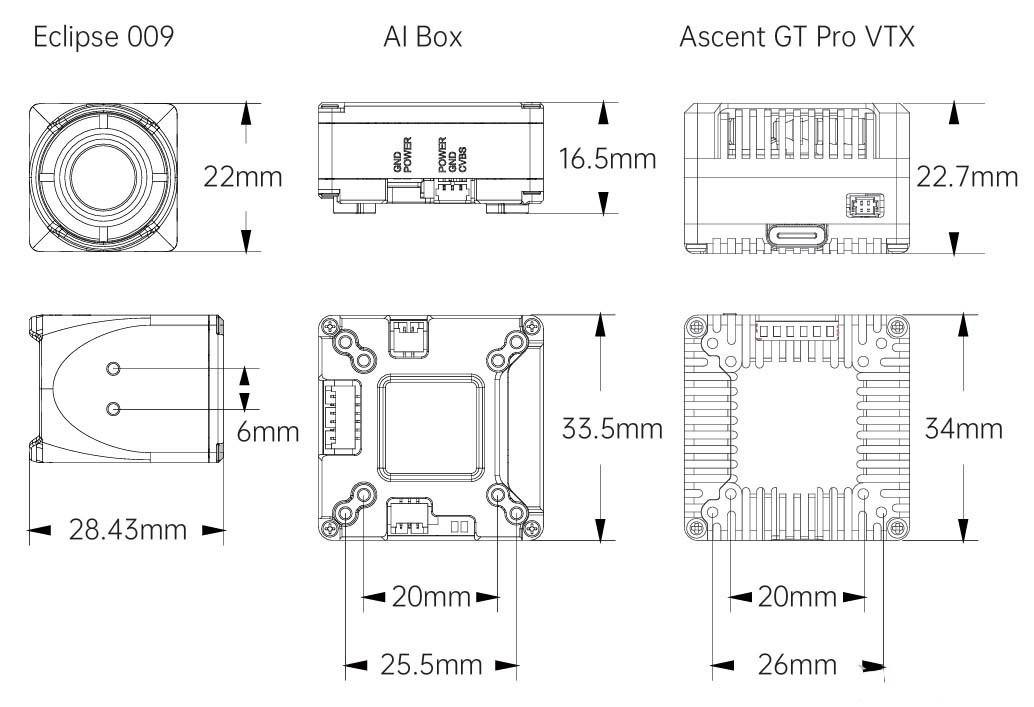

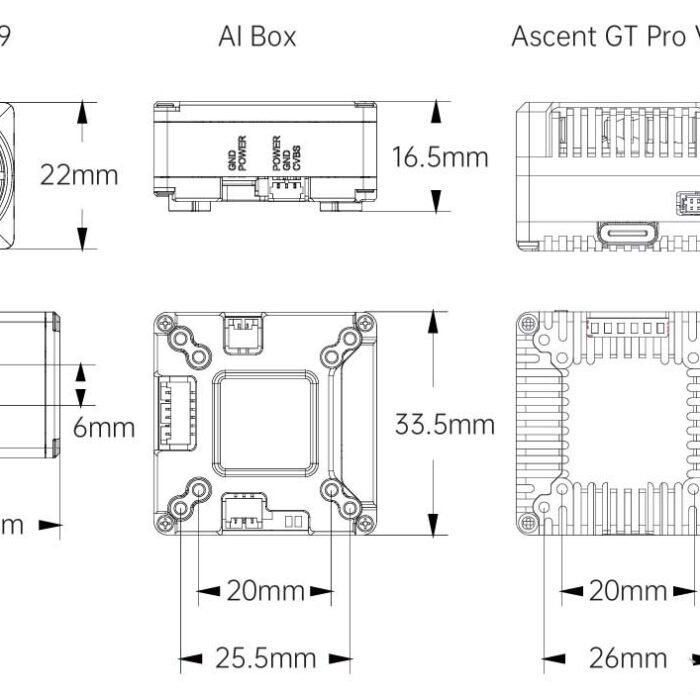

• Size:
  • Module: 33.5*33.5*16.5mm;
  • camera: 22*22*28.43mm

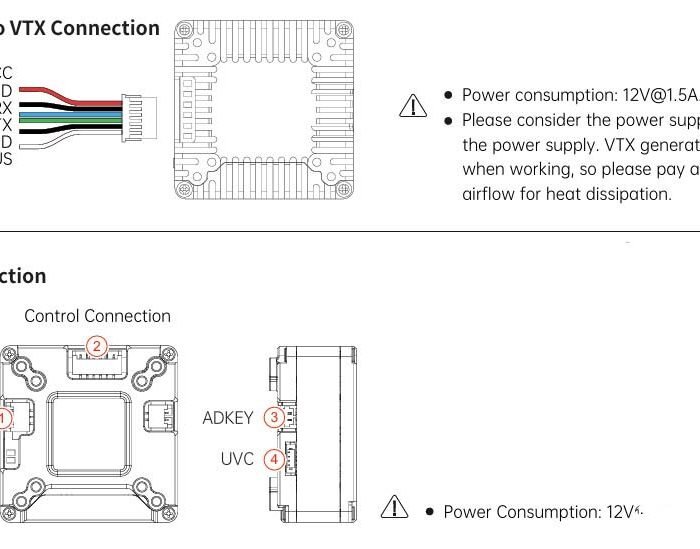

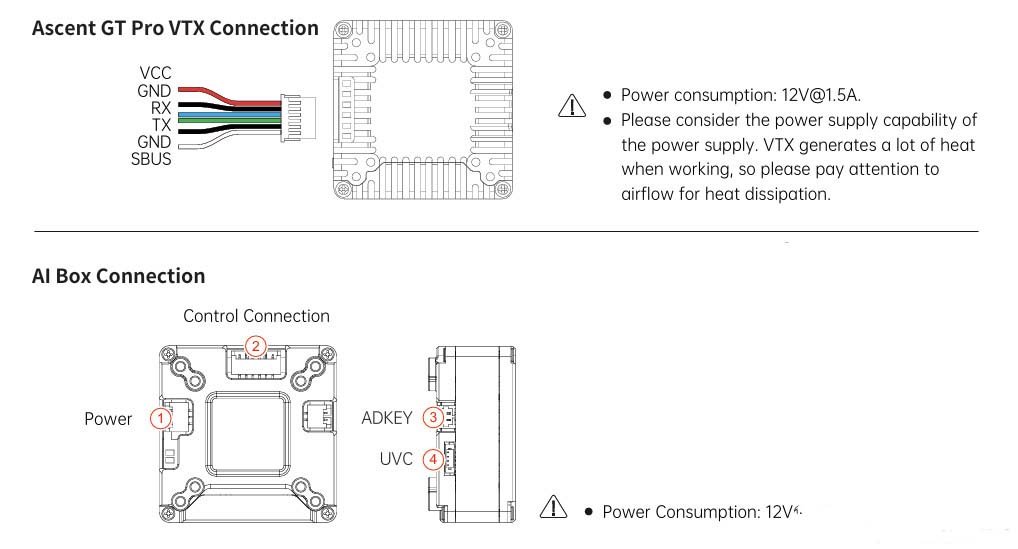

Ascent GT Pro VTX transmitter

• Operating frequency: 5.650-5.924GHz
• Power (EIRP): 5.8GHz: FCC<30dBm; CE<14dBm; SRRC<20dBm; Mic<25dBm
• Image quality: 1080p 60fps
• Number of channels: 3
• Power supply range: 11.1V-25.2V
• OSD: Canvas mode
• Latency: average latency 35ms
• Antennas: 2 (MMCX)
• Size: 34*34*22.7mm

Package

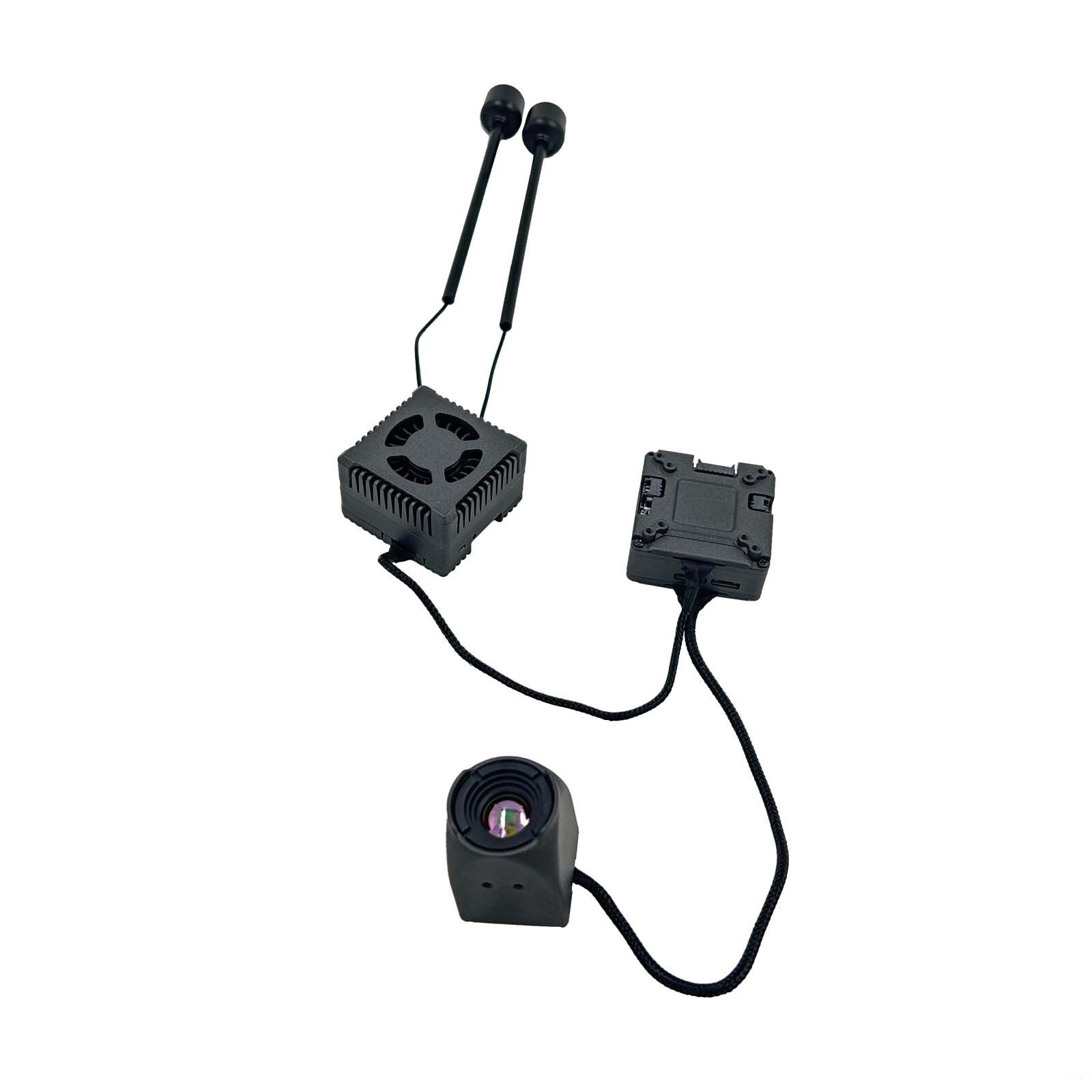

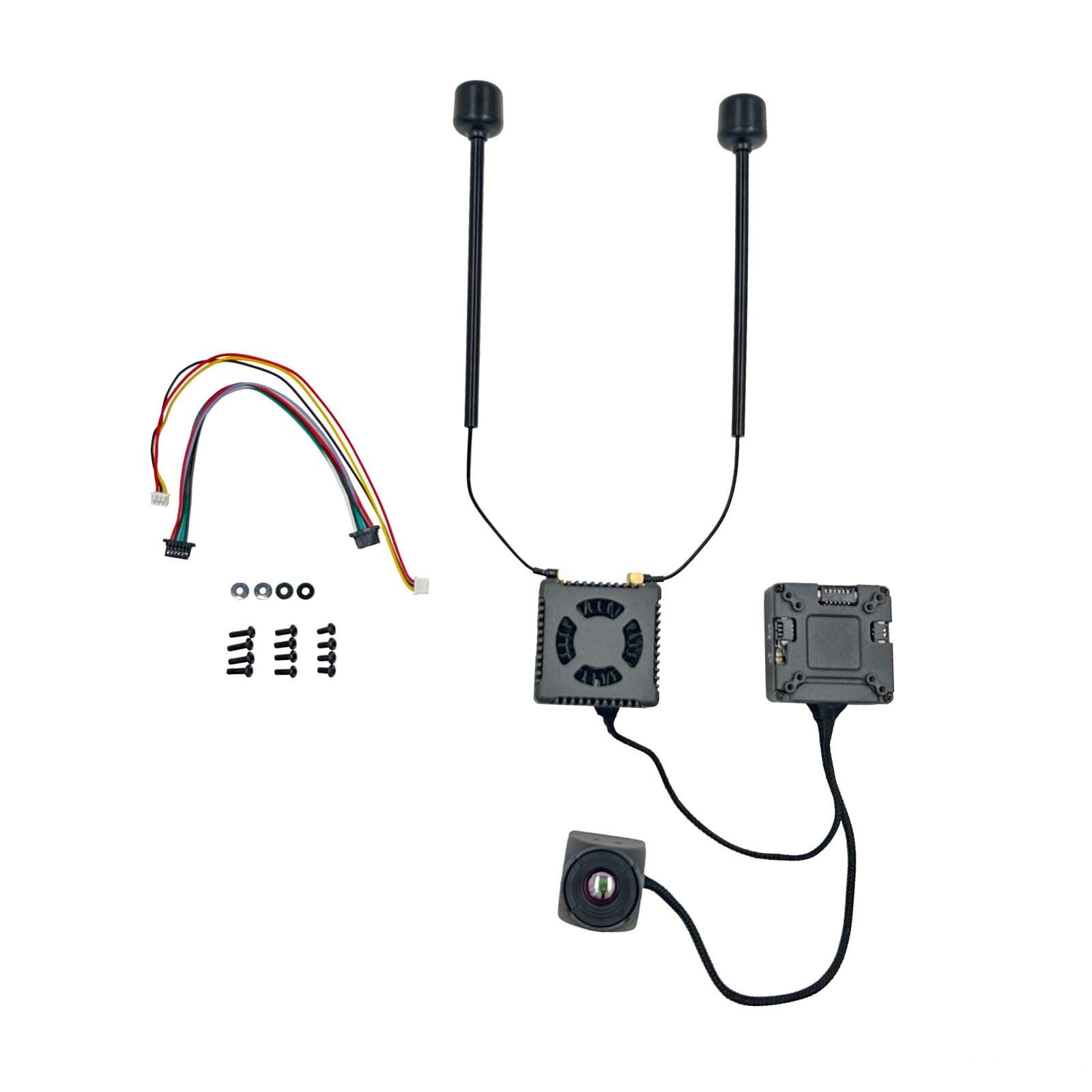

• 1 x ECLIPSE 009HD thermal imaging camera

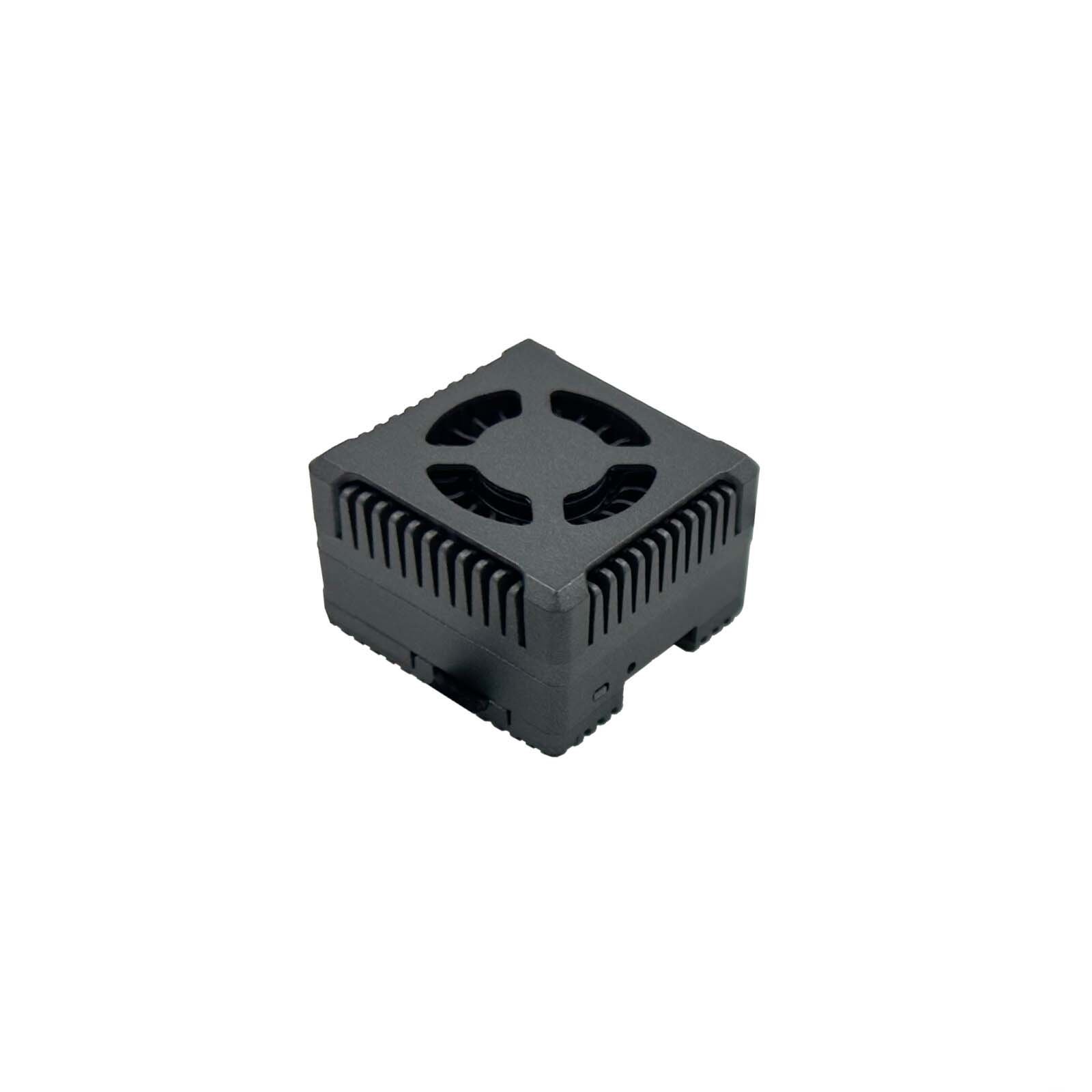

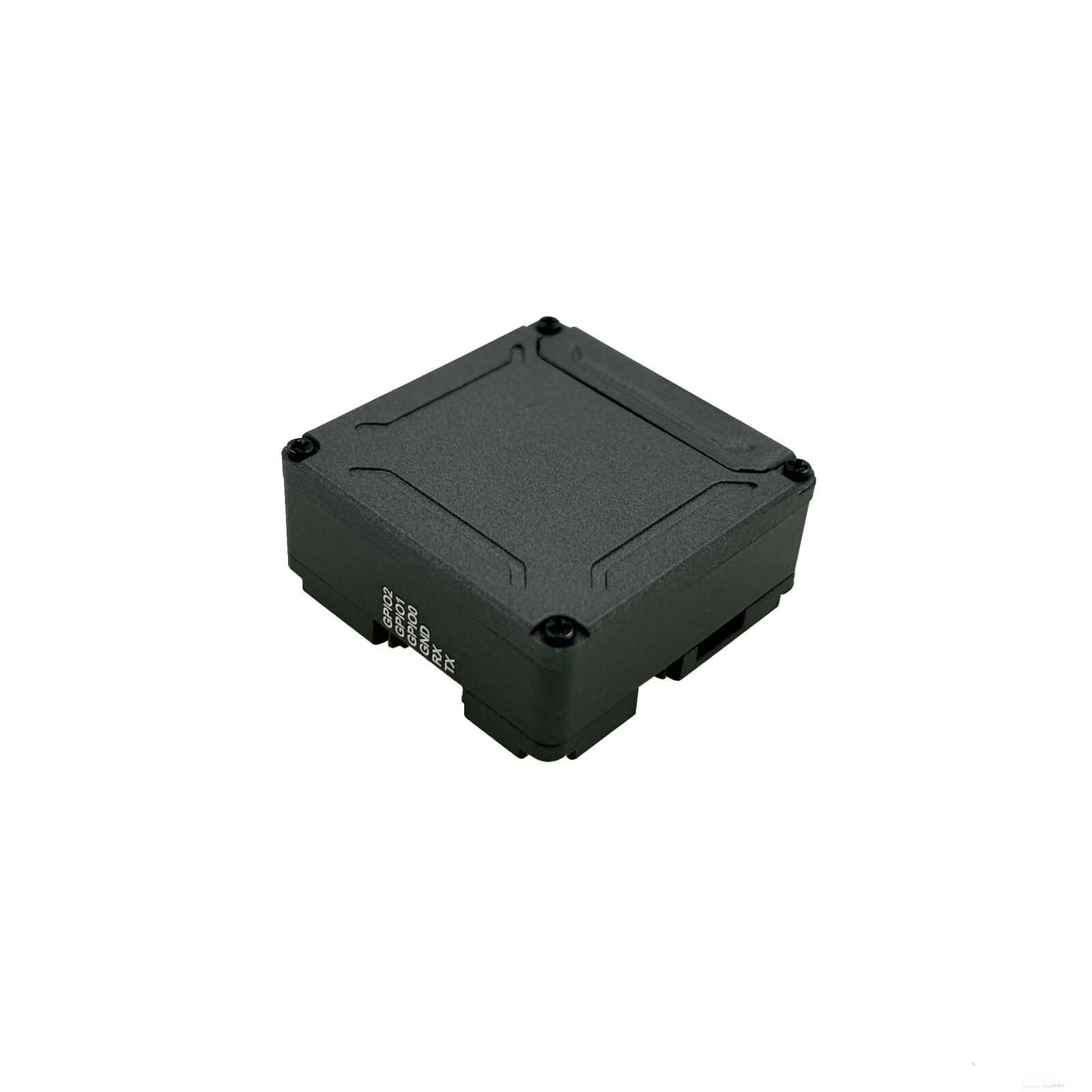

• 1 x Ascent GT Pro VTX 4W video transmitter
• 2 x MMCX antennas
• 2 x silicone cables
• 1 x set of screws

Files

• Довідник користувача Тепловізійної камери ECLIPSE 009HD з Ascent GT Pro VTX 4W
