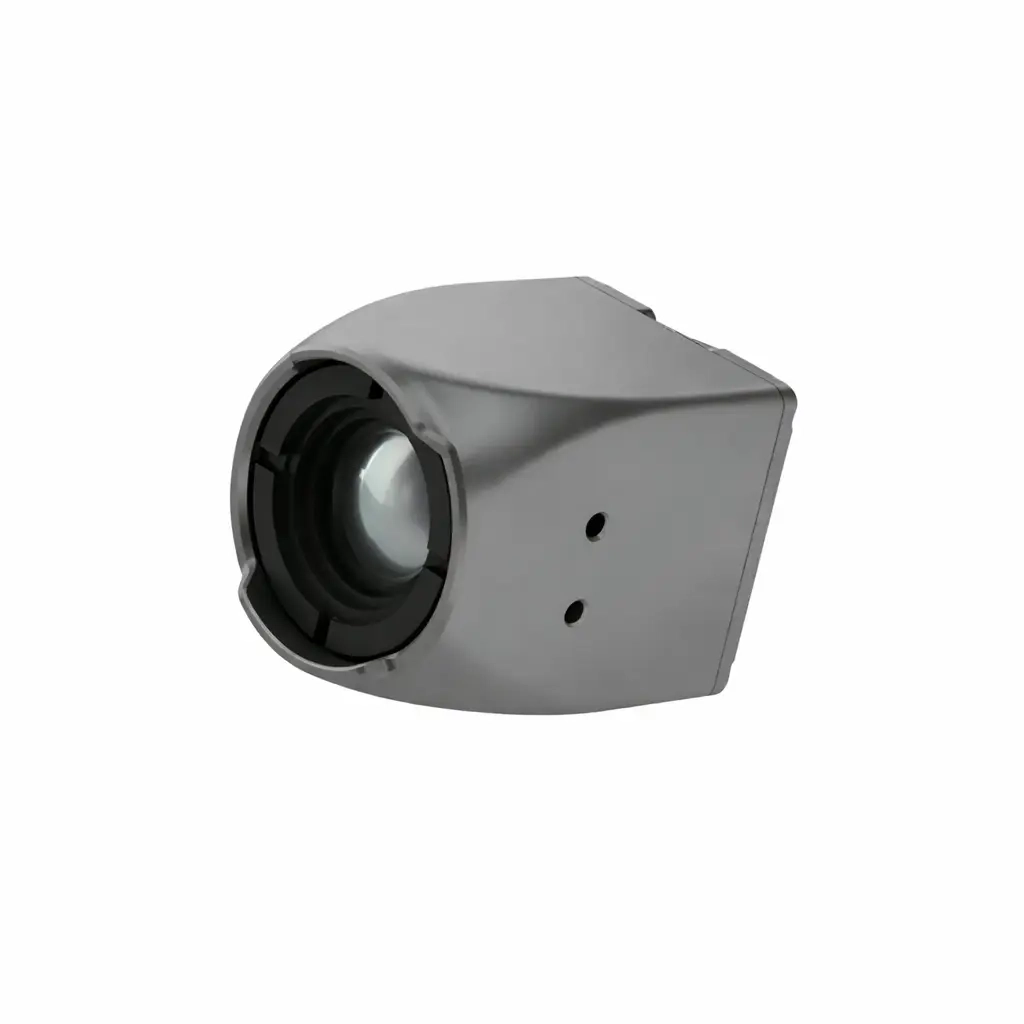

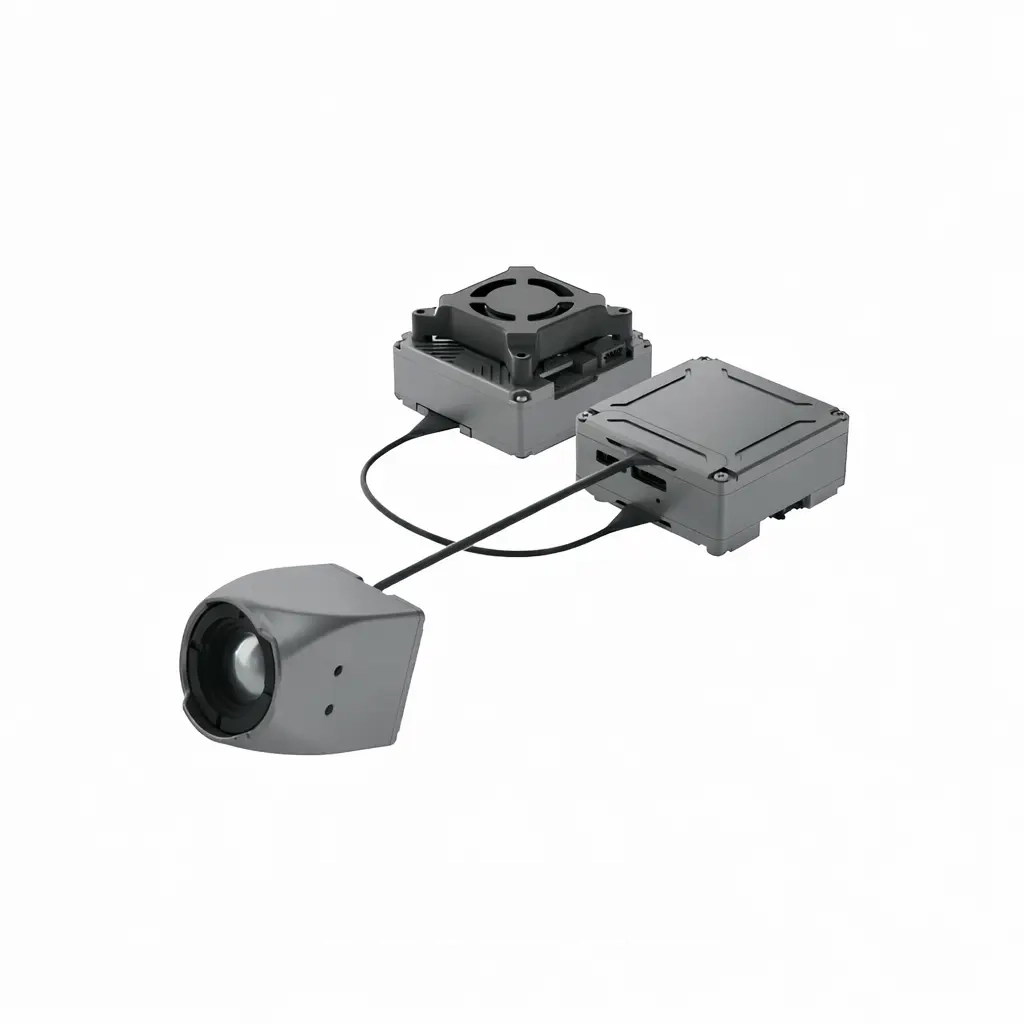

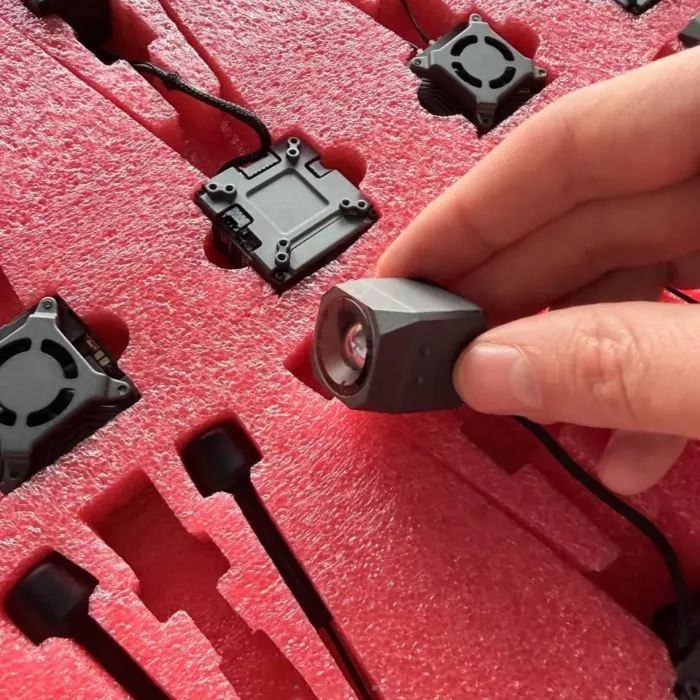

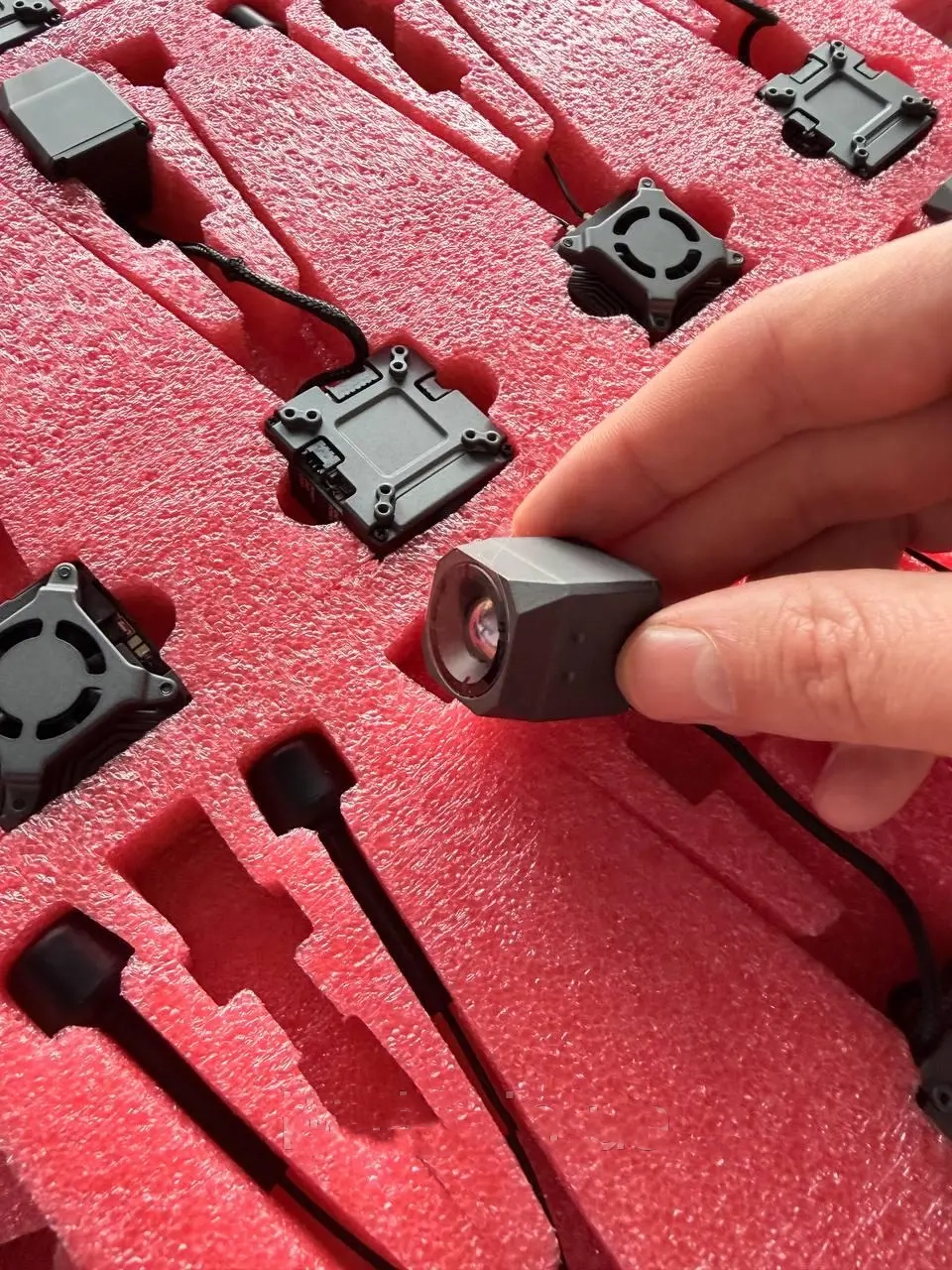

CADDX ECLIPSE 009HD with Avatar GT VTX 2W

Eclipse 009HD – a new generation digital thermal imaging camera for FPV drones and unmanned platforms, built on the basis of Pixelpump Gen3 image processing technology. The camera provides high thermal image detail, clear separation of heat sources and improved object display quality even in difficult observation conditions.

The model supports work with digital video transmission systems Walksnail Avatar GT VTX and Walksnail Ascent GT Pro VTX, as well as simultaneous video output via the UVC interface, which allows the camera to be used for monitoring, recording and transmitting video to external devices.

Adjustments for brightness, contrast, color palette, mirroring and digital zoom are available for configuration. Control is carried out via the ADKEY interface or via the UVC protocol.

The camera supports custom OSD captions, which allows you to display additional information on top of the video signal.

Key benefits

• High-detail thermal imaging
• Pixelpump Gen3 image processing technology
• 960×768 resolution
• Simultaneous video output to HD VTX and UVC
• Smooth digital zoom up to 4×
• Adjustable brightness, contrast and palettes
• Supports custom OSD
• Compact size and light weight
• Operates over a wide temperature range
• Compatible with Walksnail Avatar GT and Ascent GT systems Pro

Technical specifications

• Model: Eclipse 009HD
• Device type:Thermal camera
• Resolution: 960×768 (Pixelpump Gen3)
• Frame rate: 50Hz
• Video interface: Avatar / Ascent HD VTX + UVC (simultaneous)
• Operating voltage: 4.5-20V
• Power consumption: <1.5W
• Focal distance: 9.1 mm Aperture: F1.0 Viewing angle: 48.3° (H) × 38.6° (V) Digital zoom: 1.0-4.0× Color palette: 5 modes (0-4) Brightness: 0-100 Contrast: 0-100 Mirror: Horizontal / Vertical / Diagonal Setting interface: UVC, ADKEY
• Operating temperature: -20°C ~ +50°C
• Camera dimensions: 22 × 22 × 28.43 mm

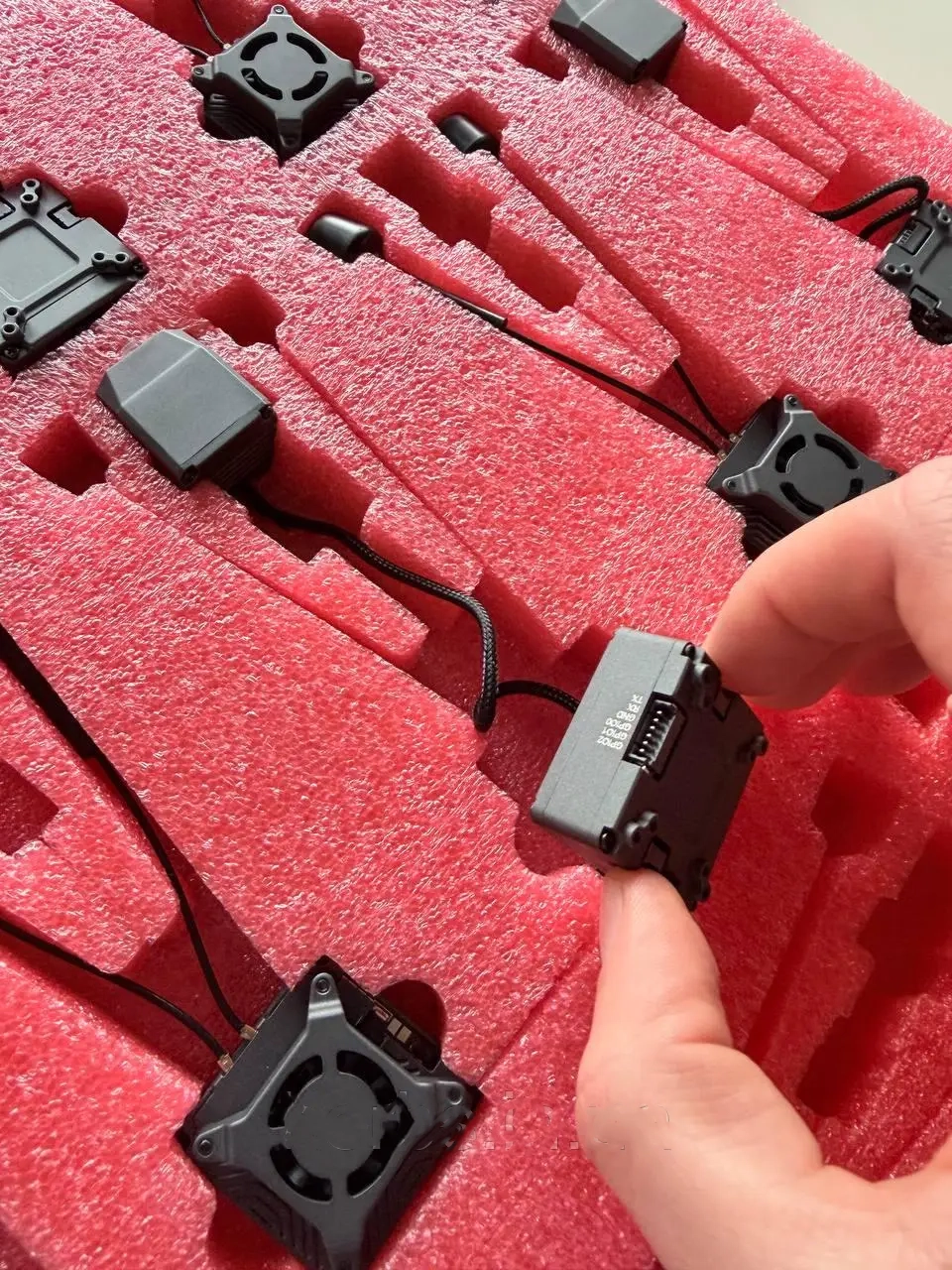

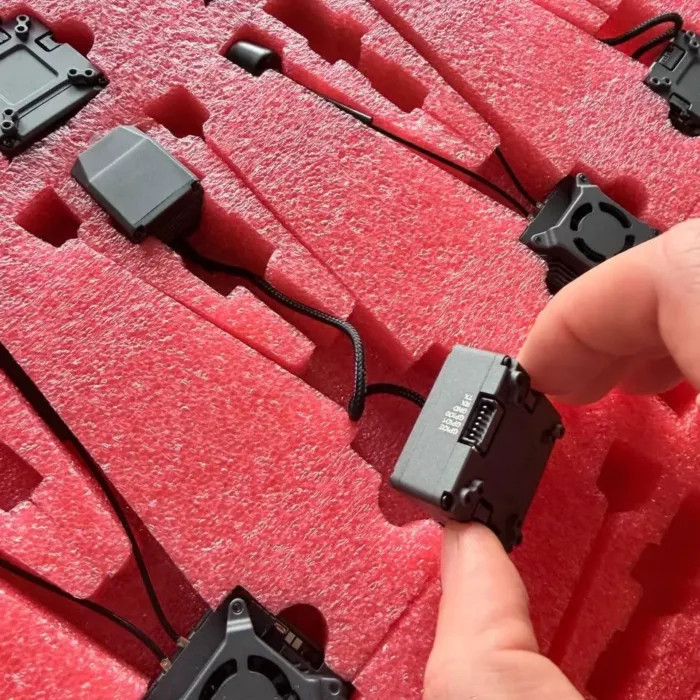

Interfaces

• UVC (USB Video Class)
• ADKEY
• UART RX
• UART TX
• SBUS
• Power supply VCC / GND

UVC functionality

• Video format MJPEG
• UVC stream resolution 640×512
• Adjust brightness
• Adjust contrast
• Change color palettes
• Control digital zoom

Compatibility

• Walksnail Avatar GT VTX
• Walksnail Ascent GT Pro VTX
• Eclipse 009 AI Box

Package

• Eclipse 009HD thermal imaging camera
• Connection cables
• ADKEY configuration interface board
• User manual
