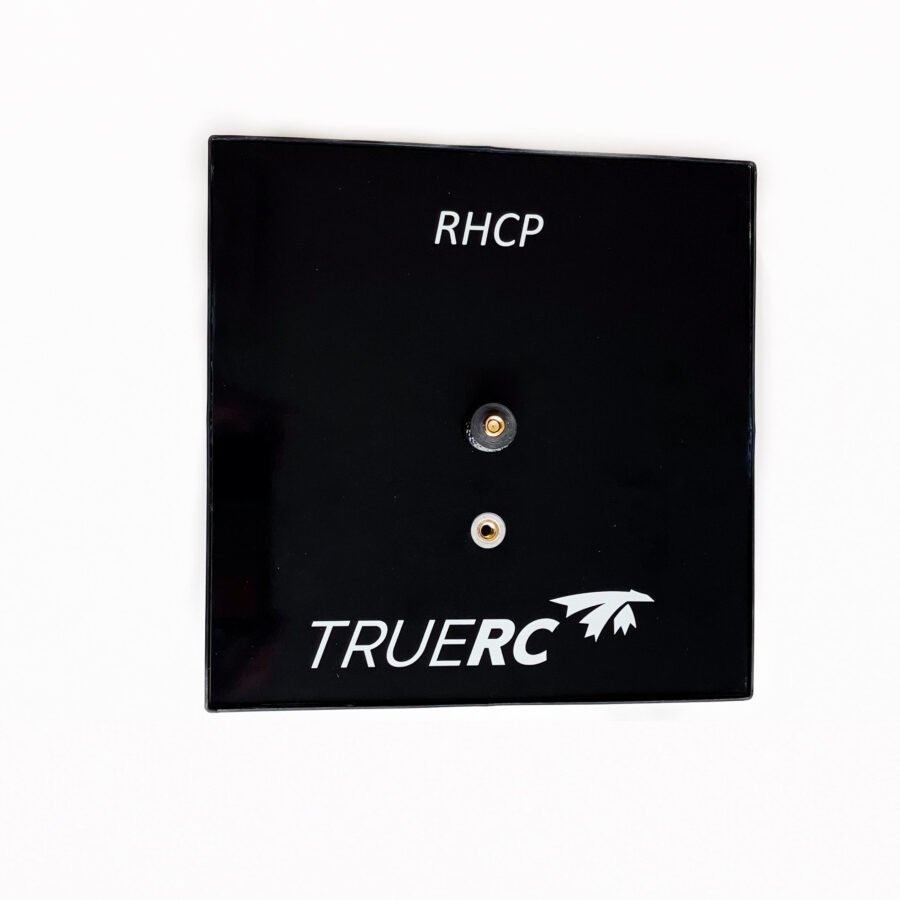

The new X-AIR 900 is our latest redesign of the crosshair antenna. It put an end to the only downside of this type of antenna: their size. Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment. A 1/4-20 mounting point in the back, make that feather weight super easy to attach to your ground station.
SPECS
Frequency: 900MHz ISM band
Gain: 10 dBic
Polarization: RHCP or LHCP
Radiation efficiency : 98%
Beam-width*: 120deg
Beam-width @-3dB**: 68deg
Connector: SMA male
Dimension: 222mm x 222mm x 45mm
Mounting: Standard 1/4-20 flush thread
Weight:324g
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
