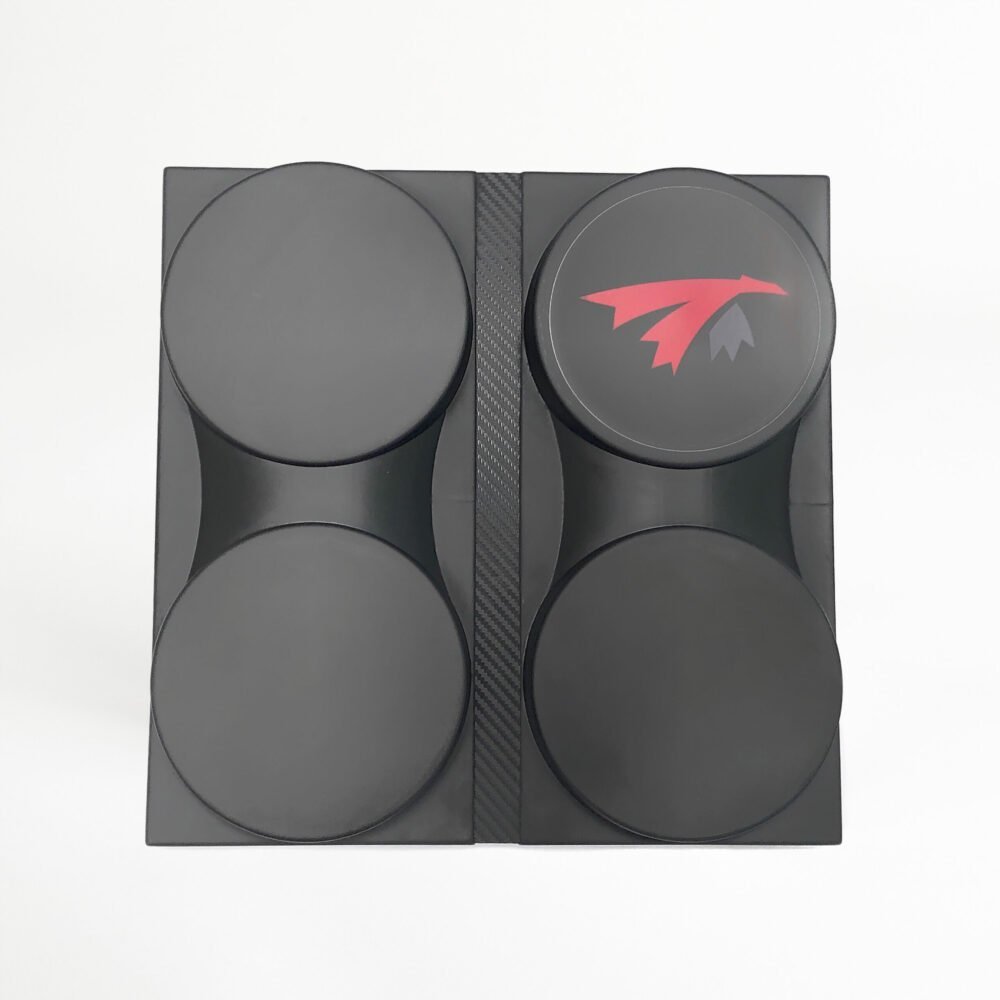

The new Gatling 1.3 use our latest redesign of the crosshair antenna. Smaller footprint, lighter weight and same great performance as the original. A 1/4-20 mounting point in the back, make it super easy to attach to your ground station.
SPECS
Frequency: 1.200-1.360GHz
Gain: 16 dBic
Polarization: RHCP or LHCP
Radiation efficiency: 98%
Beam-width*: 66deg
Beam-width @-3dB**: 32deg.
Connector: SMA male
Dimension: 360mm x 360mm x 40mm
Mounting: Standard 1/4-20 thread
Weight: 650g
Coverage where reception is at least equivalent to an omni.
Coverage where at least 70% of the max range is obtained.
