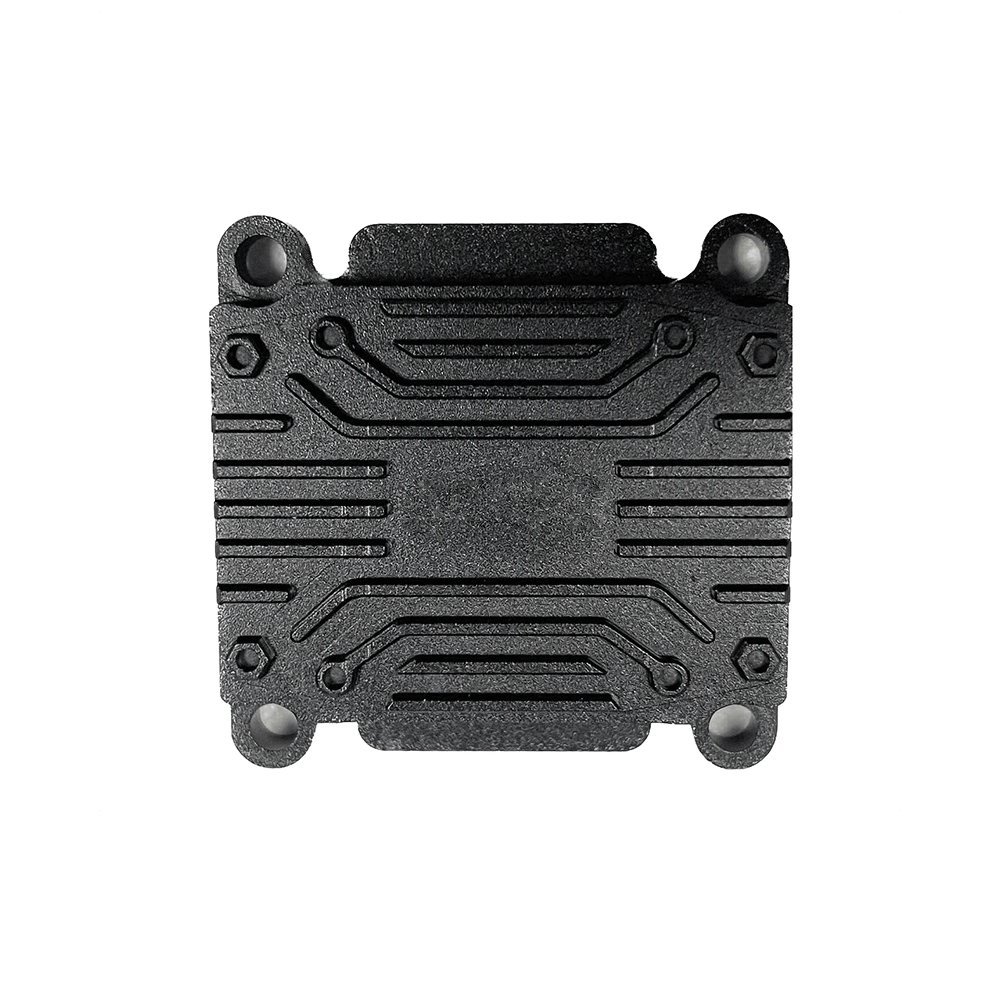

5.8G 2.5W VTX

Features

Large output power, stable output power, long transmission distance;

6-speed switching of transmission power: PIT/25mW/400mW/800mW/1500mW/2500mW;

Quick frequency locking, no interference with companions when turned on;

With self-test function of output power;

Full video format: NTSC/PAL;

All-metal CNC shell, dustproof and explosion-proof, good heat dissipation, stable power.

Specs：

Voltage：7-36v

Current：≤450mA@12V,800mW

≤850mA@12V,2500mW

Usage Environment：-10~60°C

Weight：14.5g

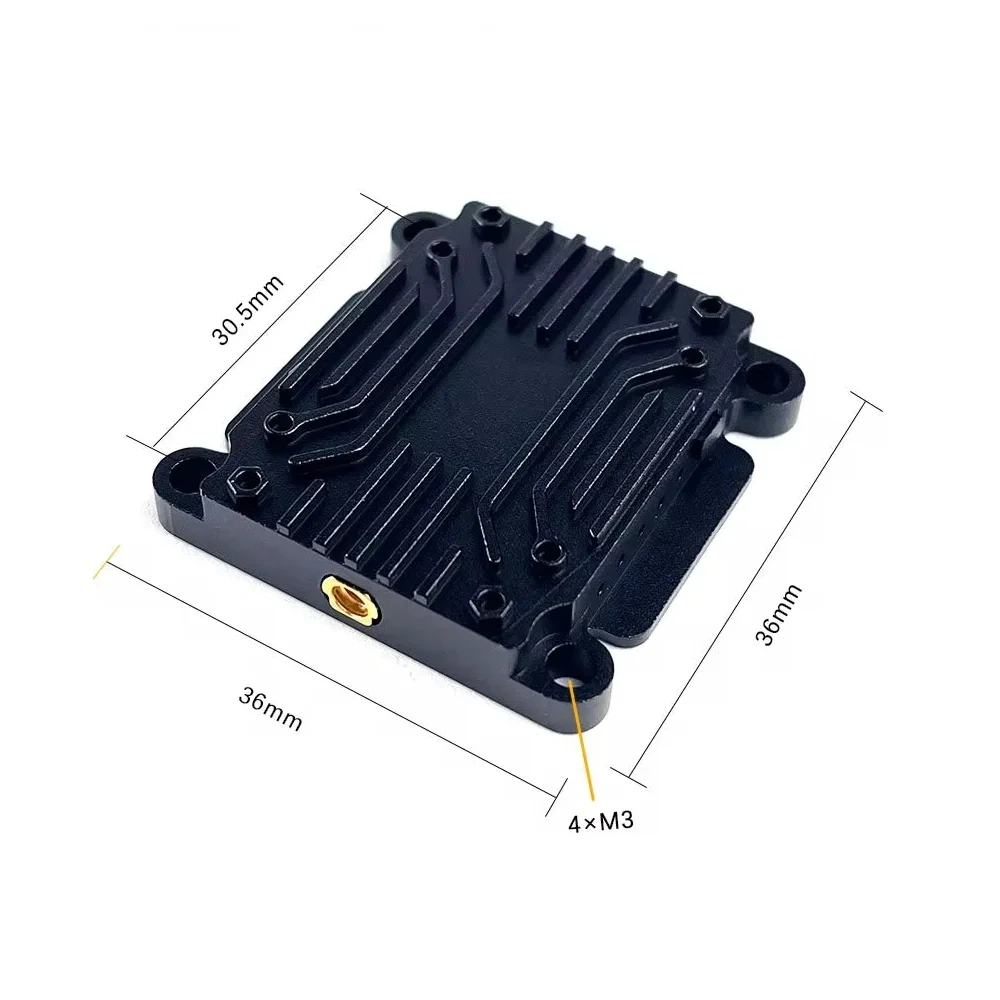

Dimension：36mmx36mmx6.5mm

Installation Hole：30.5×30.5/ M3

Antenna Connector：MMCX

Video Format：NTSC /PAL

Output Power：PIT/25mw/400mW/800mW/1500mW/2500mw

VTX Protocol：IRC
