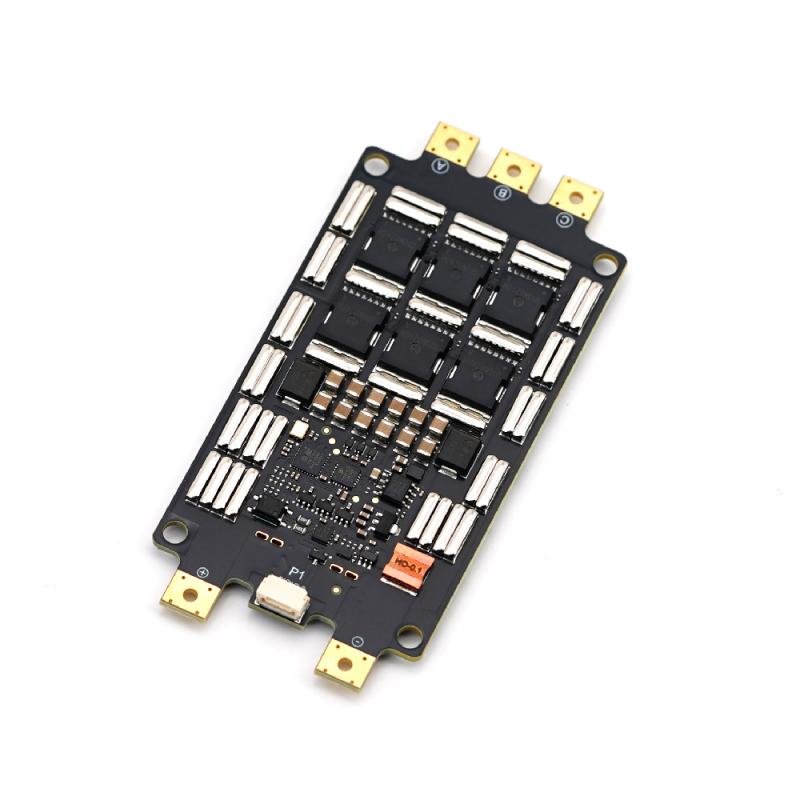

TBS Lucid 16S 120A RAWDOG ESC

The TBS Lucid 12S is a force to be reckoned with. Built for high voltage and high power applications that demand high reliability and power at your fingertips.

Featuring a 10 layer high current density board with excellent heat resistance the ESC is built to withstand the harshest punishment of everyday flying while delivering excellent payload capabilities. With built in TVS, voltage spikes are no longer a concern. By focusing on thermal dissipation from the ground up, the ESC achieves excellent power to weight density without the need of heavy heat sinks.

A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.

The TBS Lucid 16S 120A Rawdog ESC is the stripped-down, bare-bones version of our 200A version. Same internals, same performance DNA — just without the heatsink and capacitors.

Important notes

Remember to add your own capacitors. We recommend 470uF x 3 at 100V. The ESC will run up to 120A out of the box, but the moment you add your own heatsink you unlock the full potential of the underlying hardware.

Remember to wire up the GND connection of your signal wire back to the FC. At high voltages, this is required.

Download

• STEP file for design / prototyping – [DOWNLOAD]

Specifications

Package contents

• 1x TBS Lucid 16S 120A Rawdog ESC
