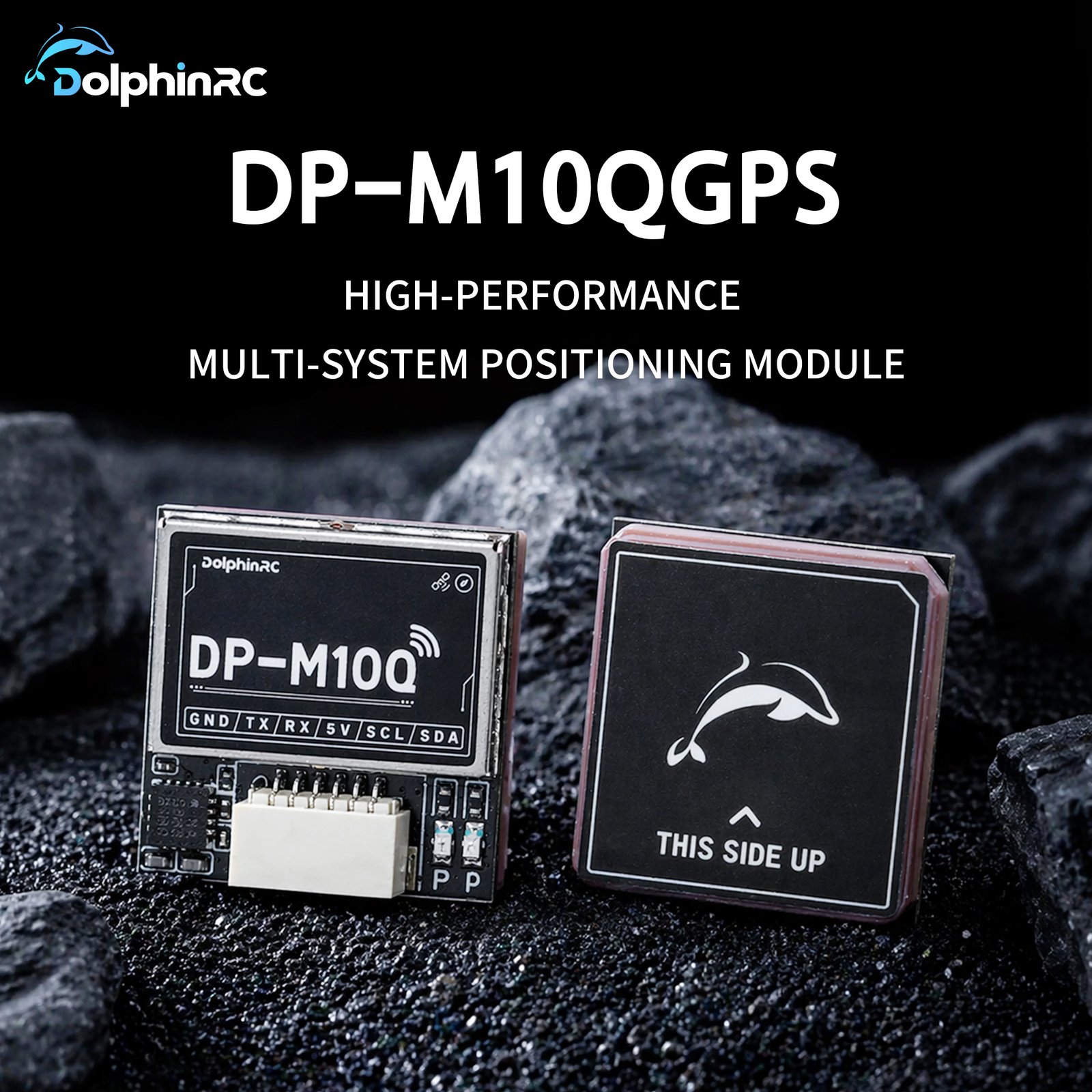

DolphinRC DP-M10Q GPS Module (High Precision GNSS)

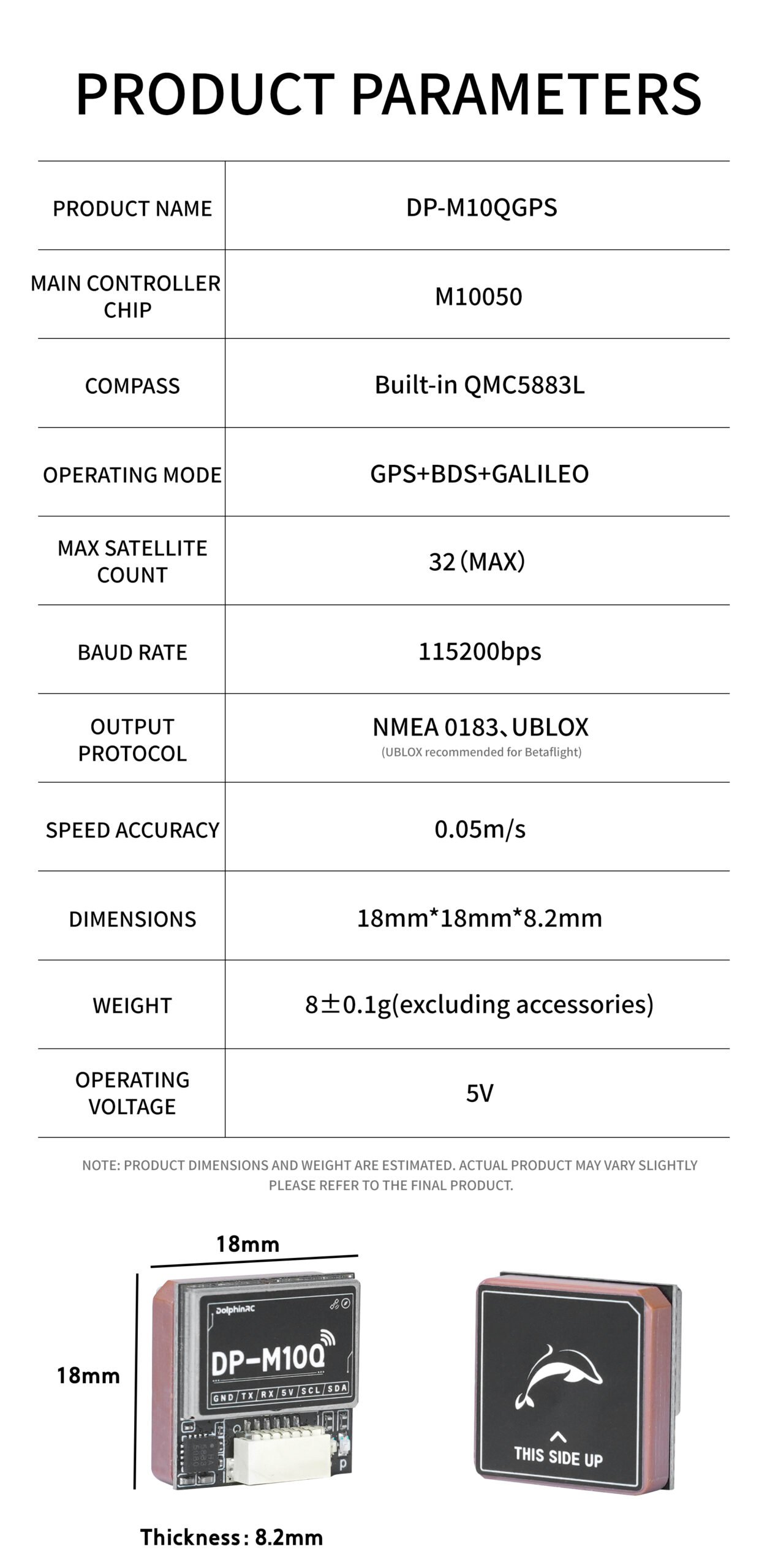

Features:

Product Name: DP-M10Q GPS
Main Control Chip: M10050
Compass: Built-in QMC5883L (Electronic Compass / Magnetometer)
Operating Mode: GPS + BDS (BeiDou) + Galileo
Max Satellites: 32 (Maximum)
Baud Rate: 115200 bps
Output Protocol: NMEA 0183, UBLOX (UBLOX is recommended for Betaflight)
Velocity Accuracy: 0.05 m/s
Horizontal Positioning Accuracy: 2D ACC 1.5 mm (Open outdoor environment)
Cold Start Time: ≤ 26 seconds
Hot Start Time: ≤ 1 second
Connector Type: SH1.0 6-pin (1.0mm pitch)
Core Module Dimensions: 12 × 18 × 2 mm (Chip/Core module only)
Operating Voltage: 5V
Operating Current: 34 mA
Indicator Light: Solid red when powered on
PPS Light (Pulse Per Second): Off when no fix; continuously flashes after positioning is successful
Overall Module Dimensions: 18 mm × 18 mm × 8.2 mm (Including case/whole module)
Weight: 8 ± 0.1g (Excluding accessories like cables and antenna)

Specifications:

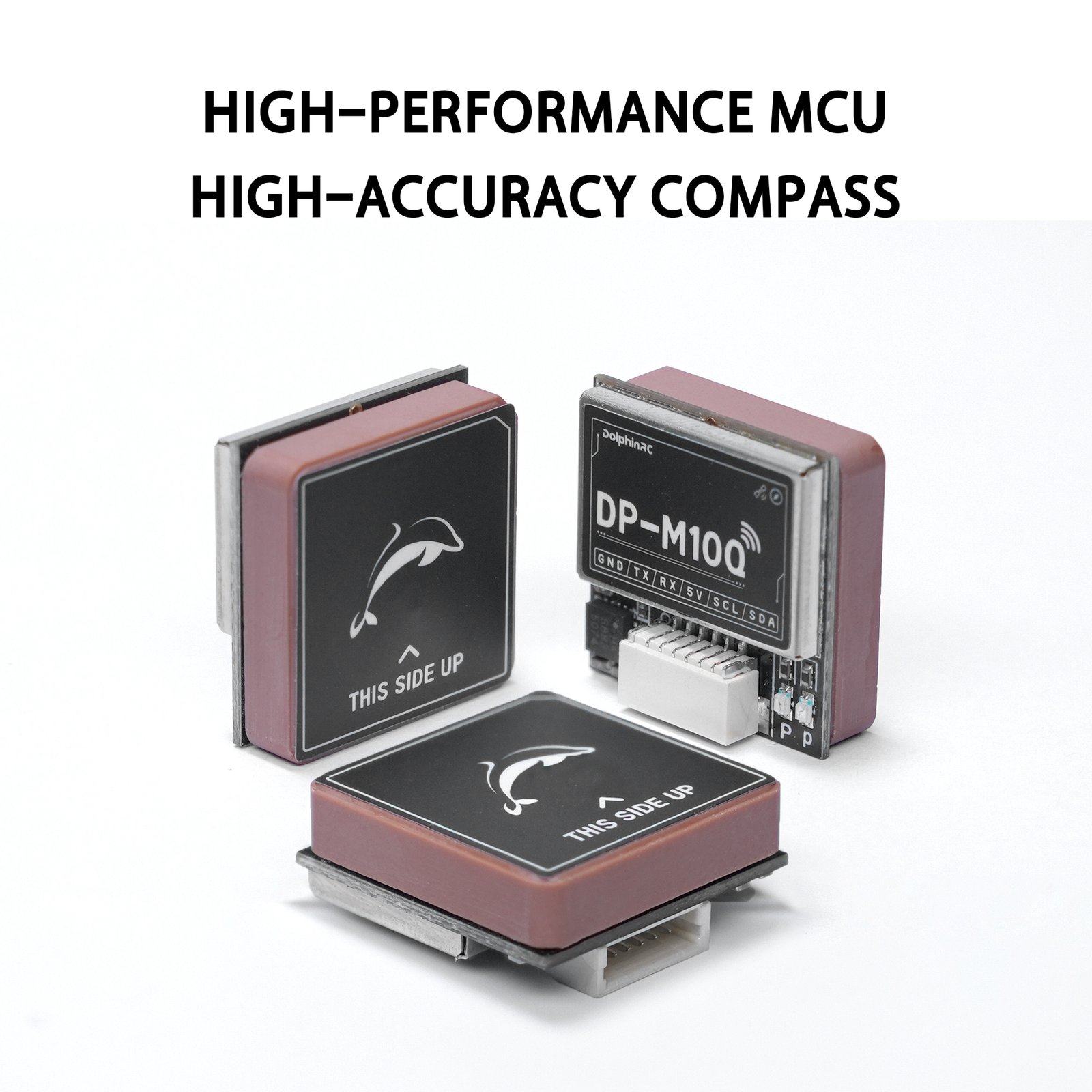

● High-Performance Core & Precision Compass
Equipped with the M10050 high-performance main control chip and built-in QMC5883L high-precision electronic compass, delivering stable and accurate positioning and heading data.

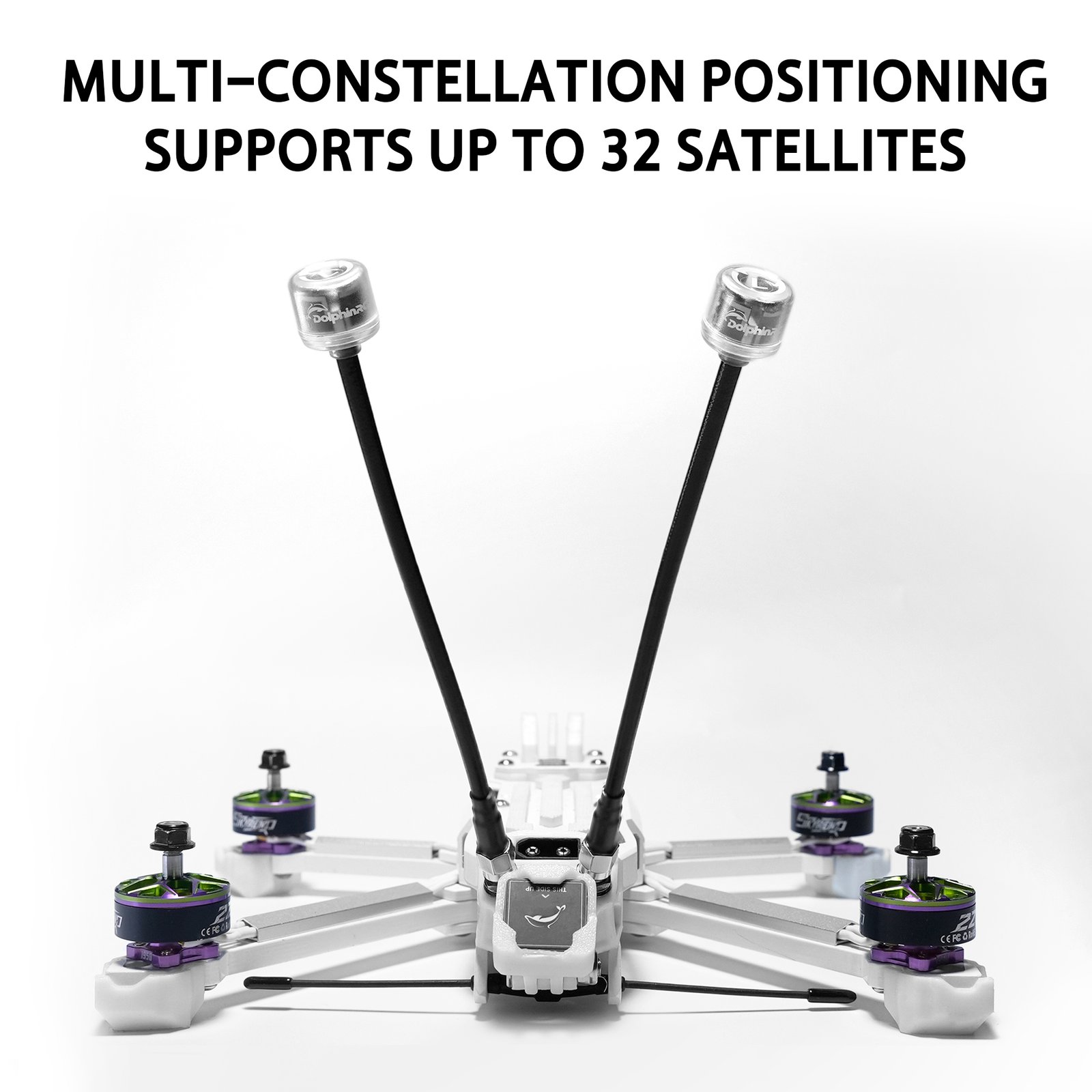

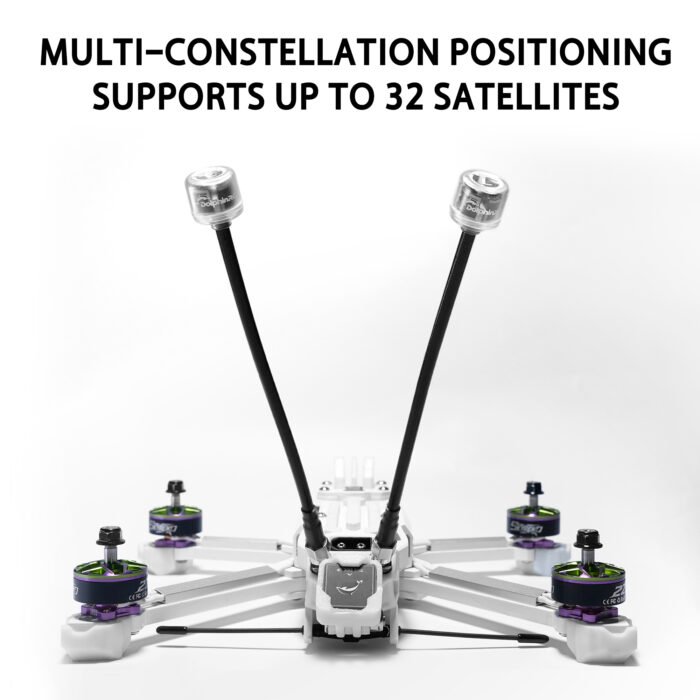

● Multi-System Satellite Support
Compatible with GPS + BDS + GALILEO multi-system satellite positioning, supporting up to 32 satellites. Maintains fast signal locking even in complex environments.

● Powerful Positioning Performance
Excellent horizontal positioning accuracy in open outdoor areas with minimal velocity error. Provides stable hover performance and significantly reduces drift and jitter during flight.

● Fast Cold/Hot Start
Superior start-up speed — instantly locks satellites during hot start, and quickly achieves positioning during cold start. Meets the demands of racing, aerial photography, and emergency flight scenarios.

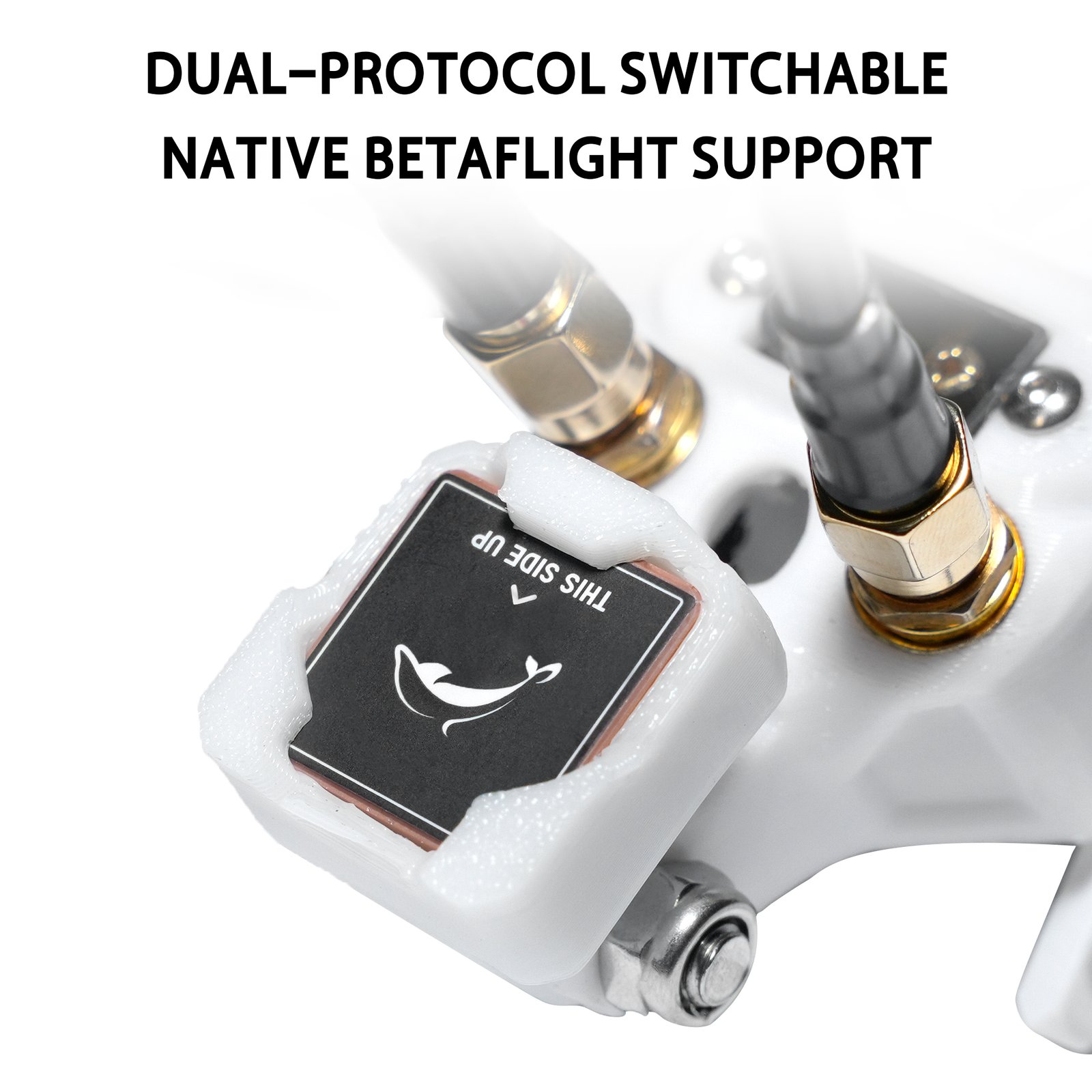

● Dual Protocol Support
Freely switch between NMEA 0183 and UBLOX protocols. Perfectly compatible with Betaflight flight controller firmware (UBLOX recommended).

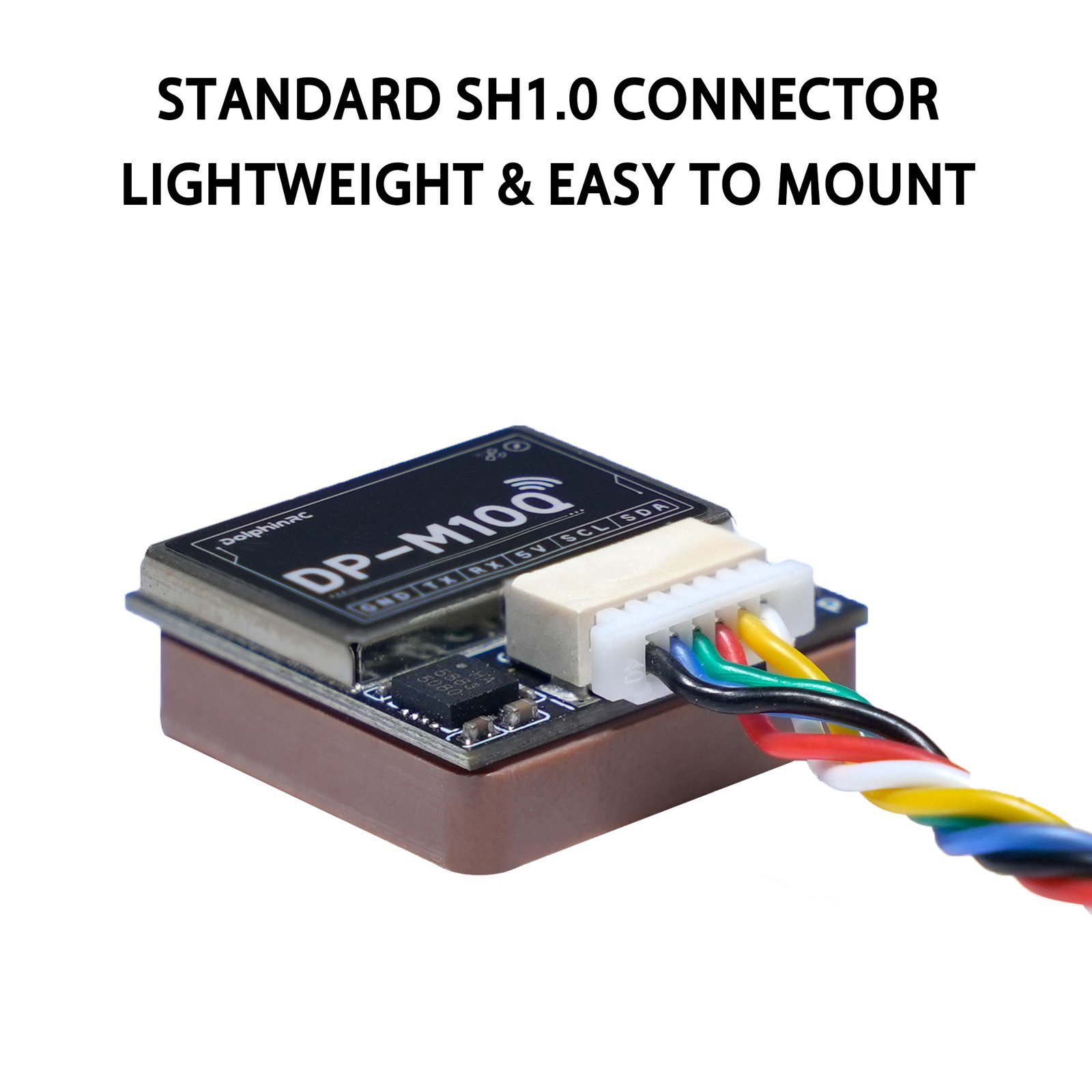

● Standard Connector & Compact Design
Features a standard SH1.0 6-pin interface for plug-and-play convenience. Compact, lightweight design reduces airframe load and simplifies wiring during installation.

● Status Indicators & Low Power Consumption
Built-in status LEDs provide clear indication of power-on and positioning status. Low operating current ensures stable performance and strong anti-interference capability.

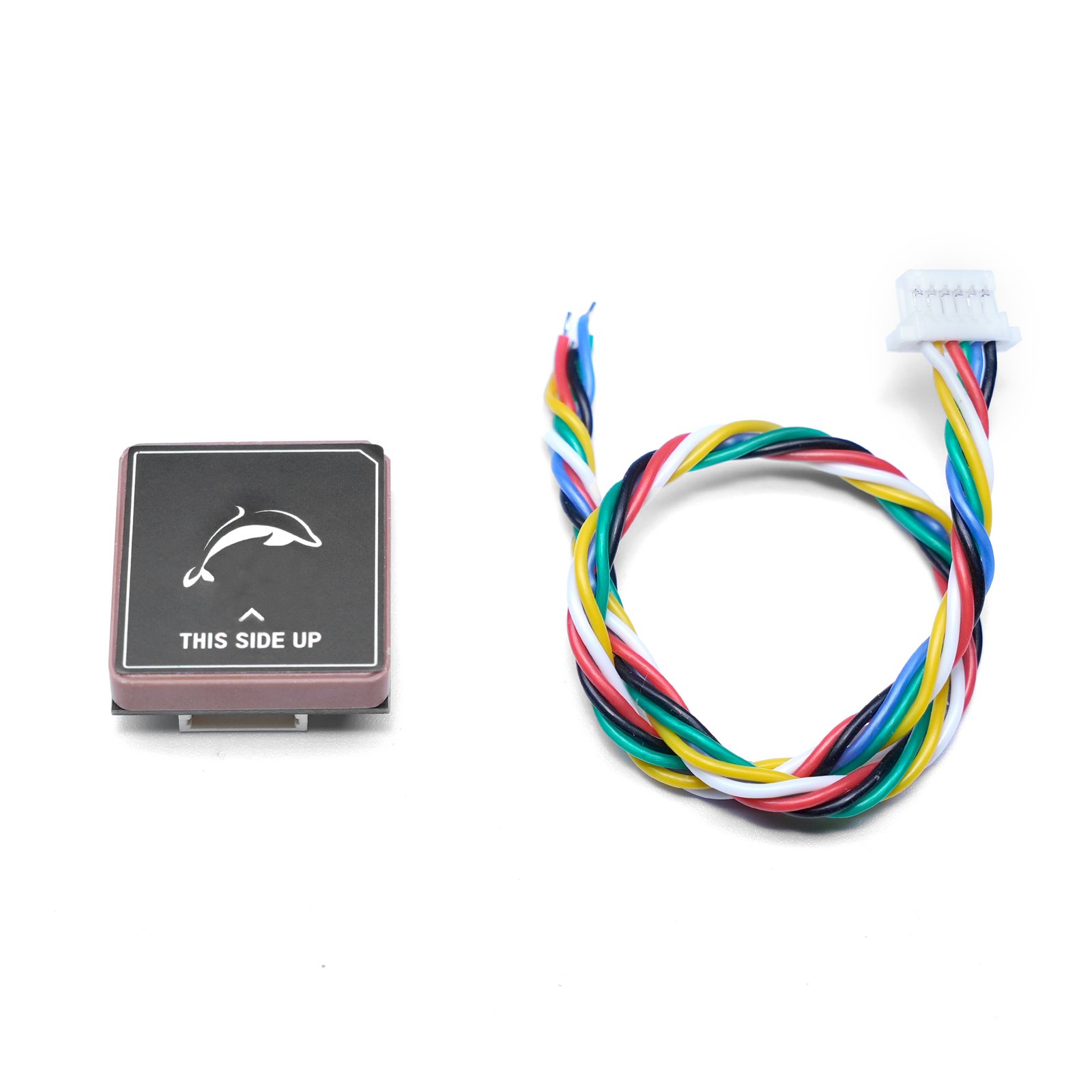

Package Includes:

DP-M10Q GPS Module × 1
SH1.0 6-Pin Single-Ended Ribbon Cable × 1
