Ascent GT PRO Z8 digital FPV system kit

Description

Ascent GT PRO Z8 digital FPV system kit is designed to reliably transmit clear 1080P 60FPS images with an average latency of only 35ms. The efficient transmission module provides a stable and continuous signal in the frequency range of 5.650-5.924GHz with support for 3 channels and the ability to automatically or manually tune the frequency. The camera is equipped with a 2.6 mm lens with a 1/1.2″ image sensor and provides 16:9 video with up to 8x zoom. The system operates on an input voltage of 11.1V-25.2V and offers extensive compatibility with BetaFlight, INAV and Ardupilot support. The compact size with 20mm and 25.5mm mounting holes allows for easy and convenient installation in a variety of radio-controlled models.

Features

• Efficient video transmission in 1080P 60FPS resolution with an average delay of only 35ms
• Designed to operate in the 5.650-5.924GHz band with support for 3 channels
• The camera is equipped with a 2.6 mm lens with a 1/1.2″ image sensor
• 16:9 aspect ratio and 8x zoom support
• Wide input voltage range 11.1V-25.2V and compatibility with BetaFlight, INAV and Ardupilot systems

Specifications

Video Transmitter

• Model: WN12-5014G
• Frequency: 5.650-5.924GHz
• Bandwidth: 10~20MHz
• Power (EIRP): 5.8GHz FCC<30dBm; CE<14dBm; SRRC<20dBm; Mic<25dBm

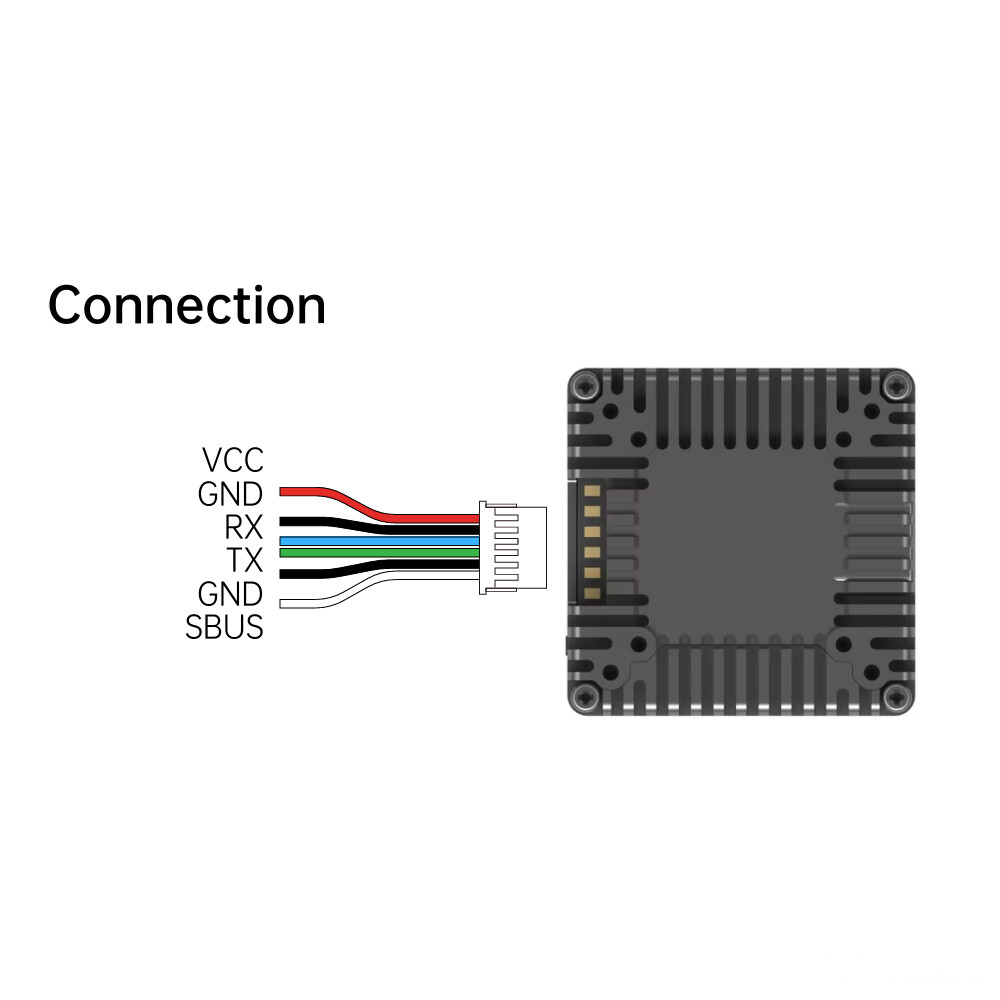

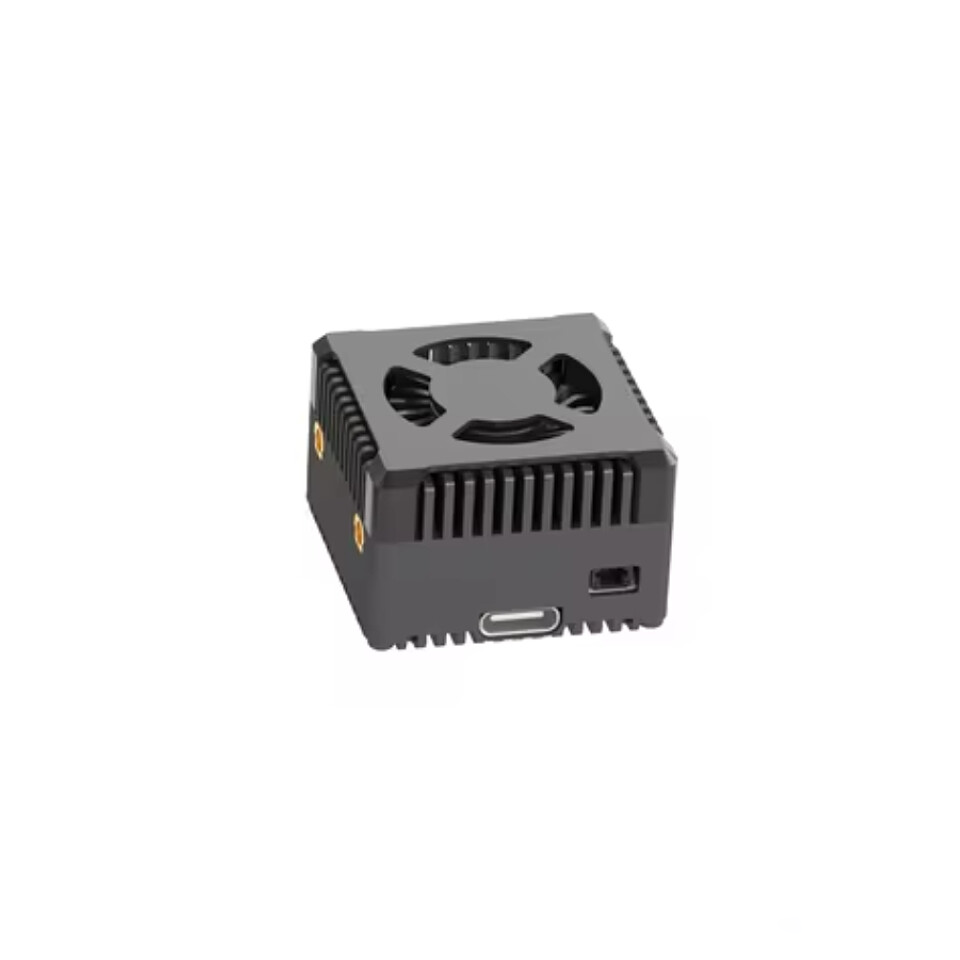

• I/O interface: SH1.0-6P, TYPE-C, Gimbal Port SH1.0-2P
• Resolution: 1080P 60FPS
• Automatic frequency: supported
• Manual frequency: supported
• Number of channels: 3
• Input voltage: 11.1V-25.2V
• Supported FC systems: BetaFlight, INAV, Ardupilot
• Supported FPV goggles: Ascent Goggles, Cine Goggles
• OSD: Canvas mode
• Average delay: 35ms
• Antennas: 2 (MMCX)
• Operating temperature: -10℃ to 40℃

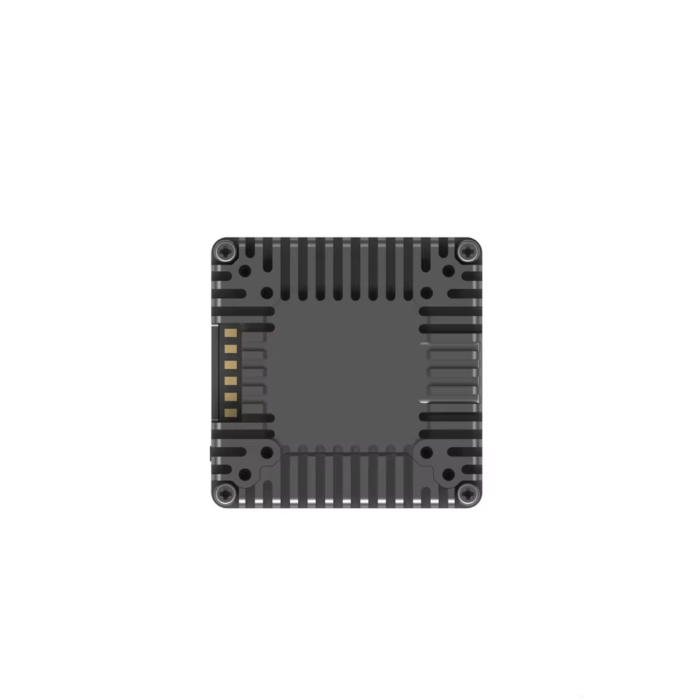

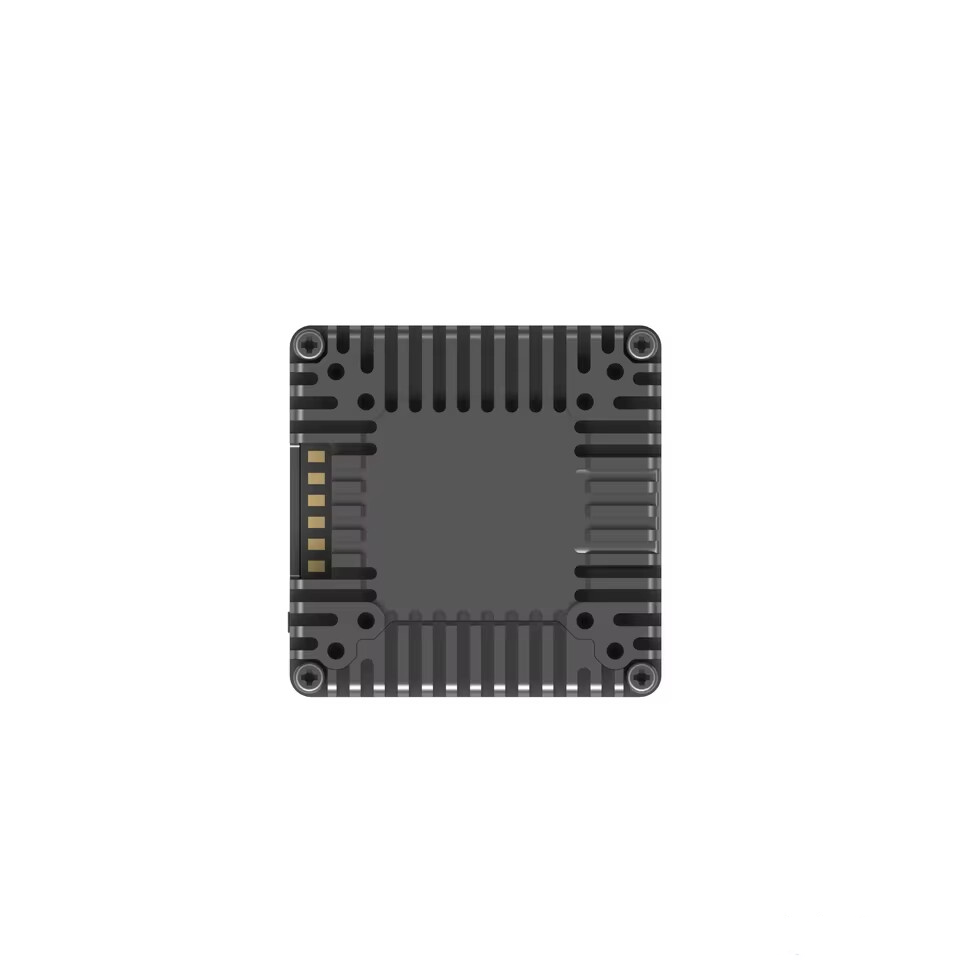

• Mounting holes: 20*20mm; 25.5*25.5mm
• Size: 34*34*22.6mm

Camera

• Image sensor: 1/1.2″
• Sensor resolution: 8000*6000
• VTX resolution: 50fps
• Aspect ratio: 16/9
• Lens: 2.6mm
• Viewing angle: 122.5°(H)*92.2°(V)
• Zoom factor: 1-8x
• Zoom method: FC MSP Control
• Coaxial cable: 140mm
• Size: 19*19*19.5mm

Package

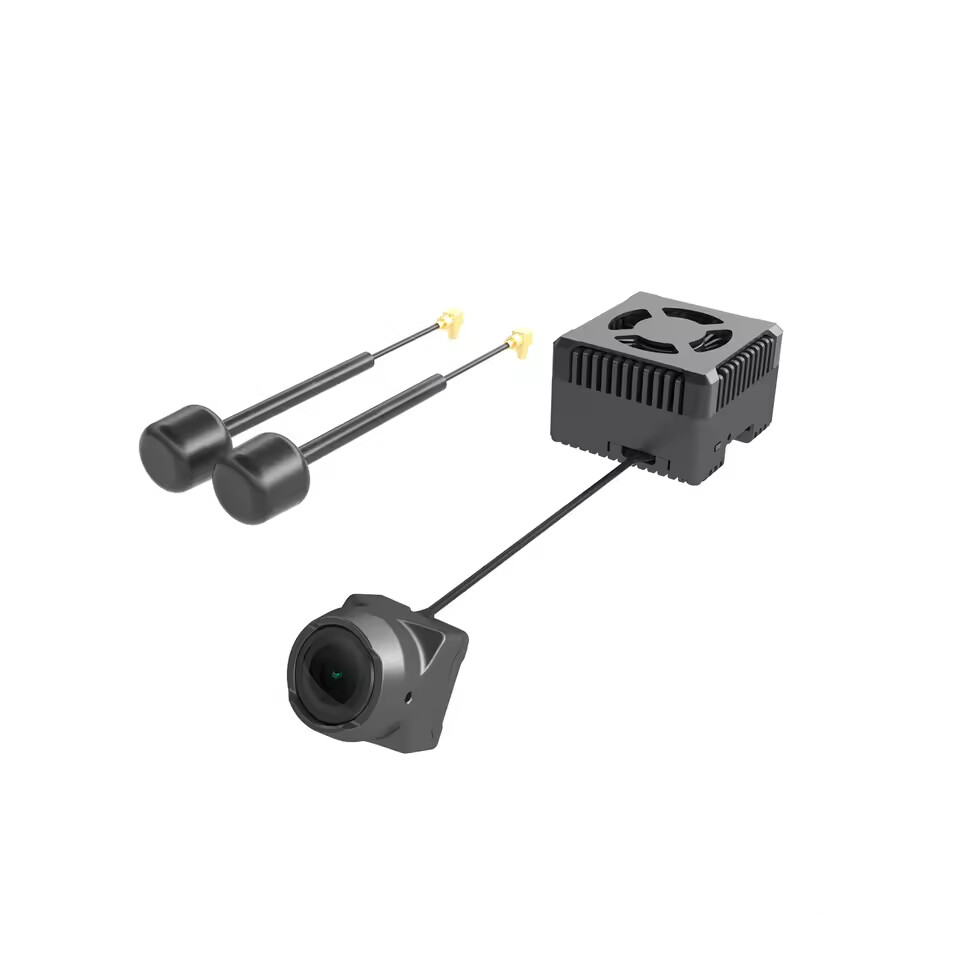

• 1 x set of digital FPV system Ascent GT PRO Z8
