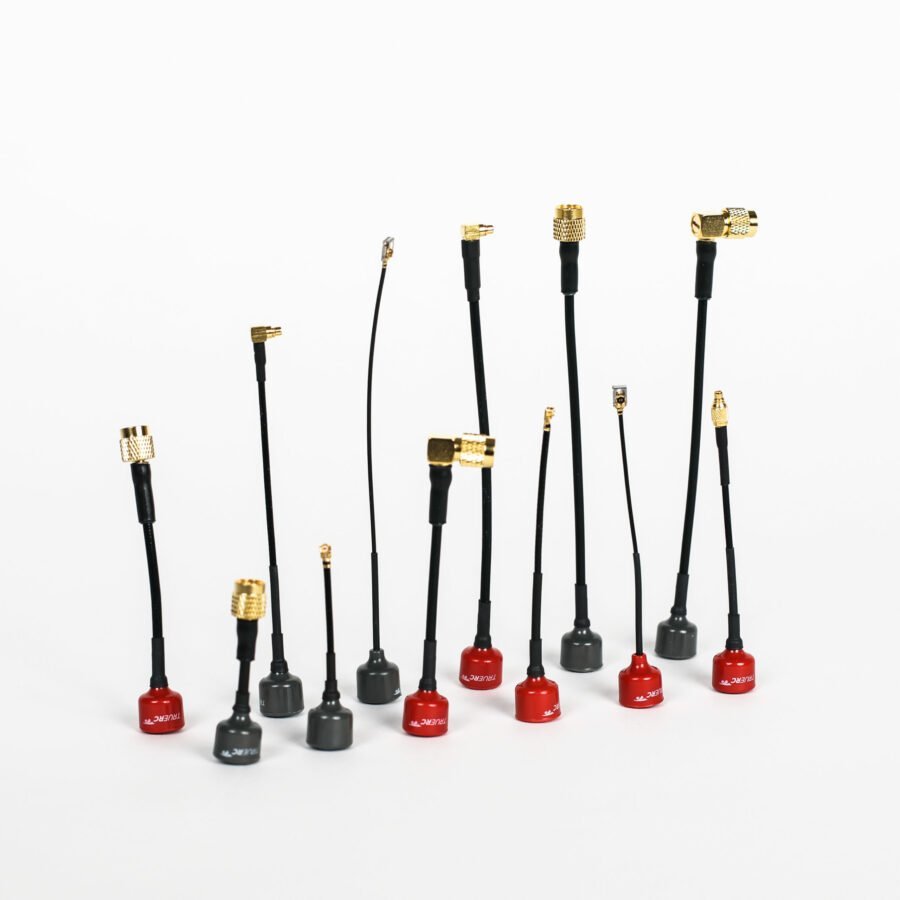

The singularity 5.8 is our most advanced antenna. We pushed miniaturization further than ever before, yet managed to push performances a notch higher still. It is the smallest and lightest 5.8GHz CP antenna ever made.
Specs:
Gain: 1.9dbic
Polarization: RHCP or LHCP
Cross-Polar Rejection: -15 to -30dB (1.9%)/
Bandwidth: 5.6GHz-6.0GHz
Radiation Efficiency: 99%
SWR: <=1.5:1
Weight: 1.03g to 3.55g depending on configuration
Dimensions(head): 11.8mm dia. x 8.2mm height (PDF)
Length: Vary with cable option
Cable: RG405, RG178, 1.13mm
Connector: True-SMA/90, MMCX/90, U.FL
