TrueRC Gatling 1.3

Description

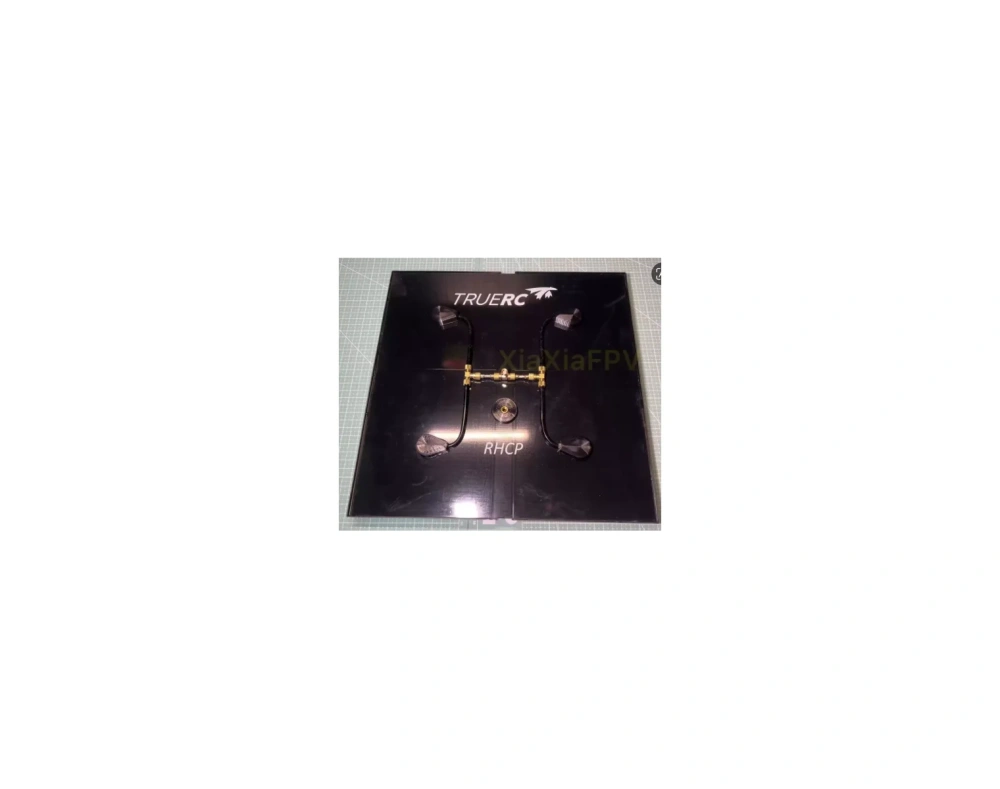

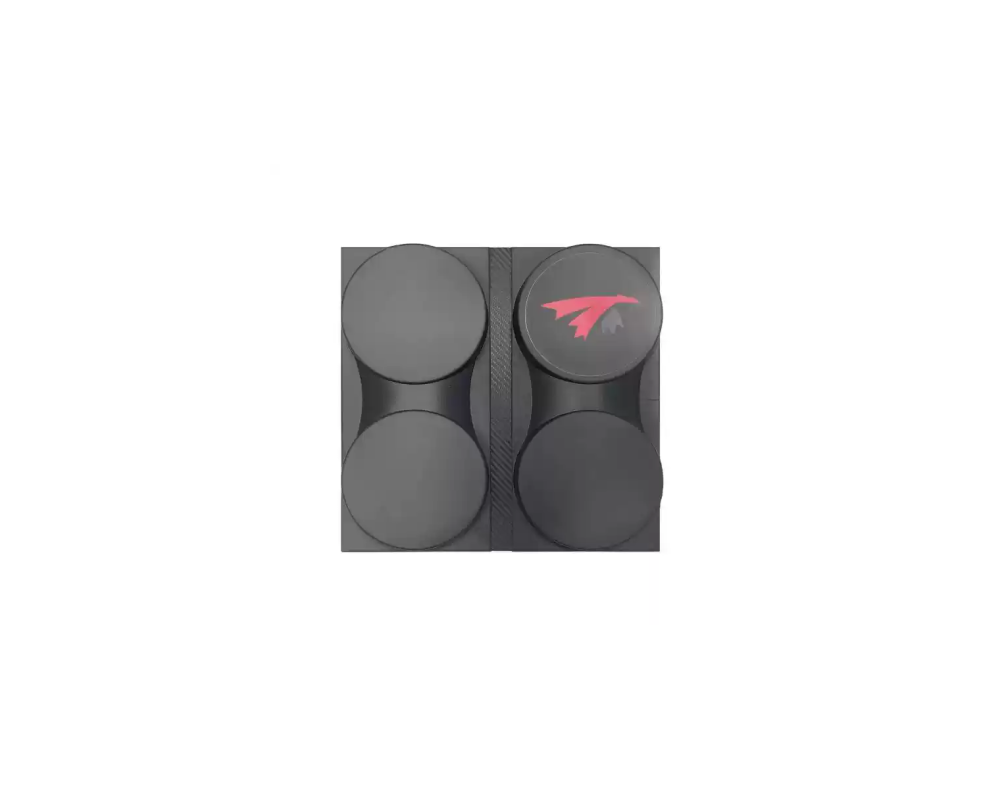

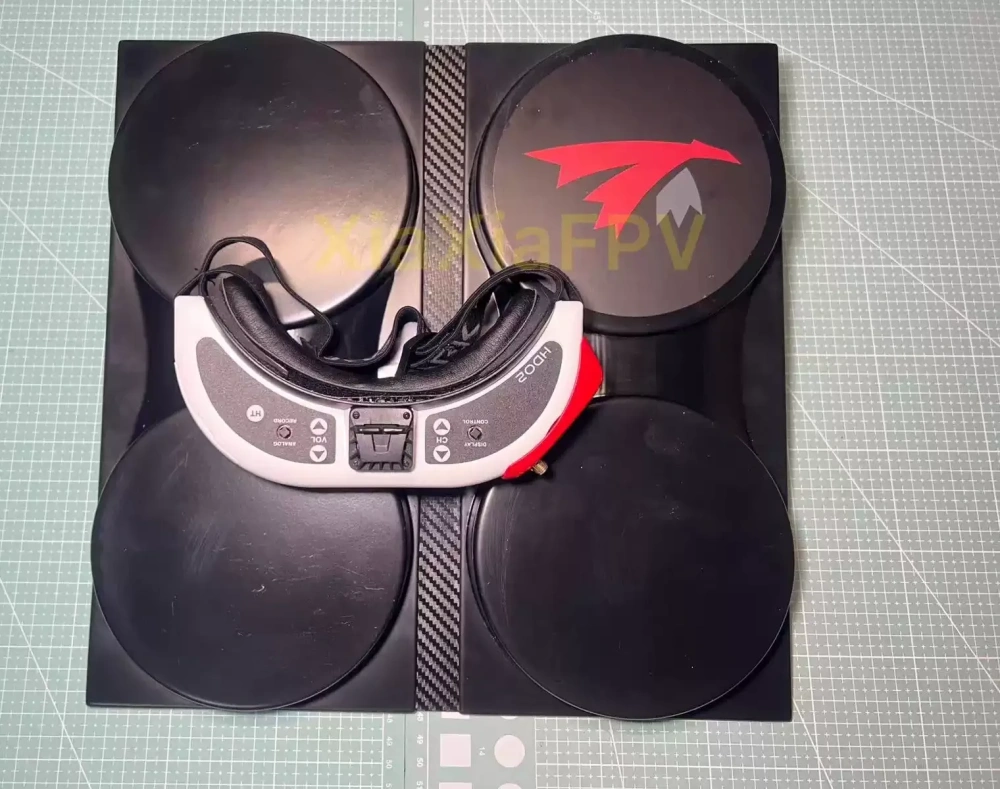

Gatling 1.3 — High-Gain 1.3GHz Crosshair Antenna

The TrueRC Gatling 1.3 uses the latest redesign of the crosshair antenna to deliver outstanding 1.2–1.36GHz performance in a smaller, lighter package. Its 16dBic gain and 66° beam width make it a powerful long-range tool.

A standard 1/4-20 mounting thread on the back makes it easy to attach to any ground station. Available in RHCP and LHCP.

*Beam-width: coverage equivalent to an omni. **@-3dB: at least 70% of max range.

Specifications

• Frequency: 1.200–1.360GHz
• Gain: 16dBic
• Polarization: RHCP or LHCP
• Radiation Efficiency: 98%
• Beam-width: 66°
• Beam-width @-3dB: 32°
• Connector: SMA Male
• Dimensions: 360mm × 360mm × 40mm
• Mounting: Standard 1/4-20 thread
• Weight: 650g
