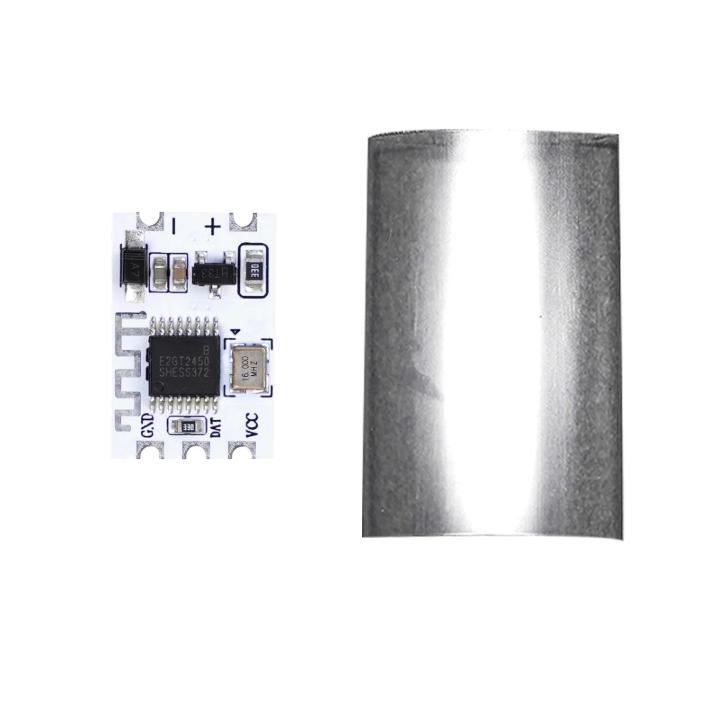

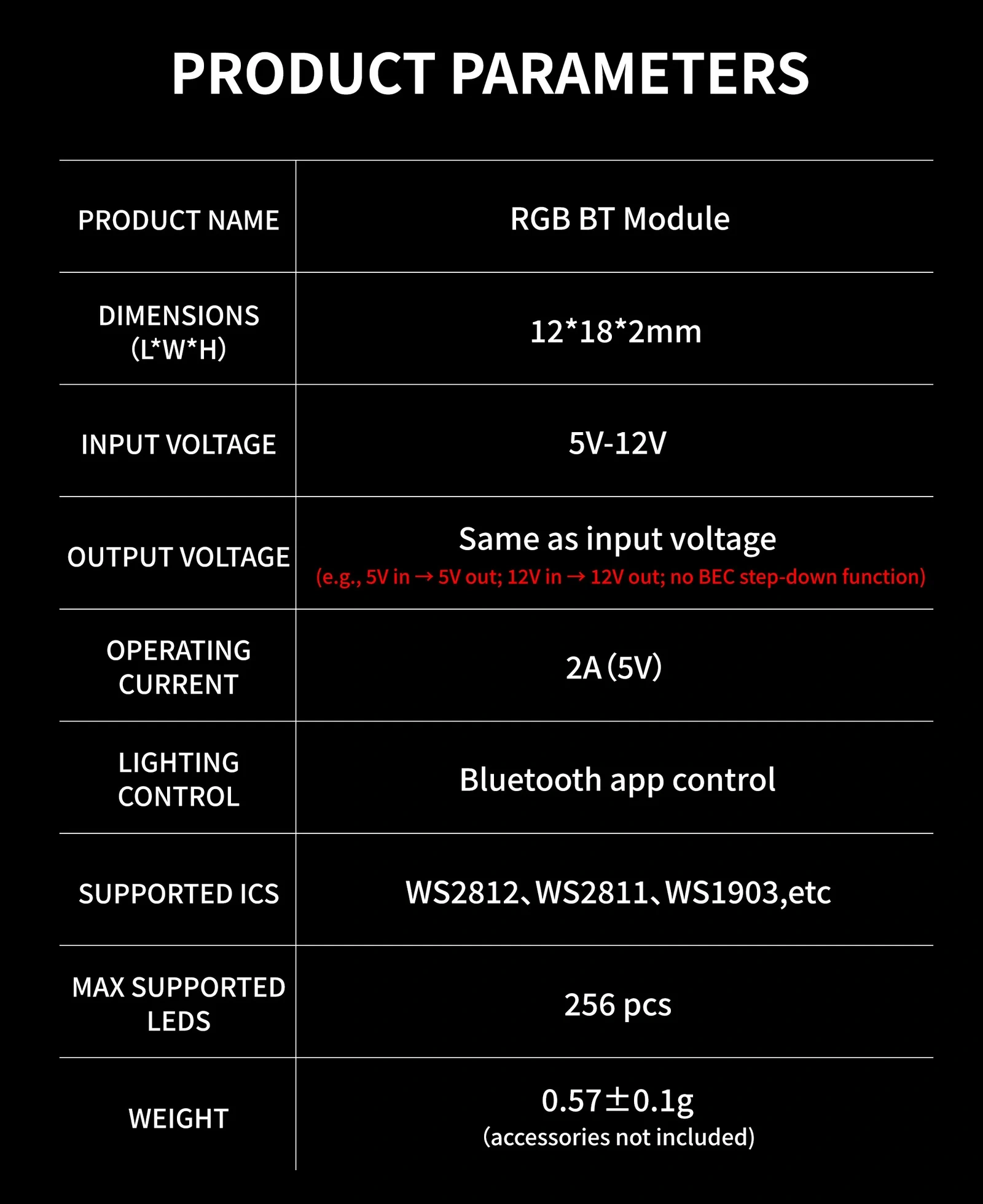

Product Name: RGB Bluetooth Control Module
English Name: RGB BT Module
Product Dimensions (LWH): 12×18×2 mm
Input Voltage: 5V–12V
Output Voltage: Same as input voltage (e.g., 5V input → 5V output; 12V input → 12V output. No BEC voltage step-down function)
Operating Current: 2A (at 5V)
Lighting Control Method: APP Bluetooth control
Supported Chips: WS2812, WS2811, WS1903, etc.
Max. Supported Number of LED Beads: 256 pcs
Usage Method: Direct soldering / onboard soldering
Weight: 0.54 ± 0.1g (excluding accessories)

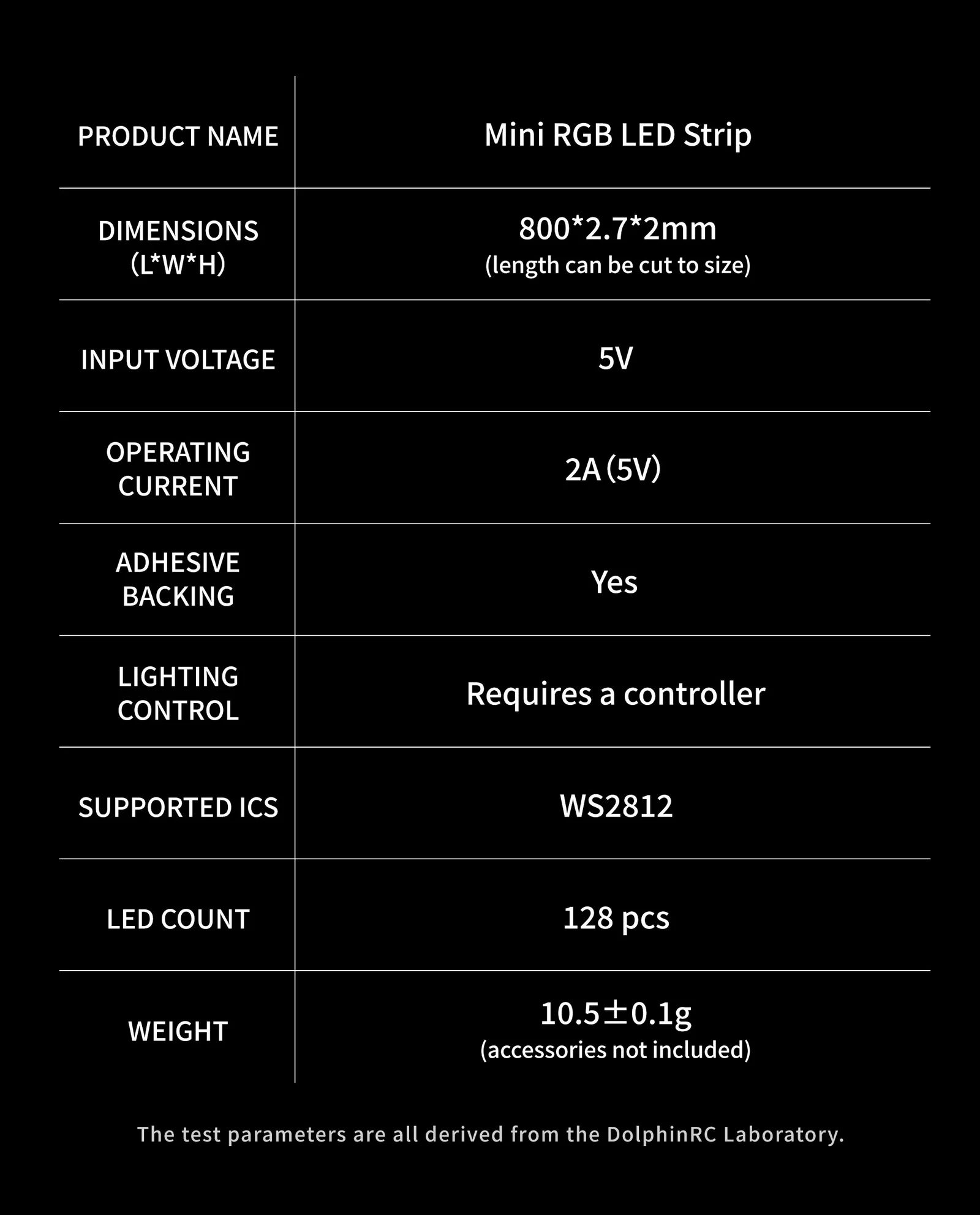

Technical Specifications (Mini RGB LED Strip)
Product Name: Mini RGB LED Strip
English Name: Mini RGB LED Strip
Product Dimensions (LWH): 800×2.7×2 mm (Length can be freely cut)
Input Voltage: 5V
Operating Current: 2A (at 5V)
Adhesive Backing: Yes
Lighting Control Method: Requires a controller
Number of LED Beads: 128 pcs
Weight: 10.5 ± 0.1g (excluding accessories)

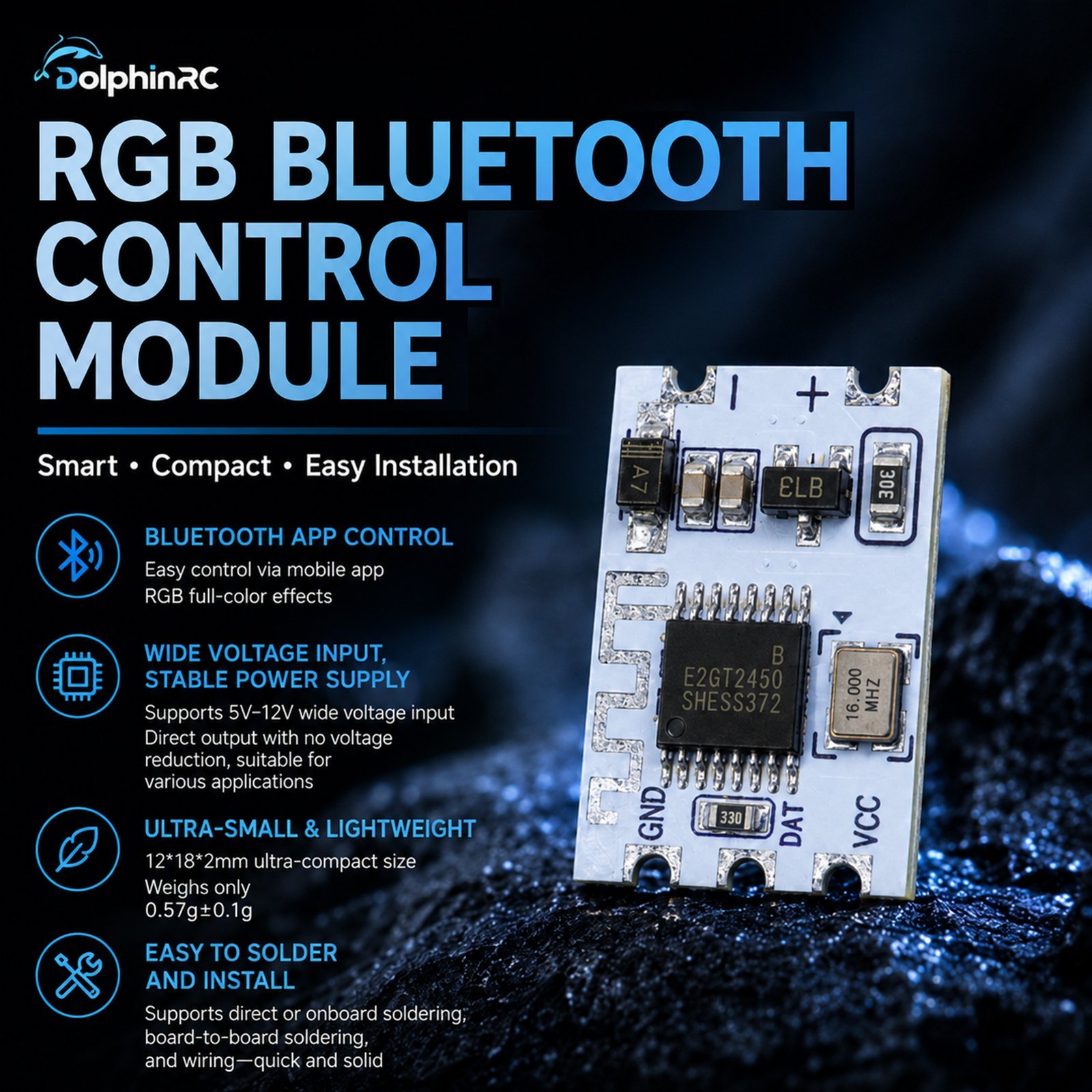

Product Features

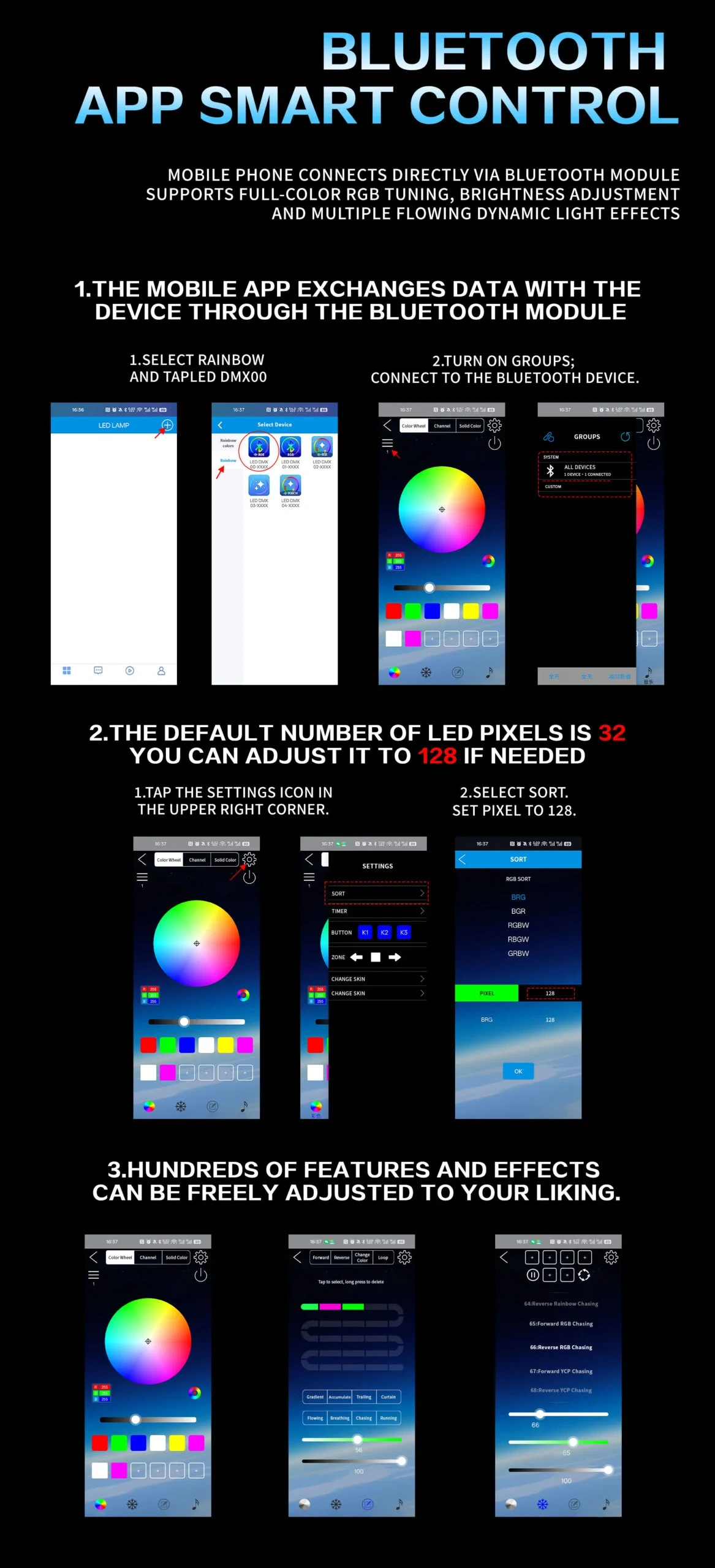

Bluetooth APP Smart Control: Directly connect the module to your smartphone via Bluetooth. Supports full-color RGB adjustment, brightness control, and a variety of dynamic lighting effects. Customizing your light effects is easy and flexible.

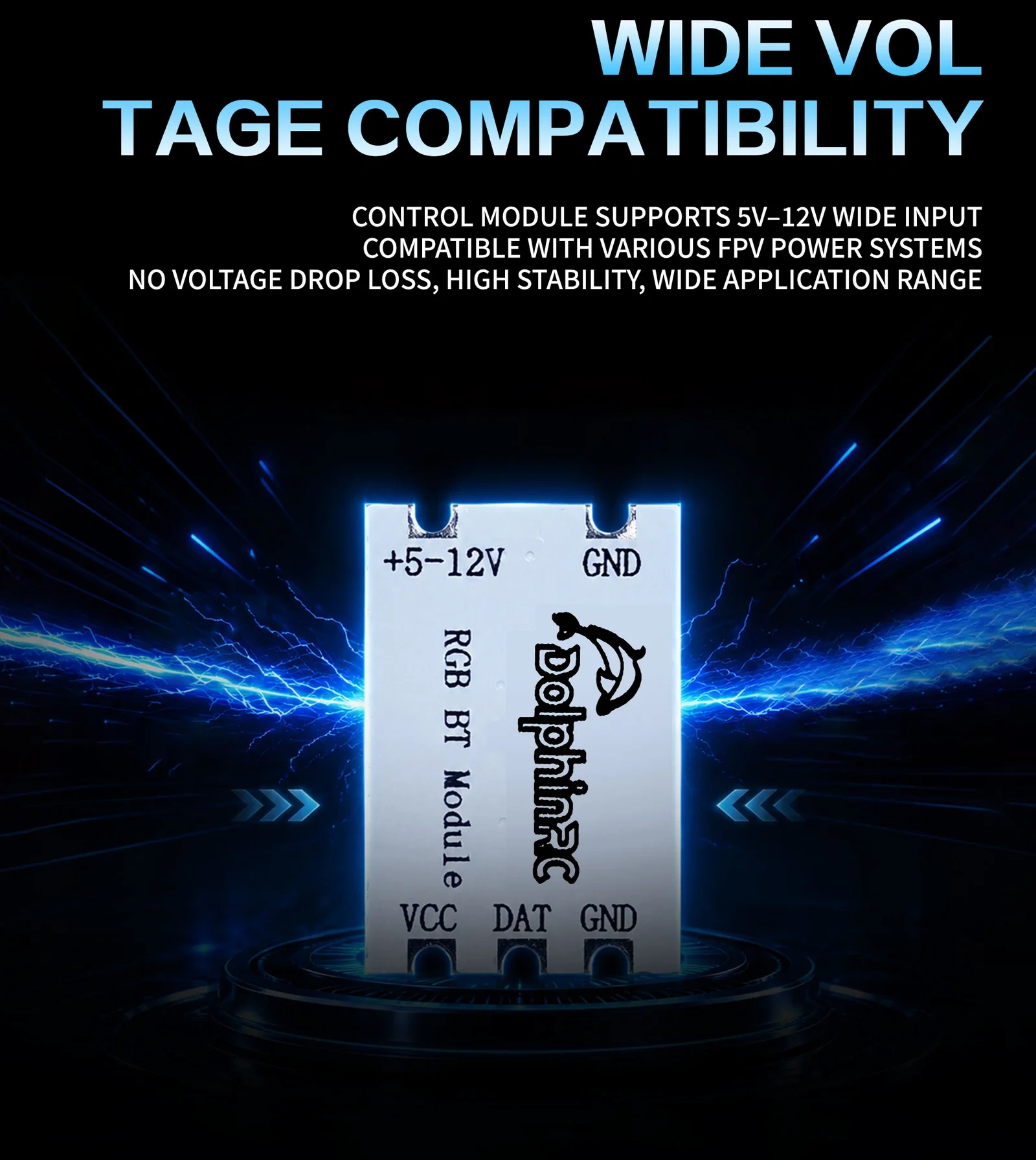

Wide Voltage Support with Stable Power Supply: The control module supports 5V–12V wide voltage input with direct pass-through output (no voltage step-down). Compatible with various power supply systems of FPV drones — no power loss from voltage reduction, strong stability, and wide application range.

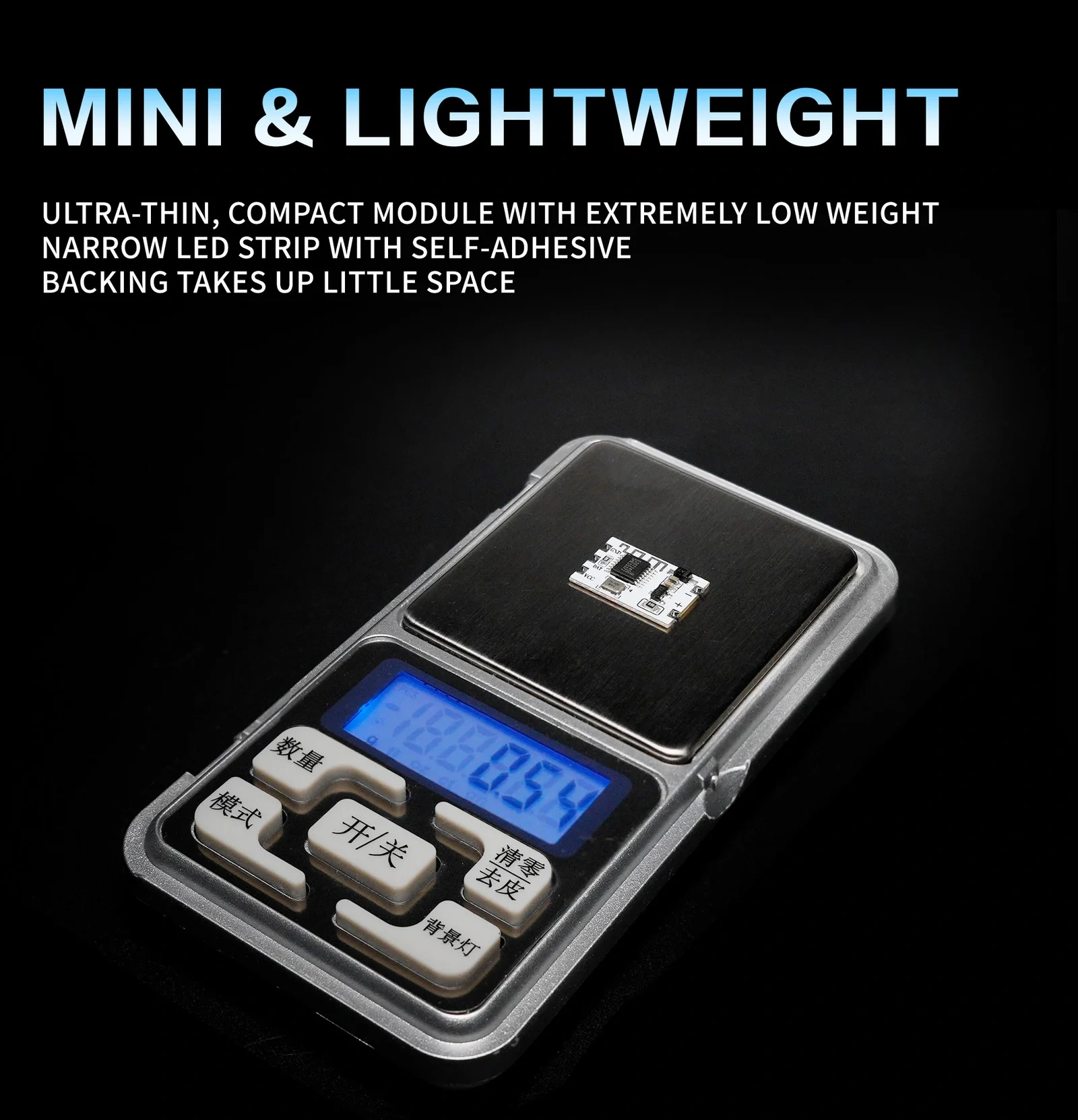

Mini & Lightweight Design: The module is ultra-thin and extremely light. The LED strip features a slim, narrow design with pre-applied adhesive backing. Occupies minimal space and perfectly fits FPV drones, models, and small devices.

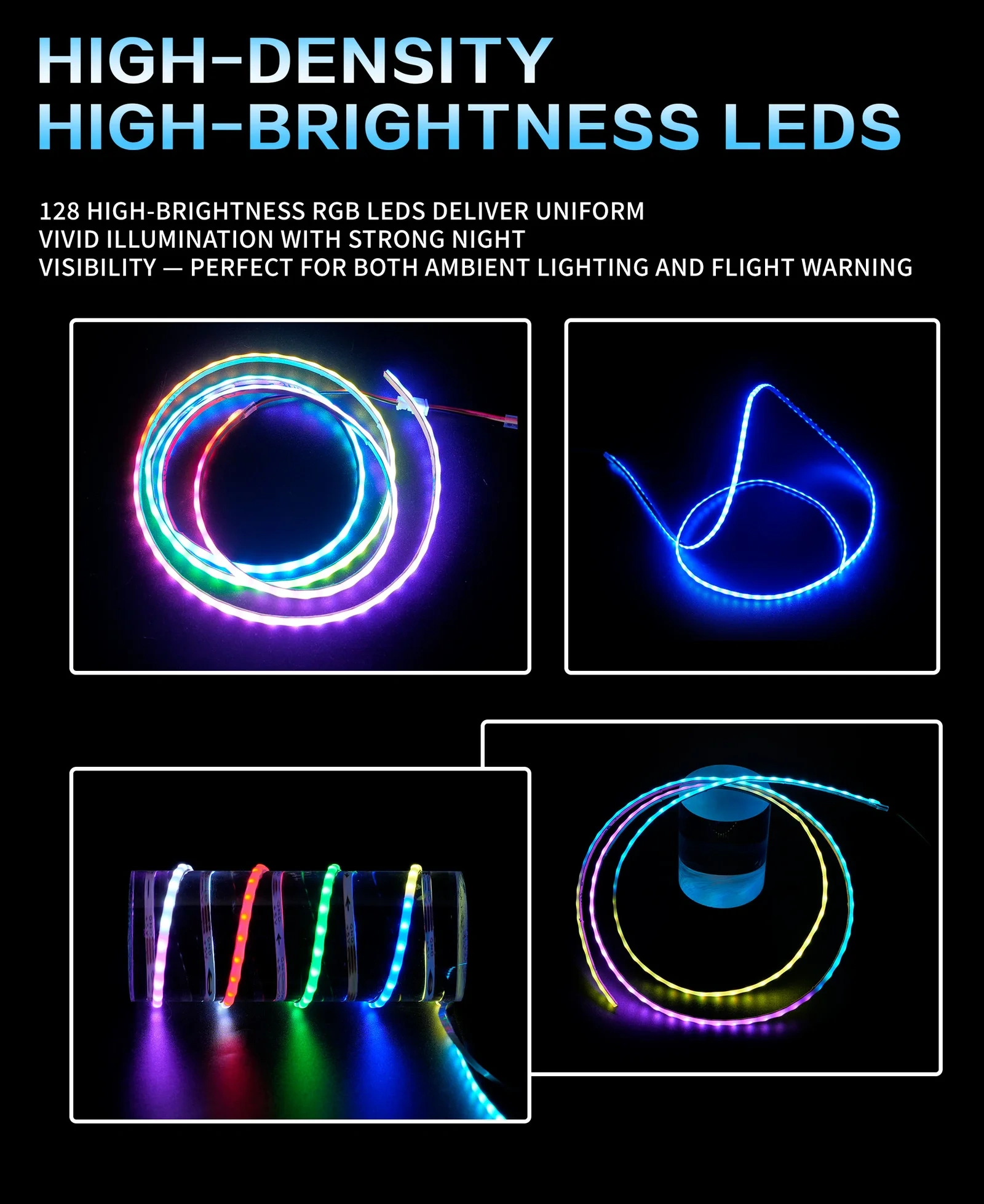

High-Density & High-Brightness LED Beads: The strip is built with 128 high-brightness RGB beads, delivering even and rich illumination. Highly visible at night — serves both as decorative lighting and flight warning.

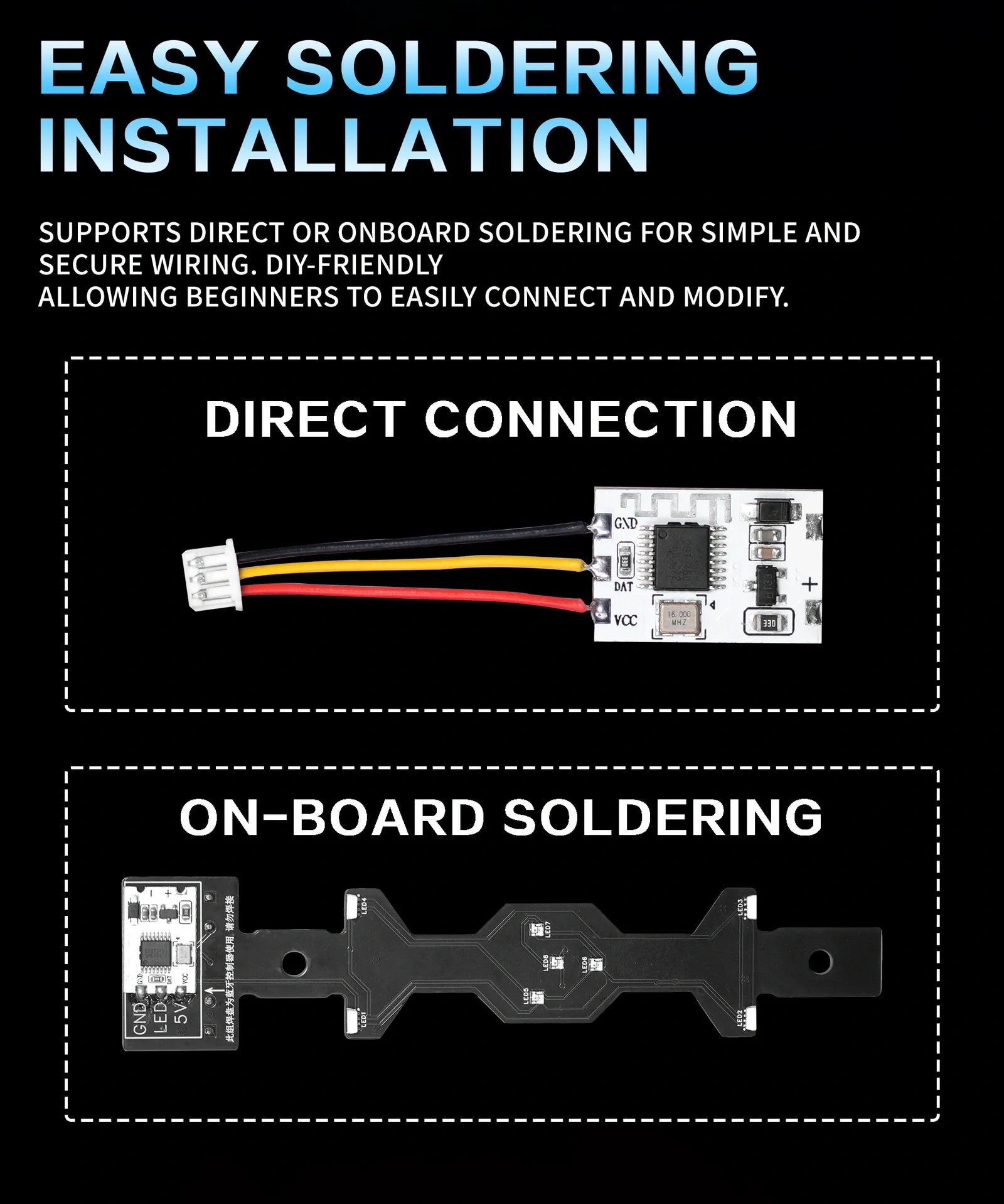

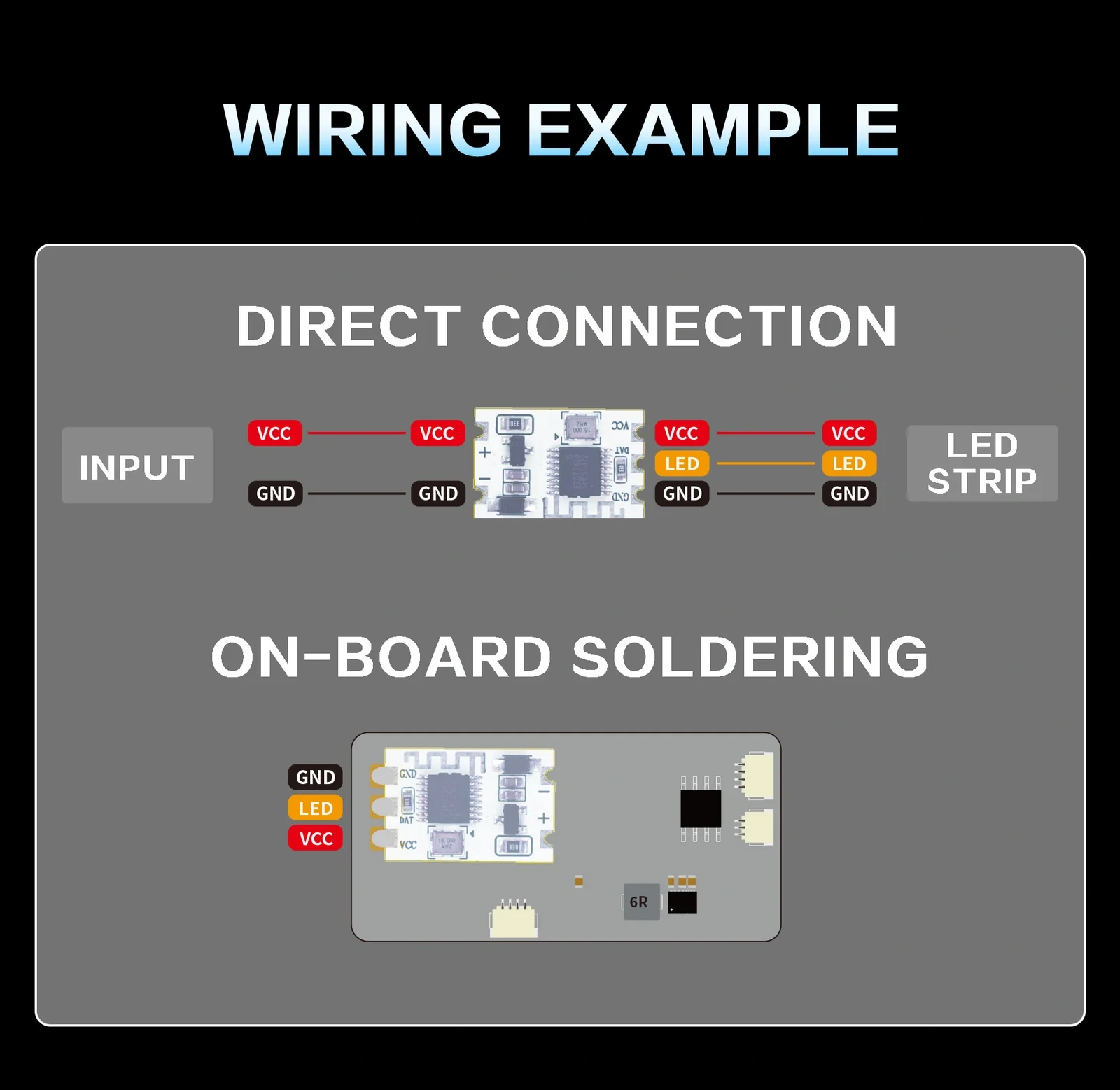

Easy Soldering Installation: Supports two installation methods — direct soldering and onboard soldering. Simple wiring with strong connections, convenient for DIY builds, and easy for beginners to handle wiring modifications.

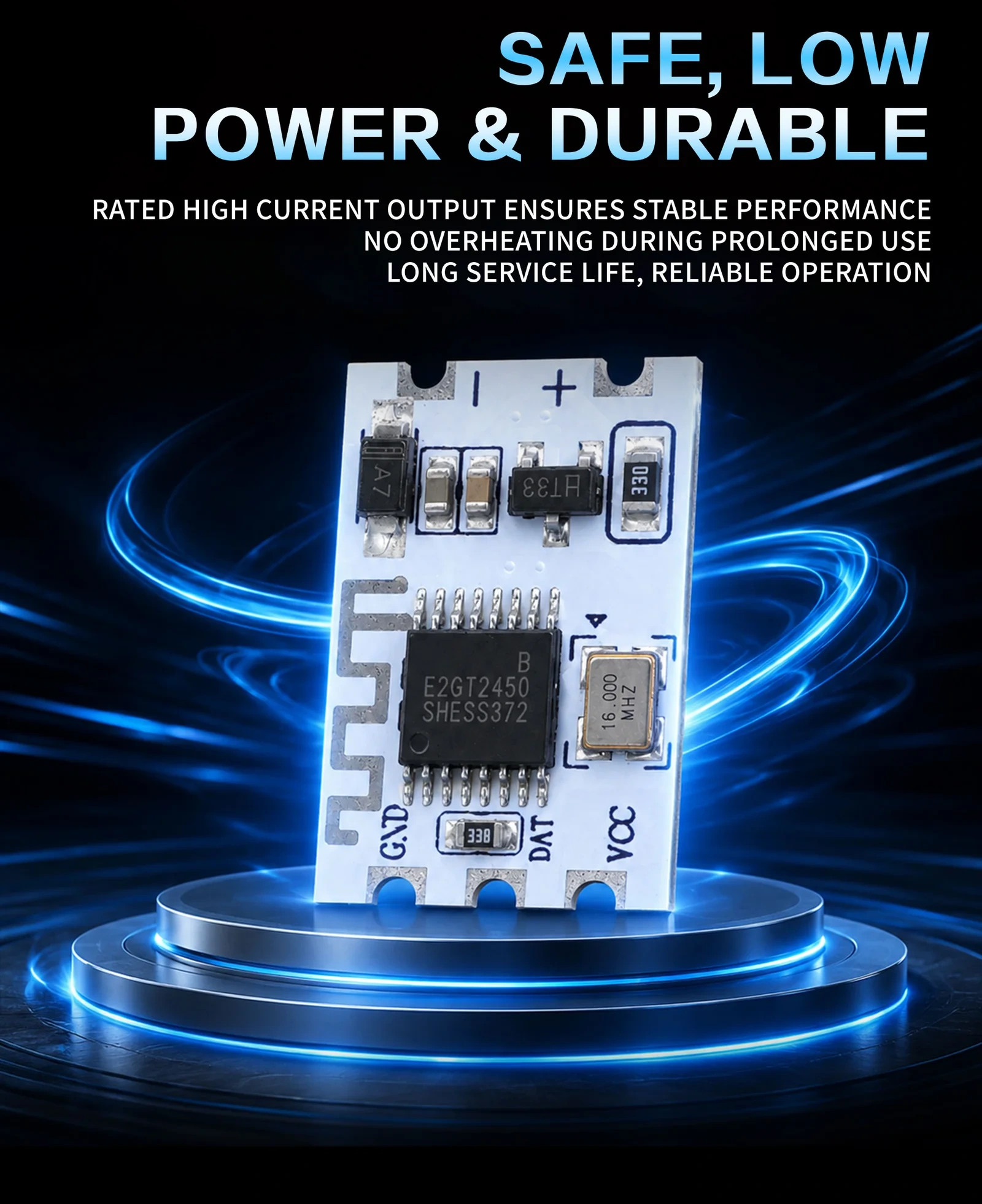

Safe, Low-Power & Durable: Rated for stable output at high current. Operates without overheating over long periods, offering a long service life with reliable performance.

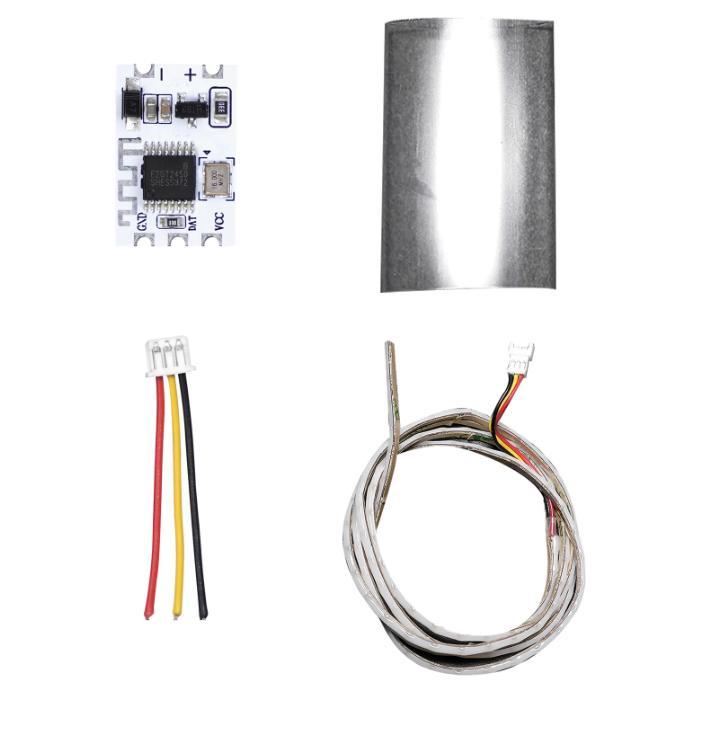

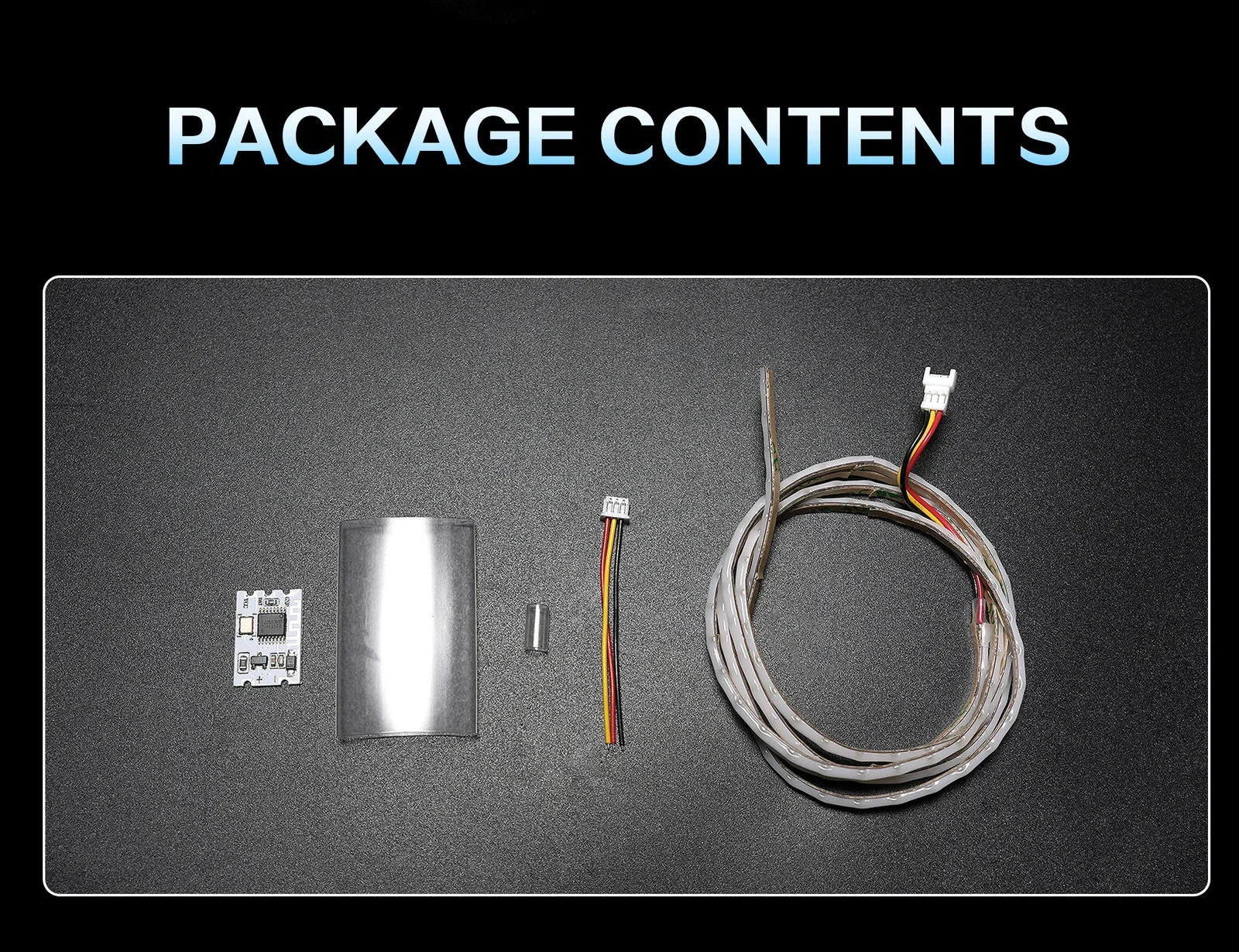

Package Contents
RGB Bluetooth Control Module ×1
Set Includes:
RGB Bluetooth Control Module ×1
Mini RGB LED Strip ×1
