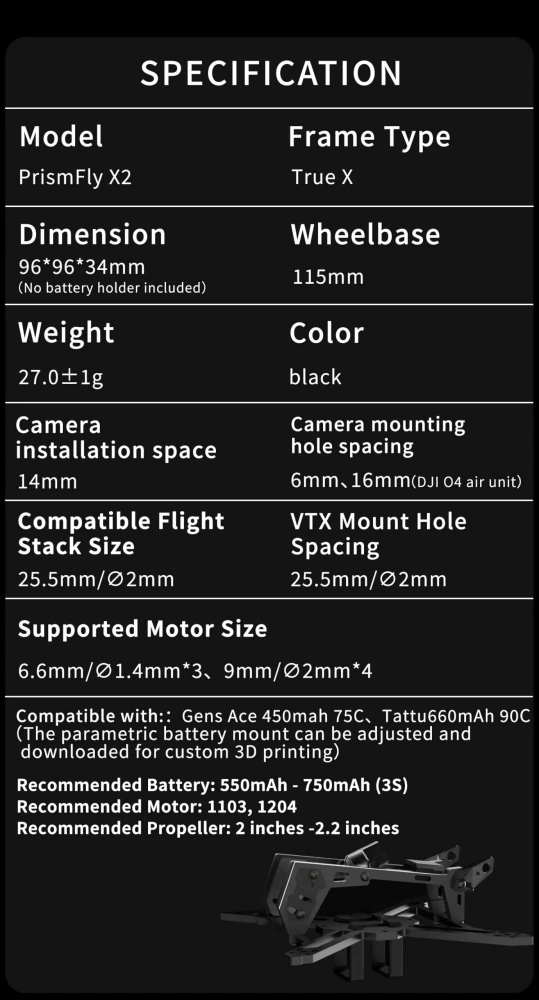

DolphinRC PRISMFLY X2 Frame Kit Specifications
Model: PRISMFLY X2
Frame Type: True X

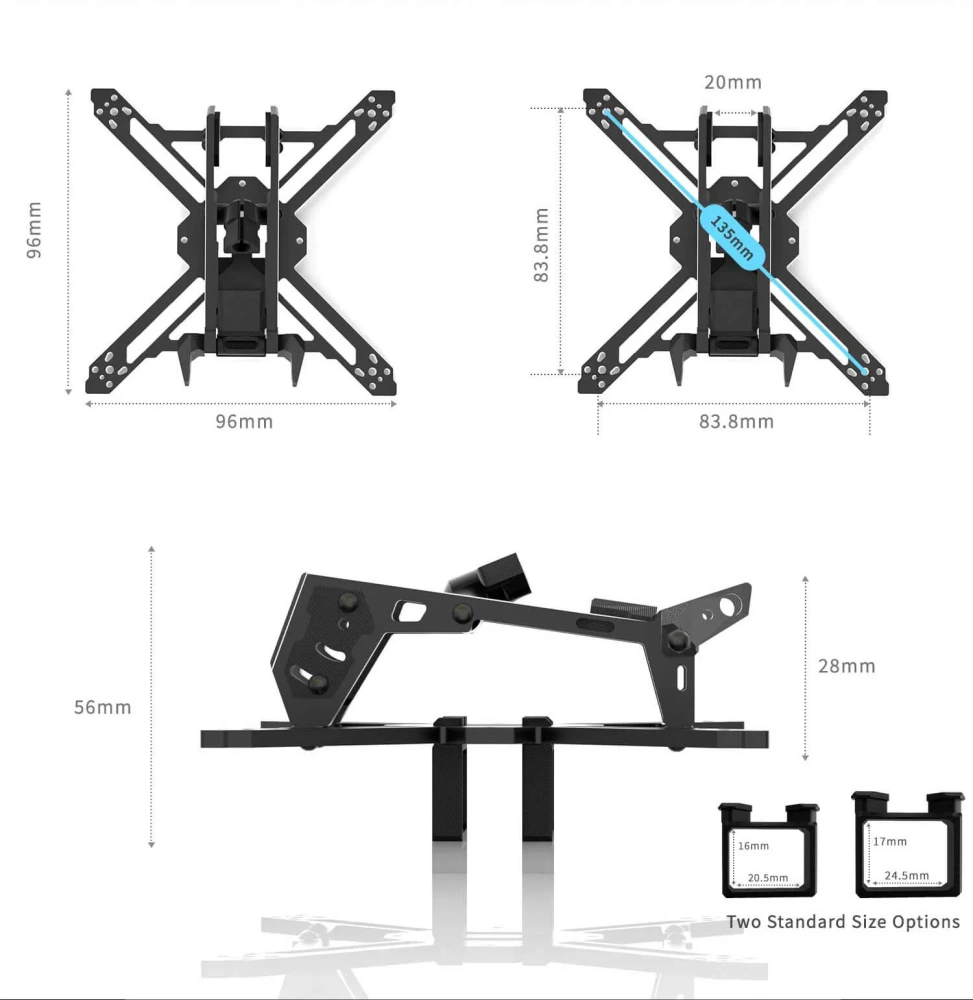

Dimensions (L×W×H): 96 × 96 × 34 mm (excluding battery mount)
Wheelbase: 115 mm
Weight: 27.0 ± 1 g
Camera Mount Size: 14 mm
Camera Mounting Holes: 6 mm / 16 mm (supports DJI O4 unit)
Stack Mounting: 25.5 mm / ⌀2 mm
VTX Mounting: 25.5 mm / ⌀2 mm
Motor Mounting Options: 6.6 mm / ⌀1.4 mm × 3, 9 mm / ⌀2 mm × 4
Battery Compatibility: Gens ace 450mAh 75C, Gaoneng 660mAh 90C (parametric battery mount, downloadable and adjustable for 3D print)
Recommended Battery: 450–650mAh (3S)
Recommended Motors: 1103 / 1204
Recommended Props: 2 inch-2.2 inch (50.8 mm – 56 mm)
Key Features

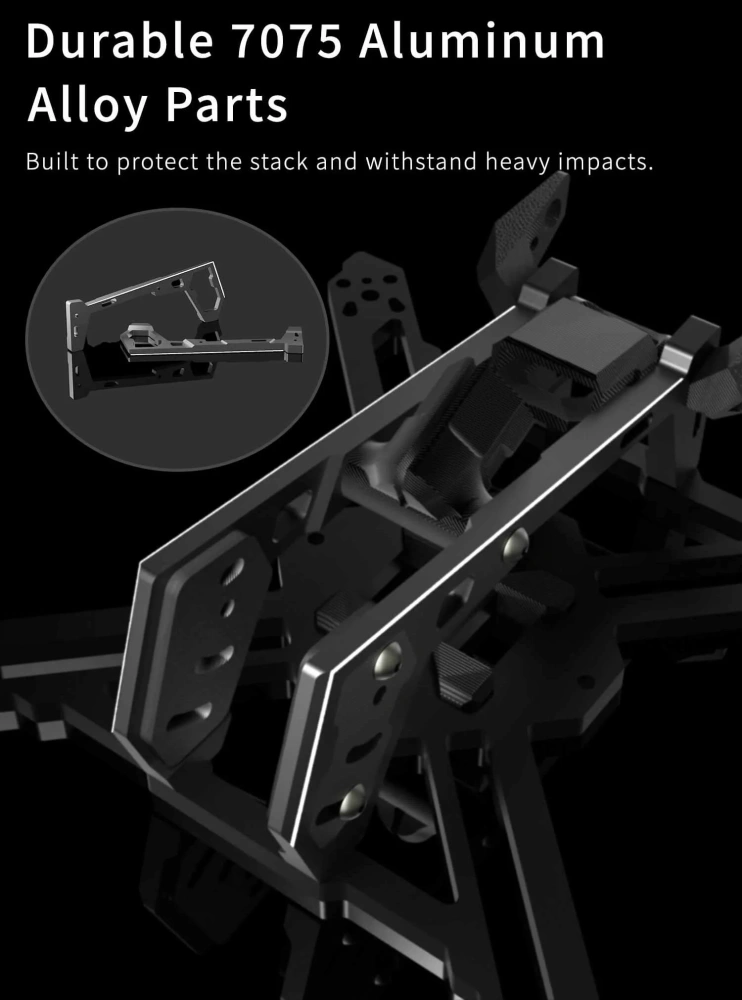

CNC-machined 7075 aluminum alloy for superior frame protection.

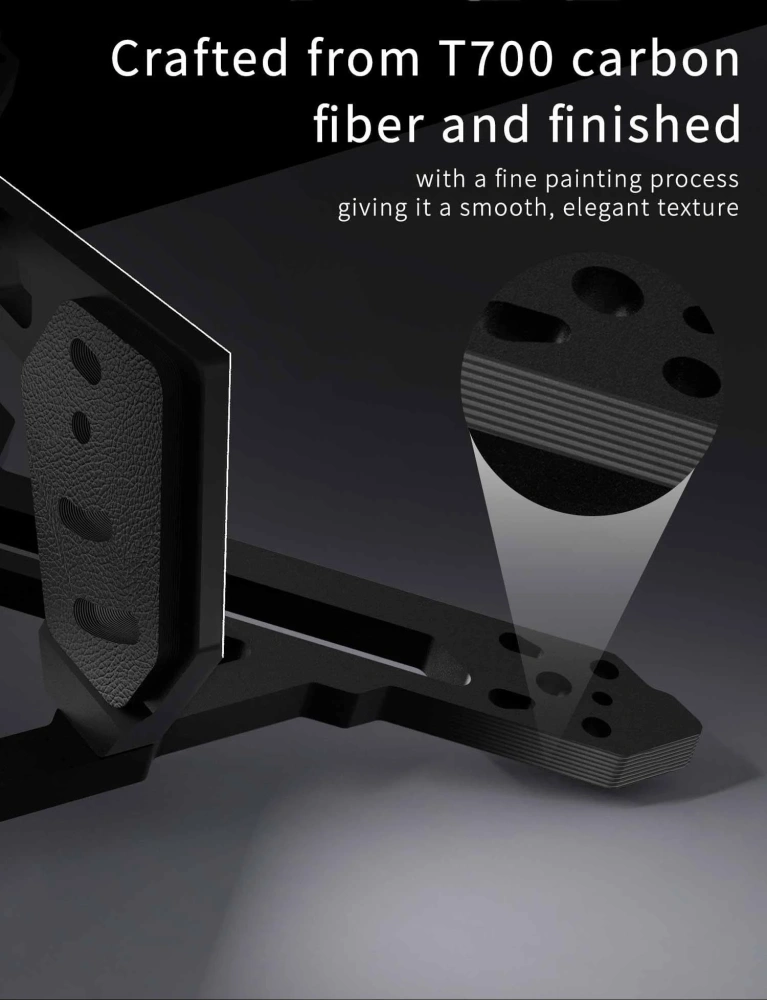

T700 carbon fiber base plate, cut along the grain for extra strength.

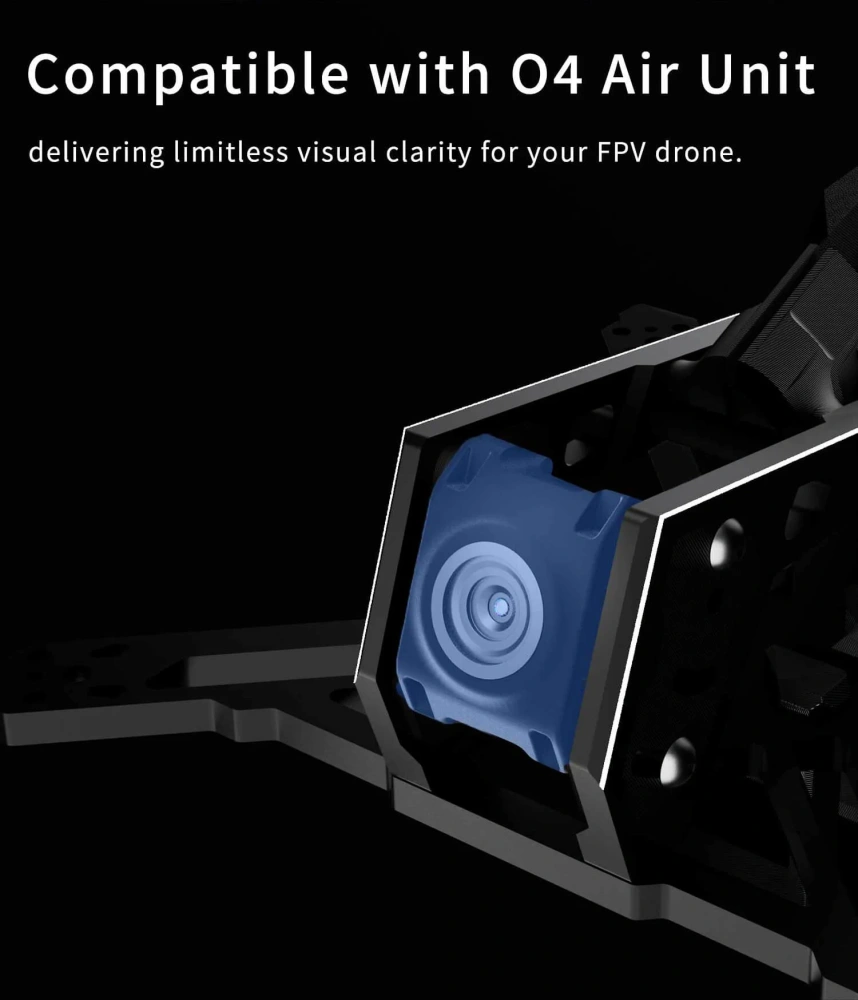

Full compatibility with DJI O4 HD VTX systems — no limit on image quality.

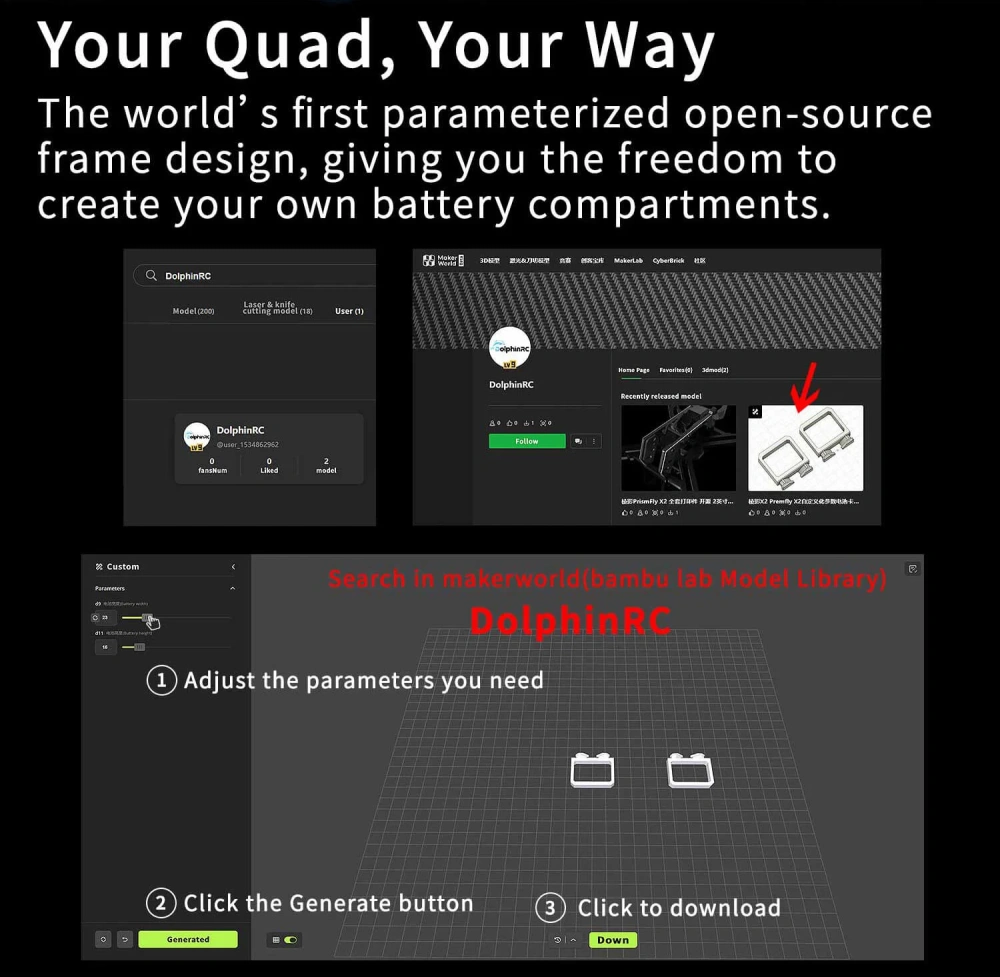

Parametric battery mount design: customize the size and 3D print your own.

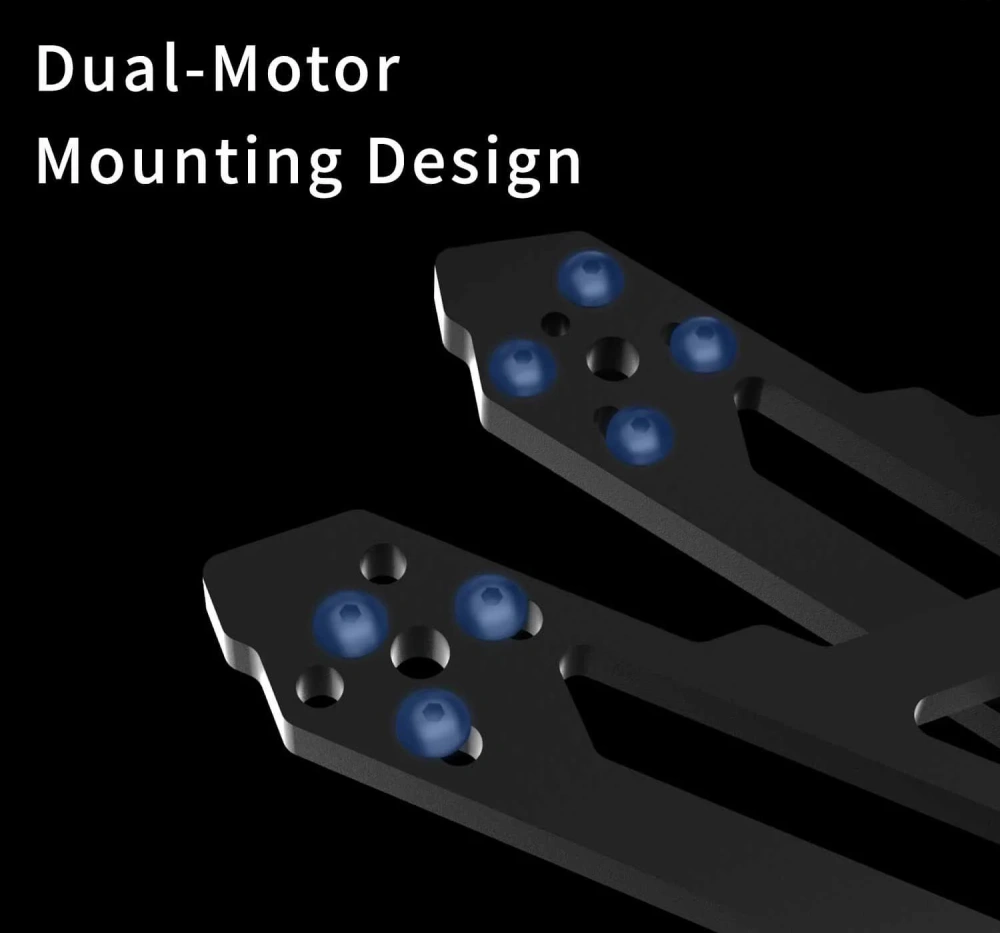

Dual motor hole layout for maximum compatibility.
Standard 25.5 mm AIO/FC/VTX mounting pattern.

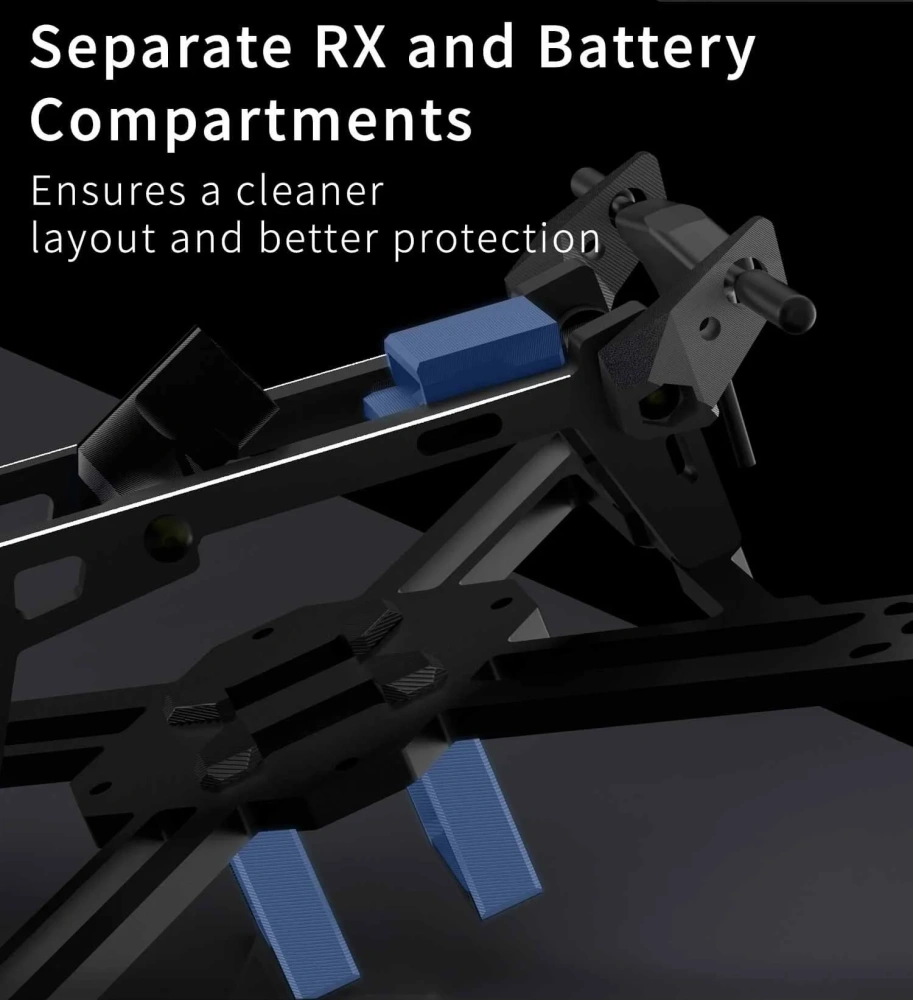

Independent receiver and battery compartment for easier build and clean wiring.
Our Test Configuration
Stack: AIO 45A
Motors: 1103 8000KV
Receiver: TBS Nano (Long T Antenna)
VTX/Camera: DJI O4 Air Unit
All-up Weight: 87.1 g
Frame Weight: 27.0 ± 1 g
Flight Time Test Results
Battery: Gens ace 450mAh 75C
Weight: 38.76 g
Flight Time: 5 min 20 sec
Battery: Gaoneng 660mAh 90C
Weight: 47.92 g
Flight Time: 6 min 25 sec
Battery: Gaoneng 720mAh 100C
Weight: 50.96 g
Flight Time: 7 min 19 sec
Notes: Longer endurance, but the quad feels noticeably sluggish.
If you need the installation manual, please check out this PDF link.
