Basic Parameters
Frame Model: Jingwei 10-inch
Color: Black
Layout: Wide X-Type
Wheelbase: 442.5 mm

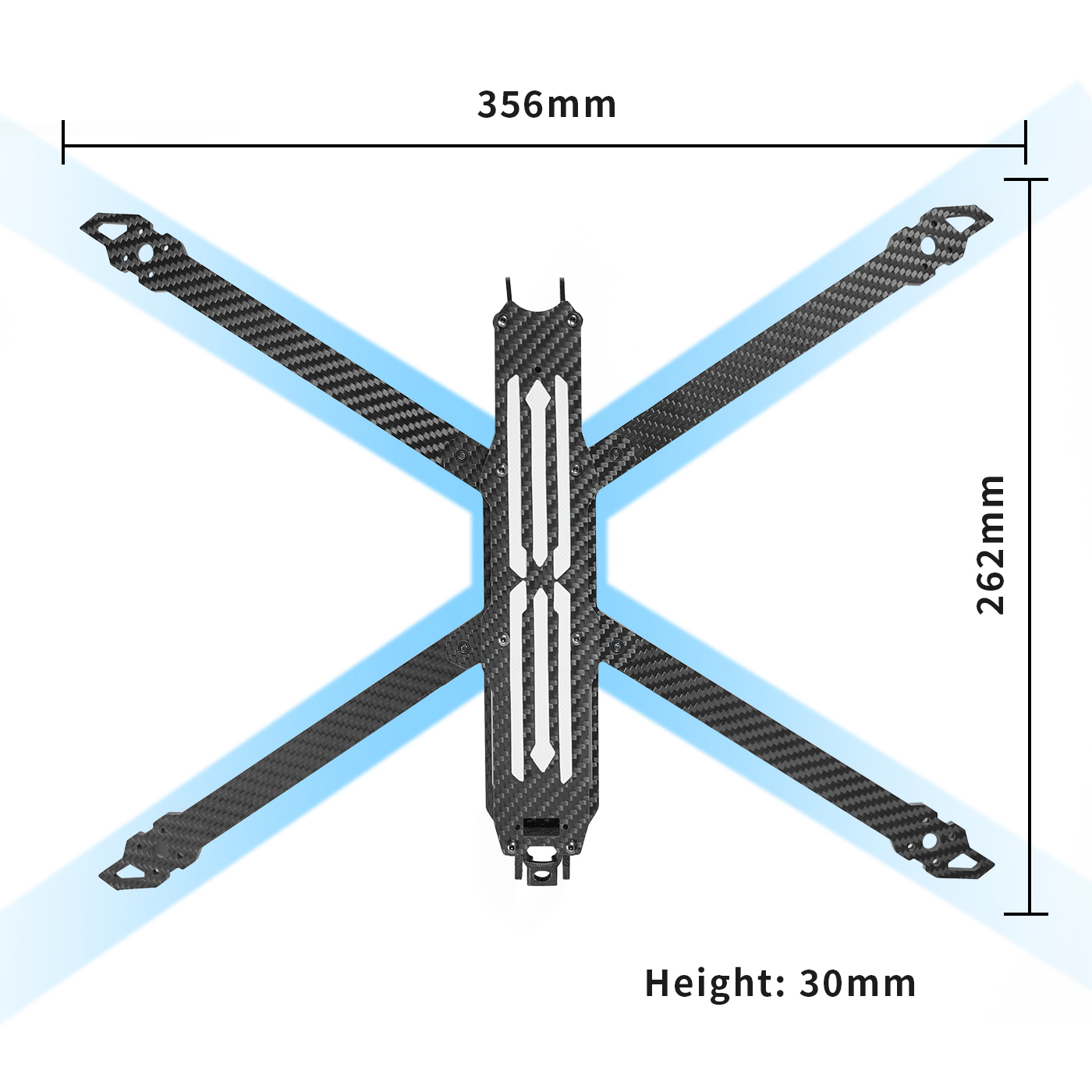

Overall Dimension (L
WH): 262
35630 mm
Weight: 302g ±1g
Camera Mount Size: 19mm–21mm
Stack Mount Hole Pattern: 30.5
30.5mm, Φ3mm
VTX Mount Hole Options:
2020mm (Φ2mm), 25.5
25.5mm (Φ2mm), 30.530.5mm (Φ3mm)
Motor Mount Specification: 19mm, Φ3mm ×4 motors
Top Plate Thickness: 2mm
Middle Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Arm Thickness: 6mm
Recommended Battery: 6S 10000mAh LiPo
Recommended Propeller: 10-inch propellers
Recommended Motor: 3115 900KV
Product Features
-

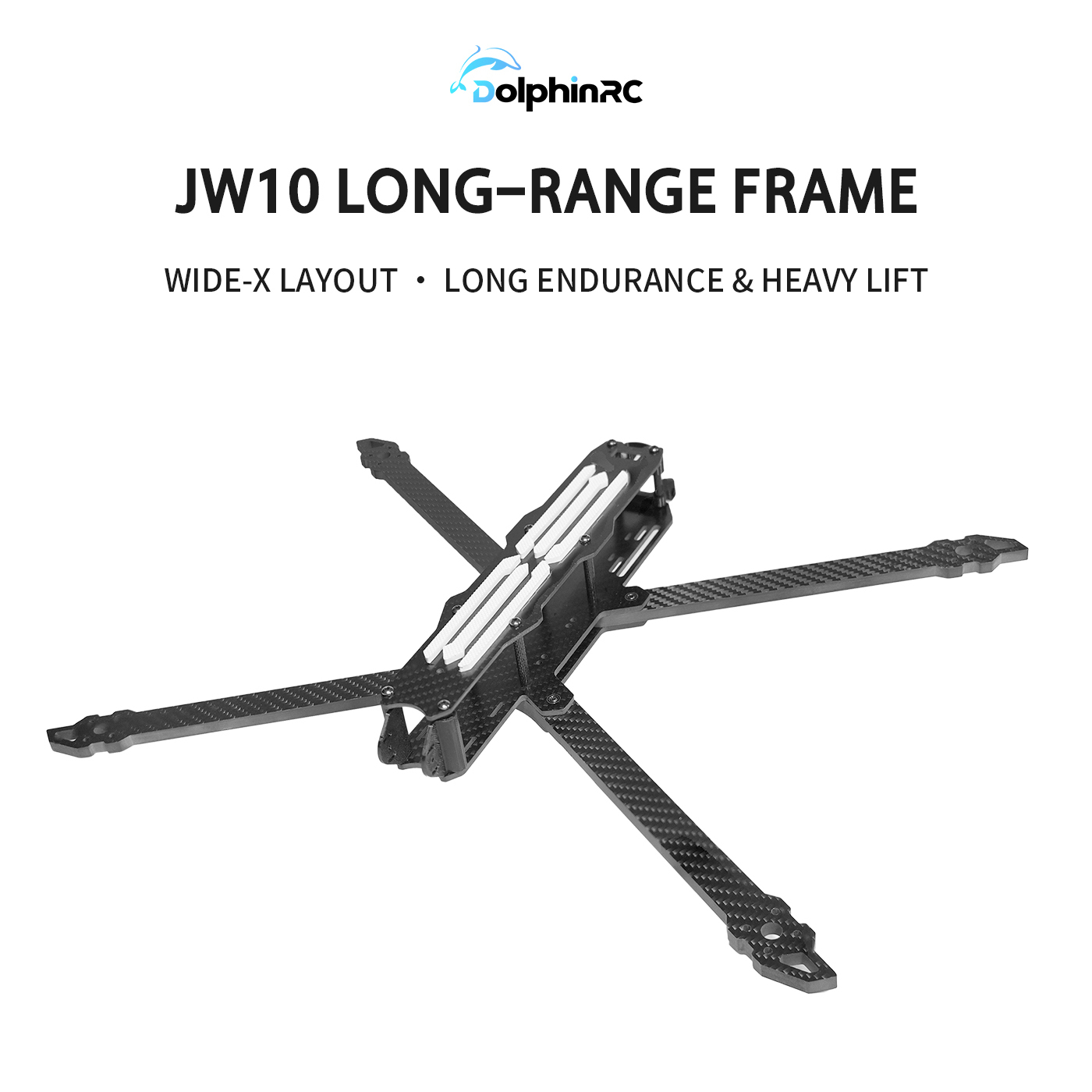

Wide X-Type Frame Layout
Matched with 10-inch large propellers, this wide X configuration delivers extended flight endurance, longer flight range and superior wind resistance. It maintains stable high-speed flight with excellent load capacity, rated payload up to 3.5KG.
Total takeoff weight (airframe + battery): 2KG
-

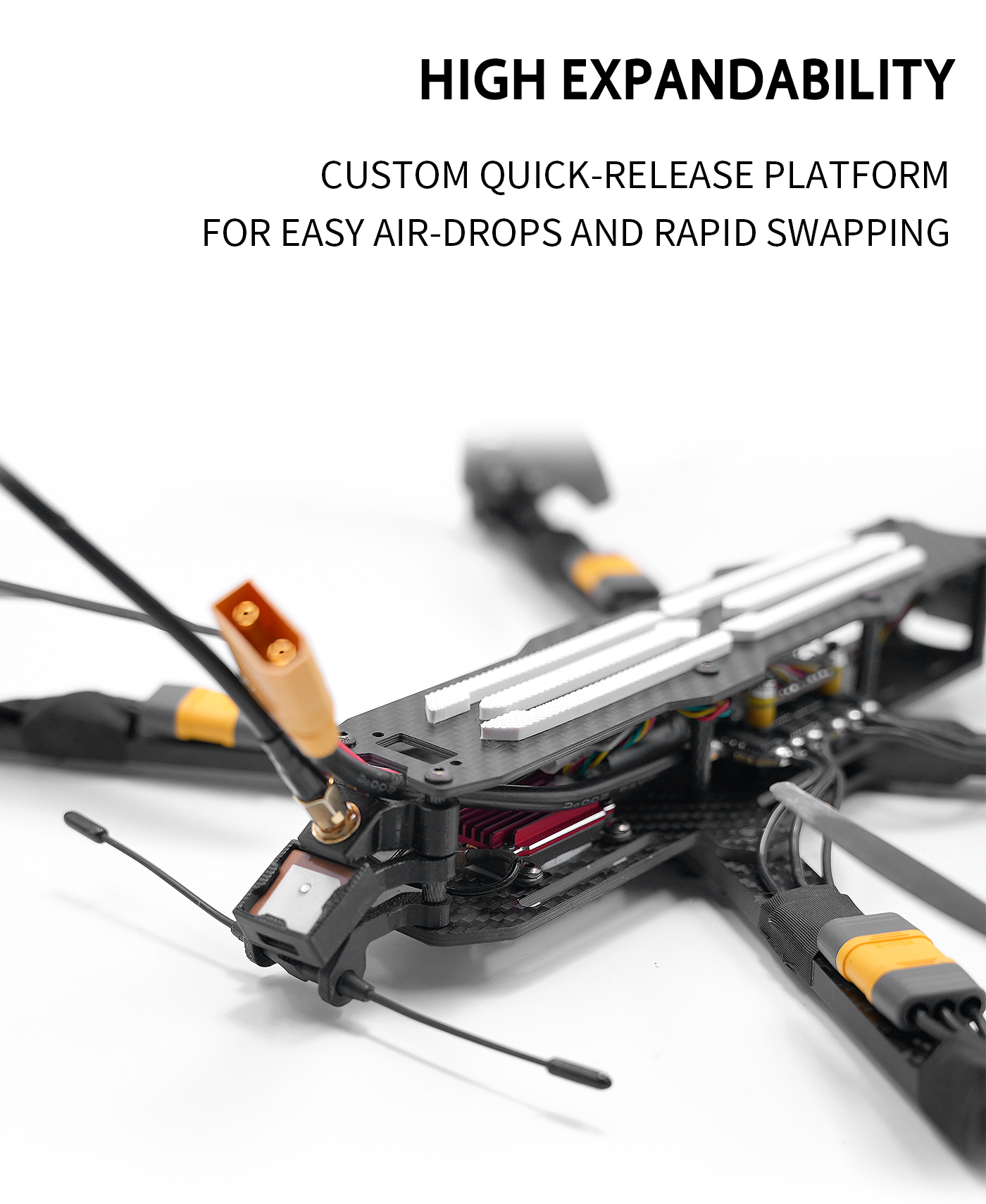

Excellent Expandability

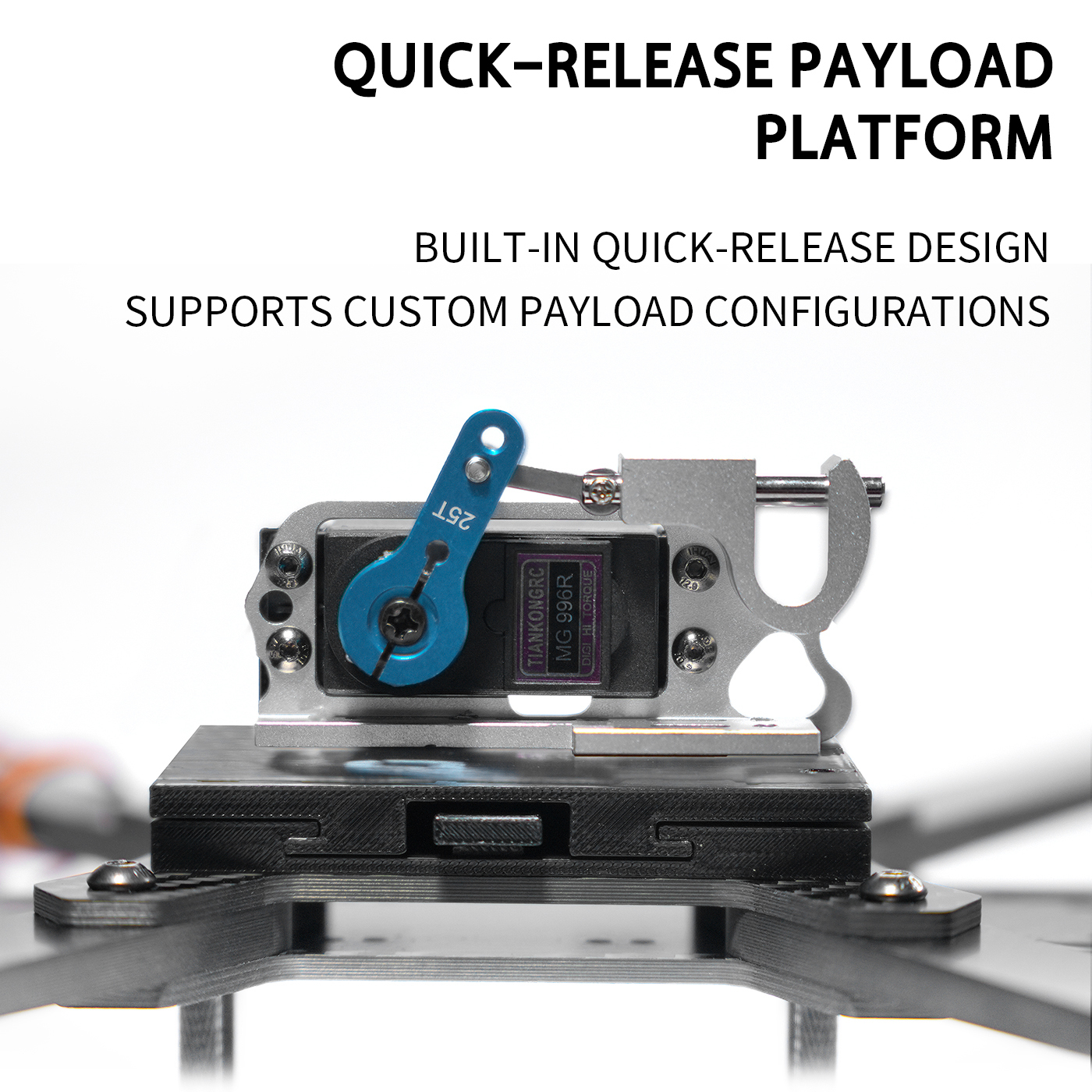

The airframe reserves abundant internal space and multiple reserved mounting holes. Equipped with a customized quick-release mounting platform, it supports airdrop missions with fast disassembly and replacement, offering great flexibility for secondary development.
-
Optimized Flight Performance
The wide X layout with balanced center of gravity optimizes aerodynamic drag. The long wheelbase effectively suppresses jitter during long-distance cruising. It outperforms compact FPV quadcopters in wind resistance, load capacity and flight endurance, perfectly suitable for long-range cruising, aerial surveying, cargo airdropping and other long-duration operational tasks.
-

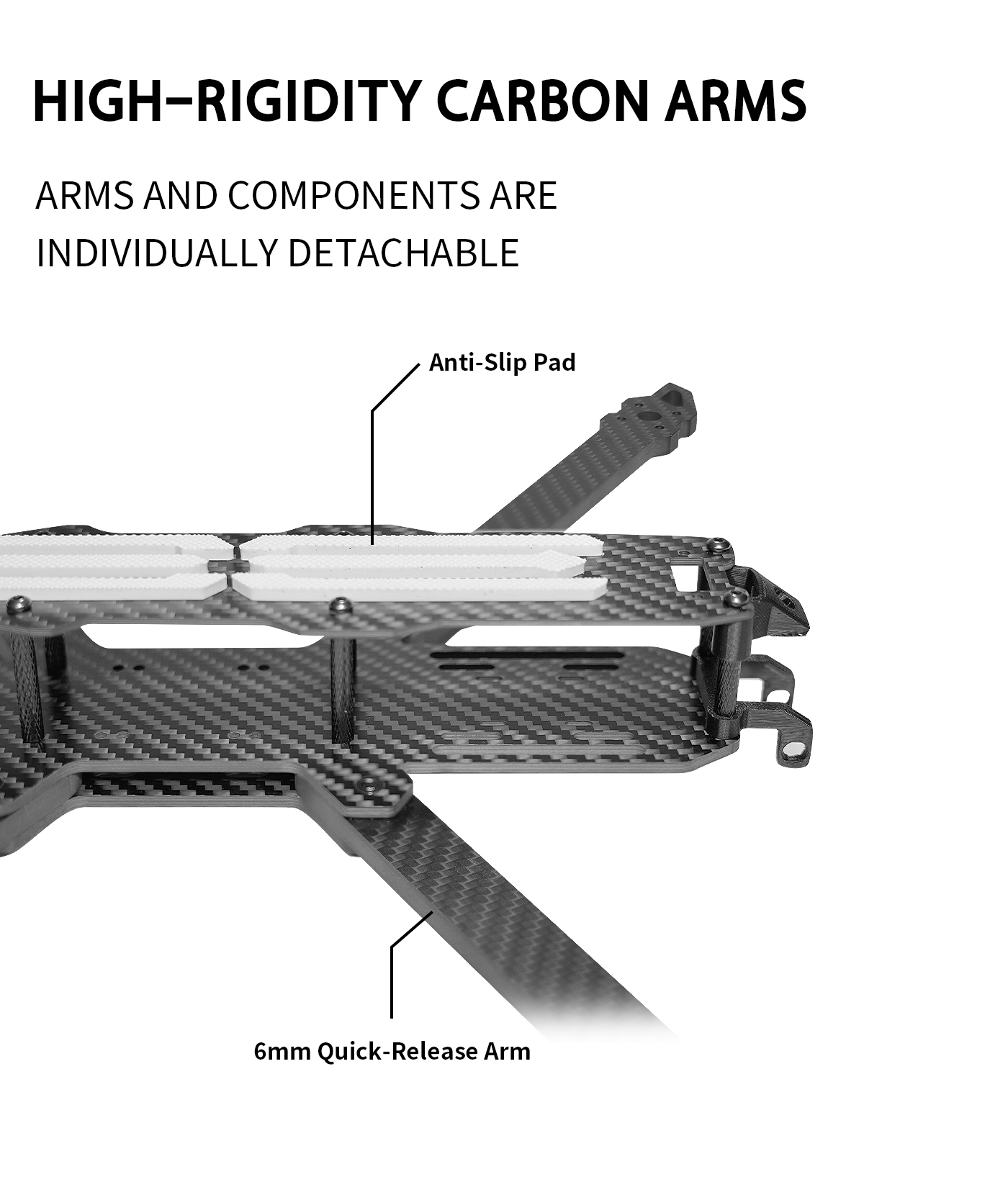

Reinforced Structural Protection
Thickened carbon fiber arms paired with high-rigidity bottom plate feature outstanding crash resistance and torsional stiffness to avoid deformation during flight. The airframe stays rigid during high-speed maneuvers. Modular independent arms support individual replacement, effectively lowering maintenance costs.

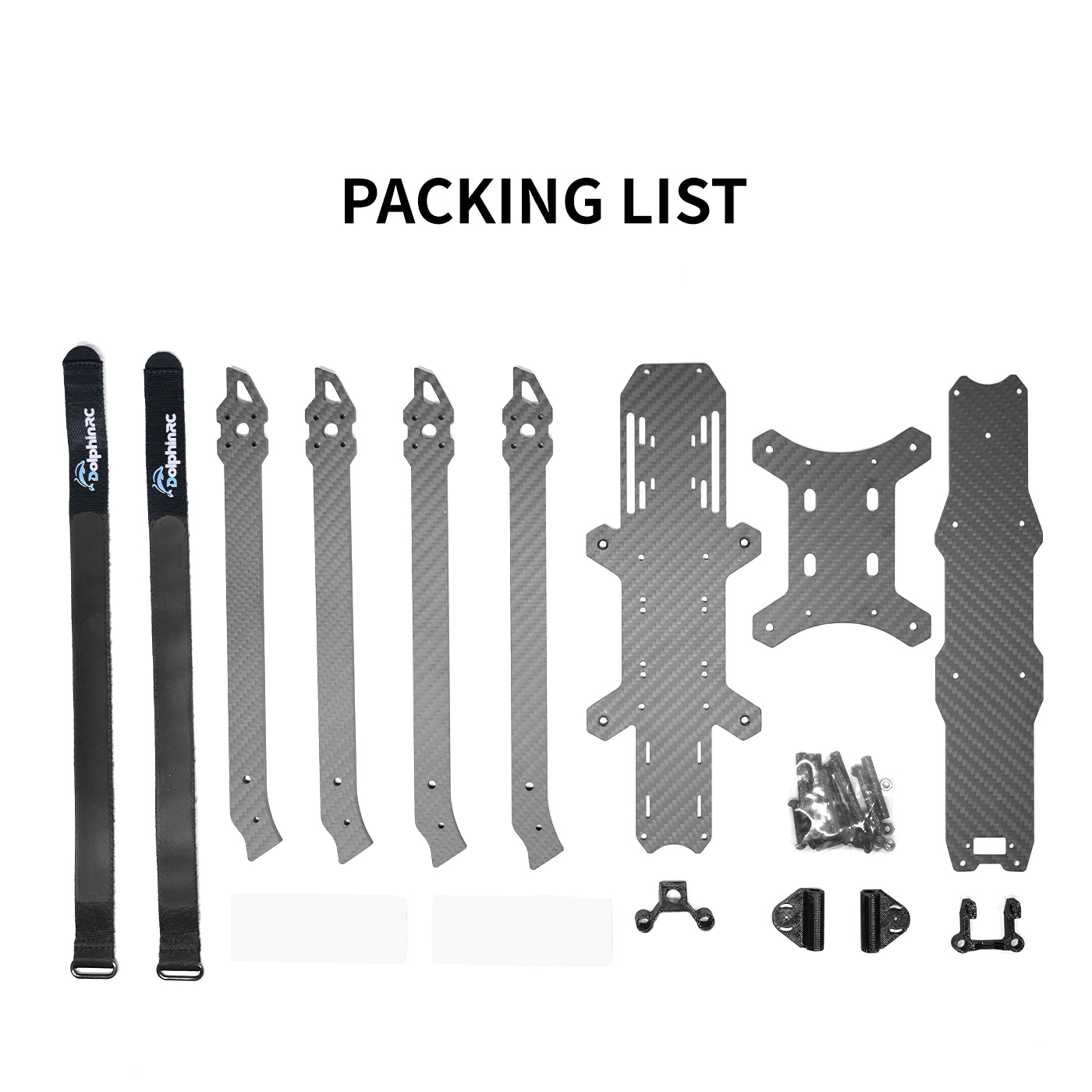

Packing List
1 × Main Frame Kit
1 × Screw Assortment Pack
2 × Battery Straps
2 × Anti-slip Battery Pads
