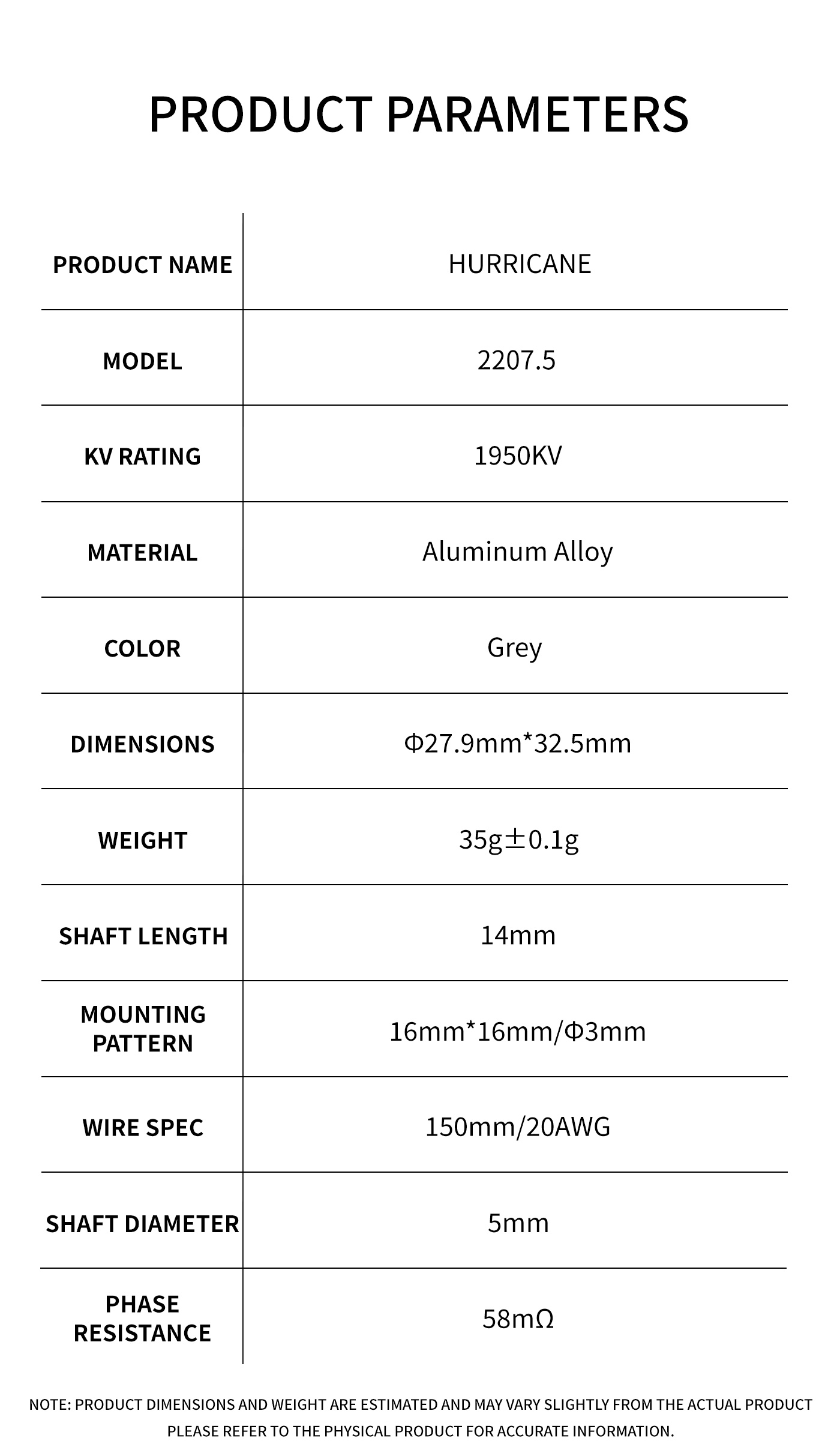

Product Name: Hurricane
English Name: HURR (Full: HURRICANE)
Model: 2207.5
KV Rating: 1950KV
Material: Aluminum Alloy
Color: Gray
Product Dimensions: Φ28mm × 32mm
Shaft Diameter: 5mm
Shaft Length: 13mm
Base Mounting Hole Spacing: 16mm × 16mm / Φ3mm
Power Lead Specifications: 150mm / 20AWG
Weight: 35.4 ± 0.1g (including power leads)
Phase-to-Phase Internal Resistance: 58mΩ
Rated Operating Voltage: 6S
Max Current: —
Max Power: —
Magnet Type: N52H
Slot/Pole Configuration: 12N14P
Bearing Type: NMB
Winding Method: Single-Strand Winding
Product Features
-
N52H curved high-performance magnets deliver ample magnetic flux for superior power efficiency.
-
Imported NMB high-precision bearings reduce frictional losses during operation, ensure long-lasting durability, and guarantee smooth, quiet motor performance.
-
0.15mm high-permeability silicon steel laminations offer excellent magnetic conductivity, minimize eddy current losses, and enhance overall operating efficiency.
-
Equipped with standard vibration-damping silicone rubber rings that absorb high-frequency operational vibrations, attenuate operating noise, and extend the overall service life of the unit.
