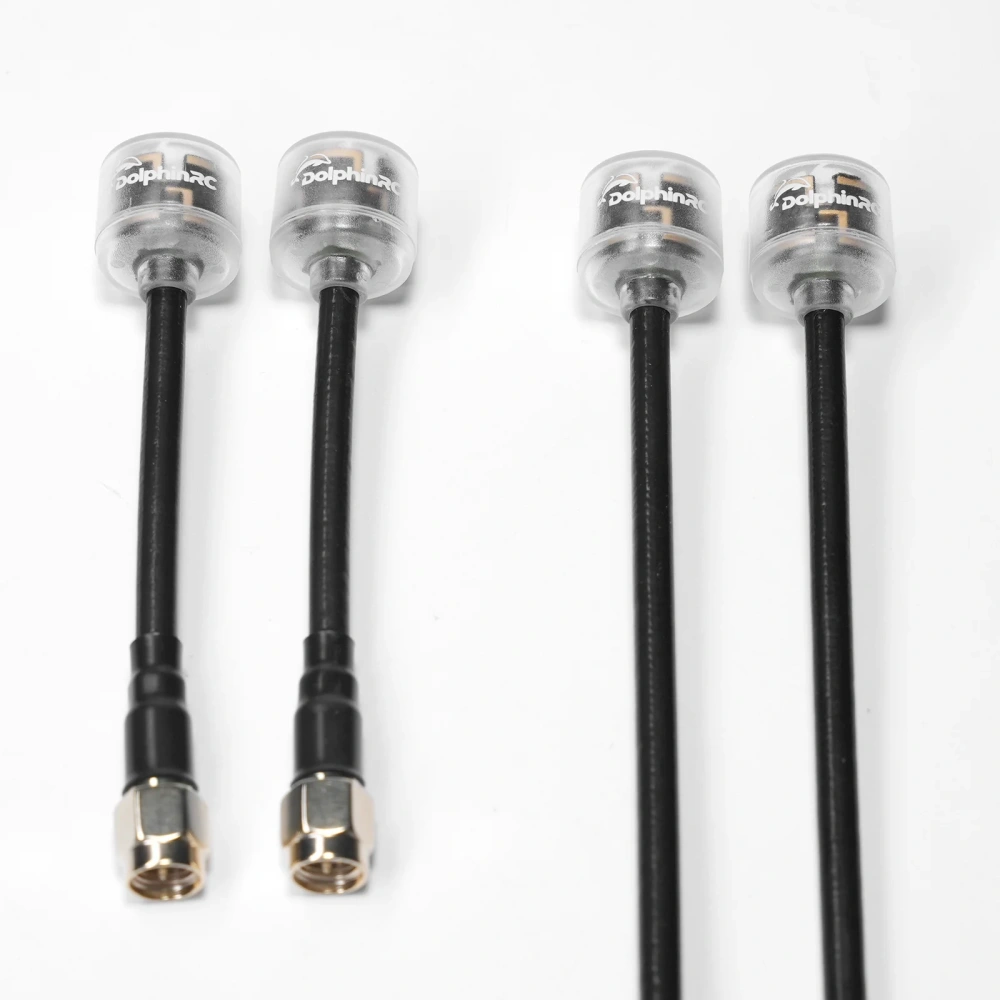

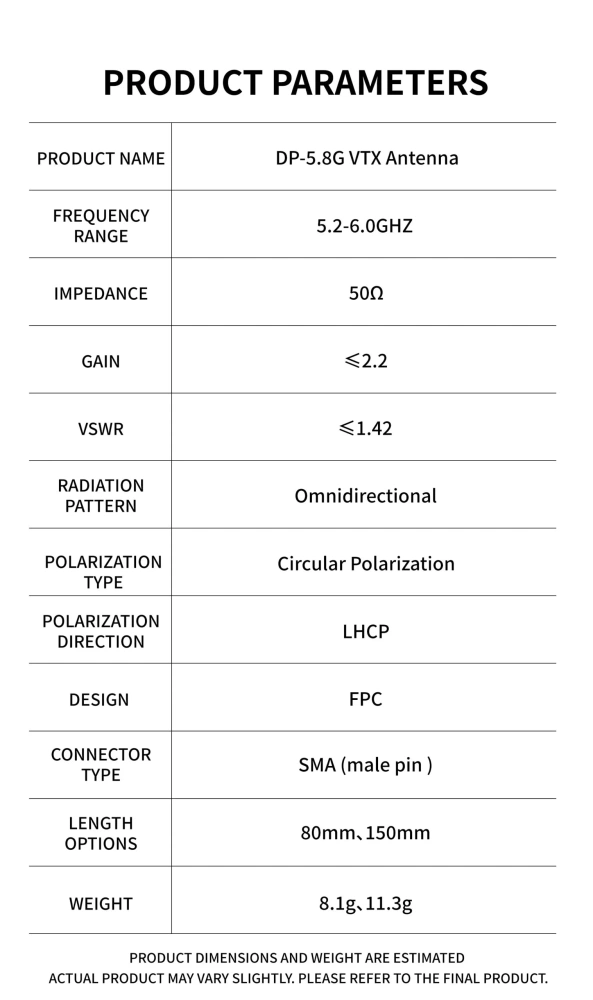

Product Name: DP-5.8G FPV Antenna
Frequency Range: 5.2–6.0 GHz
Impedance: 50Ω
Gain: ≤2.2
VSWR: ≤1.42
Radiation Pattern: Omnidirectional
Polarization Type: Circular Polarization (CP)
Polarization Orientation: LHCP (Left-Hand Circular Polarization) – commonly used in digital FPV systems
Design/Fabrication: FPC (Flexible Printed Circuit)
Connector Type: SMA (Male Pin / Inner Pin)
Length Options: 80mm-150mm
Weight: 8.1g, 11.3g
Broadband Frequency Coverage: Covers the full 5.2–6.0GHz band, compatible with mainstream 5.8GHz analog and digital FPV systems — extremely versatile.
Stable Signal Gain: Up to 2.2 standard gain with low VSWR design, minimizing signal loss and ensuring stable long-range transmission.
Omnidirectional Radiation: Omnidirectional pattern combined with LHCP effectively eliminates video breakup and flickering, providing excellent anti-interference performance.

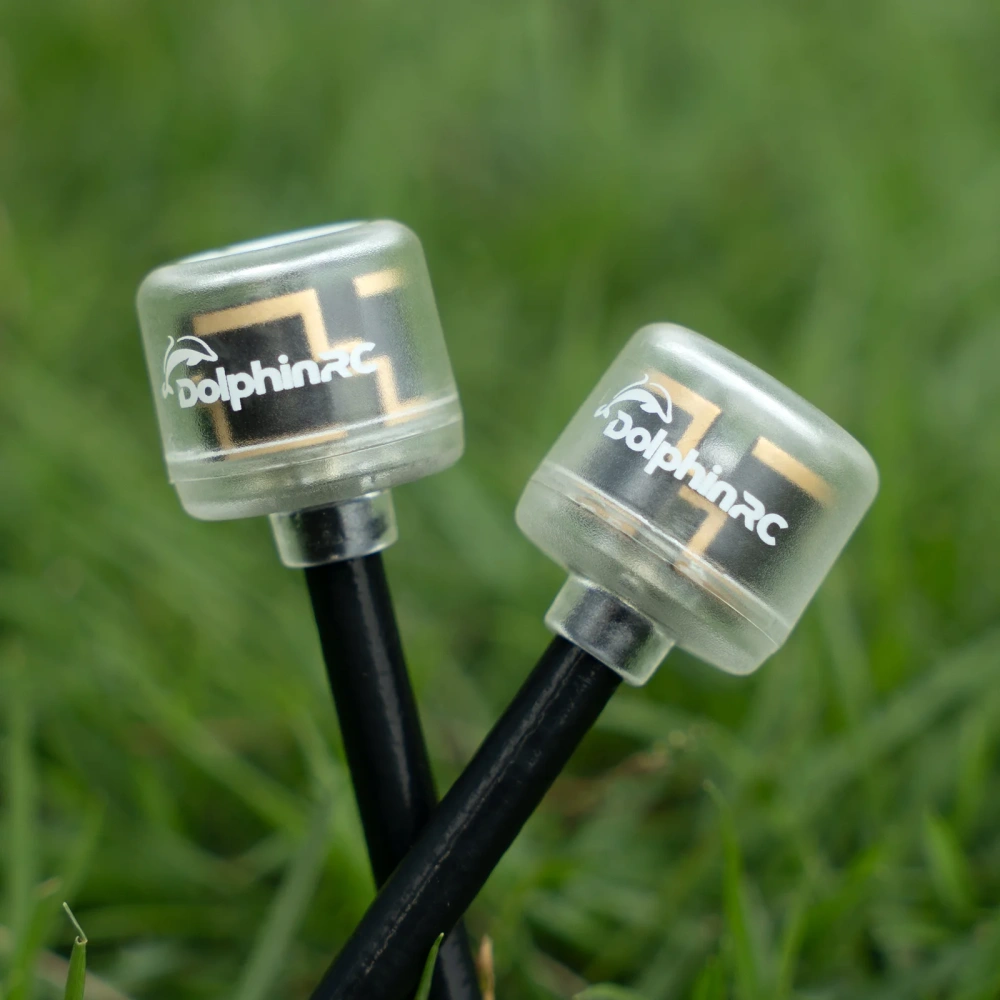

Precision Engineering: Built with FPC technology — flexible, bend-resistant, shockproof, and durable, ideal for long-term outdoor flying.

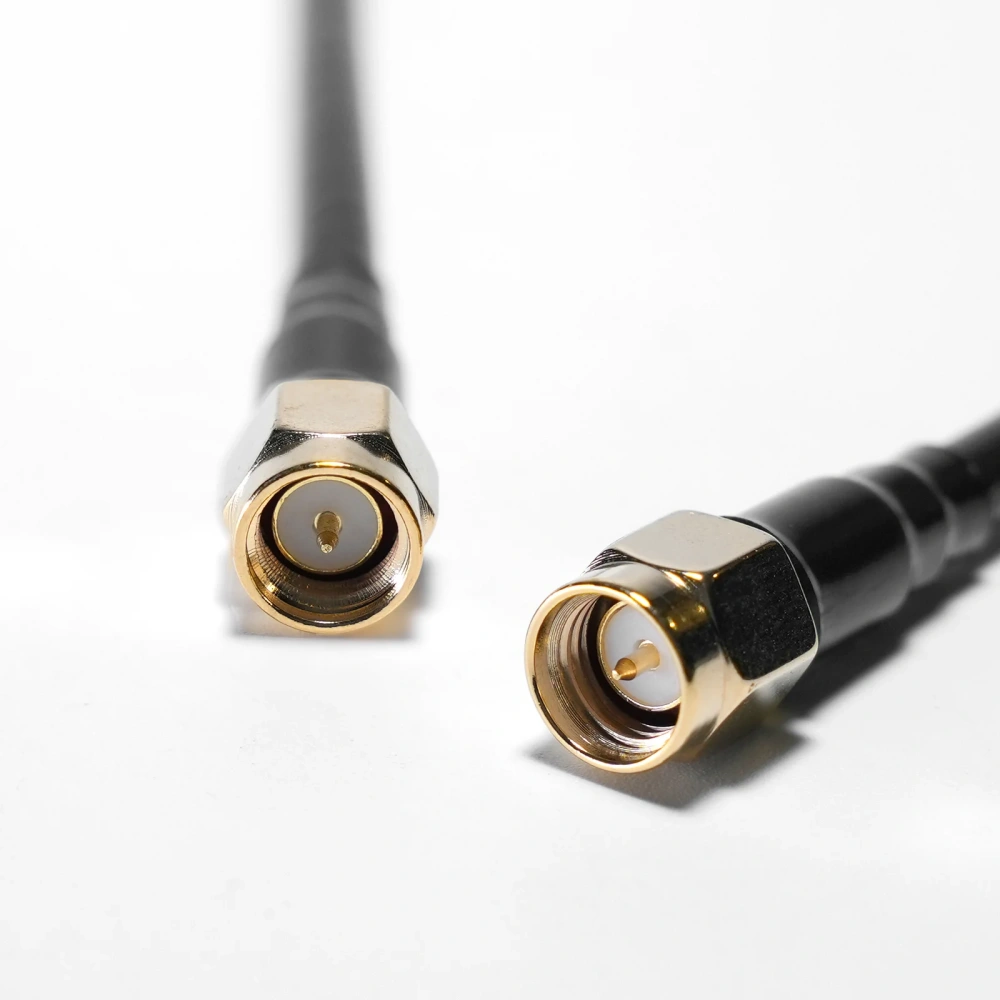

Standard Universal Connector: SMA male pin connector ensures a secure connection, strong compatibility, and easy installation and replacement.

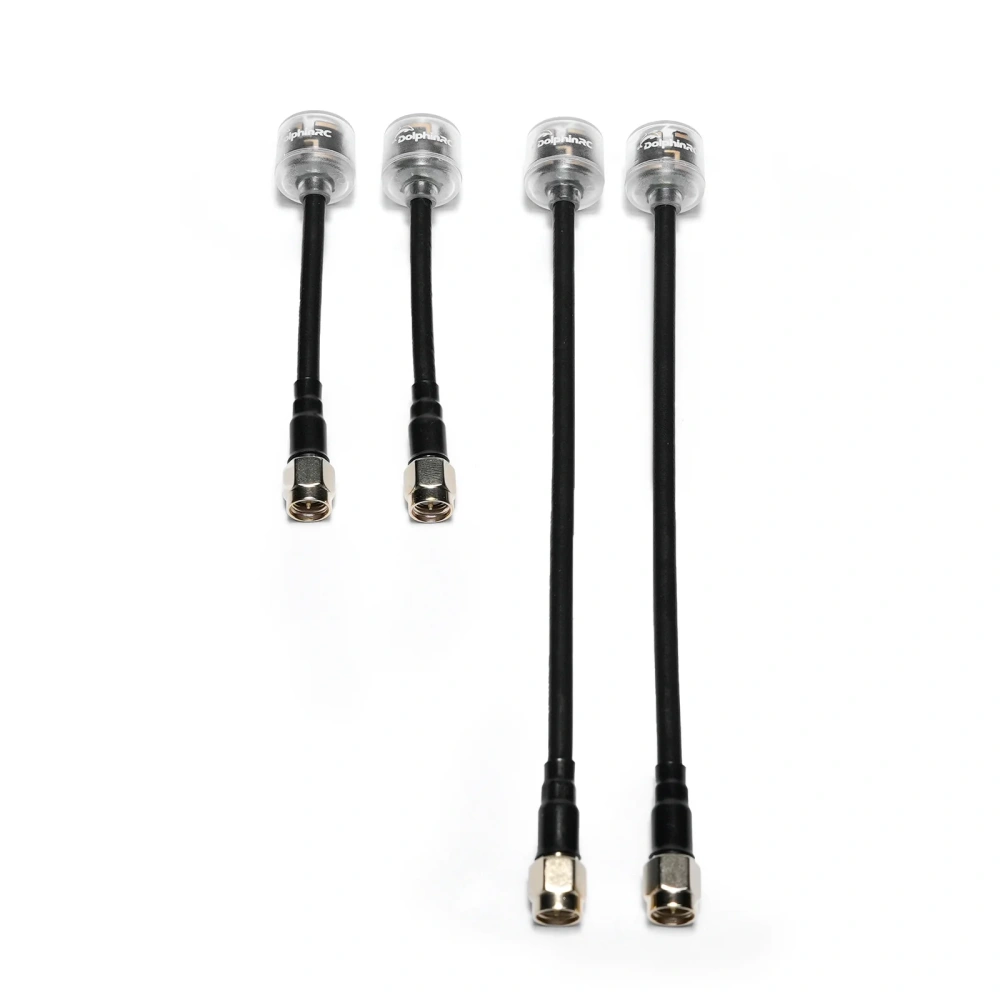

Multiple Length Options: Available in 80mm and 150mm to meet the needs of racing, long-range, and cinematic FPV builds.
Lightweight Design: Optimized weight distribution minimizes added load, compatible with a wide range of FPV frames and custom builds.
Package Contents
DP-5.8GHz Antenna ×1
