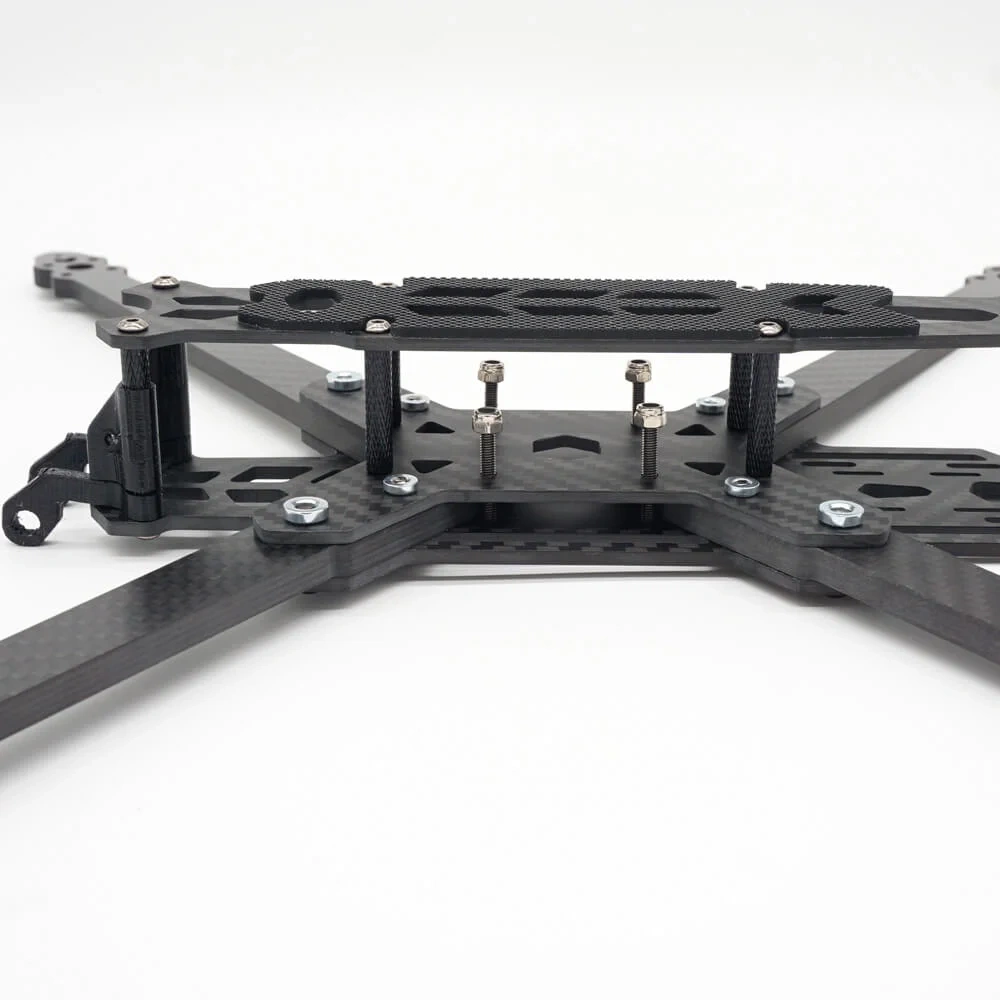

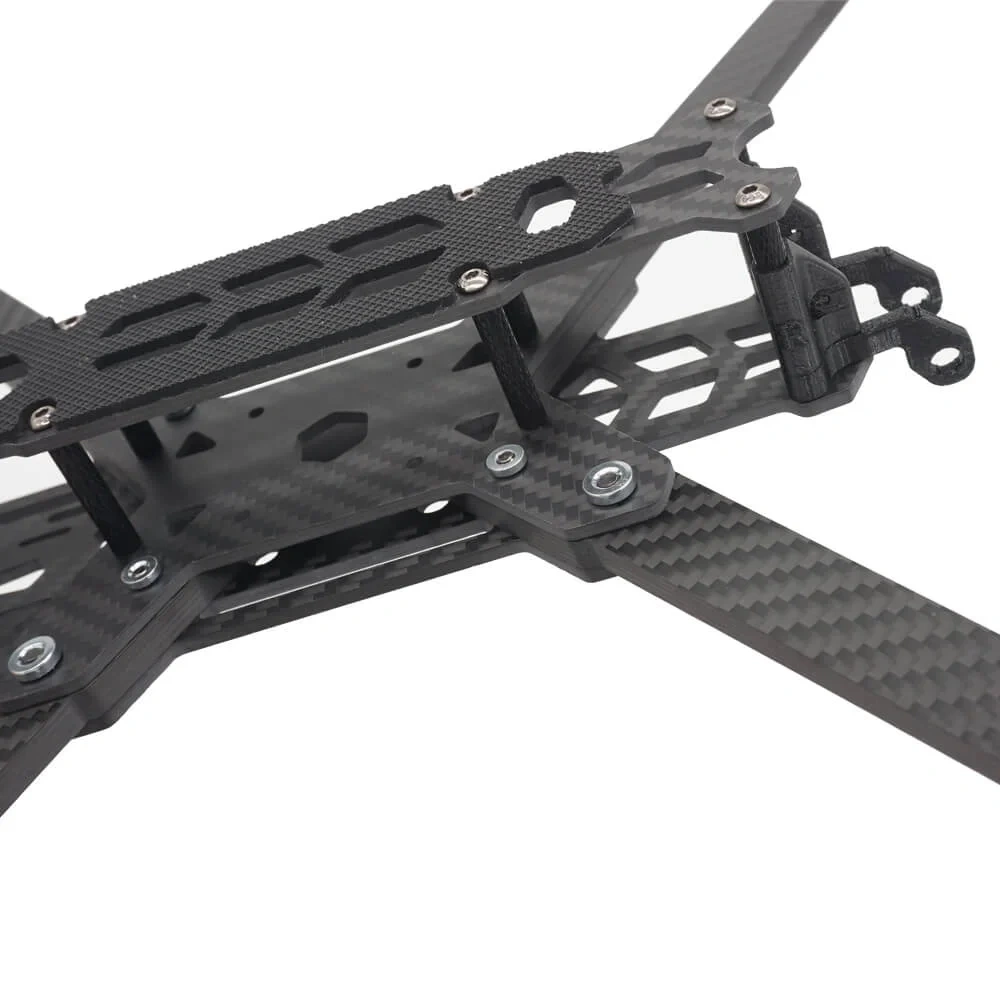

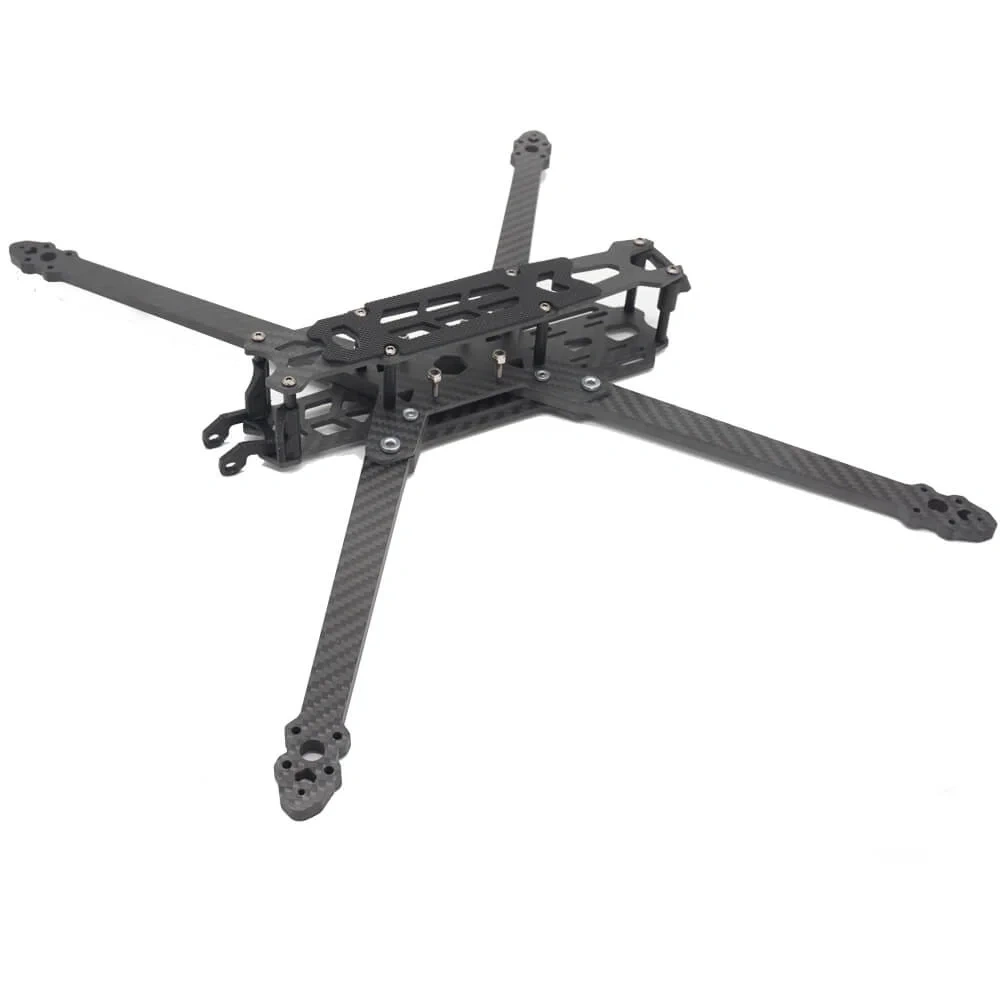

– This frame is specially designed for 10-inch Freestyle and Cine.

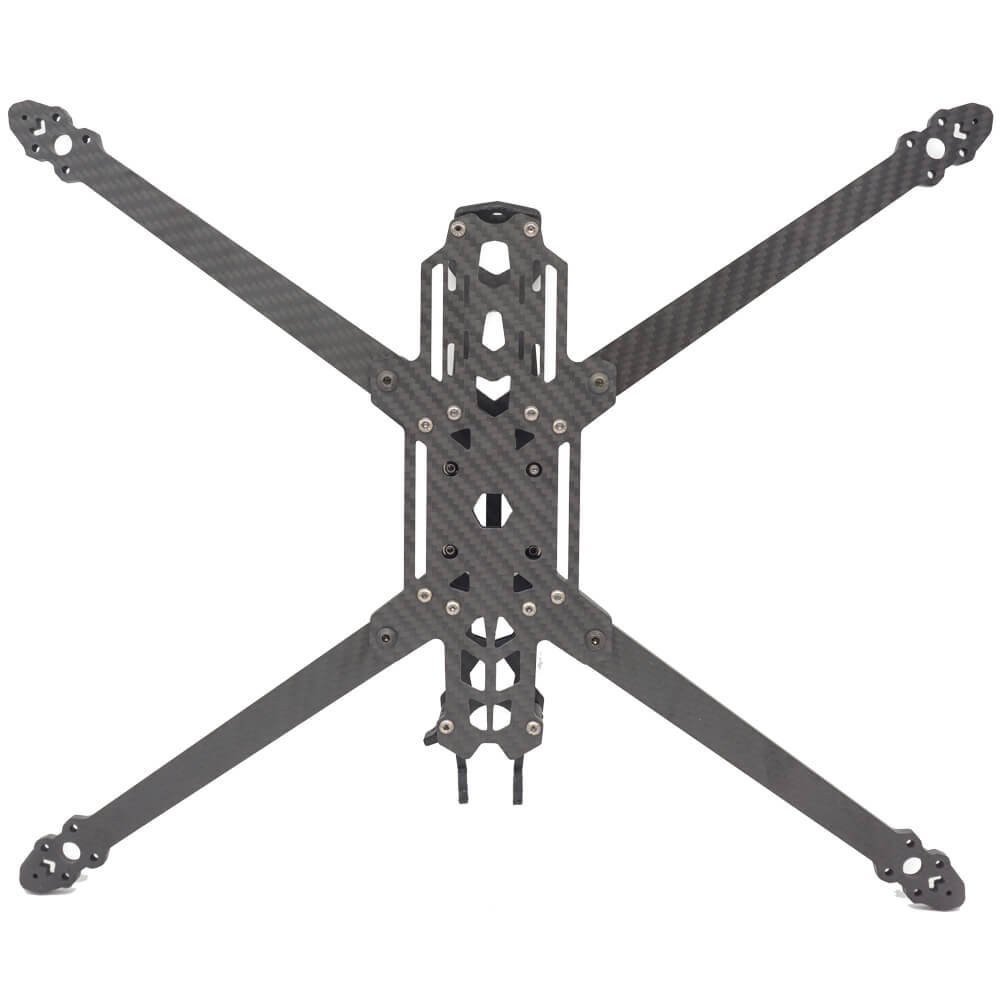

– True X design is silky smooth and more stabled which more suitable for cinematic shooting
– The frame adopts the innovative structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.

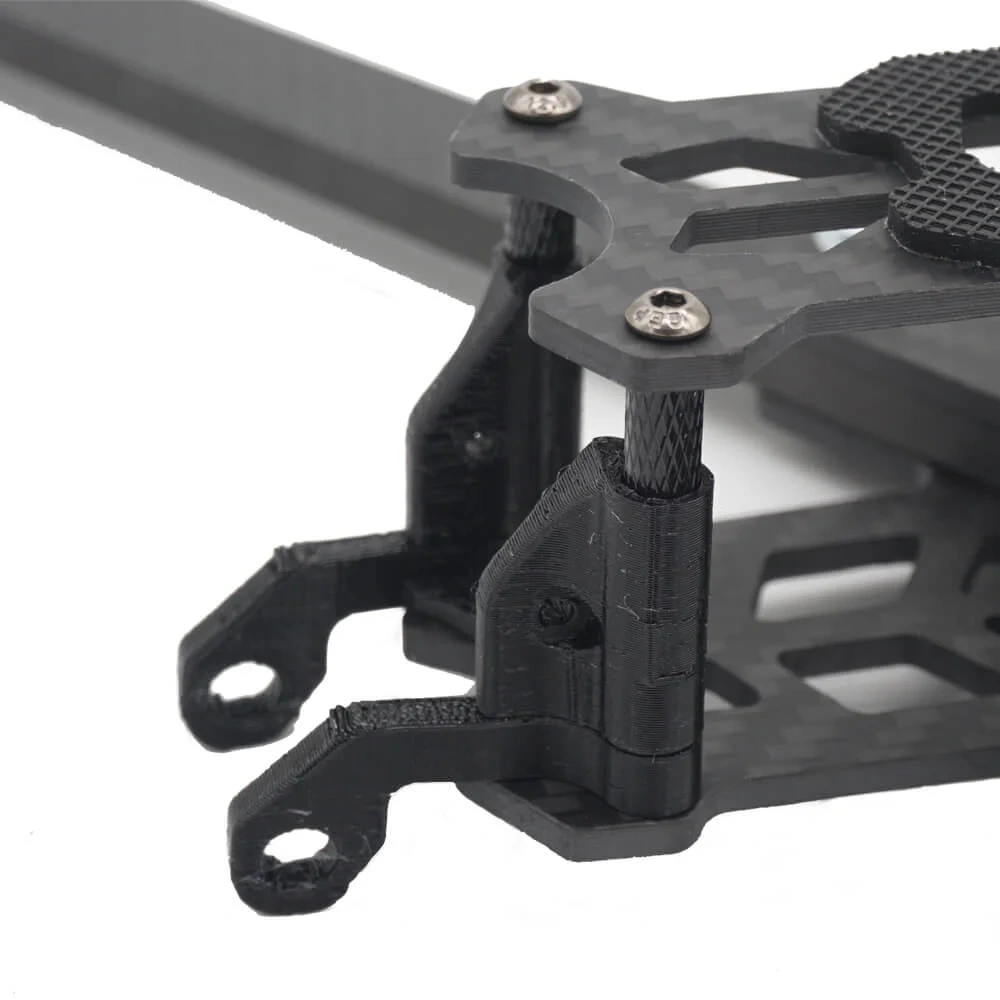

– The frame is compatible with 19MM wide FPV camera. Now upgraded the print section, the lens is fixed more firmly, no jelly.
– The motor mounting holes are M3*16/19mm, Dolphin RC 3115 900kv, and 10″ propellers are recommended.
Frame：Dolphin RC 10 inch
FC&ESC: Dolphin RC F405 60A Stack
Motor：Dolphin RC 3115-900KV motor
propeller：GEMFAN 1050
Camera：384 Thermal imaging FPV Camera
Connector：Default XT90. optional XT60
Install the antenna first and then power it on
Name: 10 inch fpv frame kit
Propeller: 10 inch
Weight : 278g
Wheelbase:415mm
Arms thickness:6MM
Top plate: 2.5MM
Bottom plate: 3MM
Side plate: 2MM
Camera mount size: 19*19mm

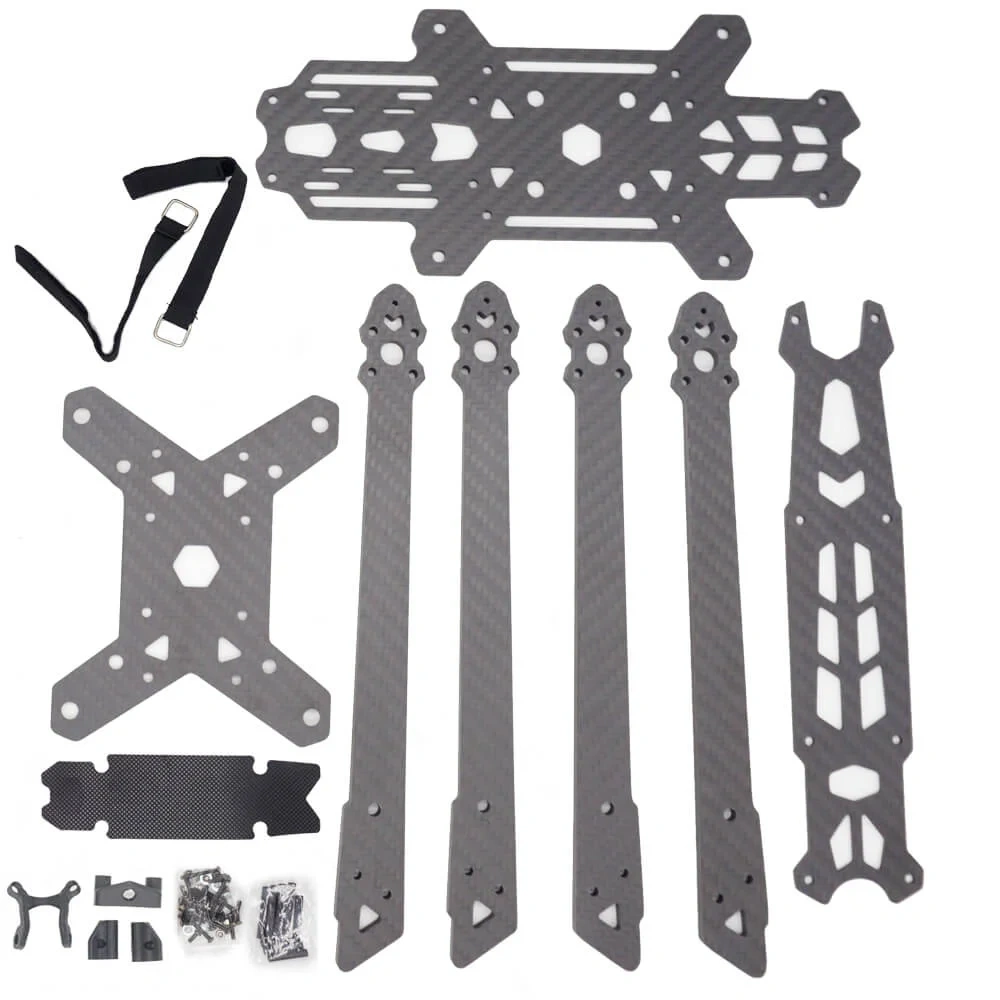

1x TOP plate
1x Bottom plate
1x side plate
4x Arms
4x Aluminum column m3*25mm
4x Aluminum column m3*34mm
2x Camera screw m2*5mm
12x Screw m3*8mm
4x Screw m3*14mm
4x Screw m3*16mm
4x Screw m3*25mm
4x Screw m4*14mm
4x Lock nut m3
4x Riveted nut S-M3-2
4x Riveted nut S-M4-2
1x Printout camera left
1x Print copy camera right
1x Print T antenna
1x Print SMA antenna
1x Non-slip mat
2x Cable strap 25mm x 300mm
