XILO Stax V2 Combo – F4 FC + F4 45A BLHeli_32 4-in-1 ESC

XILO STAX V2 SERIES

The XILO Stax V2 Combo continues XILO’s tradition of giving you high-quality FPV gear for a low price point. And it couldn’t be easier to install and use on your favorite airframe!

Use this combo for seamless integration into your quad. The Stax V2 uses a standard 30.5×30.5 mounting hole configuration. This stack includes M3 silicone mounting grommets to reduce vibrations to your electronics, ensuring accurate readings.

V2 UPDATES

Moved the 8-pin plug to the opposite side of the ESC (also added glue to the plug for increased strength)
The video power switch function has on the FC been removed, but we put one more 10V BEC on it
External Capacitors Changed to 1000uF (from 470uF)
DJI Air unit connector added to FC (On the backside)
Changed the FC Gyro to BMI270
Additional Built-in Capacitance
Updated F4 Processor
96K PMW Frequency
XILO… AFFORDABILITY REDEFINED.

Whether you are looking for a stack for a brand new build or just to freshen up an older quad, the XILO Stax V2 Combo will get the job done, without breaking the bank. Remove the mess of soldering and the chance of making a mistake during build time. The Stax plug n’ play capability allows you to connect the FC to the ESC with the included 8pin harness, simply wire up your motors and accessories, and you are good to go! The 4-in-1 ESC uses F4 processing power to allow complex power management without a hitch. The ESC supports up to 6S input voltage while 45 amps continuous support gives you plenty of headroom to push your mini quads to the limit.

Features
Supports DSHOT 1200, Proshot, Oneshot125 (125-250us), Oneshot42(41.7-83.3us), and Multishot (5-25us). Auto-detection.
Xilo Stax V2 F4 Flight Controller with the latest BetaFlight firmware compatibility
Powerful Xilo Stax V2 45A BLHeli_32 ESC with Current sensor and Telemetry
Synchronous rectification technology adds efficiency, damped light
Adaptive timing, compatible with a wide range of motors and Kv
4x F4 processers for blazing speed (future proof)
Powerful regenerative braking / active braking.
Lightweight, and compact size
3-6s LiPo battery compatible
45A per channel, 55A burst
Onboard current sensor
96K PMW Frequency

Specifications

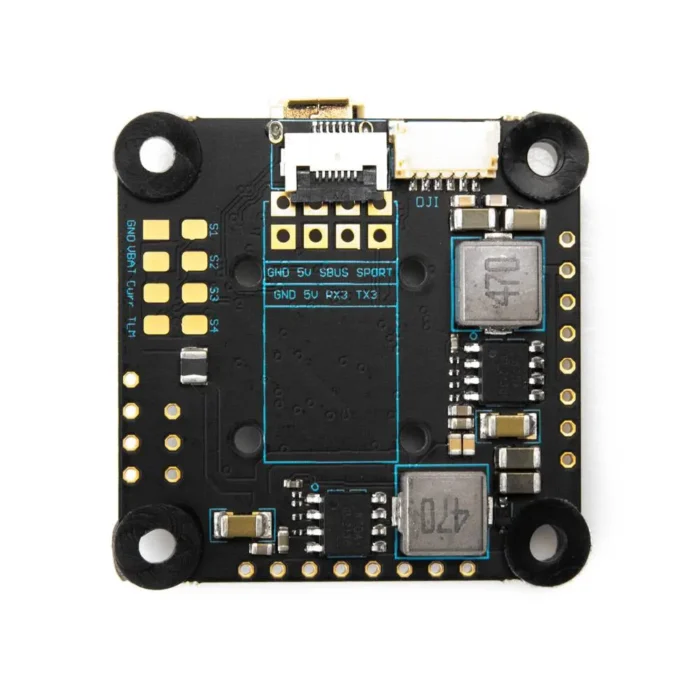

XILO STAX V2 F4 FLIGHT CONTROLLER
Dimensions: 36 x 43mm (including the power pads)
Smartaudio / Tramp VTX Control: Yes
Mounting Holes: 30.5 x 30.5mm
BEC: 5V 2A / 10V 2A
Camera Control: Yes
VBAT input: 8-30V
Input: 3-6s LiPo
PWM output: 4
OSD: AB7456
Processor: F4
IMU: BMI270
LC Filter: Yes
Weight: 12g
Beeper: Yes
MCU: F405
UARTs: 6
I2C: 1

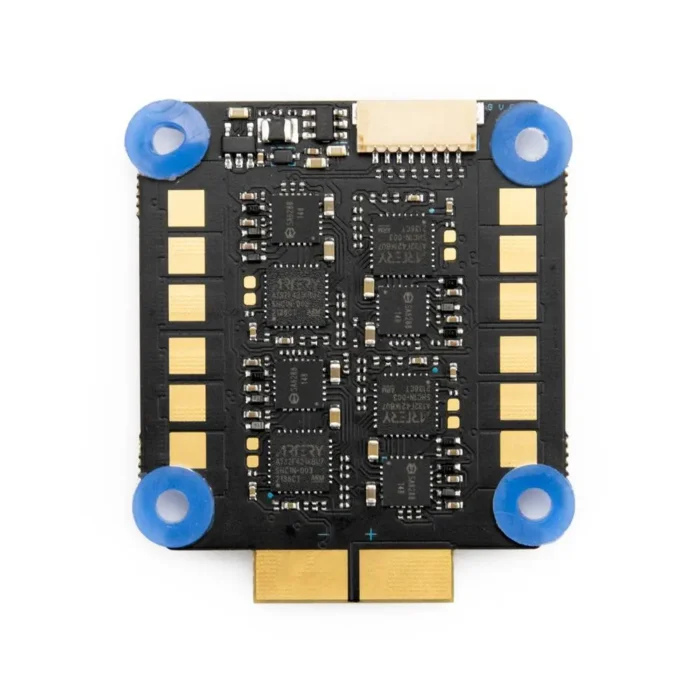

XILO STAX V2 F4 45A ESC
Dimensions: 36 x 43mm(including the power pads)
Weight: 12g (without motor wires)
Constant: 45 Amps (per channel)
Mounting Holes: 30.5 x 30.5mm
Burst: 55 Amps (per channel)
Input: 3-6s LiPo
Processor: F4
BEC: No

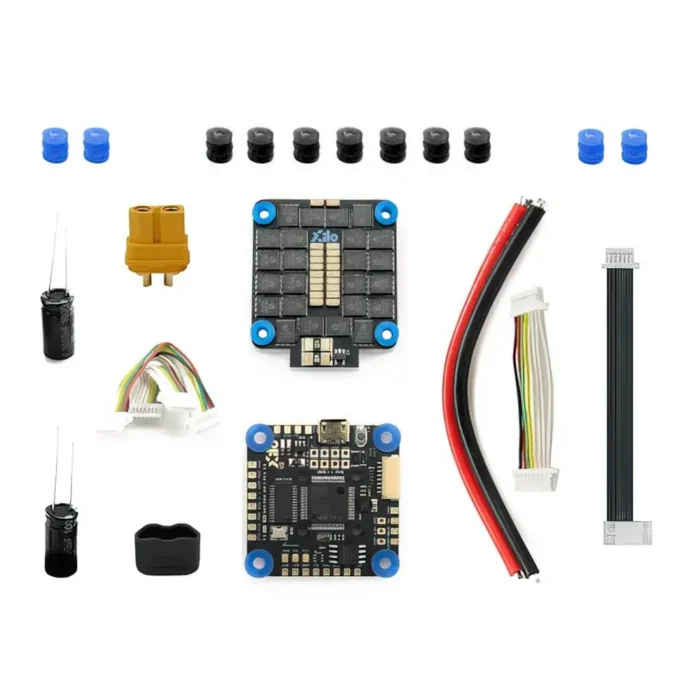

Includes
1x XILO Stax V2 F4 45A BLHeli_32 3-6S 4-in-1 ESC
20x Silicone Grommets (Color May Vary)
1x XILO Stax V2 F4 Flight Controller
1x FC Connecting Wire Set
2x 35v 1000uF Capacitor
1x XT60 Connector
2x 14 AWG Wire
1x 8pin Harness
