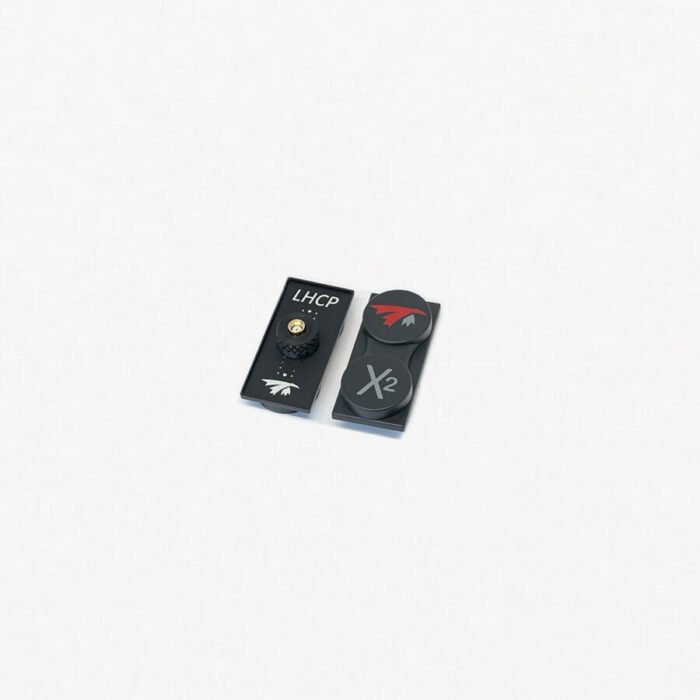

Our high efficiency X²-AIR MK II with direct RP-SMA connectors for installing on the Walksnail avatar or Fat Shark dominator HD FPV goggles. Simply screw on the custom knurled RP-SMA connectors on the front ports* of the goggles. Great 13dBic gain combined with a healthy flyable beam width of 150deg, yield an amazing long range performances. Fill the remaining ports with the optional 120mm OCP and you got the antennas full house.
Custom made RP-SMA connectors, direct fit for your goggles.
As with all other components of X²-AIR antennas, the custom RP-SMA connector is made to the highest standards to fit your Walksnail avatar or Fat Shark dominator without adapter and make sure every bit of RF power is transferred from the X²-AIR. A knurled finish provide easy tightening and a quality look exclusive to TrueRC.
Paired them with our 120mm OCP for great all-around coverage.
A pair of 120mm OCP antennas can be included in an optional combo for the ultimate in performances!
Features
Circularly Polarized
Mount direct on Walksnail avatar or Fat Shark dominator
Sector type beam shape (widest on horizontal)
High 13 dBic for unsurpassed long range and signal penetration
Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
Super wide 150 degree Sector type beam (widest on horizontal)
Custom knurled RP-SMA connectors
Specs
Bandwidth: 5.1GHz-7.0GHz
Gain: 13 dBic
Polarization: LHCP or RHCP
Beam-width Horizontal*: 150deg
Beam-width Vertical*: 62deg
Hor. beam @-3dB**: 75deg.
Vert. beam @-3dB**: 34deg.
Connector: Custom knurled RP-SMA
Dimension: 72mm x 34mm x 15mm
*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.
Includes:
Two X²-air MKII antennas.
Two 120mm OCP (optional)
