TRUERC X-AIR 3.3Ghz Antenna RCHP

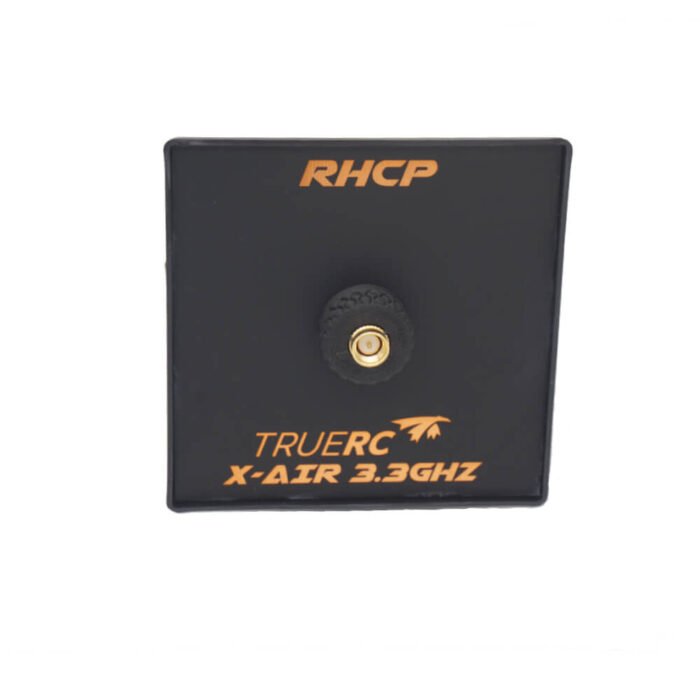

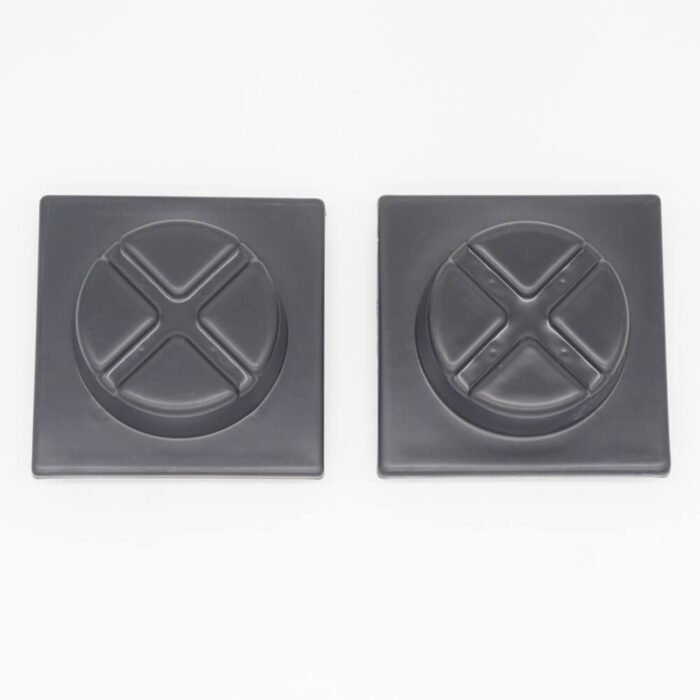

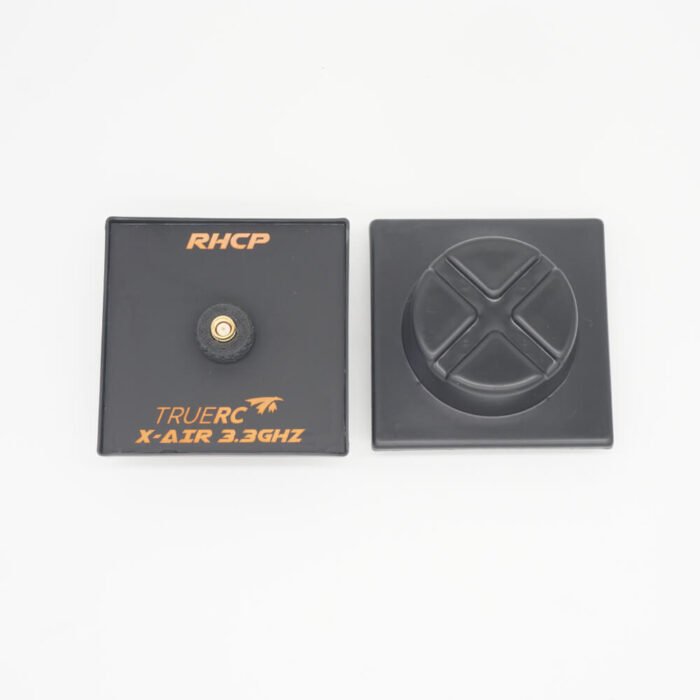

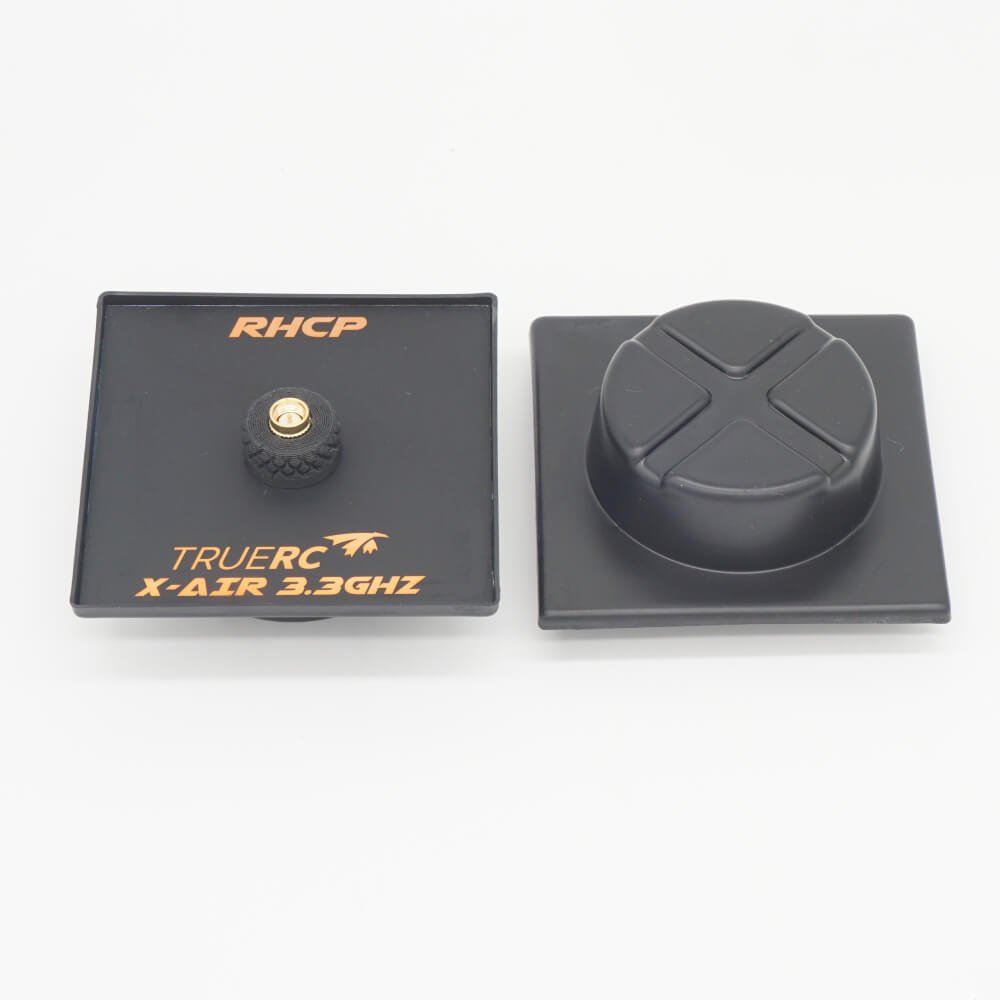

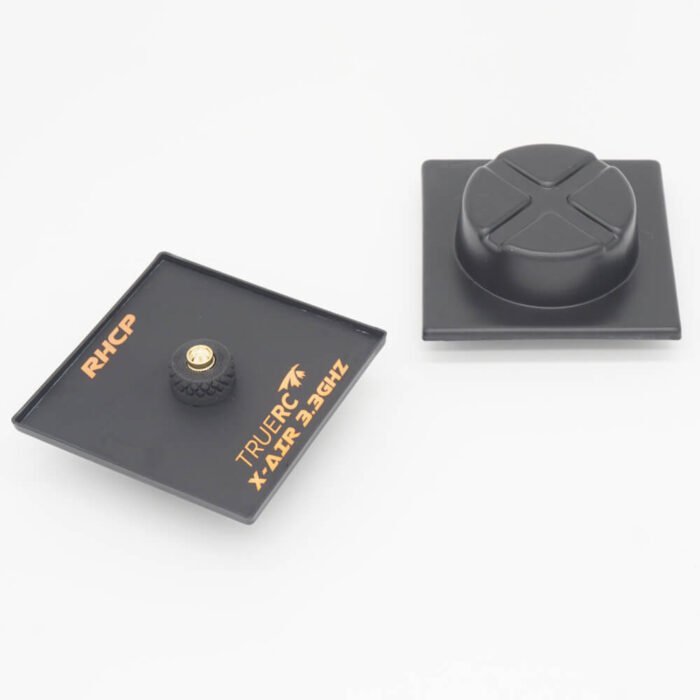

The X-AIR 3.3 is a next generation crosshair antenna for the newly explored 3.3GHz band. Featuring state of the art PCB material, there’s no compromise in beam width or gain. Wide coverage and high axial ratio make it perfect for proximity flying, by keeping signal behind bushes and trees. RHCP only at the moment.

Specs

Frequency: 3.3-3.5GHz

Gain: 10 dBic

Axial Ratio: 1 (perfect)

Beam-width*: 120deg

Beam-width @-3dB**: 68deg.

Connector: SMA

Dimensions: 3.6″x3.6″x1.3″ (SMA plug length of 0.7″)

*Coverage where reception is at least equivalent to an omni.

**Coverage where at least 70% of the max range is obtained.
