Sub250 Nanofly20 Frame Kit

Introduction
The long-awaited second member of the Nanofly family “Nanofly20!” is released! “Change your flying habits in small spaces”. The Nanofly20 is equipped with a two-inch propeller, and the motor mounting hole is 3-M1.4-Ø6.6, which can easily install most of the 1002 motors and 1102 motors on the market. Its overall lightweight design achieves a light feel, “as light as a swallow”. The 25.5 flight controller holes can be installed with mainstream flight controllers on the market. Install a highly integrated sub 1s 5A flight controller, so that it can take off with only one flight controller board plus a camera and motor. It can also be used with Walksnail Avatar VTX and HDZero VTX.

Features
1. “Light as a swallow” lightweight design, with an overall weight of 8.4g, giving more installation space for your electronic equipment.
2. Carbon fiber bottom plate design, body strength pro beyond.
3. 25.5mm flight controller installation holes allow for easy installation of the market’s most popular AIO flight controllers.
4. Ø6.6 M1.4-3 motor mounting holes, compatible with most motors such as 0803, 1002, and 1102.
5. Match a variety of VTX solutions to build your own HD FPV mini drone.

Specification:
Item: Nanofly20 frame
Wheelbase: 88mm
Arm plate: 1.5mm
Motor holes: 3-M1.4-EQS-Ø6.6
FC mounting holes: 25.5*25.5
Camera installation space: 14*14 (mm)
Weight: 8.4g

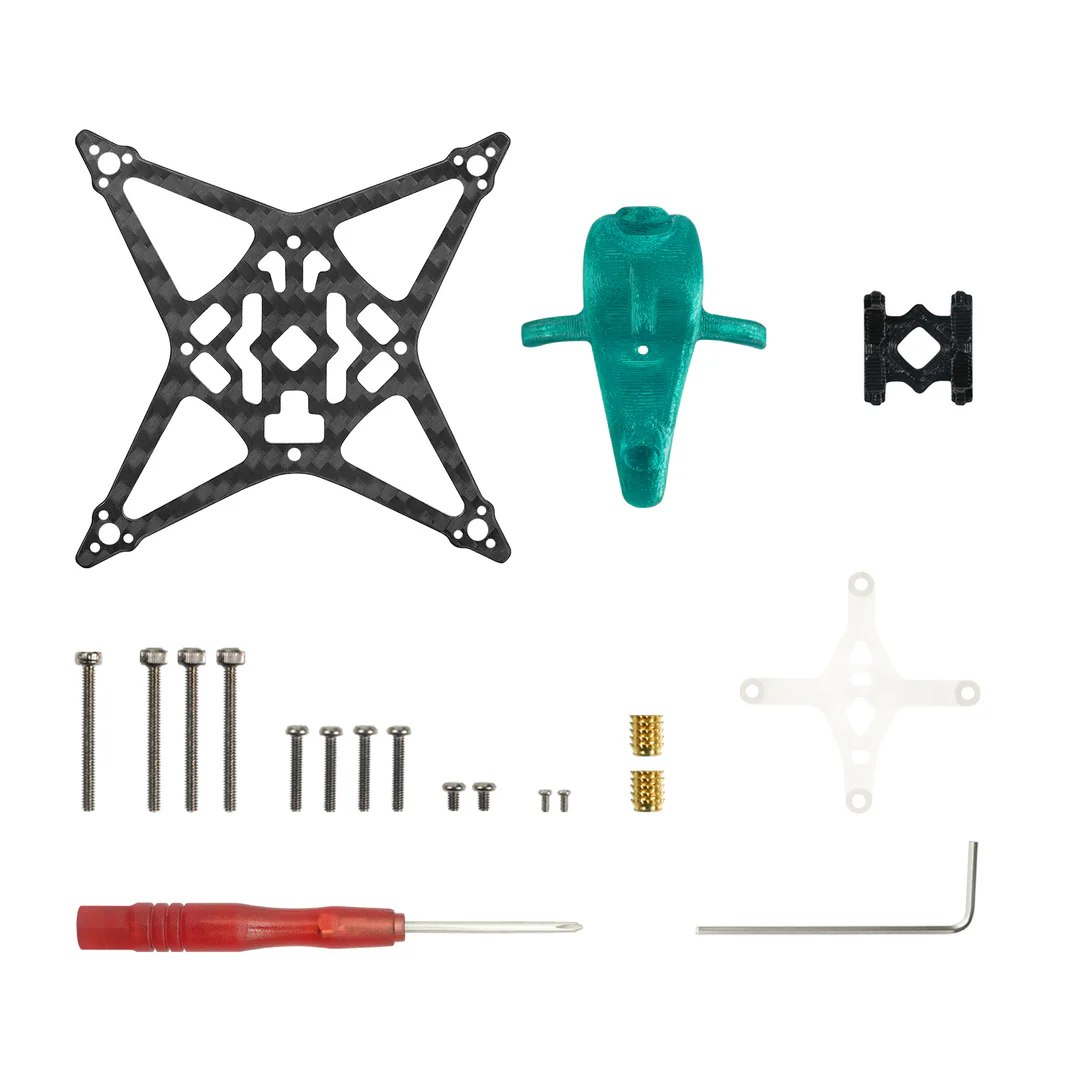

Package Includes:
1 x Nanofly20 Frame
1 x Battery carbin
4 x M2*18 Round head screw
4 x M2*12 Round head screw
2 x M2*3 Round head screw
2 x M1.4*3Round head cross screw
