Sub250 ELRS Nano Pro Receiver – 2.4GHz

Maximize your refresh rate up to 1000Hz with the Sub250 ELRS Nano Pro Receiver – 2.4GHz. This small and lightweight receiver supports WIFI and is compatible with the ELRS open source project for easy firmware upgrades.

Features:
17x11x3.1mm Small size
0.7g weight
WIFI Upgrade firmware
ELRS open source project, remote control
Maximum refresh rate of 1000Hz
The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
Built-in PA + LNA, up to 100mW telemetry power
Specifications:
Size: 17x11x3.1mm

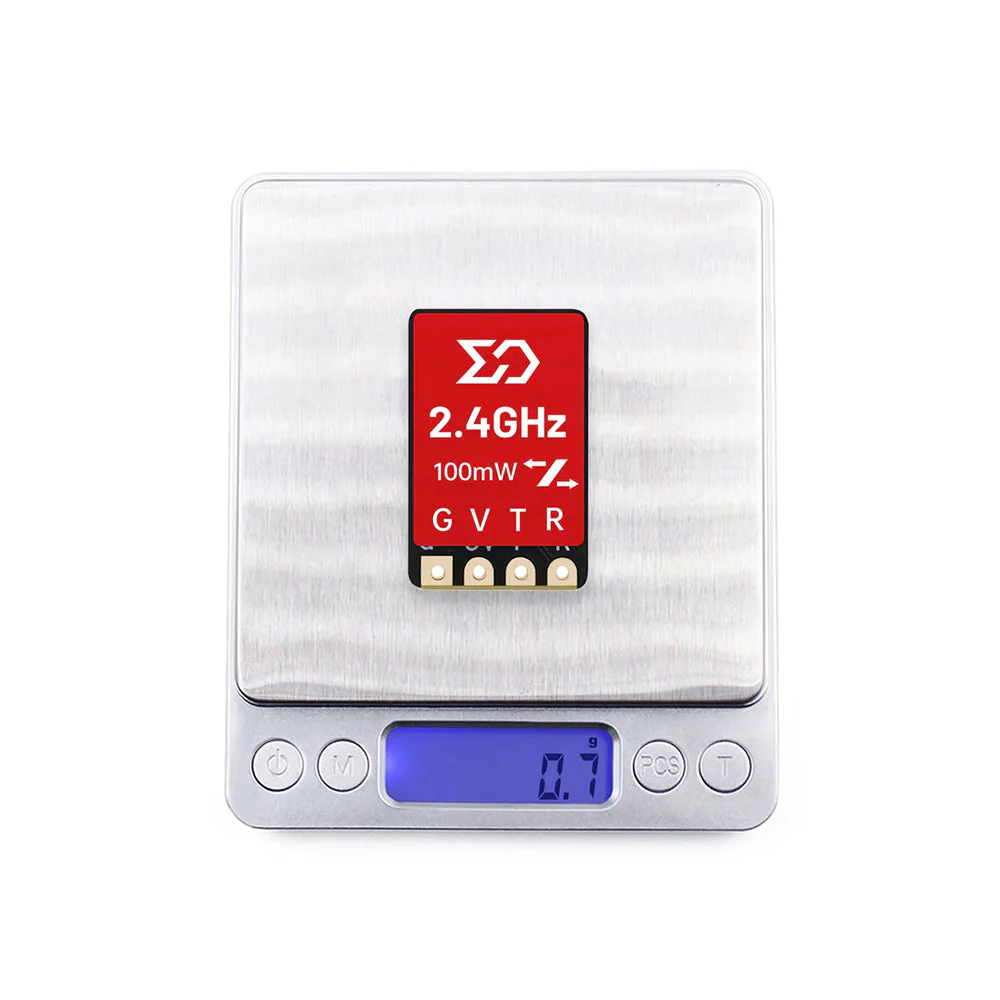

Weight: 0.7g (RX only)

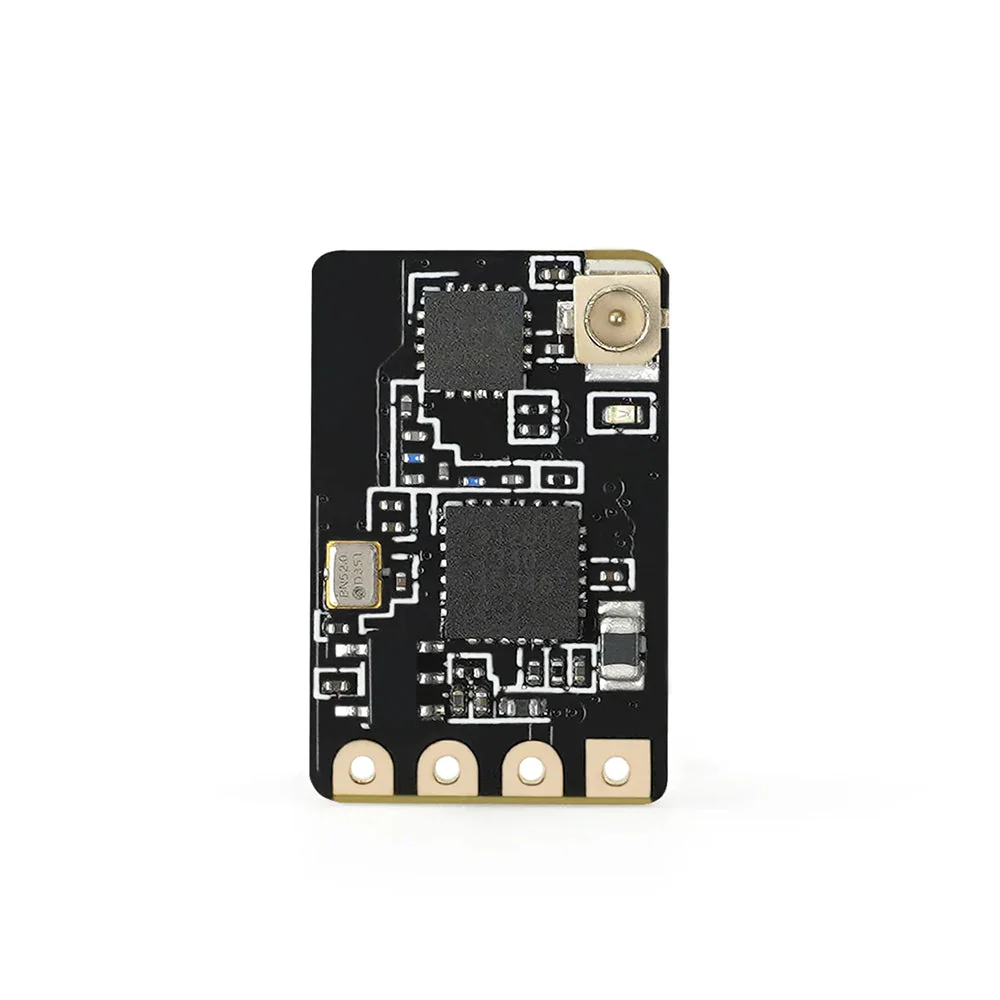

Chips: ESP8285, SX1281
Crystal Oscillator: TCXO
Frequency Band: 2.4GHz ISM
Refresh Rate: 25Hz-1000Hz
Input Voltage: 5V
Connector: ipex1
TLM Power: 100mW
Firmware:Sub250 Nano PRO 2.4G RX

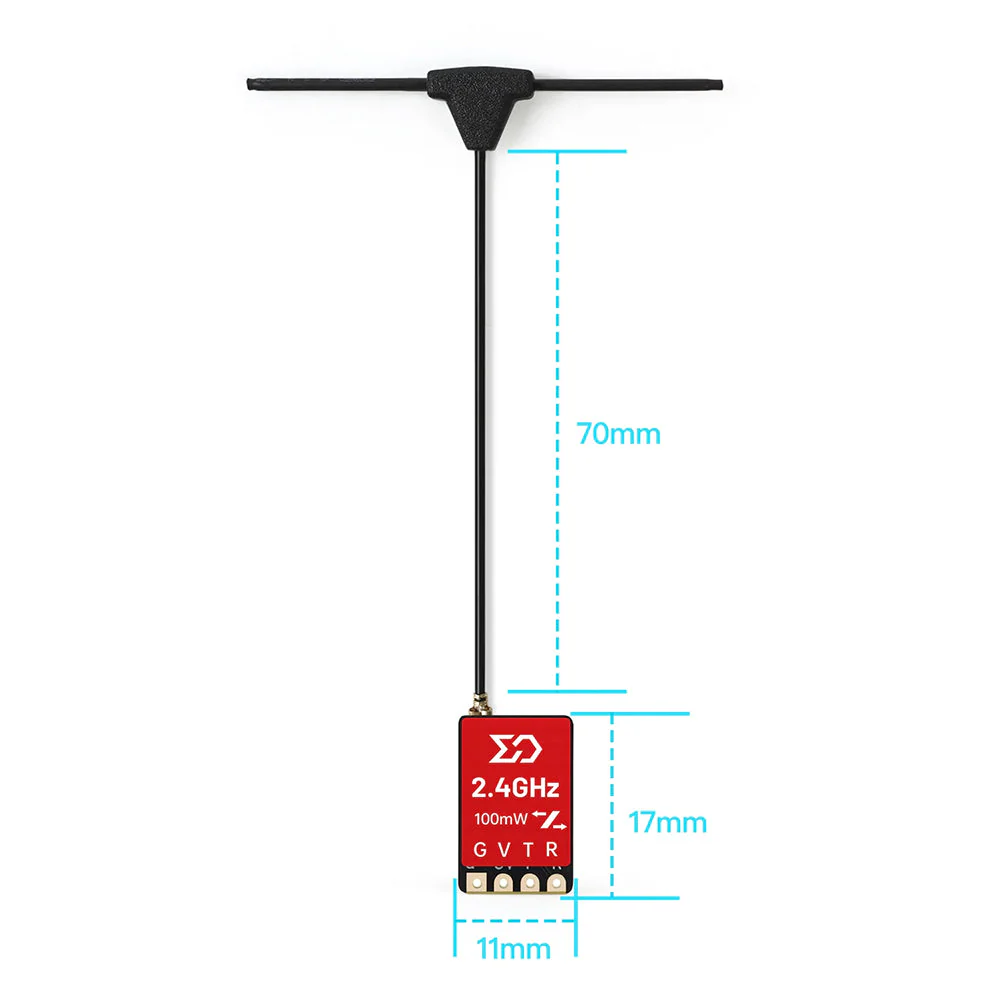

Model:Sub250 2.4G mini T Antenna
Length:70mm
Weight: 1.1g
Connector: ipex1
Bandwidth:2400-2485MHz
VSWR:<1.5

Package Includes:
1 x ELRS Receiver
1 x Antenna
1 x Heat shrink tube
4 x SH1.0 cable
1 x pin (4pin)
1 x Instruction manual
