SpeedyBee Mario 5 inch Frame Kit

Model：SpeedyBee Mario 5 Frame

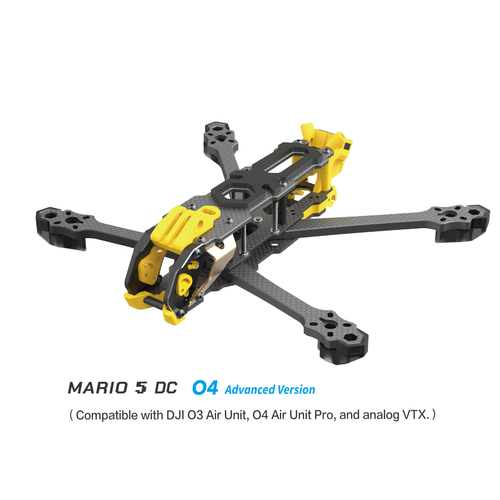

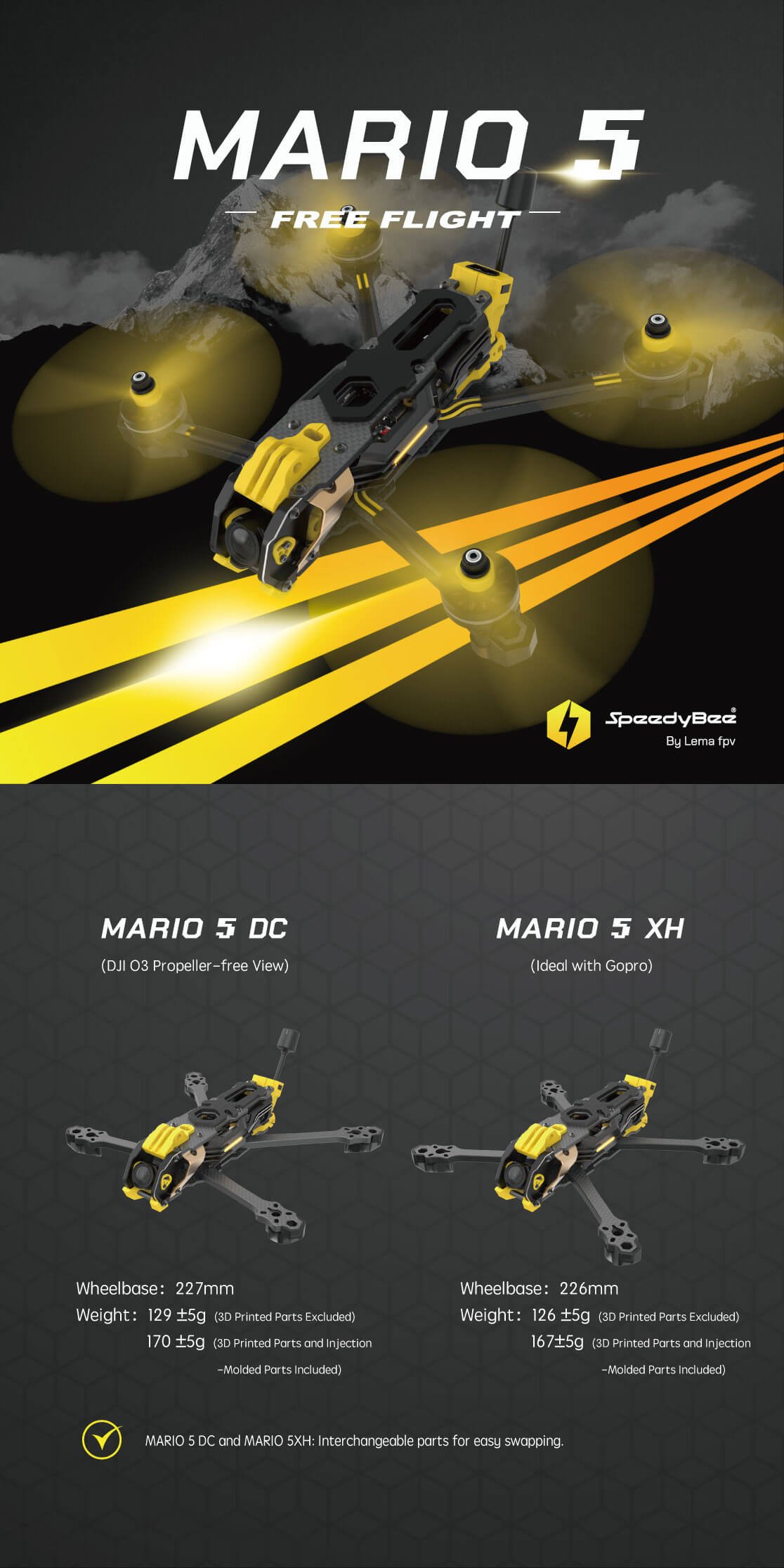

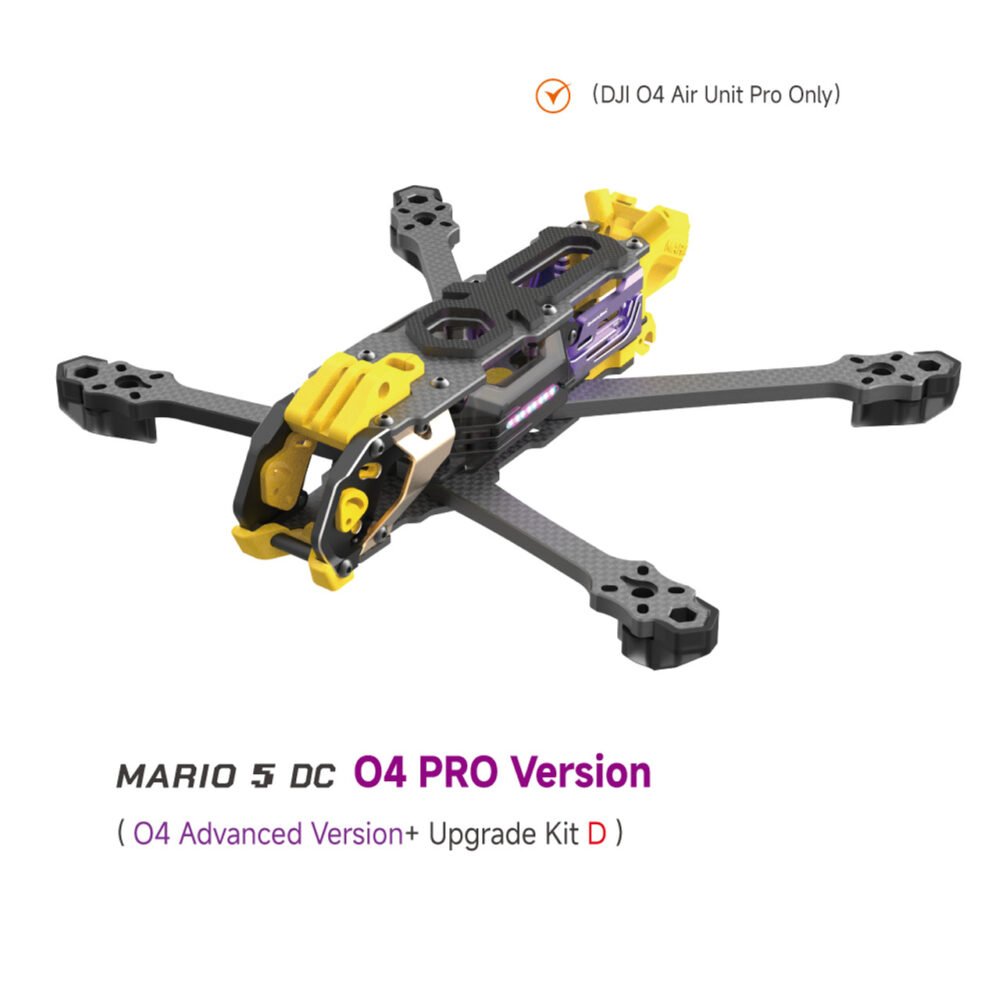

Mario 5 DC Wheelbase：227mm
Mario 5 DC Weight：129 ±5g (3D Printed Parts Excluded)
170 ±5g (3D Printed Parts and Injection)

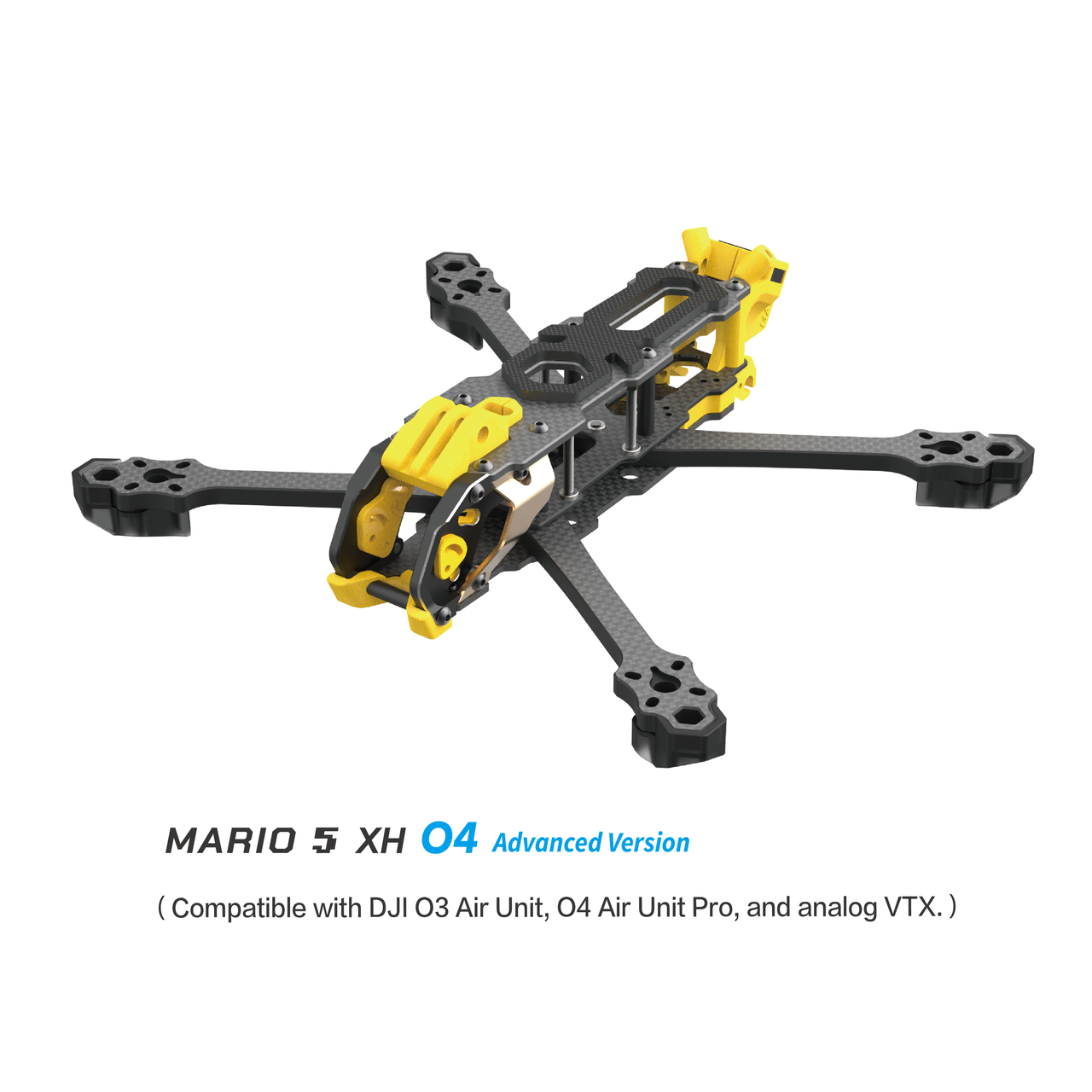

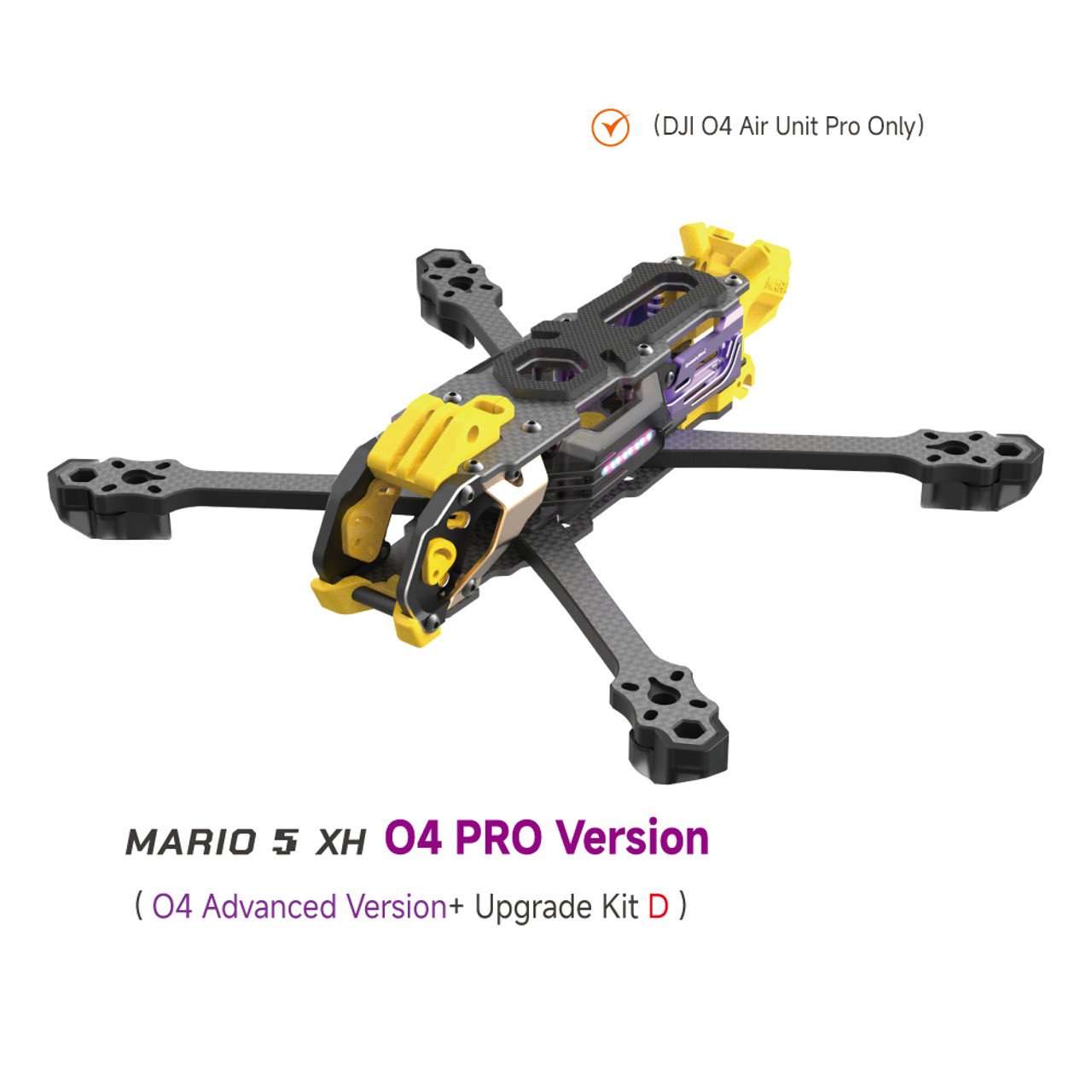

Mario 5 XH Wheelbase：226mm
Mario 5 XH Weight：126 ±5g (3D Printed Parts Excluded)
167±5g (3D Printed Parts and Injection)

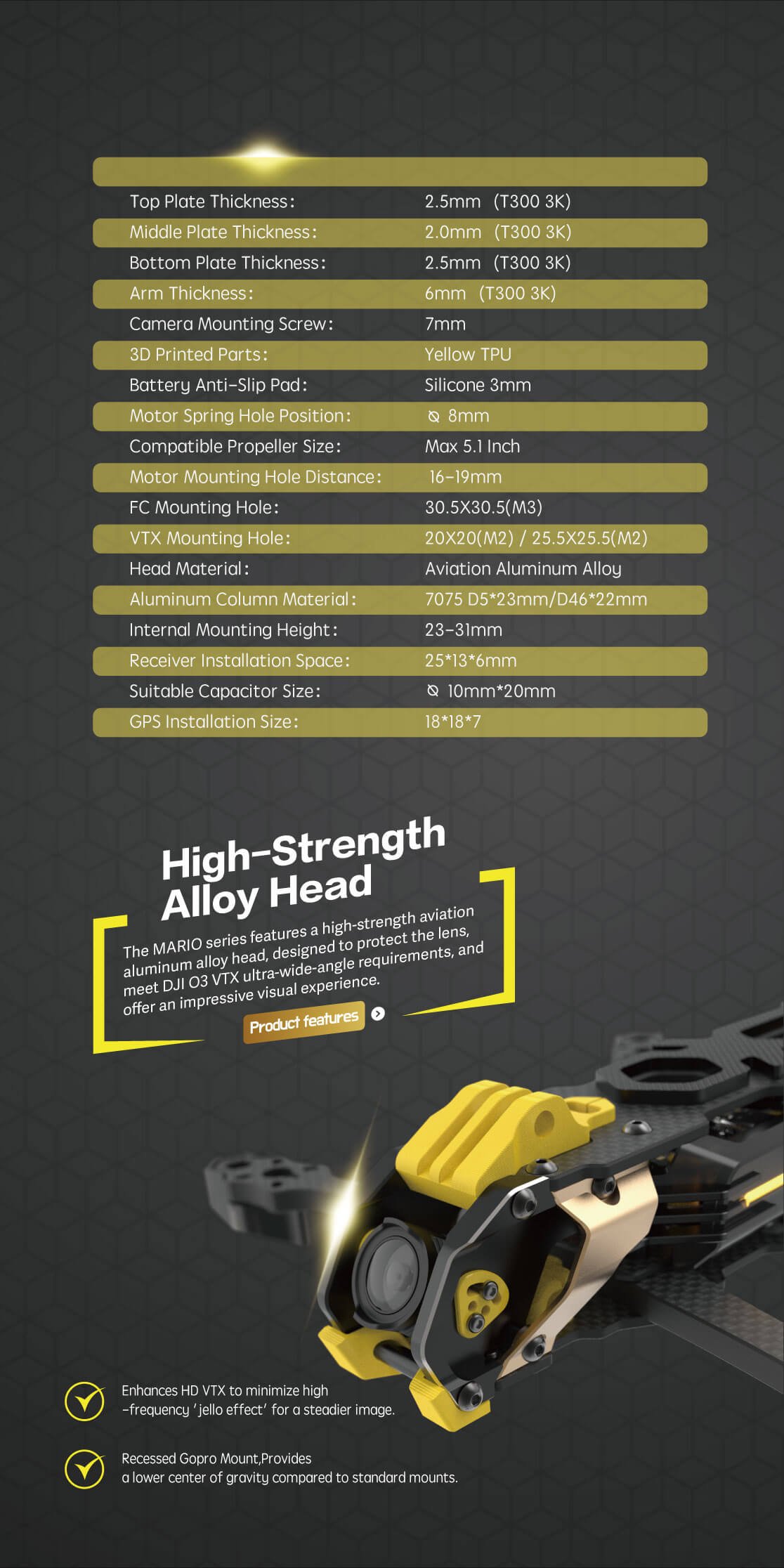

Top Plate Thickness：2.5mm(T300 3K)
Middle Plate Thickness：2.0mm(T300 3K)
Bottom Plate Thickness：2.5mm(T300 3K)
Arm Thickness：6mm(T300 3K)
Camera Mounting Screw：7mm
3D Printed Parts Yellow TPU
Battery Anti-Slip Pad Silicone：3mm
Motor Spring Hole Position：Φ8mm
Compatible Propeller Size：Max 5.1 Inch
Motor Mounting Hole Distance：16-19mm
FC Mounting Hole：30.5×30.5(M3)
VTX Mounting Hole：20×20(M2) / 25.5×25.5(M2)
Head Material Aviation Aluminum Alloy
Aluminum Column Material：7075 D5*23mm/D46*22mm
Internal Mounting Height：23-31mm

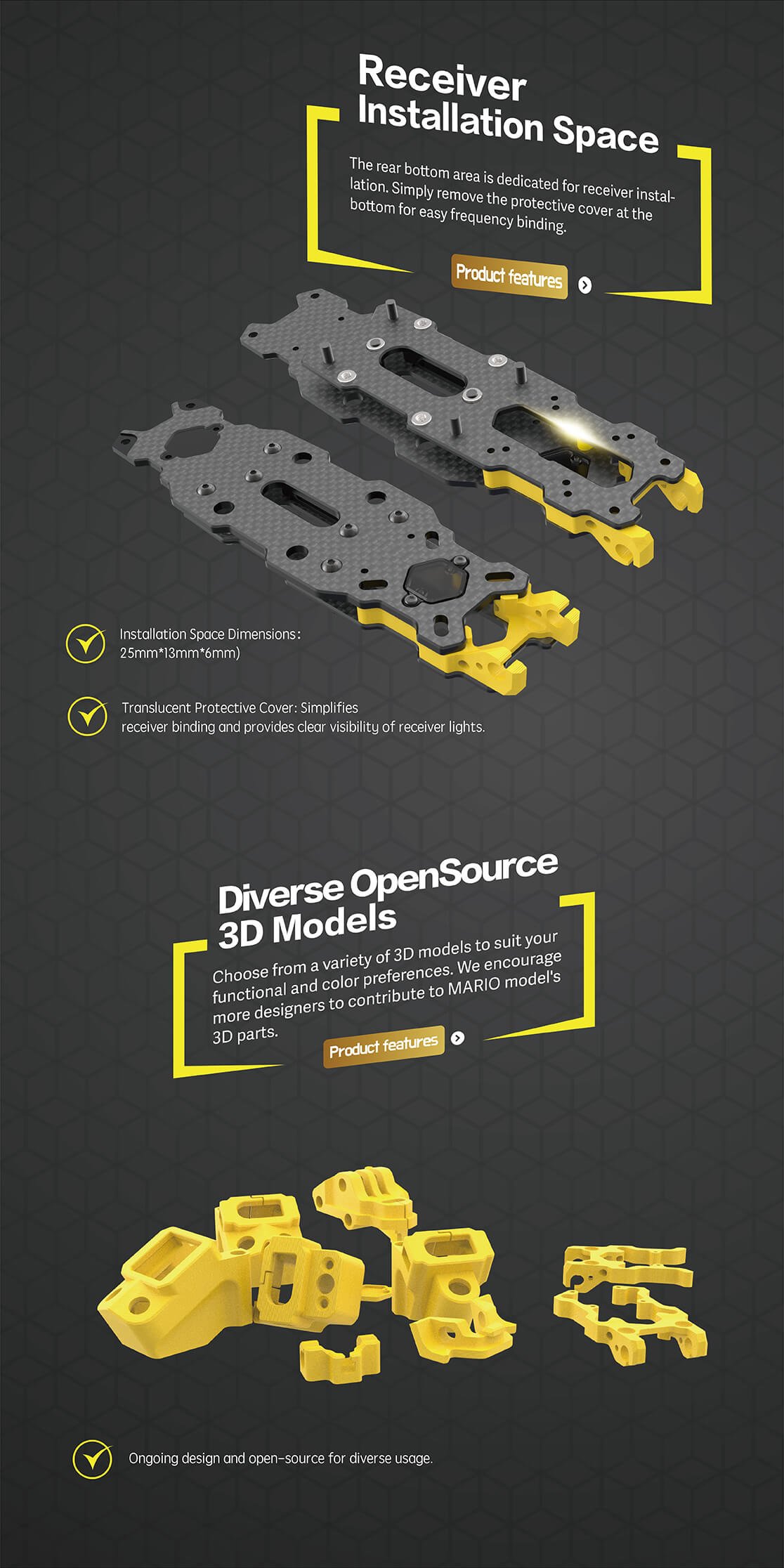

Receiver Installation Space：25*13*6mm

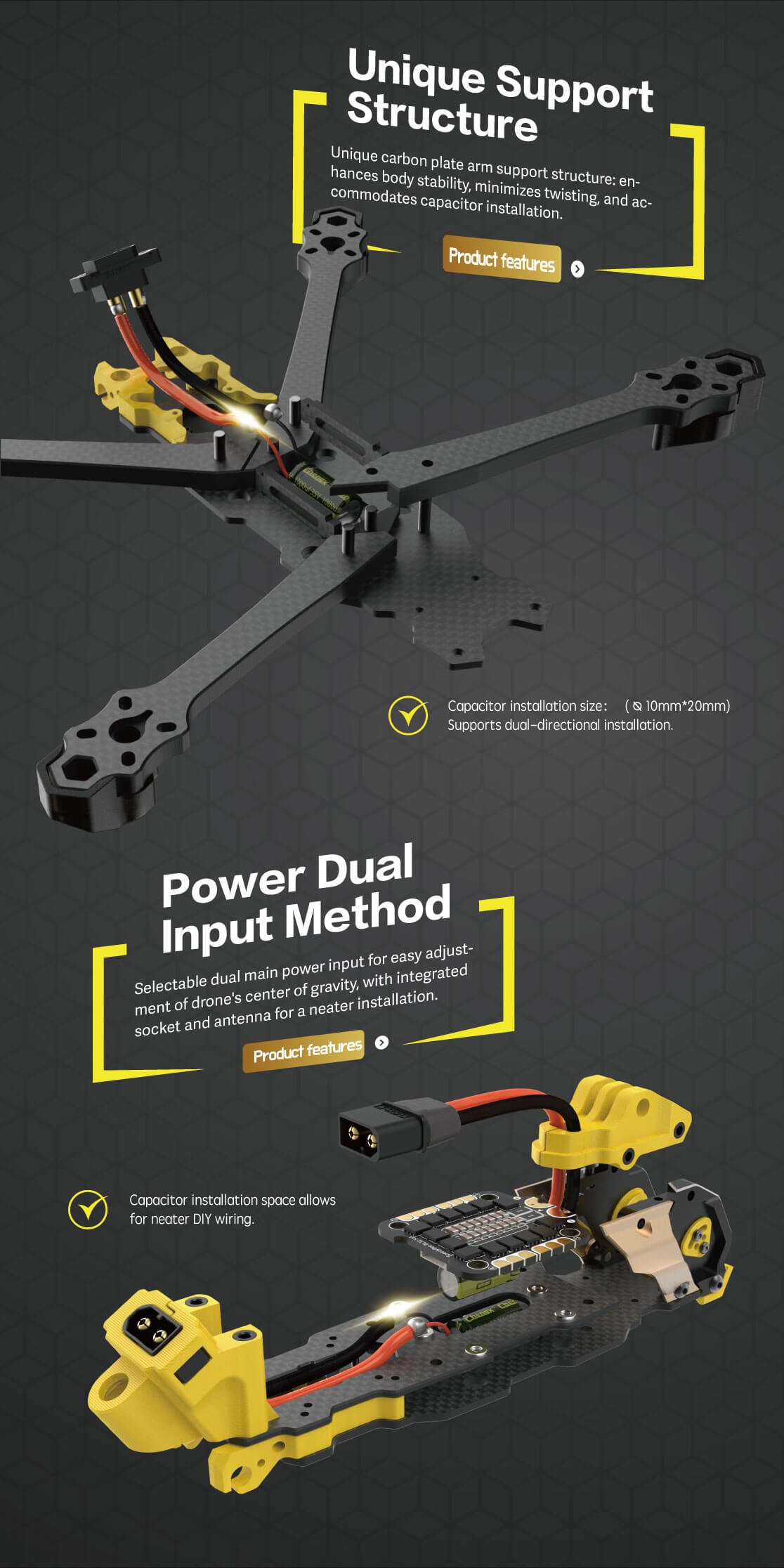

Suitable Capacitor Size：Φ10mm*20mm
GPS Installation Size：18*18*7
Camera Compatibility ：19mm/20
