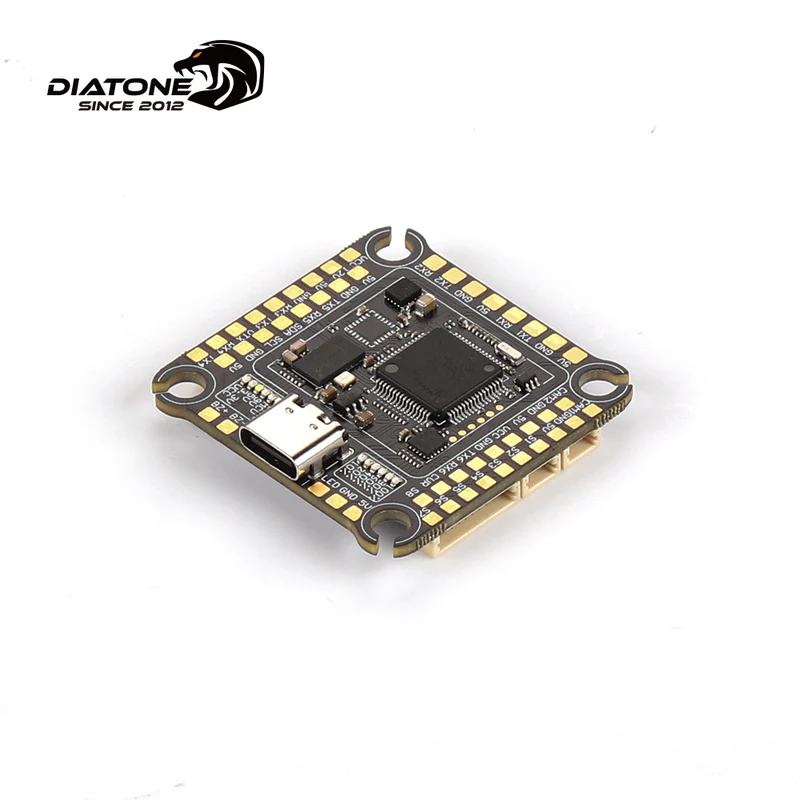

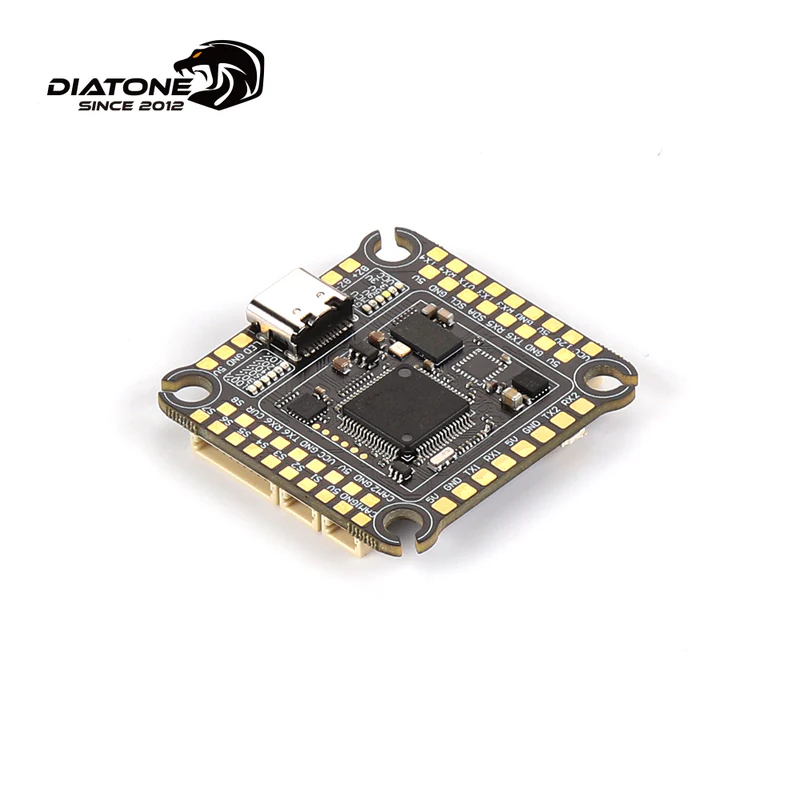

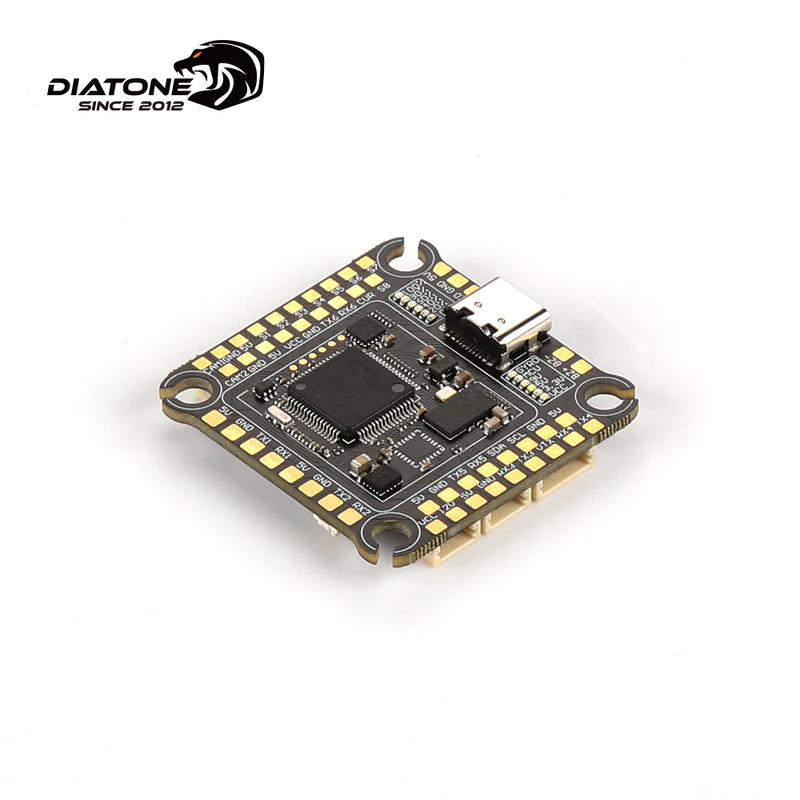

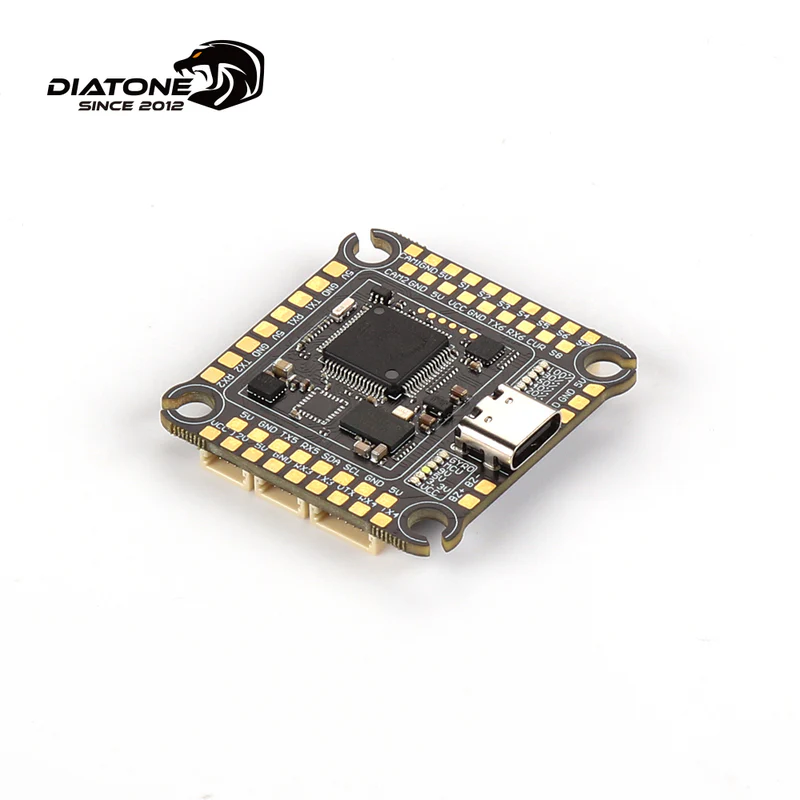

MAMBA MK5 F722 Flight Control

MAMBA MK5 F722

MCU: 216MHz STM32F722
GYRO: ICM-42688-P

Target：MAMBA F722_2022B
OSD: Yes
Blacbox: 16M Flash Memory
Barometer: SPL06
Uarts: 6 Set
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes

LED Controller:BF LED
AIR UNIT Port: Yes
WIFI:No
CAM1/CAM2 Switch: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC:3.3V 0.5A&  5V 3A& 12V 3A
Input voltage:  4~6S Lipo（14.8~25.2V)
Mounting size: 30.5mm,M3
Socket: Sh1.0

Supply :
8pin sh1.0  ×1
AIR UNIT sh1.0 ×1
