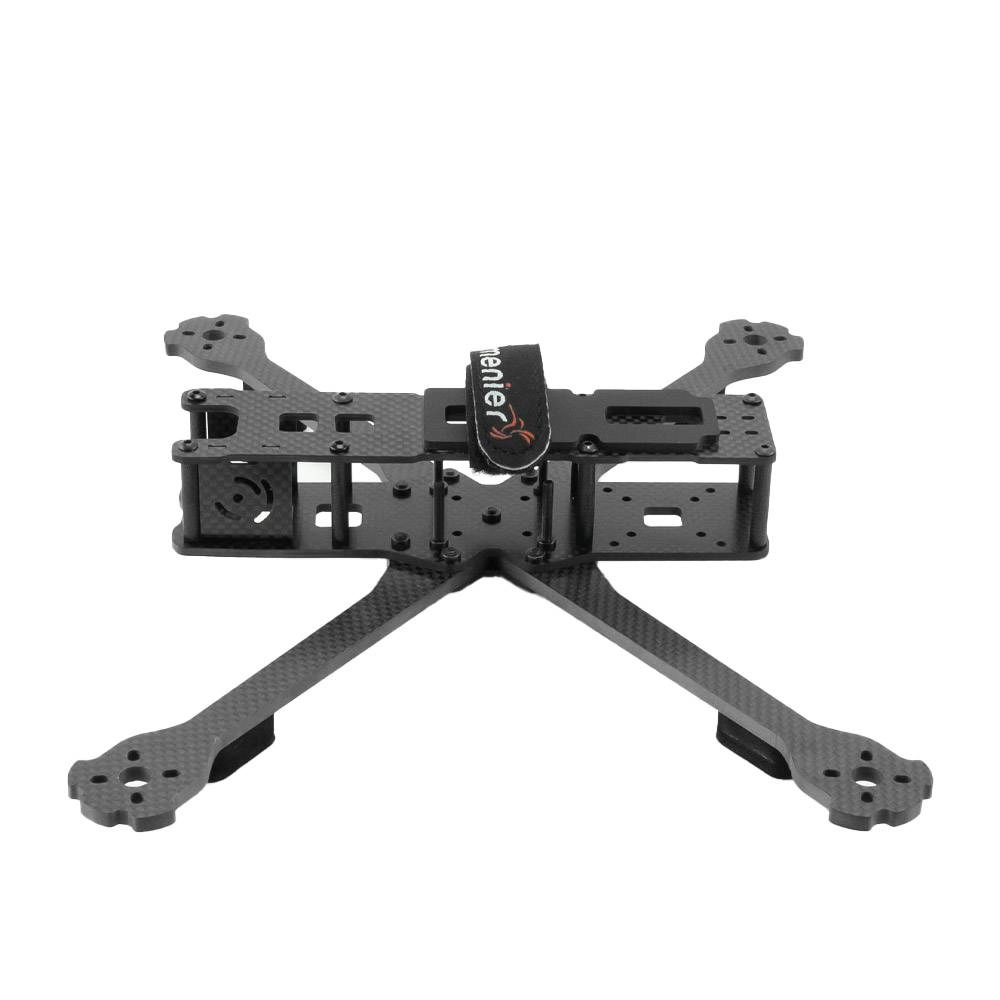

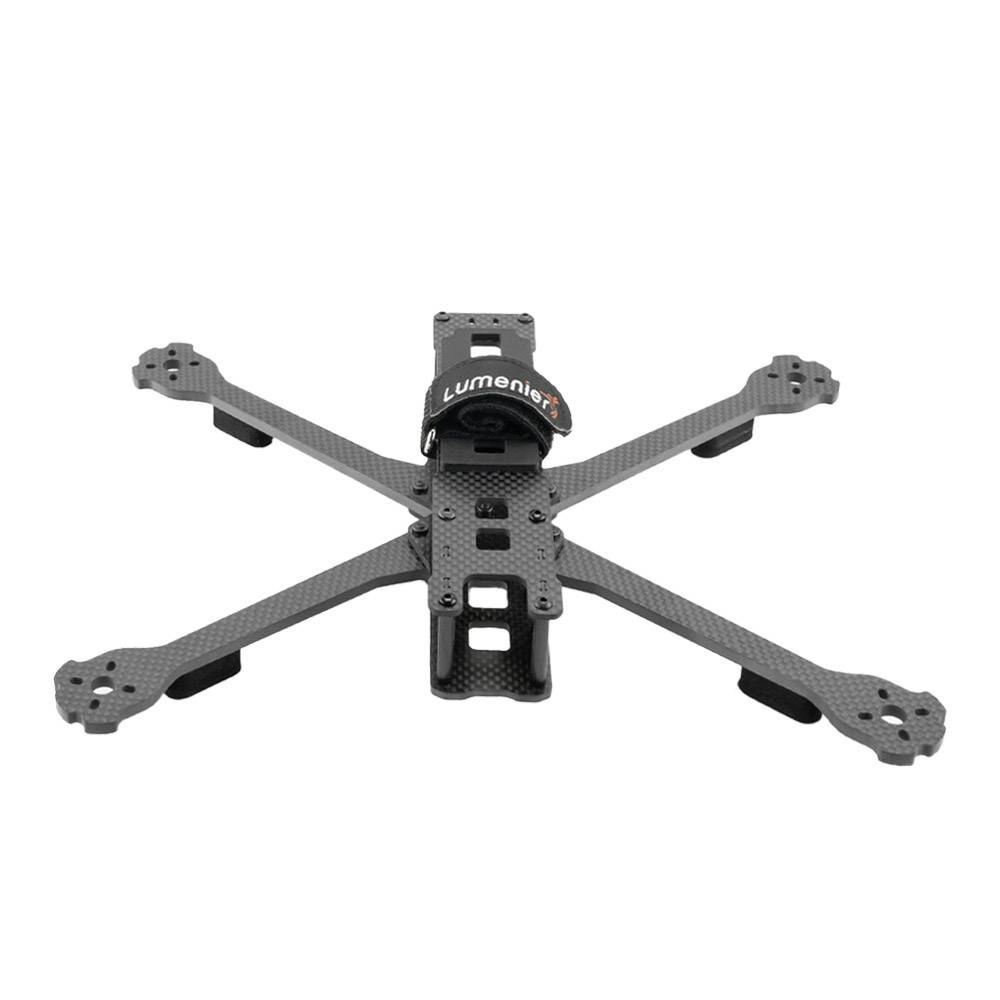

Lumenier QAV-R 2C 7 inch Frame Kit

About this product
Introducing the Lumenier QAV-R 2C 7″ Frame Kit, crafted with silky, clear-coated carbon fiber and features an extended main body, offering ample space for accessories and electronics. It also includes versatile mounting options, accommodating 30.5×30.5mm and 20x20mm mounting hole patterns in the middle and rear of the frame.

To support its larger body size, the QAV-R 2C is built with reinforced, thick carbon fiber. The 5mm thick arms, a 2.5mm bottom plate, and a 2mm X-brace combine to deliver 10.5mm of carbon at the central stress points, ensuring superior durability and rigidity.

Designed for top-mounting the LiPo battery, the frame includes a silicone non-slip battery pad to keep the LiPo securely in place during flights or crashes. Socket cap washers are also included to protect the bottom screw heads, preventing damage that could render them unusable.

With 28mm spacing between the top and bottom plates, the QAV-R 2C is compatible with full-size FPV cameras, making it a durable and versatile choice for FPV pilots.

Features
Versatile 20.5×20.5 / 30.5×30.5 Stack Mounting
Carbon Fiber Camera Sidewalls
Silicone Non-Slip Battery Pad
Reinforced Bottom X-Brace
Premium 3K Carbon Fiber
Squashed-X Configuration
Black Oxide Steel Screws
Removable 5mm Arms
Easy-Grip Spacers
Motor Guards

Specifications
Motor to Motor Dimensions: Diagonal 302mm, length 182mm, Width 242mm
Stack Mounting: 20mm (M2) & 30mm (M3)
Name: Lumenier QAV-R 2C Frame Kit – 7″
VTX Mounting: 20×20 & 30.5×30.5
Bottom to Top Thickness: 28mm
Dimensions: 216mm * 278mm
Battery Pad: Silicone Non-Slip
Frame Body Weight: 172g
Material: Carbon Fiber
Structure: Squashed X
Bottom Plate: 2.5mm
Arm Thickness: 5mm
Carbon Material: 3K
Wheelbase: 177mm
Prop Size: 7 inches
Motor Guards: Yes
Top Plate: 2mm
