Lumenier QAV-PRO Mini Whoop 3.5 inch Frame Kit

The Lumenier QAV-PRO Mini Whoop Is a performance 3.5” FPV quadcopter that is designed to combine the agility needed for outdoor flying with stable and protected capabilities for indoor flying. The Mini Whoop has been thought out as a platform that can carry an HD action camera while having enough power for fast maneuvers in a compact 3.5” size, featuring full propeller protection with premium carbon fiber and custom aluminum mounts. Being compact, powerful, and strong makes this frame the ultimate cinematic “One-Shot” drone.

Features
Premium Quasi-Isotropic Japanese Carbon Fiber (Matte Finish)

Pusher Configuration for Longer Flight Time and More Power

Dedicated RX and VTX antenna mounting spots

Durable Prop Guard Brackets and Standoffs

Designed for both HD and Analog Systems

Wider footprint that ensures a stable flight

Supports HD Action Camera Mounting

Great for Professional Cinematic Use

Prop Guarded frame

PROTECTION WITH PROP GUARDS

Flying so close to people or objects that you need a little more security? No problem! The QAV-PRO Mini Whoop provides prop guard protection so you don’t need to worry about indoor or proximity flying.

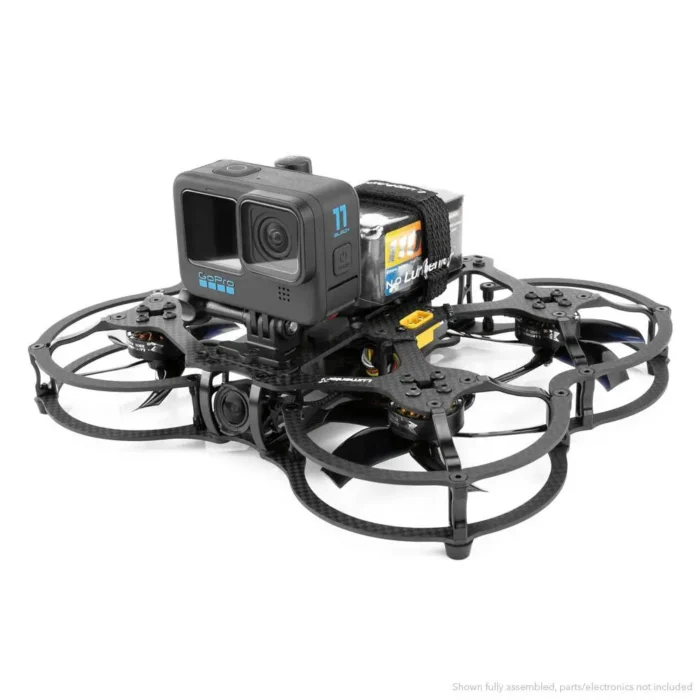

Supports Full Size HD Action Cameras

Looking to add 4k buttery smooth video recording to your QAV-PRO Mini Whoop? No problem! the frame is designed to carry a GoPro-style camera with a dedicated camera mount on top. This allows a variety of cameras and 3D prints to securely hold the HD camera in place making sure you get the perfect shot!

DESIGNED FOR BOTH HD AND ANALOG SYSTEMS

The QAV-PRO Mini Whoop frame was designed from the ground up to be very versatile and allow many different configurations with the same design. This one airframe design fits 20×20 stacks, 25.5×25.5 toothpick AIO boards, and the DJI O3 Digital HD system. This frame has mounting points for an antenna, camera, receiver, transmitter, and more.

PUSHER STYLE FRAME

The Lumenier QAV-PRO Mini Whoop airframe design supports a pusher configuration. it was found to have 15-20% more flight time and even better throttle response. Many “pusher” style frames struggle to easily take off from the ground since their propellers are often resting on the surface, but with the QAV-PRO Mini Whoop… it’s no problem since the entire prop is surrounded by carbon fiber. This gives you plenty of clearance to take off and land without any issues.

Specifications
Carbon Fiber Material: 2mm Quasi-Isotropic Japanese Carbon Fiber (Matte Finish)
Model: QAV-PRO Mini Whoop 3.5″
Dimensions: 25x20x5cm
Weight: 155g

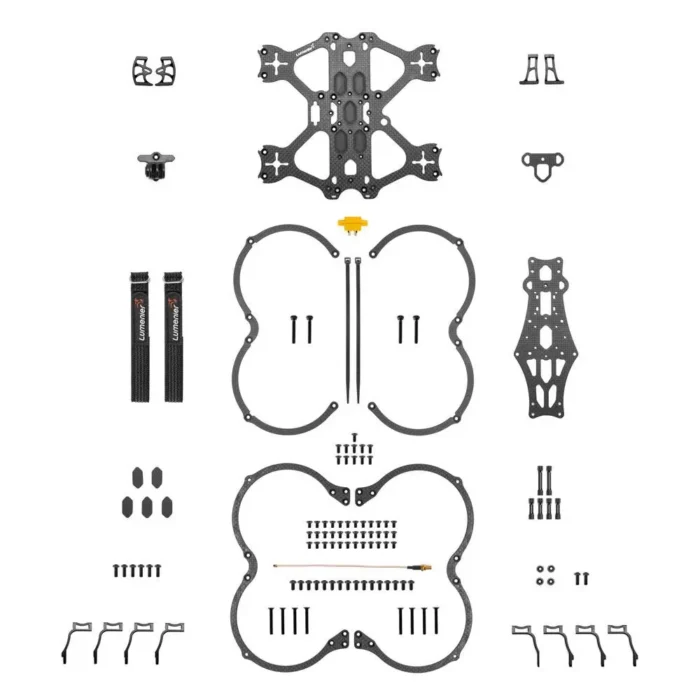

Kit Includes
1x Lumenier QAV-PRO Mini Whoop Lower Prop Guard Plate (Set of 2)

1x Lumenier QAV-PRO Mini Whoop Upper Prop Guard Plate (Set of 2)

1x Lumenier QAV-PRO Injection Molded Universal GoPro Mount Base

1x Lumenier QAV-PRO Mini Whoop Camera Plate (Set of 2)

1x Lumenier QAV-PRO Mini Whoop Bottom Plate

1x Lumenier QAV-PRO Mini Whoop Motor Plate

1x Carbon HD Camera Plate Spacer

2x Lumenier 16x220mm LiPo Strap

4x M3x20mm Knurled Standoffs

2x M3x28mm Knurled Standoffs

1x SMA to U.FL Wire

1x Amass XT-60E-M

2x Rear Brackets

1x Hardware Kit

4x Landing Feet

5x Battery Pad

2x Zip Ties

1x Manual
