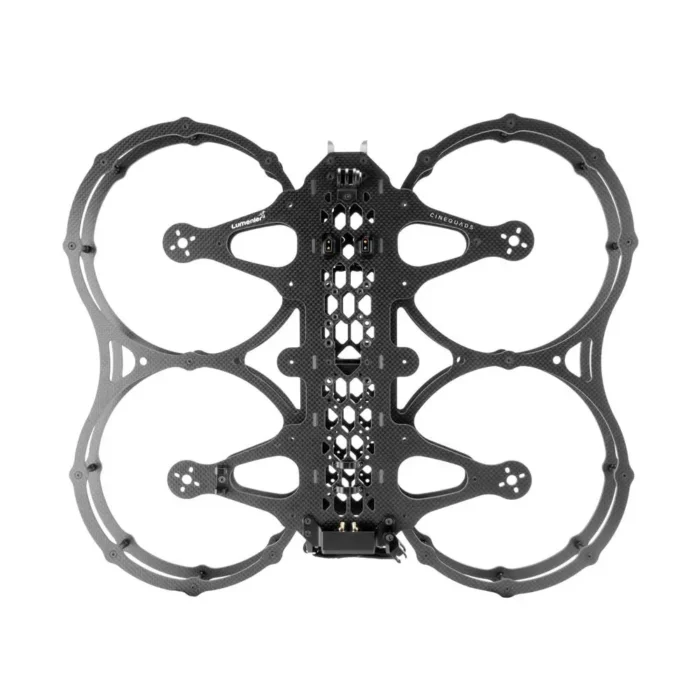

Lumenier QAV-PRO Mega Whoop 7 inch Cinequads Edition Frame Kit

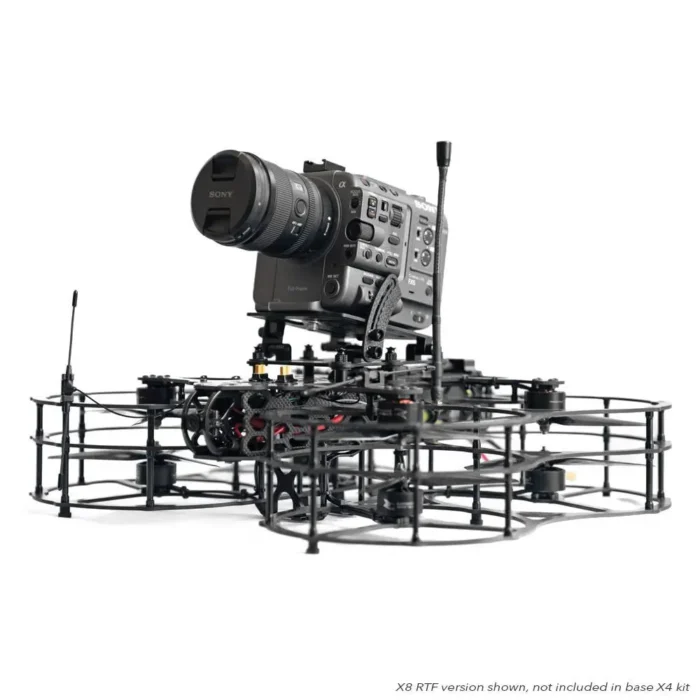

The Lumenier QAV-PRO Mega Whoop – Cinequads Edition is a professional 7″ prop-guarded cinematic drone that is capable of handling large payloads. This advanced quadcopter is equipped with durable carbon fiber and aluminum components, providing complete propeller safeguarding. This frame is specifically designed to accommodate your cinema camera, and with the addition of the optional cinema camera mounting kit and X8 upgrade kit, this setup has a lot to offer and ensures an exceptional QAV-PRO experience. This whoop is a great tool to add to your cinematic arsenal and can be used in many scenarios where additional safety and stability are needed.

CINEQUADS

Lumenier has once again teamed up with Cinequads… the world-renowned German FPV cinematography company. Cinequad’s input and knowledge from having many years in the professional FPV industry have been highly valuable in the creation of industry-leading professional FPV products. Together, Lumenier and Cinequads are releasing the QAV-PRO line… which is the composition of professional FPV cinematic drones. These quads are tailored to get that perfect shot. Lumenier has pushed the limits with these drone kits by incorporating high-tech designs with high-quality materials!

Combining Cinequads’ professional experience and optimized workflow with Lumenier’s high-quality design and manufacturing, we are excited to bring you the next professional class of FPV Cine drones… the Lumenier QAV-PRO line!

Features

Additional XT30 connectors allow cinema cameras to be powered by the drone to reduce the overall weight

Supports cinematic cameras, such as the RED Komodo and DSLR cameras.

Designed in Germany by Cinequads in collaboration with Lumenier

Configured for camera centering, allowing even weight distribution

Designed for internal electronic mounting for added protection

Switchable camera plates for 19×19 or 20×20 FPV cameras

Aluminum XT90 connector mount for cinematic batteries

Rear, front, or center cinema camera mounting options

Aluminum rear-end structural brace with LiPo strap

Symmetric motor arms with minimal masking

Durable carbon tubes with nylon landing feet

Organized aluminum cable mounting system

Vertical aluminum Crossfire antenna mount

Specially designed 4mm O3 heatsinks

50x50mm internal LiPo battery cage

Ducted for indoor/outdoor safety

Isolated O3 Camera Mount

Universal GoPro Mount

Pusher style frame

TPU GPS Mount

SWITCHABLE FPV CAMERA MOUNTING SYSTEM

The QAV-PRO Mega Whoop was specially designed with the O3 unit in mind. The increased airflow design, heatsink mounts, and aluminum camera mounts provide the perfect setup to utilize your O3 Unit in an optimized way, and the isolated O3 camera mount helps with stabilization. This unique camera mounting system also allows the pilot to use either 19X19 or 20X20mm FPV cameras. This camera mounting system can be flipped to allow space for your personal camera needs. The combination of aluminum brackets and durable carbon plates keeps your camera secure and safe.

O3 HEATSINK MOUNTS

These custom O3 mounts feature a heatsink design to reduce temperatures during flight and provide a longer flight time while keeping your O3 secure.

REAR FRAME FEATURES

The rear of this frame is equipped with multiple aluminum features. The rear brackets have secure slots for LiPo straps to ensure your battery does not move in flight, and the battery cage holds up to 50x50mm batteries. The mounts for the Crossfire antenna and XT90 connectors ensure your components stay safe in place during flights.

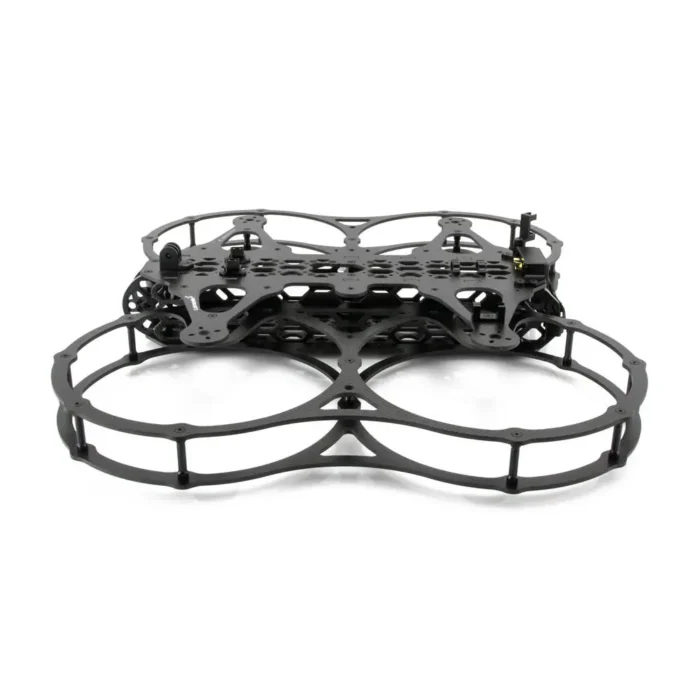

DUCTED FRAME DESIGN WITH SYMMETRIC MOTOR ARMS

The QAV-PRO Mega Whoop gives you the option to fly this larger rig with ducted protection. Flying close to people or objects that you need a little more security? No problem! Protect those props and motors while providing safety to spectators. The symmetric motor arms have minimal masking of the prop surface thanks to double-decker-style arms. This design provides a minimal overall height for better aerodynamics.

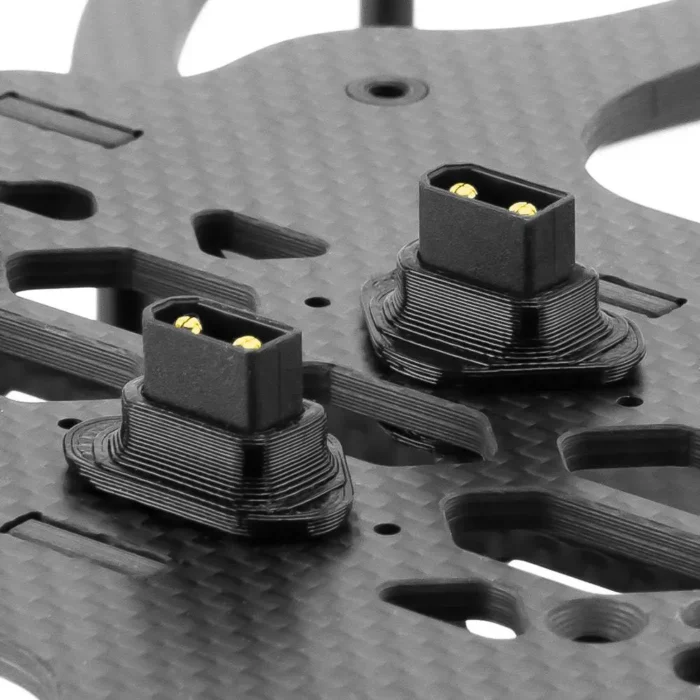

XT30 CONNECTORS FOR CINEMA CAMERA

These XT30 connectors allow you to power your cinema camera through the drone’s battery, eliminating the need for a camera battery, and reducing overall weight for better flight performance.

CLEAN CABLE MANAGEMENT

The integrated cable management system on this frame leaves every FPV pilot with a professional, clean build. Slots for two zip ties are built into the frame, as well as aluminum cable brackets that keep your power cables centered and secure on the build.

Specifications
Connector: XT60 (1) for Battery + XT30 (2) for Cinema Cameras
Model: Lumenier QAV-PRO Mega Whoop 7″ Cinequads Edition
FPV Camera Mounting: 20×20 or 19×19
VTX/AIO Mounting Patterns: 25x25mm
Antenna Mount Material: Aluminum
Motor Mounting Pattern: 9x9mm
Standoffs: M2x16mm Aluminum
O3 Heatsink Mounts: Aluminum
Carbon Fiber Thickness: 3mm
Dimensions: 470x400x60mm
Camera Mounts: Aluminum
Cable Mounts: Aluminum
Camera Plates: Carbon
Weight: Approx. 750g

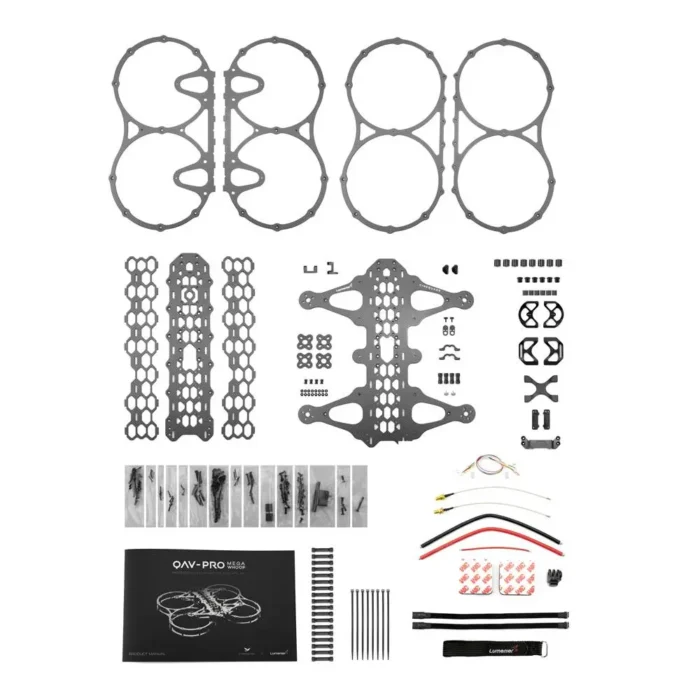

Includes
1x Aluminum QAV-PRO Universal Camera Mount Base
1x Lumenier QAV-PRO Mega Whoop Bottom Plate
1x Lumenier QAV-PRO Mega Whoop Middle Plate
1x Lumenier QAV-PRO Mega Whoop Top Plate
1x USB-C to 90° USB-C Extension Cable
1x 4mm O3 Mounting Heatsink Kit
2x Aluminum Camera Mount
2x XT30 3D Printed Mount
1x Lumenier LiPo Strap
1x Foam Battery Shield
4x Rubber Grommets
4x M2 Steel Hex Nut
1x XT60 Connector
2x XT30 Connector
1x Antenna Mount
4x Landing Feet
1x Hardware Kit
1x XT60 Mount
6x Standoffs
6x Zip Ties
