Lumenier ELITE PRO 100A V2 6-12S BLHeli_32 4-in-1 ESC

About this product
The Lumenier ELITE PRO 100A V2 12S BLHeli_32 4-in-1 ESC is a powerful ESC with the latest BLHeli_32 + telemetry and current sensor capable of 100A constant current and up to 12S (52V) input. The CNC aluminum heatsink provides excellent cooling required for high-power setups often required in Cinema and heavy lift drones. The 4-in-1 design simplifies the installation, allowing for 4x ESCs all on one board with a simple plug-and-play cable to connect to your flight controller and BLHeli_32 passthrough for easy programming and firmware updates. If you’re looking for maximum power and performance for your drone or aircraft, this is the ESC for you.

New in Version 2
New more robust 16V BEC circuit. Handles voltage spikes without issue!
Improved heatsink design for optimized cooling and easier mounting

Features
Supports Dshot300, Dshot600, Dshot1200, MultiShot, OneShot, and normal PPM 1-2us
The one-sided Mosfet design reduces noise and provides better heat dissipation
Superb PCB circuit design and 8oz thick copper ensures high-current capability
Cortex M4 32-bit processor runs with 120M Hz frequency
High-voltage low resistance 100V, 1.5mΩ Mosfet
30.5×30.5m and 86x66mm Mounting Patterns
Supports High Demag Compensation
16V BEC onboard to power flight controller
12S High-voltage support (52V)
Supports Bidirectional + Dshot
Optimized BLHeli_32 Firmware
Supports PWM 8-48kHz

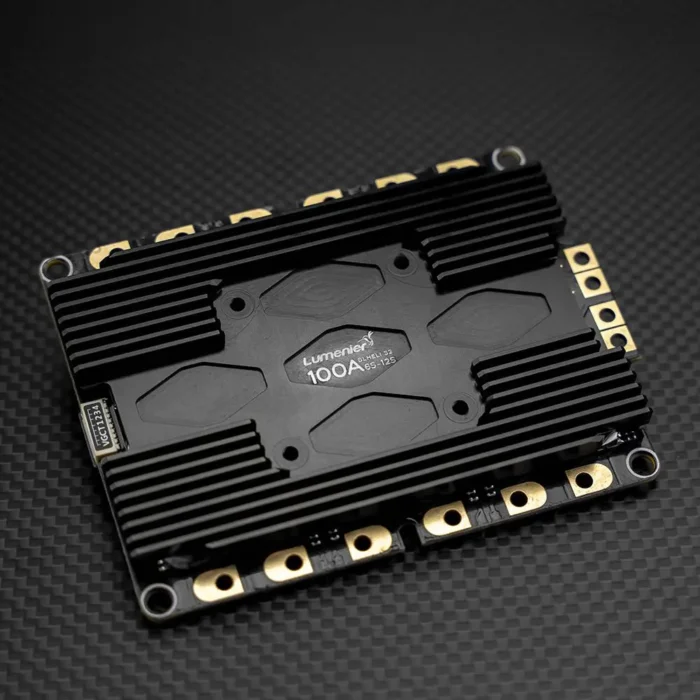

HIGH PERFORMANCE CUSTOM HEATSINK

The custom heatsink design provides improved heat dissipation making this ESC a perfect choice for high power needs found in Cinelifters, large drones, and high-performance racing drones. The heatsink effectively cools the ESC allowing for reliable operation even in challenging environments.

BLHELI_32 FIRMWARE AND LIVE TELEMETRY

The Lumenier ELITE PRO 100A 12S BLHeli_32 4-in-1 ESC is a 32-bit ESC running the latest generation BLHeli_32 firmware. The 32-bit architecture enables the ESC to run at incredible speeds resulting in better performance, faster input signals, and lower latency compared to older 8-bit ESCs. This ESC also features a live telemetry connection for more advanced flight controllers, as well as a top-of-the-line current sensor.

HEAVY DUTY COPPER TRACES

One of the biggest features of this ESC is the heavy-duty copper traces (8oz) which can support extreme current. Additionally, the ESC PCB is 2mm thick and layered on a 2nd PCB of 1mm for a total of 3mm. More copper along with the included aluminum heatsink allows you to push more power to your drone.

BENEFITS OF BLHELI_32 FIRMWARE ON 32-BIT ESC

32-bit processors run faster than 8-bit, at which we can expect better performance from the new 32-bit ESCs. Faster input signals with lower latency and higher update rate would be possible, such as Dshot1200 or even faster protocols! (Read about DSHOT) (Read about DSHOT1200)

The 32-bit platform also allows more functionality and features that simply weren’t possible on 8bit ESCs, such as:

Improved direction change in the Bidirectional mode
Auto-timing for higher efficiency and reliability
Configuring from FC using DShot commands
Adjustable “Brake on Stop” force
Programmable PWM frequency
Voltage/Current limiting
RGB LED control
ESC Telemetry

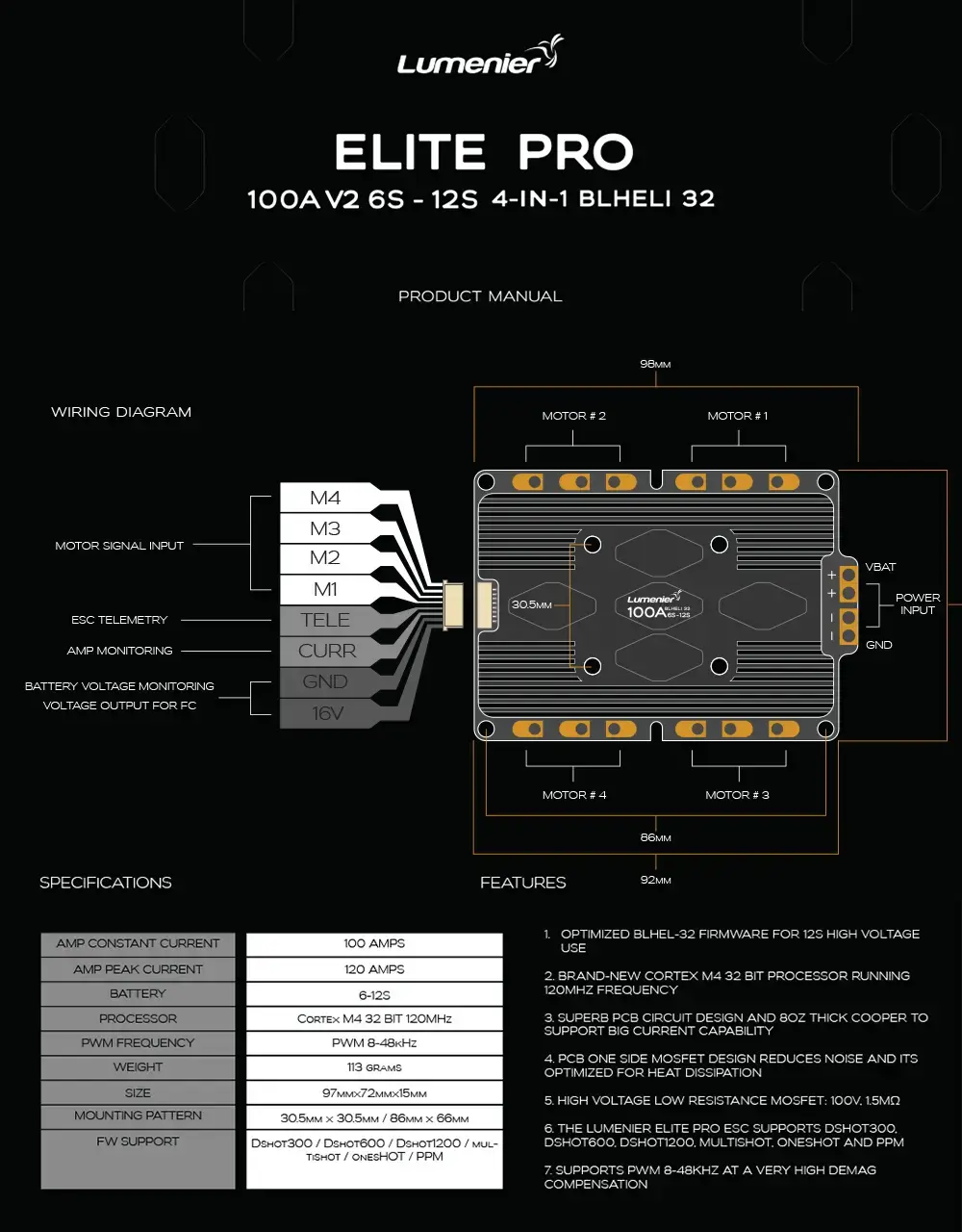

Specifications
Supports: Dshot300, Dshot600, Dshot1200, MultiShot, OneShot, and normal PPM 1-2us.
Mounting Patterns: 30.5×30.5m / 86x66mm
Processors: Cortex M4 32-Bit 120Hz
16V BEC onboard to power flight controller
Dimensions: 98mmx72mmx15mm
Continuous Current: 100A x4 ch
Peak Current: 120A x4 ch
Supports: PWM 8-48kHz
Firmware: BLHeli_32
Mosfet: 100V, 1.5mΩ
Voltage: 6-12S
Weight: 113g

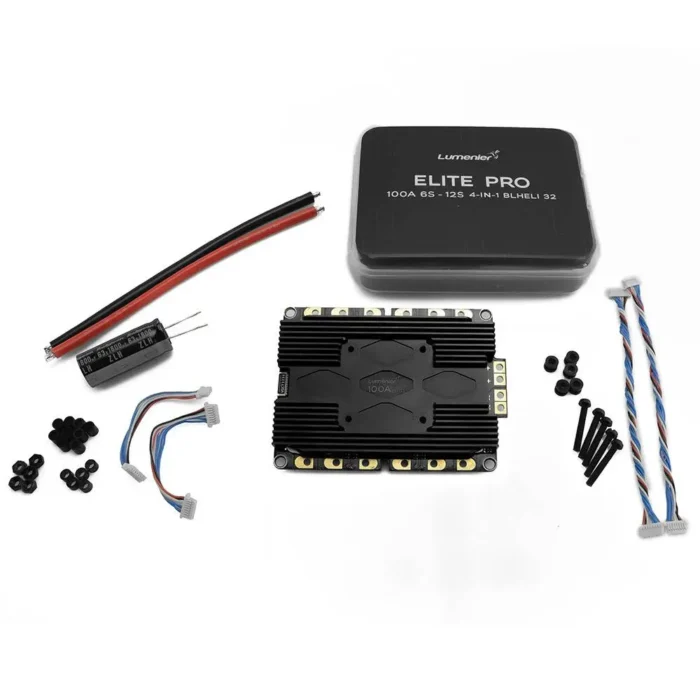

Includes
1x Lumenier ELITE PRO 100A V2 6-12S BLHeli_32 4-in-1 ESC
2x 8pin JST Breakout Cable (short 70mm)
2x 8pin JST Breakout Cable (long 120mm)
2x 10AWG 200°C Wire – Black / Red 160mm
1x 63V 1800uF Capacitor
5x M3 Rubber Grommets
1x Plastic Hardware set (M3 spacers, screws, nuts)
