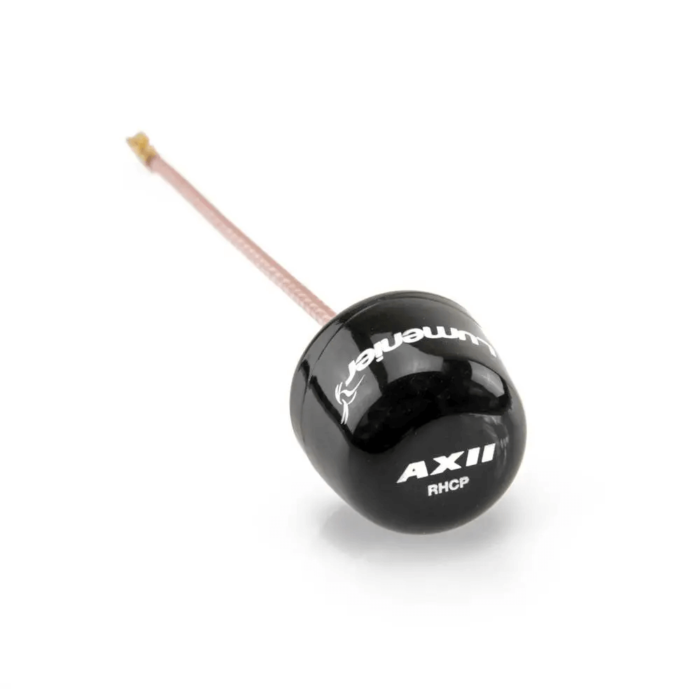

Lumenier AXII 2 U.FL 5.8GHz Antenna

About this product

The Lumenier AXII is known to be the most versatile and highest performing antenna line for FPV today. Lumenier has been able to improve on the best and make it even better!

Improved Features

Significantly Improved Range with a Higher Gain (2.2dBic Gain)

Wider Bandwidth (5.3-6.2GHz)

Cleaner Signal And Better Rejection to Interference

More Durable – Improved Injection Molded Housing

Virtually Perfect Axial Ratio

While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds or freestyle quads.

The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.

Super Tough

Antennas take a lot of abuse, especially when put onto a quad. The AXII 2’s robust antenna housing is made out of injected molded polycarbonate, significantly improving durability compared to the original AXII housing. The flexible 45mm long RG178 cable allows for complete freedom in placement.

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Specifications

Gain: 2.2dbic

Axial ratio: 1.0 (near perfect)

Bandwidth: 5.3GHz-6.2GHz

Radiation Efficiency: 98%

SWR: <=1.5:1

Weight: 2.4g

Size: 77mm x 17mm

Cable: Flexible RG178

Connector: U.FL

Works great as both a transmitting or receiving antenna

Compatible with other styles of 5.8GHz RHCP antennas

Polarization

Right Hand Circular (RHCP) / Left Hand Circular (LHCP)

Includes

1x Lumenier AXII 2 U.FL 5.8GHz Antenna (RHCP)/(LHCP)

Design by TrueRC of Canada and manufactured by Lumenier Patent Pending.
