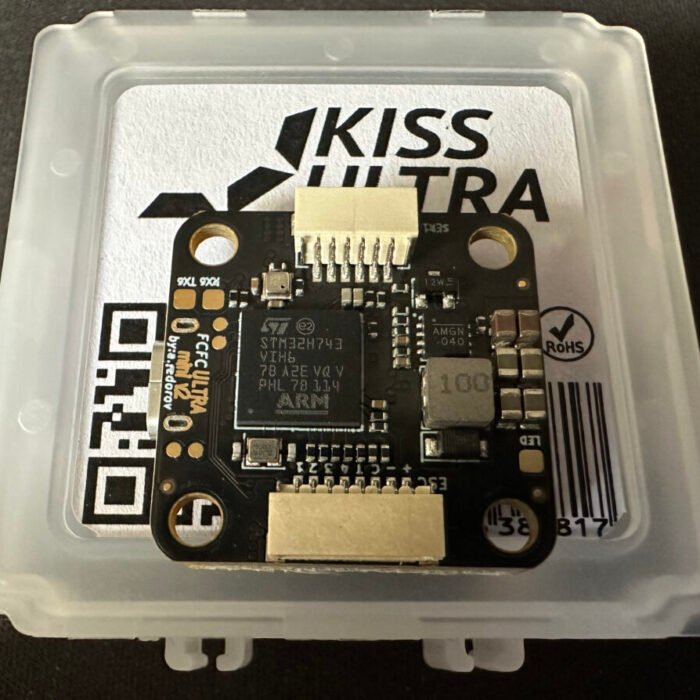

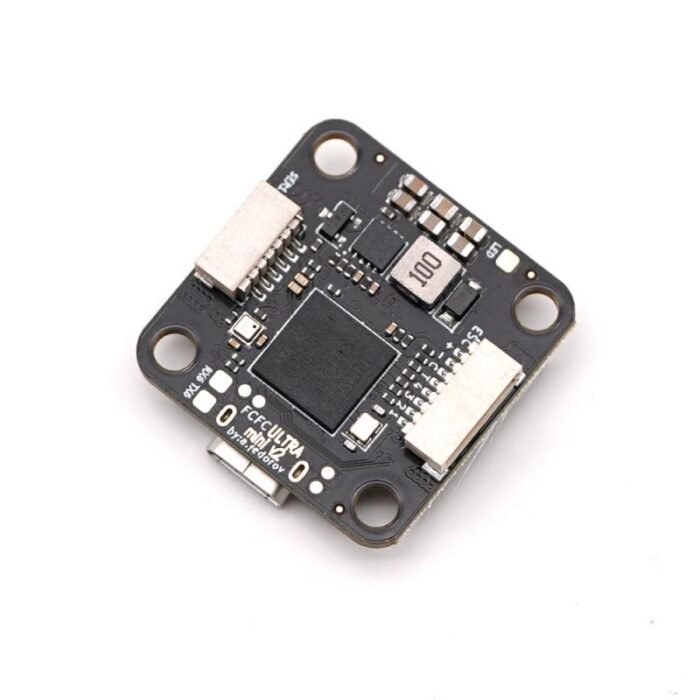

KISS ULTRA FCFC MINI V2 FLIGHT CONTROLLER

Here is the much requested KISS FCFC Ultra Mini V2, the ultimate revision of the KISS by Fedorov experience.This flight controller mounts in 20*20mm and is compatible with all systems (analog/HDZero/O3/Vista/Walksnail).

HARDWARE

STM32H743 processor 480 MHz, 2MB FLASH, 1.28MB RAM

IIM-42652 gyro, SPI

BMP388 barometer

8 pin ESC connector, backward compatible with KISS (!!! not with FETTEC!!!). Includes current sensor pin.

2 serial ports on 6 pin connectors (SER1 / SER3), KISS compatible

Overcurrent protection on all data lines

ESD protection on USB

5v bec (2A) with separate power on lipo and on usb. 8s capable.

Integrated spike absorber

Dedicated current sensor pad

SOFTWARE IMPROVEMENTS

Firmware is based on LATEST version from PATREON

New STM32 H7 bootloader, VCP driver

One HEX to rule them all… ??

Smart config storage… NEVER loose your configuration…

Optimized hardware interface layer code

Optimized adaptive filter code (CPU load is about 8% fully loaded!!!)

Added BLHELI Passthrough

IRC Ghost support

TBS CSRFv3 support (ultra code)

Improved RTH with BARO support

KISS Weather Station (its fun)

NO soft serial ports anymore!

7 serial ports exposed (dedicated serials for SA and RC telemetry)

Camera control (analogue, real DAC)

UBX protocol GPS support

Battery capacity/alerts

DSHOT router (free routing between software and hardware channels)

Up to 4 motors support with DSHOT2400/ (1wire – 8)

Full support of all HD systems (DJI MSP, DJI WTF, DJI O3, Walksnail, HD0)

OSD FEATURES

Integrated Graphical OSD

No OSD firmware update required

Configurable Black and White levels, transparency

FULL KISS configuration from OSD

ESC configuration

No serial port required, 50fps refresh rate

Battery cell voltage sensor

Crossfire tools

Hardware test tools (rc test, gps test, video test, motor test etc)

GUI IMPROVEMENTS

Forked GUI code (With permission of Flyduino)

Design facelift, code cleanup.

Removed odd things like pentacopters, cars and other noise.

Web GUI without installation available at https://kiss-ultra.com/

OSD Mirror https://youtu.be/aUqtCTAt8ik

Native support of Apple Silicon

ABBREVIATIONS

KISS – Keep It Super Simple

FCFC – Fedor Commander Flight Controller

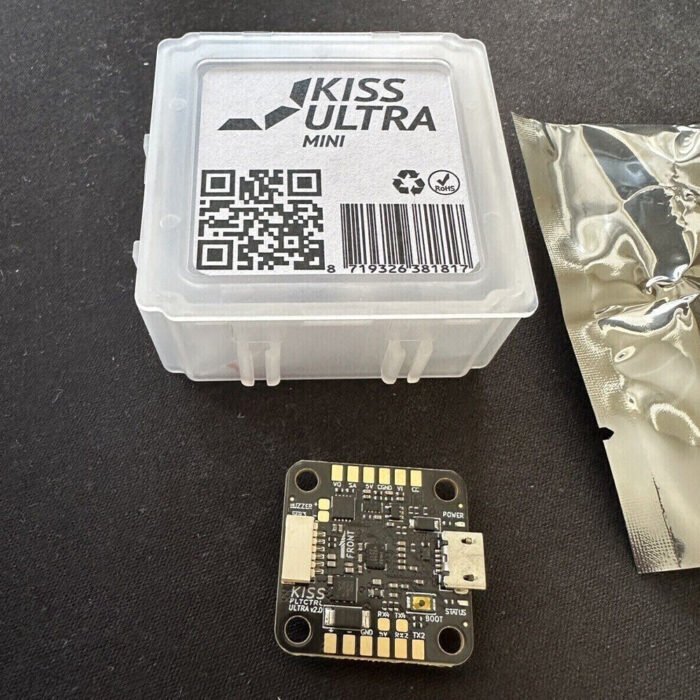

IN THE BOX

Kiss FCFC Ultra Mini v2

8-8 cable

8-6 cable (legacy)
