HDZero Freestyle V2 VTX

Description

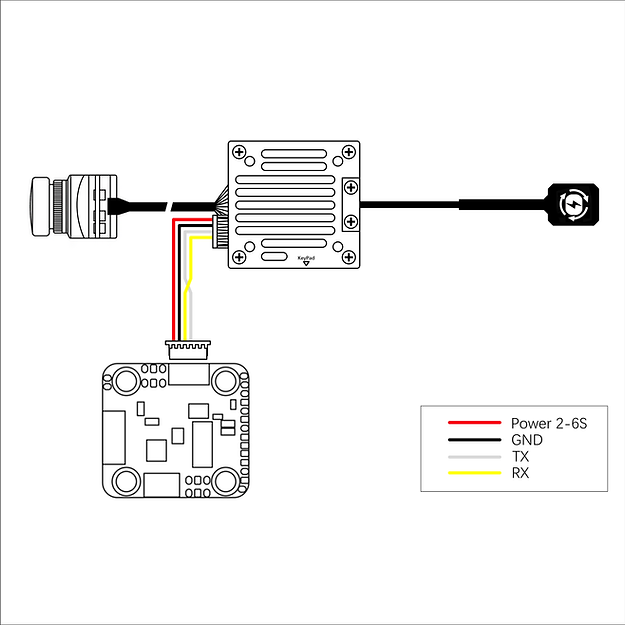

The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted into most 3-5-inch HD drones. All sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.

The VTX supports 720p60 ,1080p30, 540p60 and 540p90 video modes.

The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.

Specifications

Manufacturer: Divimath, Inc

Model:HDZero Freestyle V2 VTX

Weight:22.3 g

Dimensions:29x30x14mm

Operating Frequency:5.725-5.850GHz

Transmitter Power:25mW,200mW

Mounting Pattern:20x20mm M2 holes

Antenna Interface:Secured U.FL

Video In:Secured MIPI

SmartAudio: Yes

MSP Canvas Mode: Yes

Input Power: 7-25V

Operating Temperature:32˚F-104 ˚F (0˚-40˚C)

Power Consumption:6-15W

Includes

1x Freestyle V2 VTX
1x Power Cable
1x SA Cable
1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
1x Double Sided Tape (29 x 30 x 1mm)
