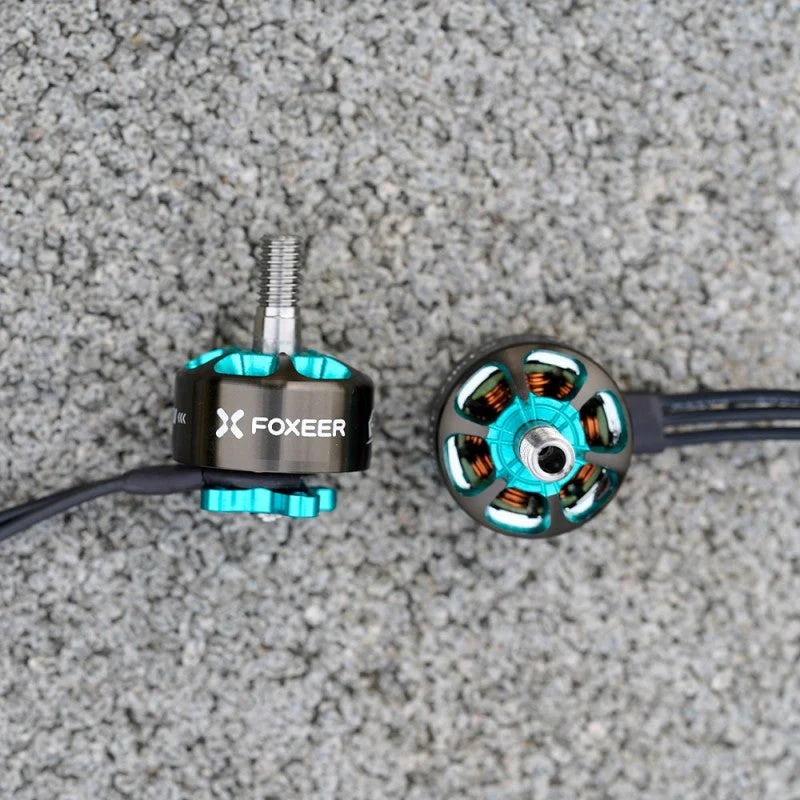

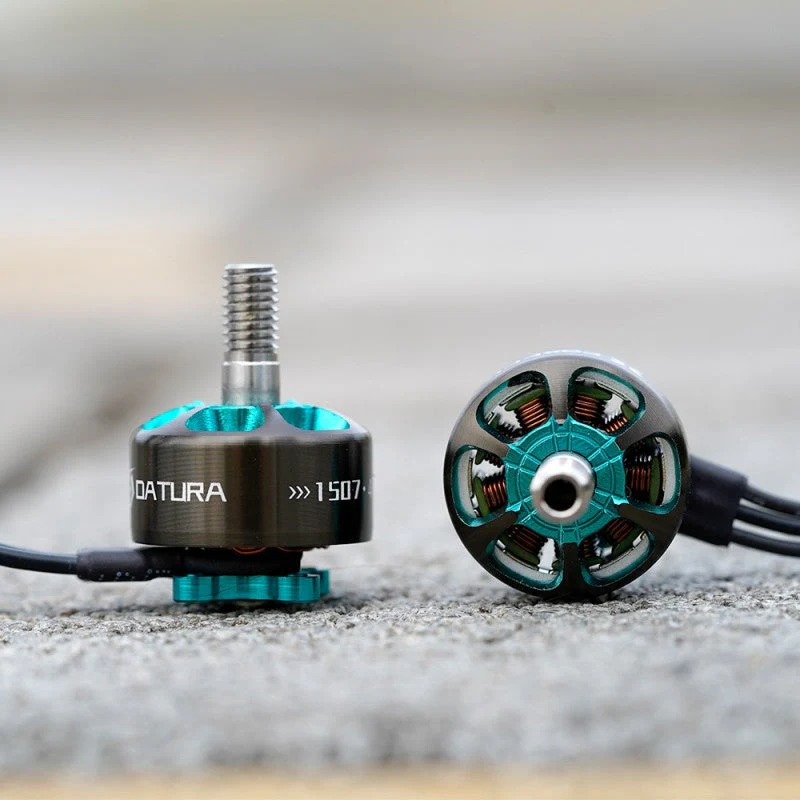

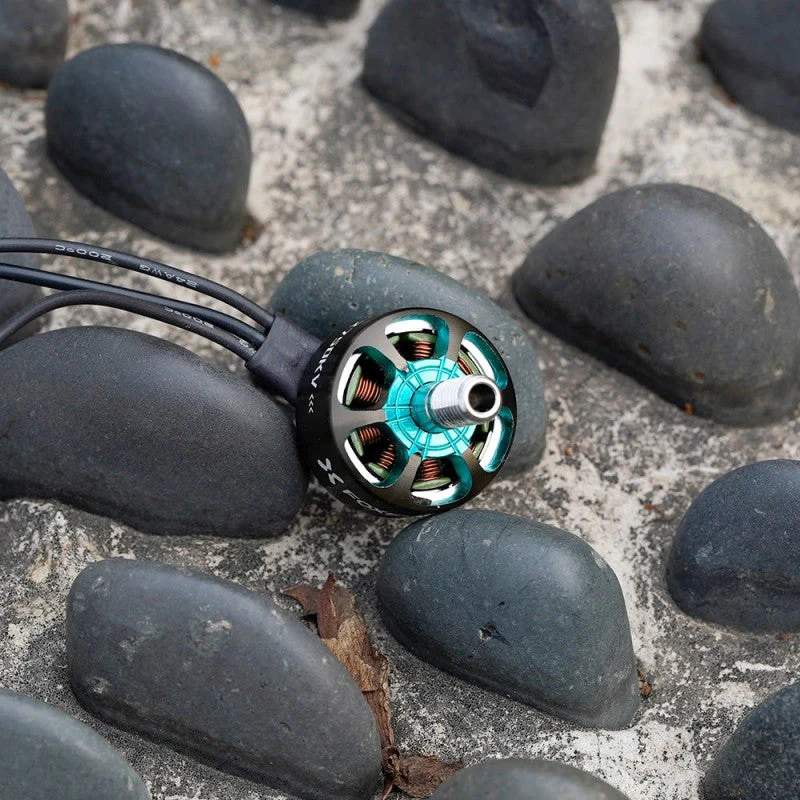

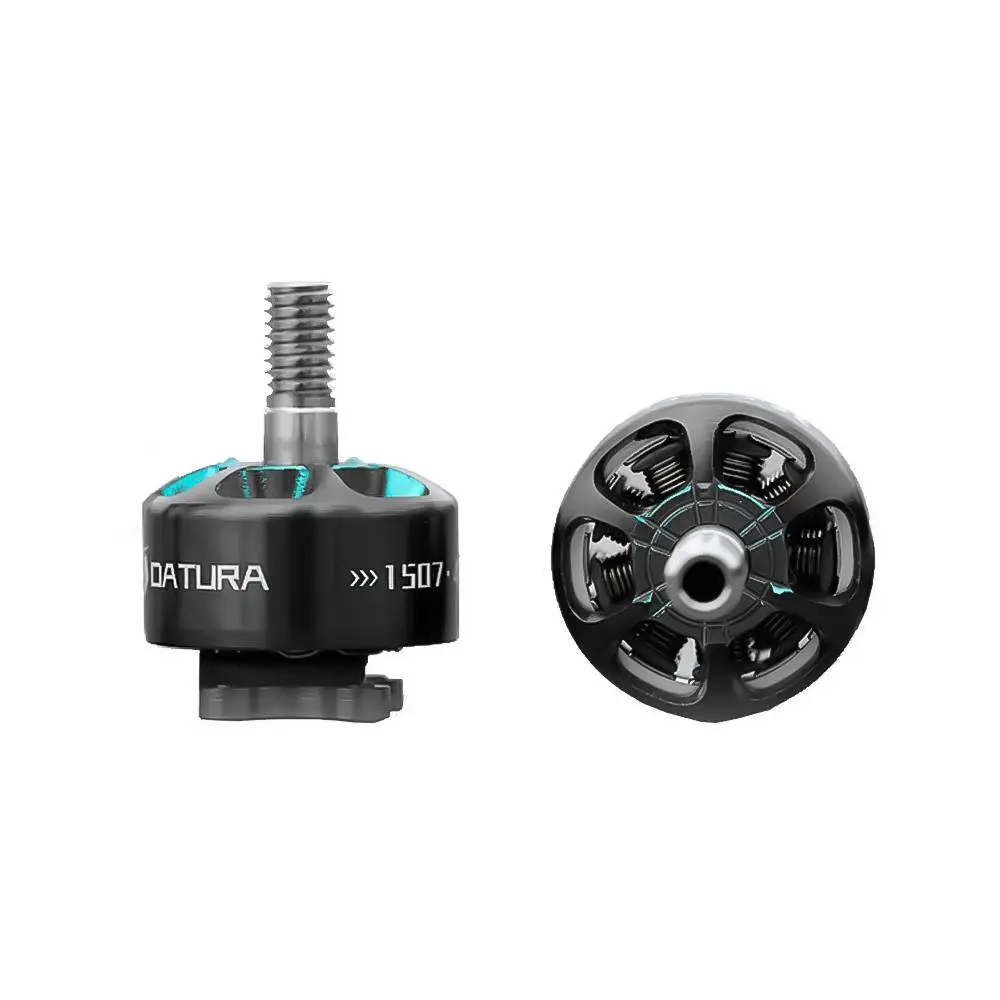

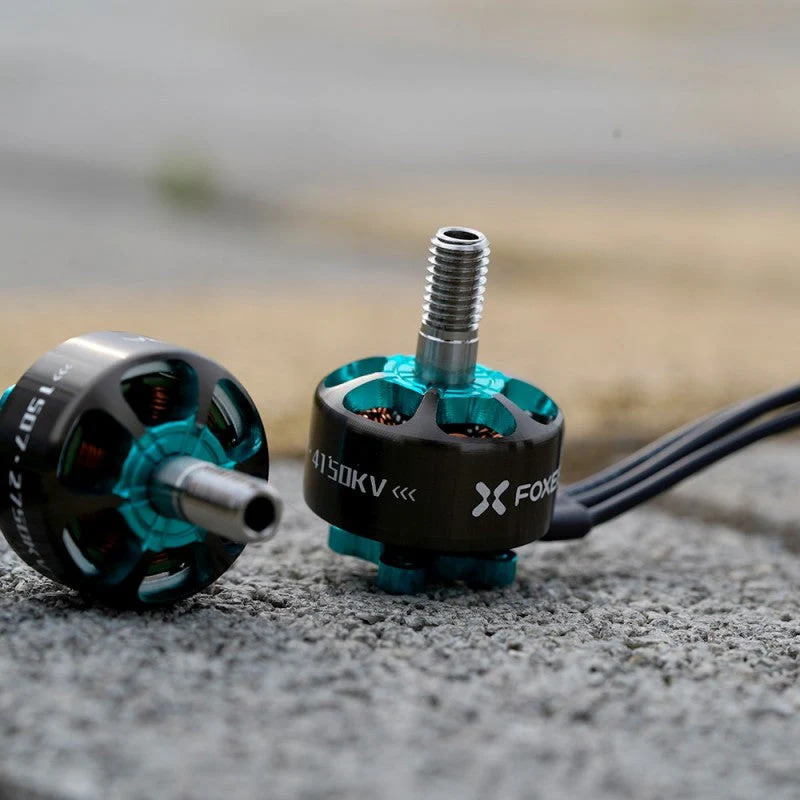

Foxeer Datura 1507 M5 Brushless Motor

About this product
The Foxeer Datura 1507 Motor stands out for its high performance, driven by a powerful N52H high-quality magnet that ensures surging power. Available in two variants, 2750KV and 4150KV, it is designed to withstand extreme conditions with its military-grade 260°C radiation-resistant high-temperature winding. Crafted with a high-quality stator that adopts single crystal oxygen-free copper for its single wrap winding, the motor promises high efficiency.

Features
2750KV/4150KV ratings available
Uses N52H high-quality magnet for surging power
Military Grade 260°C Radiation Resistant High Temperature Winding
High-quality stator
Adopt Single crystal oxygen-free copper single wrap winding, which results in high efficiency

Specifications
DATURA 1507-2750KV:

KV: 2750
Configuration: 9N12P
Stator Diameter: 15mm
Stator Length: 7mm
Shaft Diameter: 2mm
Motor Dimension (Diameter x Length): 20.7mm x 28.4mm
Weight: 16.5g (3cm Wire)
Idle Current(Io)@10V(A): 1.8A
No. of Cells (LiPo): 4-6S
Max Continuous Power(W)3S: 429
Internal Resistance: 110mΩ
Max. Efficiency Current: (3A-5A)>87%

DATURA 1507-4150KV:

KV: 4150
Configuration: 9N12P
Stator Diameter: 15mm
Stator Length: 7mm
Shaft Diameter: 2mm
Motor Dimension (Diameter x Length): 20.7mm x 28.4mm
Weight: 16.5g (3cm Wire)
Idle Current(Io)@10V(A): 3.4A
No. of Cells (LiPo): 3-4S
Max Continuous Power(W)3S: 348
Internal Resistance: 60mΩ
Max. Efficiency Current: (5-8)>86%
