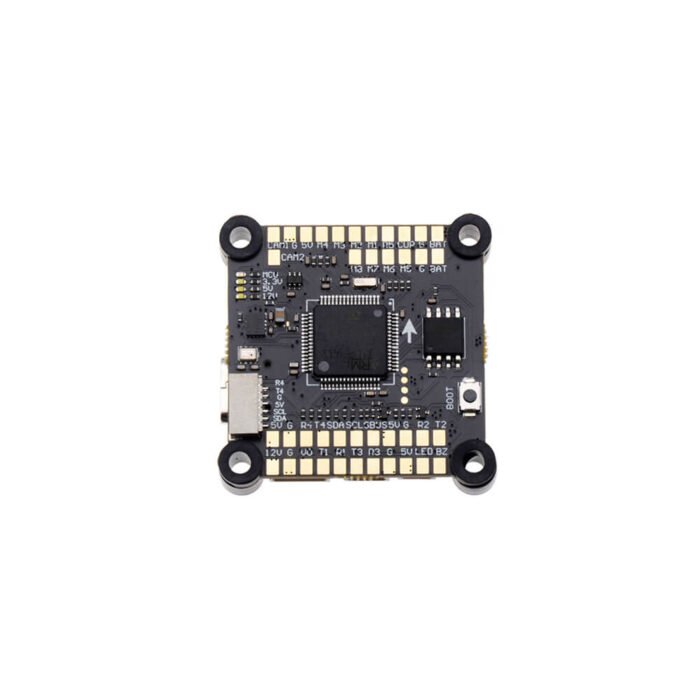

F405 80A FPV Stack

Main control: STM32F405
Gyroscope: ICM42688P
USB port Type: type-c
Barometer: Built-in
0SD chip: AT7456E
DJl Air Unit: Support solder wire or 6-PIN cable in line
GPS connection mode: 6PIN connection line or welding line connection
Black box: built-in 16M
Galvanometer input: Supported
BetaFlight Camera Alignment Pad: Support (3pin socket in line or front pad)
Input voltage: 4S-8S lithium battery (via the 10pin interface on the back or the GND and BAT pin pads in the pads)
5V BEC output: 8 sets of 5V outputs (PCBA has 4 +5V pads +4 seat sub 5V outputs) Total current output 2A
12V BEC output: 2 sets of 12V output (PCBA has 1 +12V output, 1 seat on the board contains +12V output), total current output 2A
Electric modulation signal: front M1-M4, M5-M8(support 4-8 axis)
UART serial port: Four serial ports
Traditional BetaflightLED pad: Supported, PCBA surface pad 5V, GND, LED
Buzzer pad: Supported, 5V, BZ access 5V passive buzzer
Boot key: Supported. Hold down the BOOT key to insert USB or power on to enter DFU mode for firmware brushing
SmartPort: The TX of any serial port can be used
Supported flight control firmware: Betaflight
Mounting hole position: 30.5×30.5mm(4mm aperture)
Size: 36*36mm
Weight: 7g
