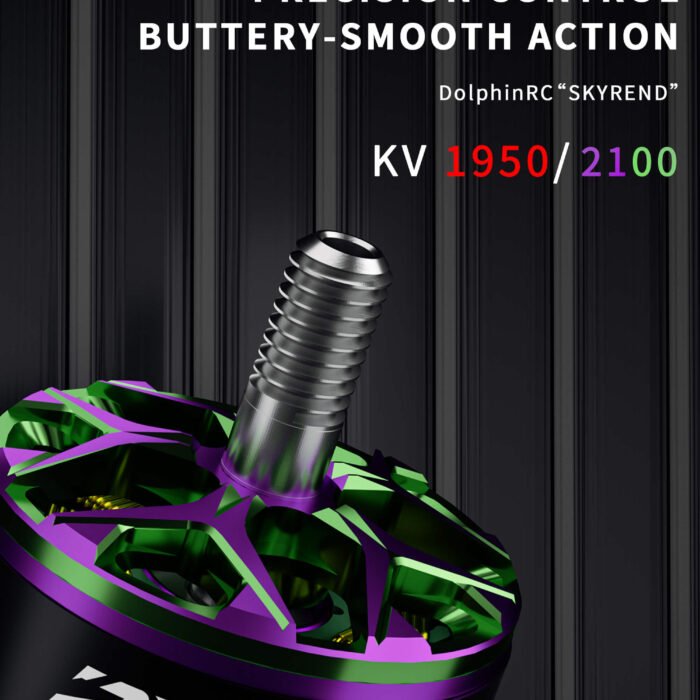

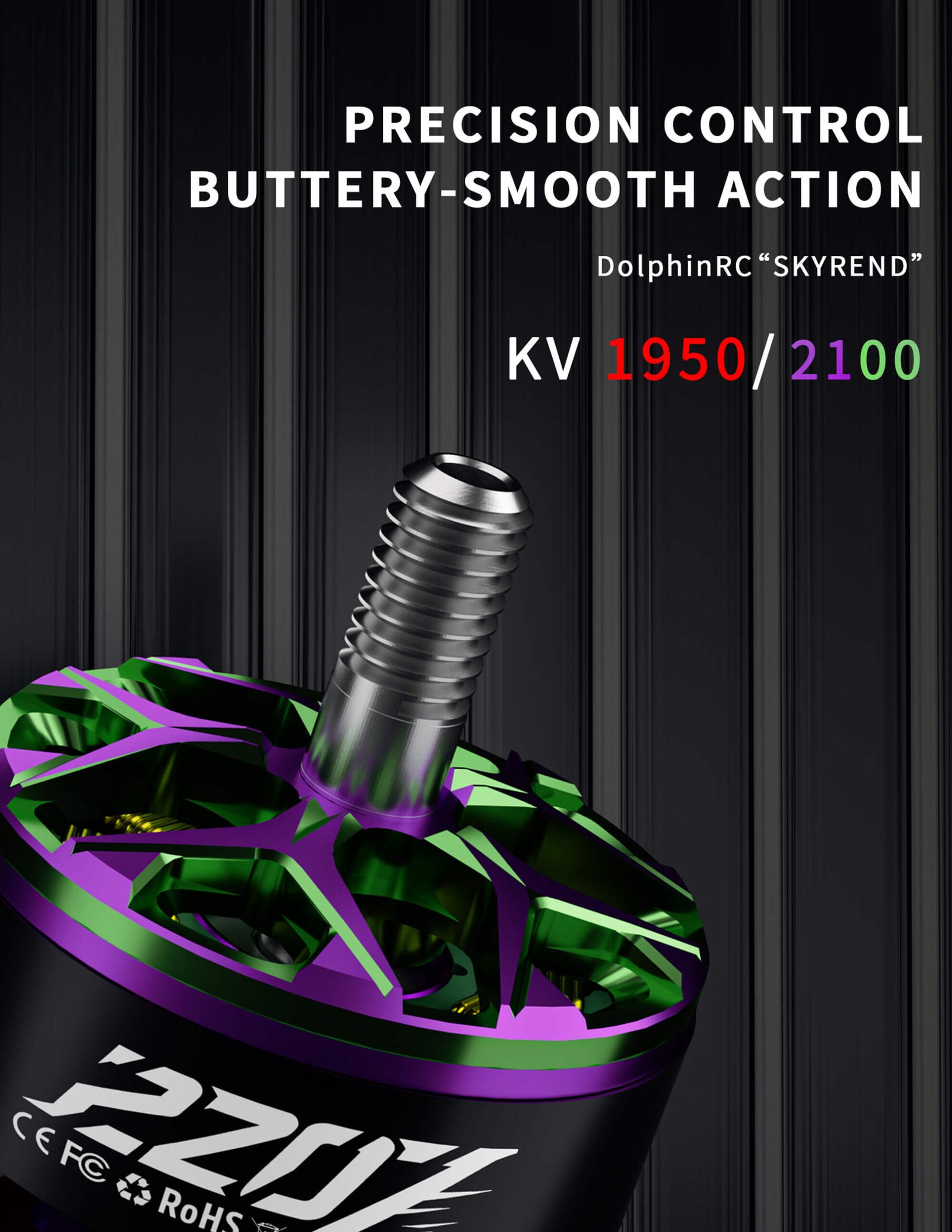

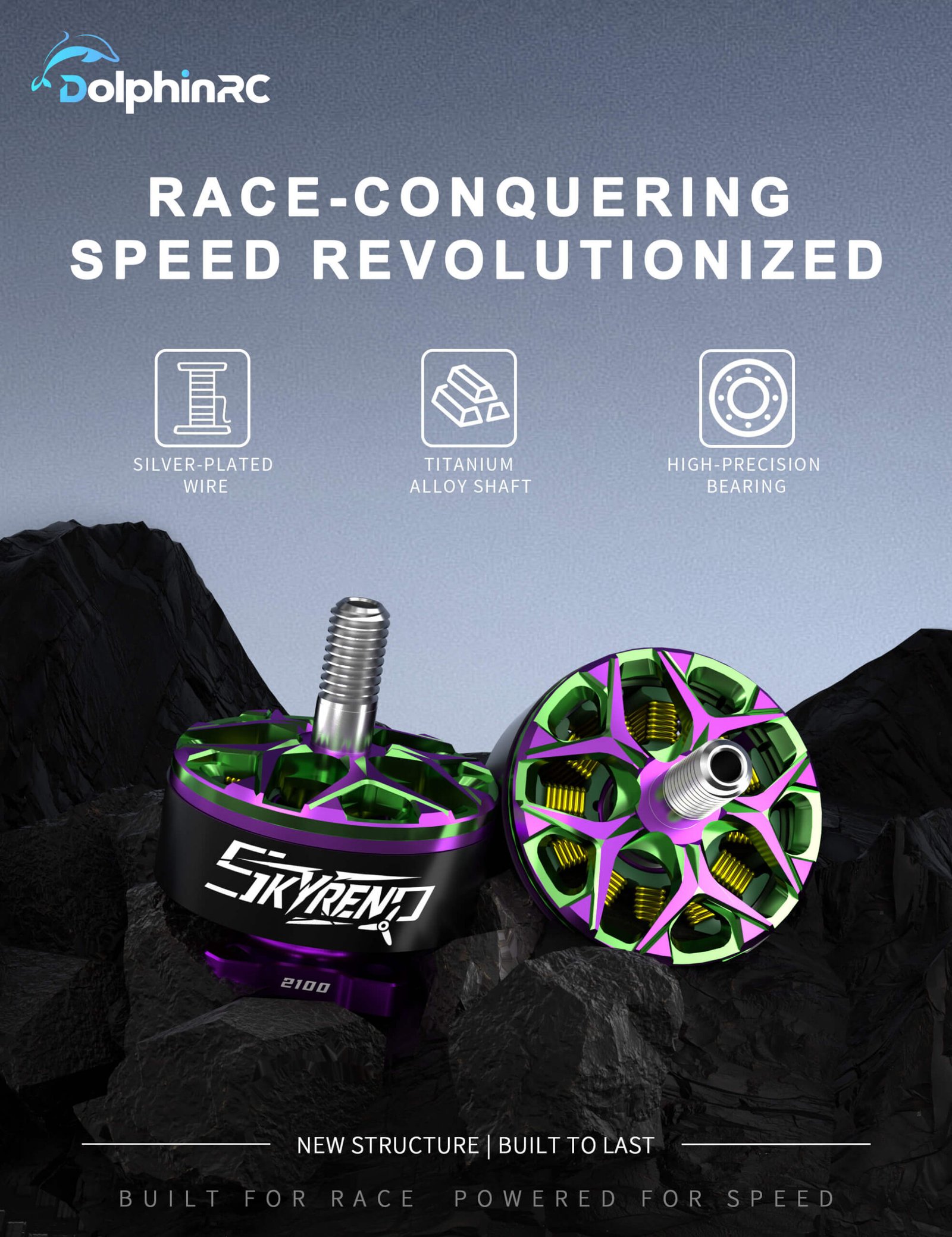

Dolphinrc SkyRend 2207 Brushless Motor -1950KV 2100KV

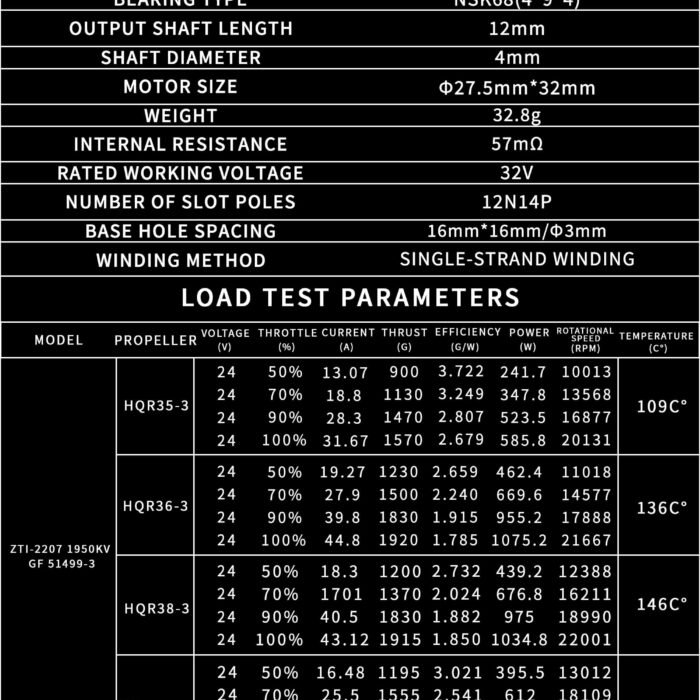

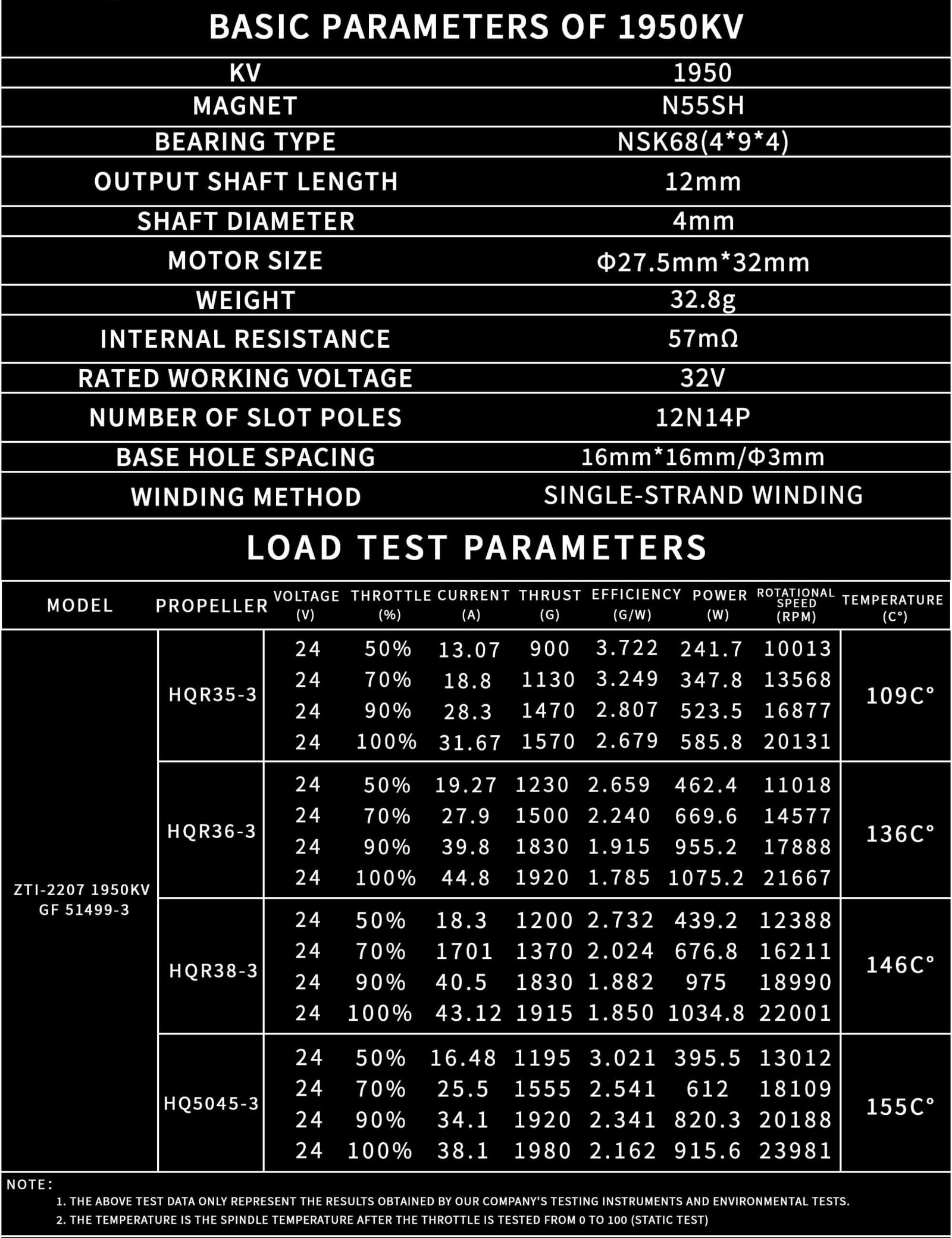

Technical parameters
Product Name: DolphinRC 2207 1950KV Motor
Material: Aluminum alloy
Product size: Φ27.5mm*32mm
Shaft diameter: 5mm
Shaft length: 12mm
Base installation hole spacing: 16mm*16mm/Φ 3mm
Power cord specification: 150mm/20AWG
Rated working voltage: 32V
Magnet type: N55SH
Slot pole: 12N14P
Bearing type: NSK684
Winding method: Single-strand winding

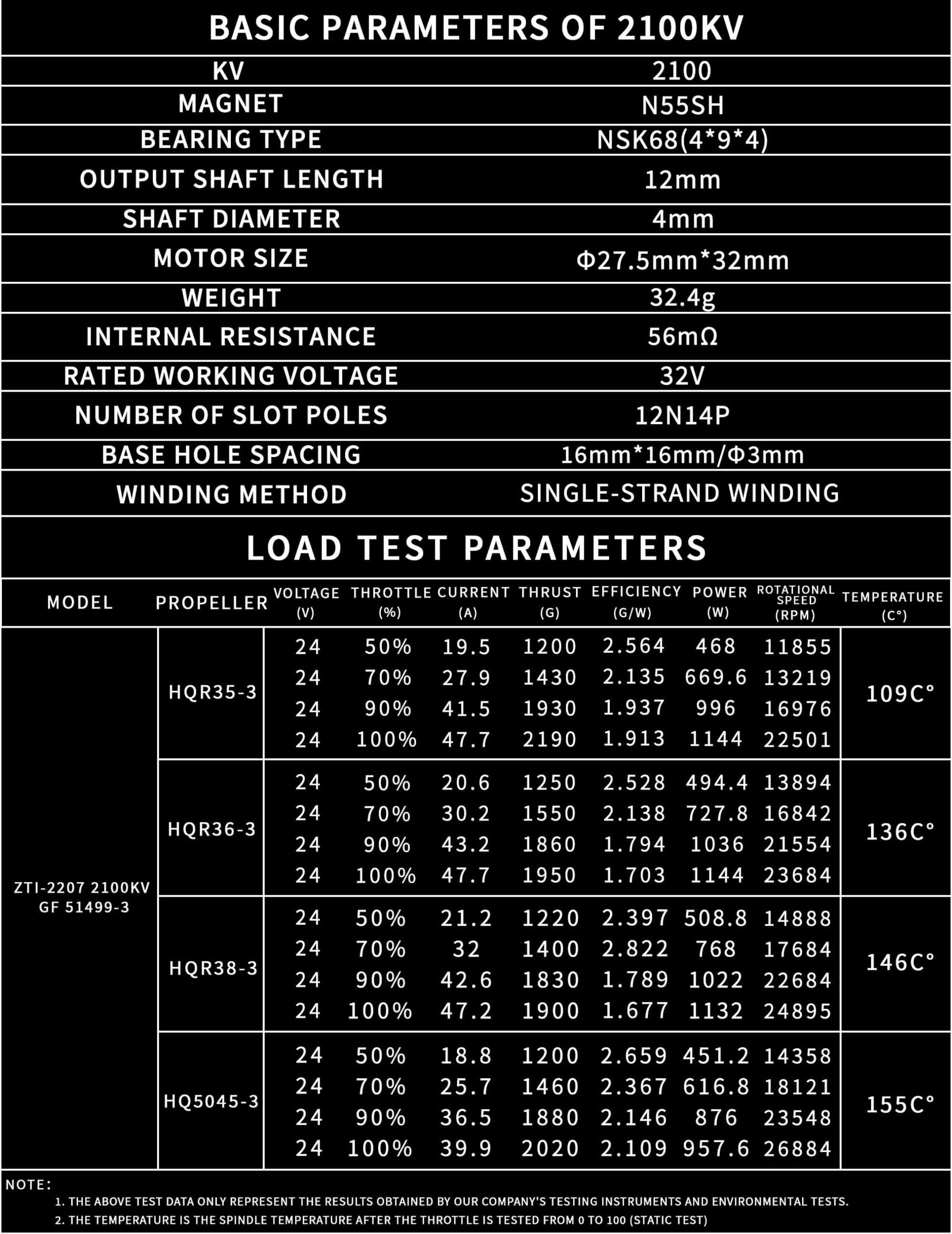

Product Name: DolphinRC 2207 2100KV Motor
Material: Aluminum alloy
Product size: Φ27.5mm*32mm
Shaft diameter: 5mm
Shaft length: 12mm
Base installation hole spacing: 16mm*16mm/Φ 3mm
Power cord specification: 150mm/20AWG
Rated working voltage: 32V
Magnet type: N55SH
Slot pole: 12N14P
Bearing type: NSK684
Winding method: Single-strand winding

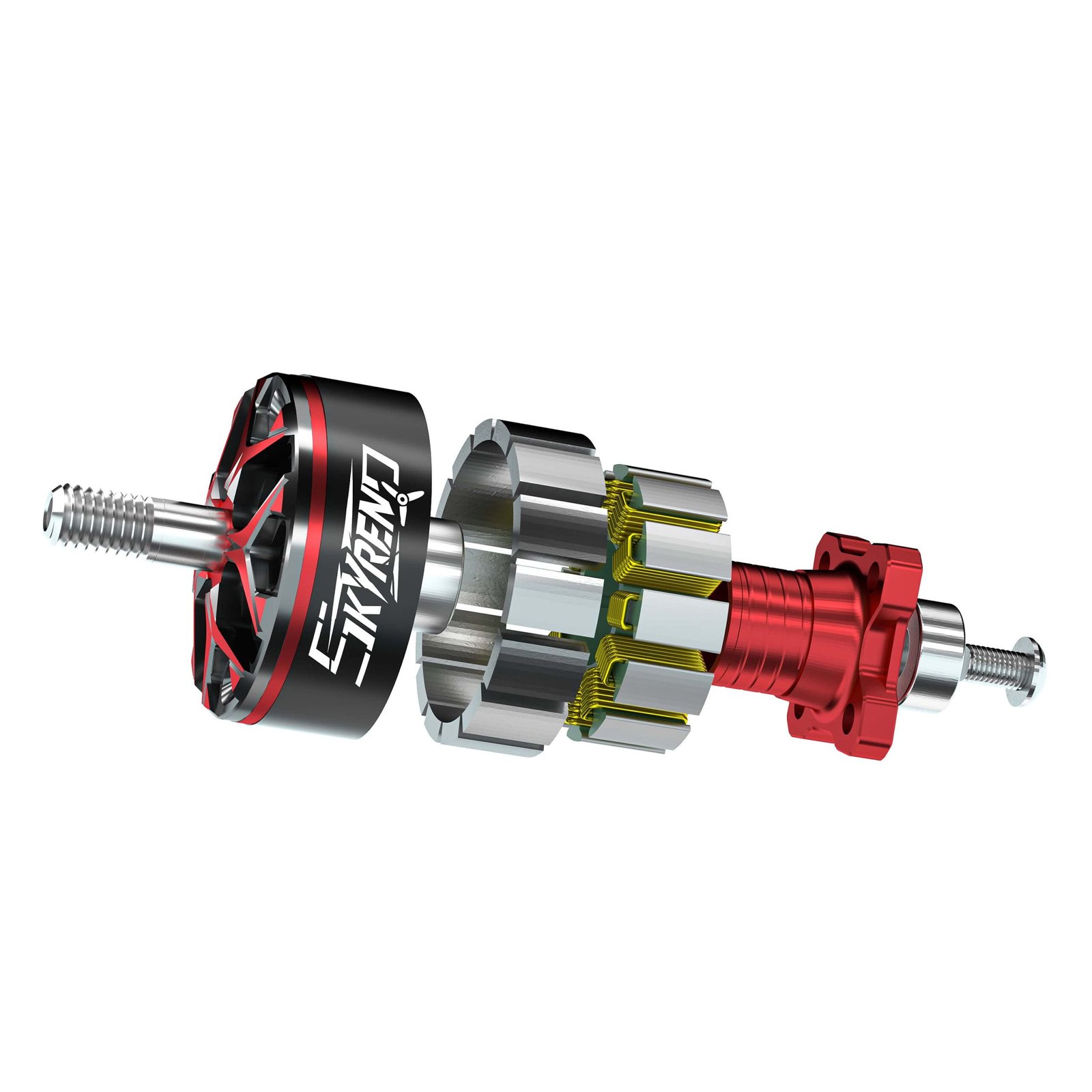

Product features

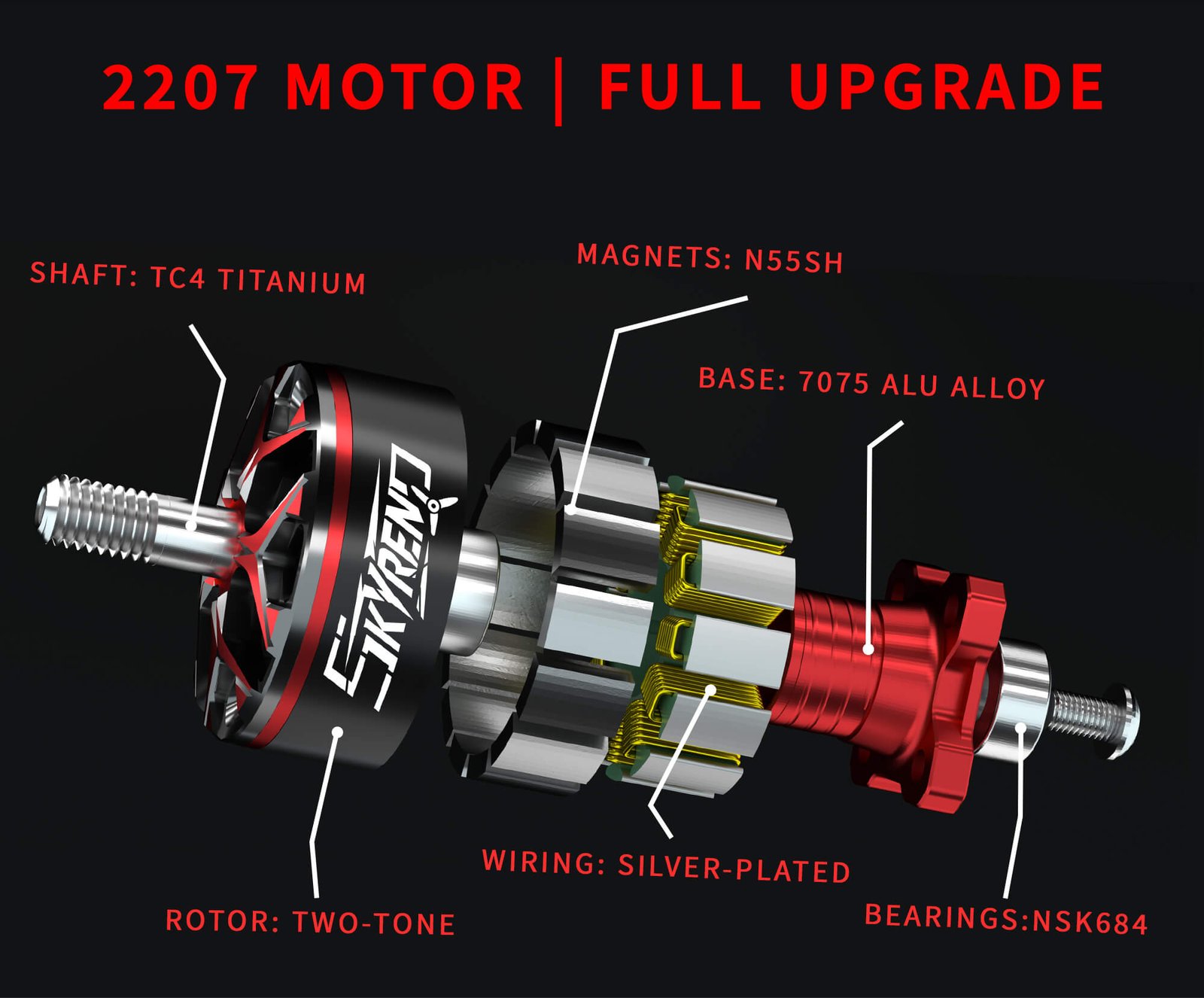

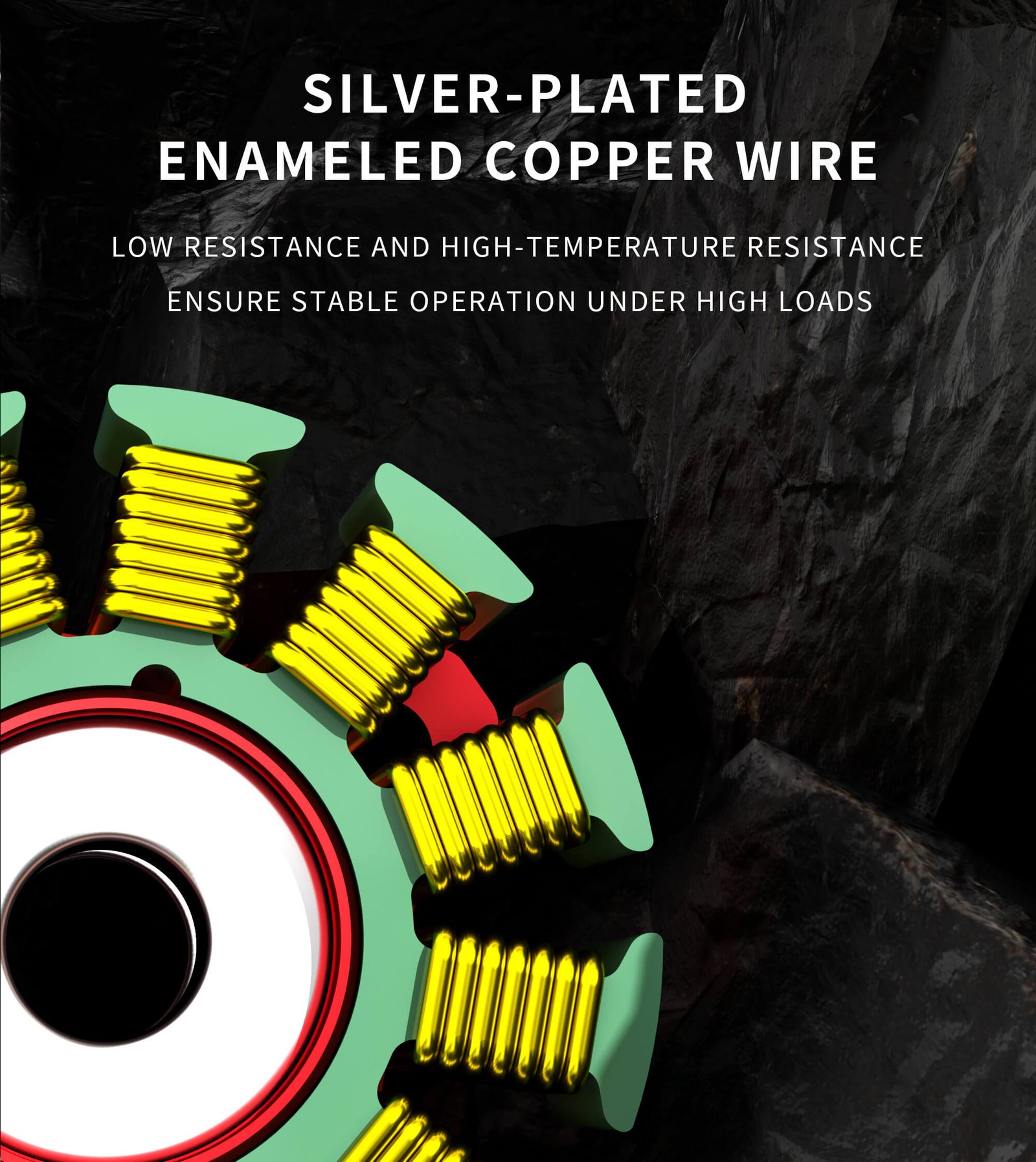

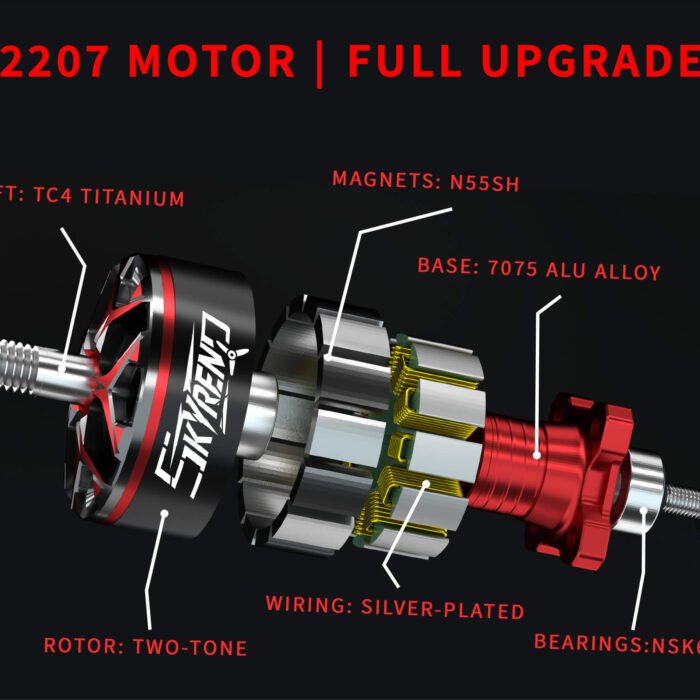

1. The enameled wire adopts pure copper silver-plated wire, featuring low internal resistance, high temperature resistance and high efficiency, ensuring stable operation under high load.

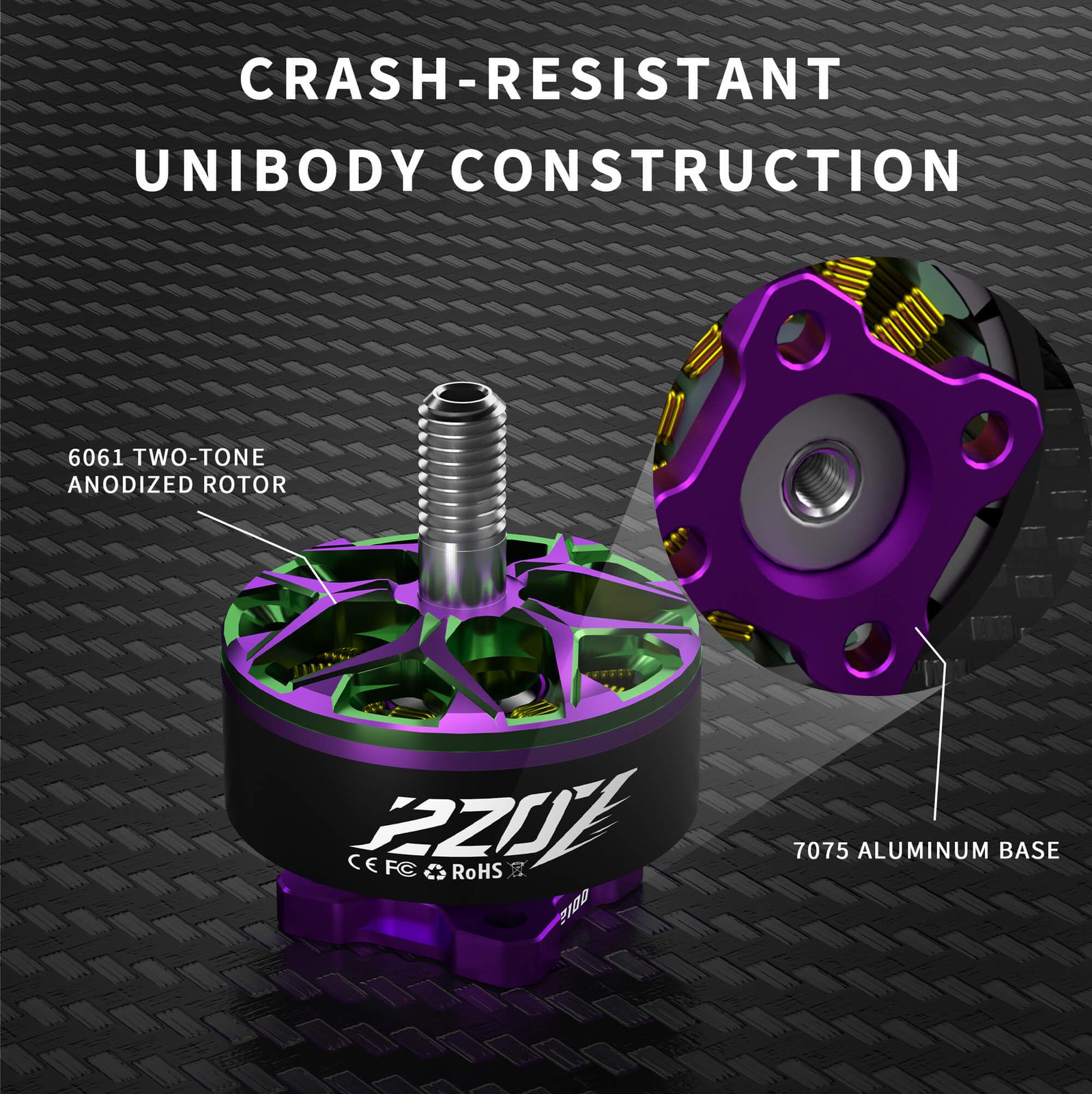

2. 6061 dual-color oxidized national standard aluminum outer rotor, 7075 high-strength aluminum alloy base.

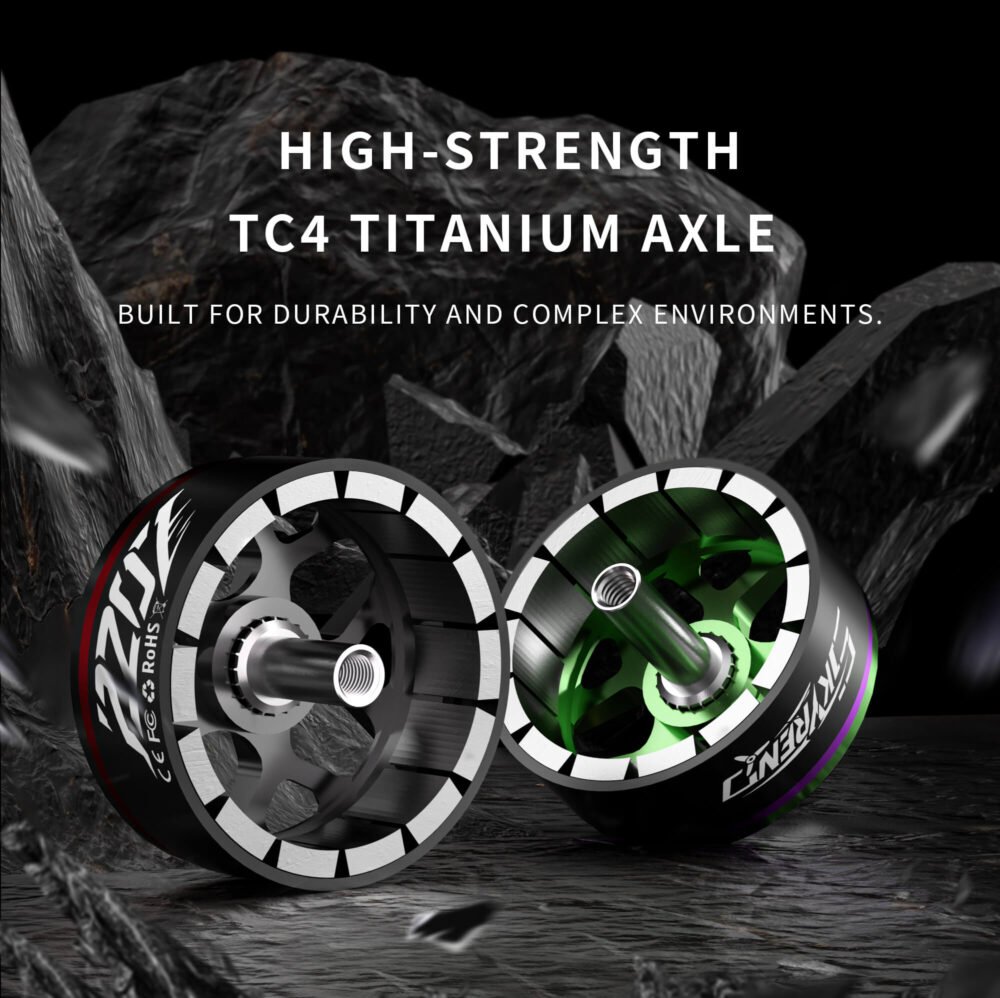

3. TC4 titanium alloy shaft, with high resistance to deformation, can easily handle all kinds of harsh training and flight environments.
4. N55SH high-performance arc-shaped magnet, with strong magnetic force and high efficiency.
5. NSK684 high-precision bearing, with low friction and long service life, ensures smooth motor operation.

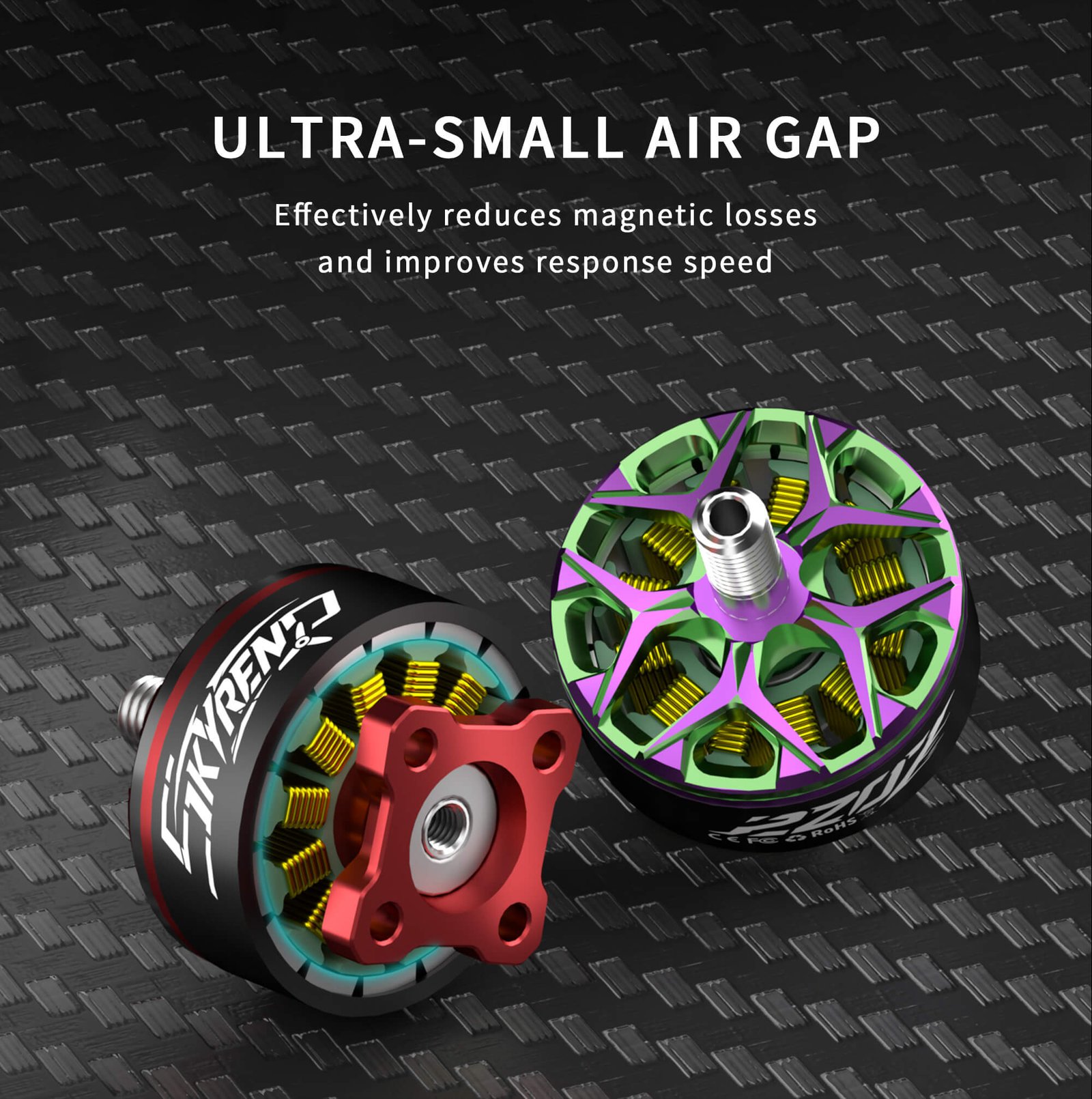

6. 0.1mm ultra-small air gap reduces magnetic loss and enhances response speed.
7. Standard equipped with damping rubber rings, effectively absorbing high-frequency vibrations, reducing operating noise and extending service life.

The set includes:
2207 motor ×1
M5 anti-slip nut ×1
M3*12mm semi-round head hexagon socket screws ×4
