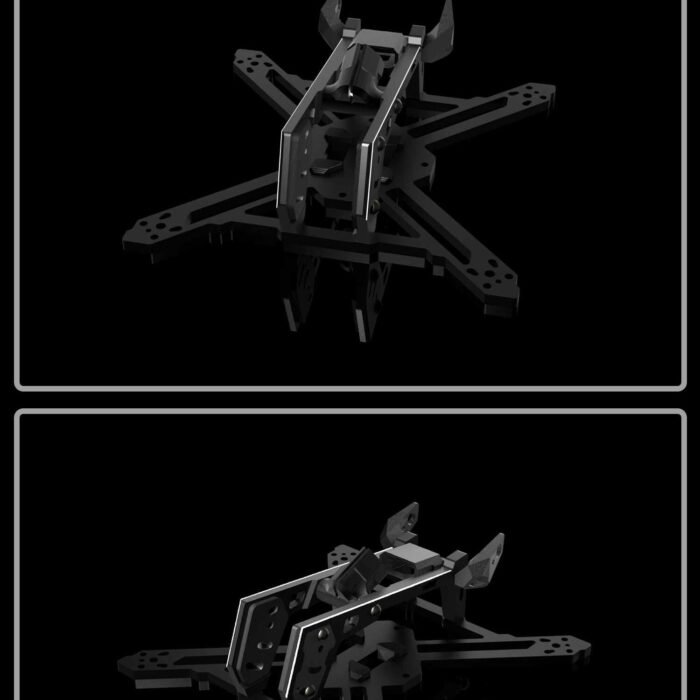

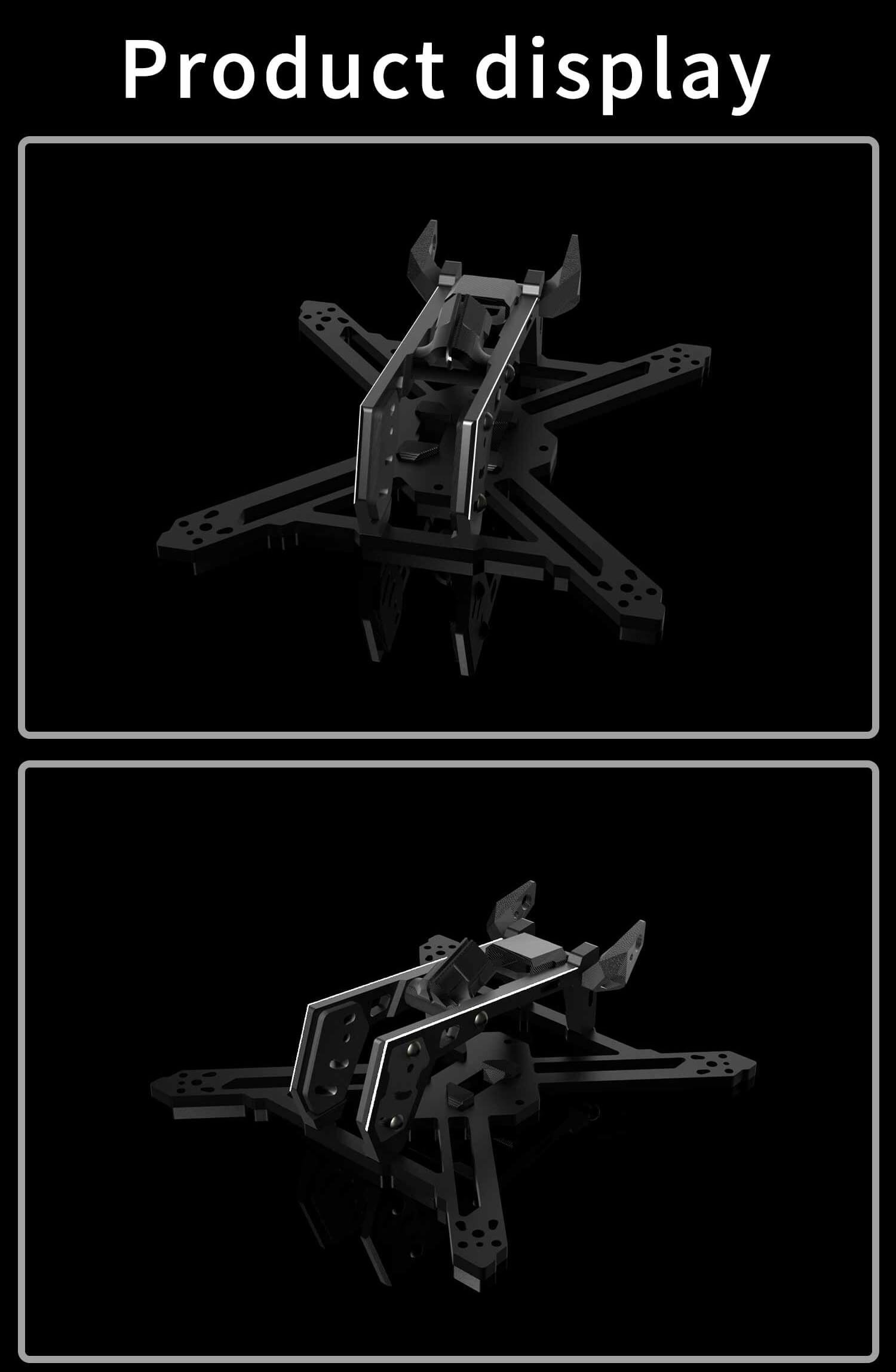

DolphinRC PRISMFLY X2 Frame Kit

PRISMFLY X2 Frame Specifications

• Model: PRISMFLY X2

• Frame Type: True X

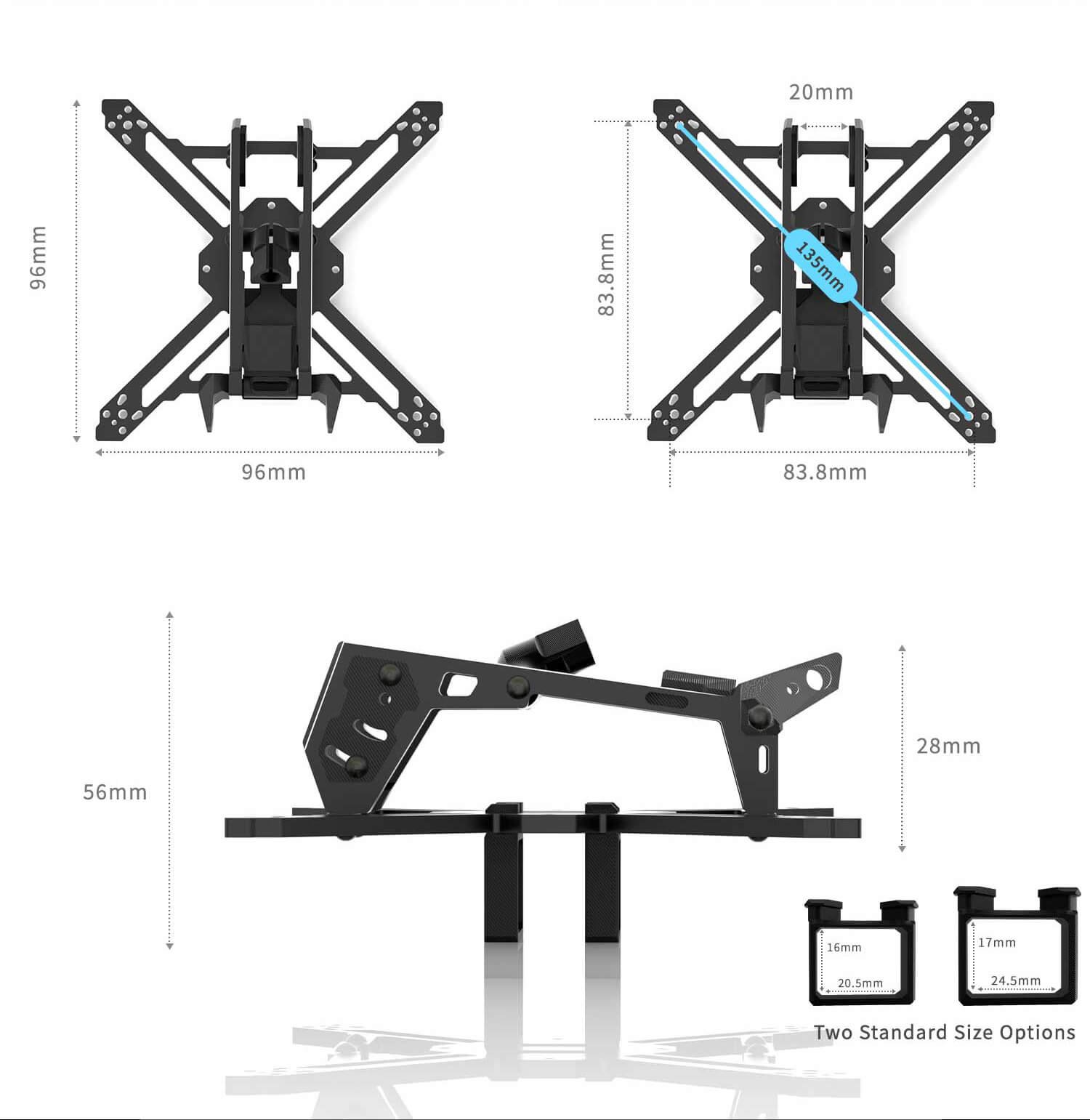

• Dimensions (L×W×H): 96 × 96 × 34 mm (excluding battery mount)

• Wheelbase: 115 mm

• Weight: 27.0 ± 1 g

• Camera Mount Size: 14 mm

• Camera Mounting Holes: 6 mm / 16 mm (supports DJI O4 unit)

• Stack Mounting: 25.5 mm / ⌀2 mm

• VTX Mounting: 25.5 mm / ⌀2 mm

• Motor Mounting Options: 6.6 mm / ⌀1.4 mm × 3, 9 mm / ⌀2 mm × 4

• Battery Compatibility: Gens ace 450mAh 75C, Gaoneng 660mAh 90C (parametric battery mount, downloadable and adjustable for 3D print)

• Recommended Battery: 450–650mAh (3S)

• Recommended Motors: 1103 / 1204

• Recommended Props: 2 inch (50.8 mm)

Key Features

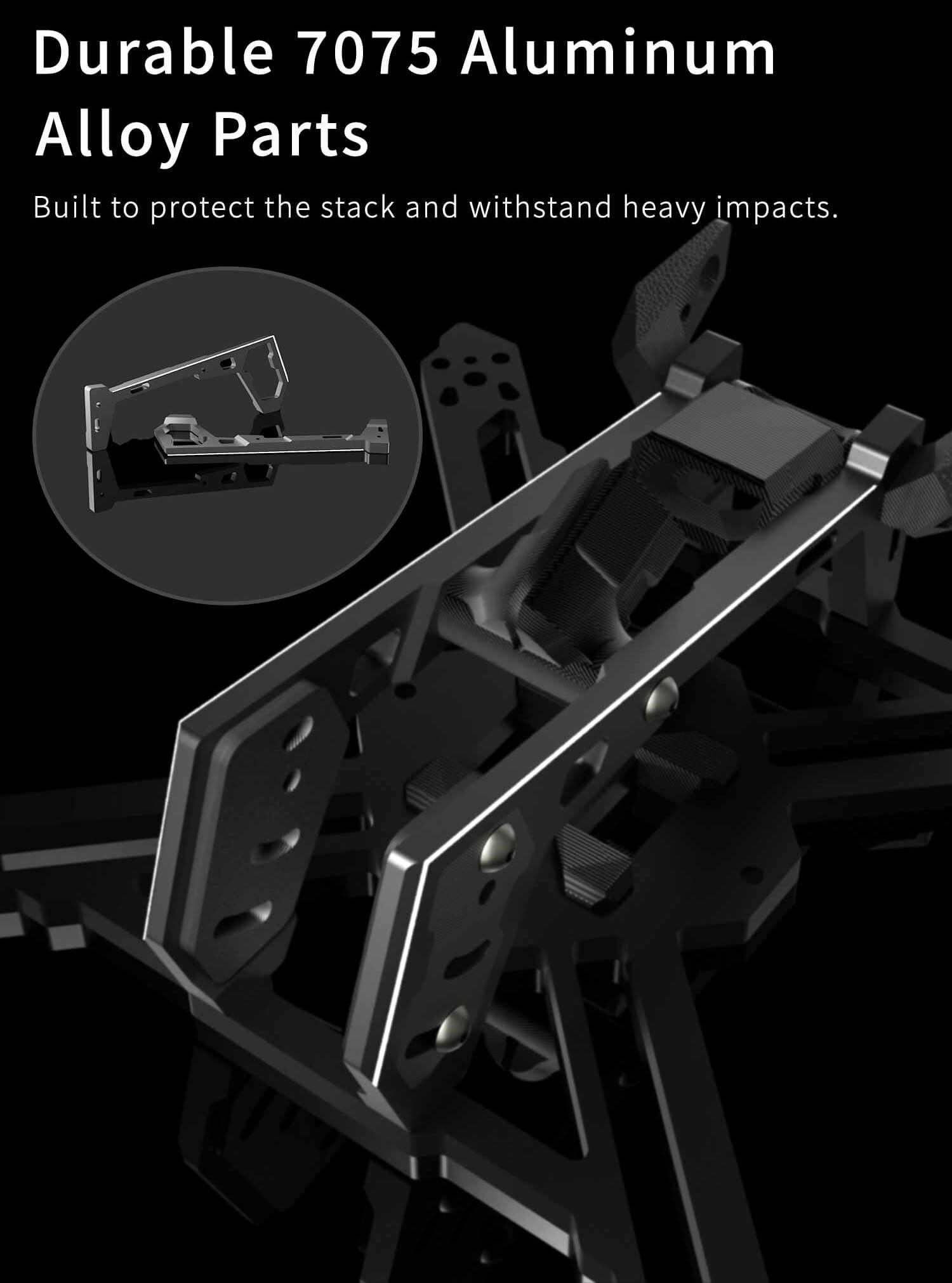

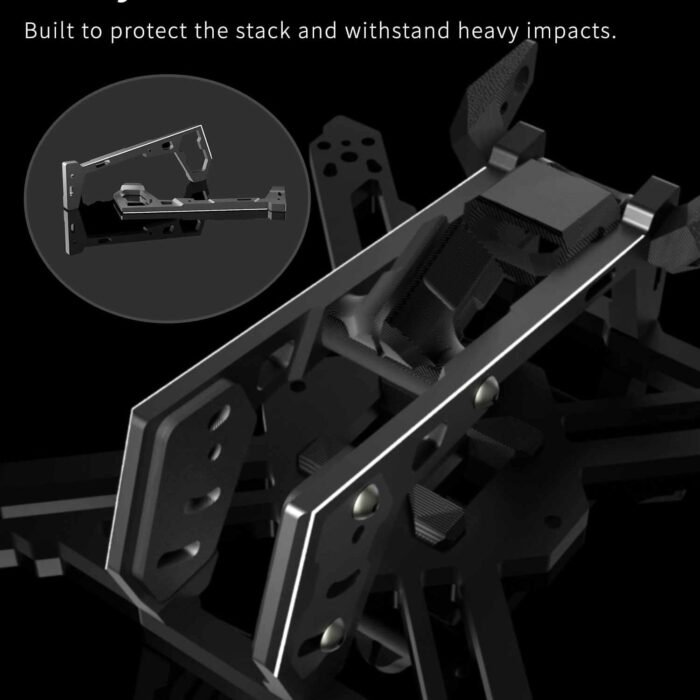

• CNC-machined 7075 aluminum alloy for superior frame protection.

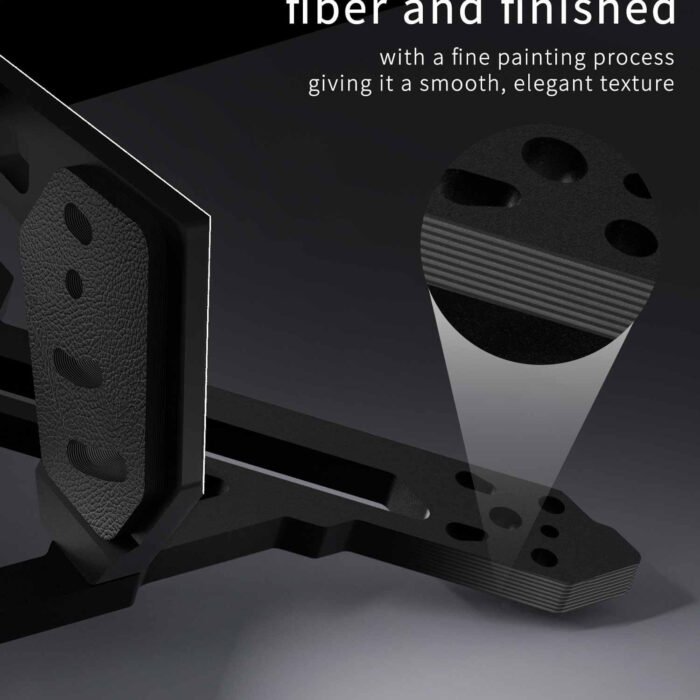

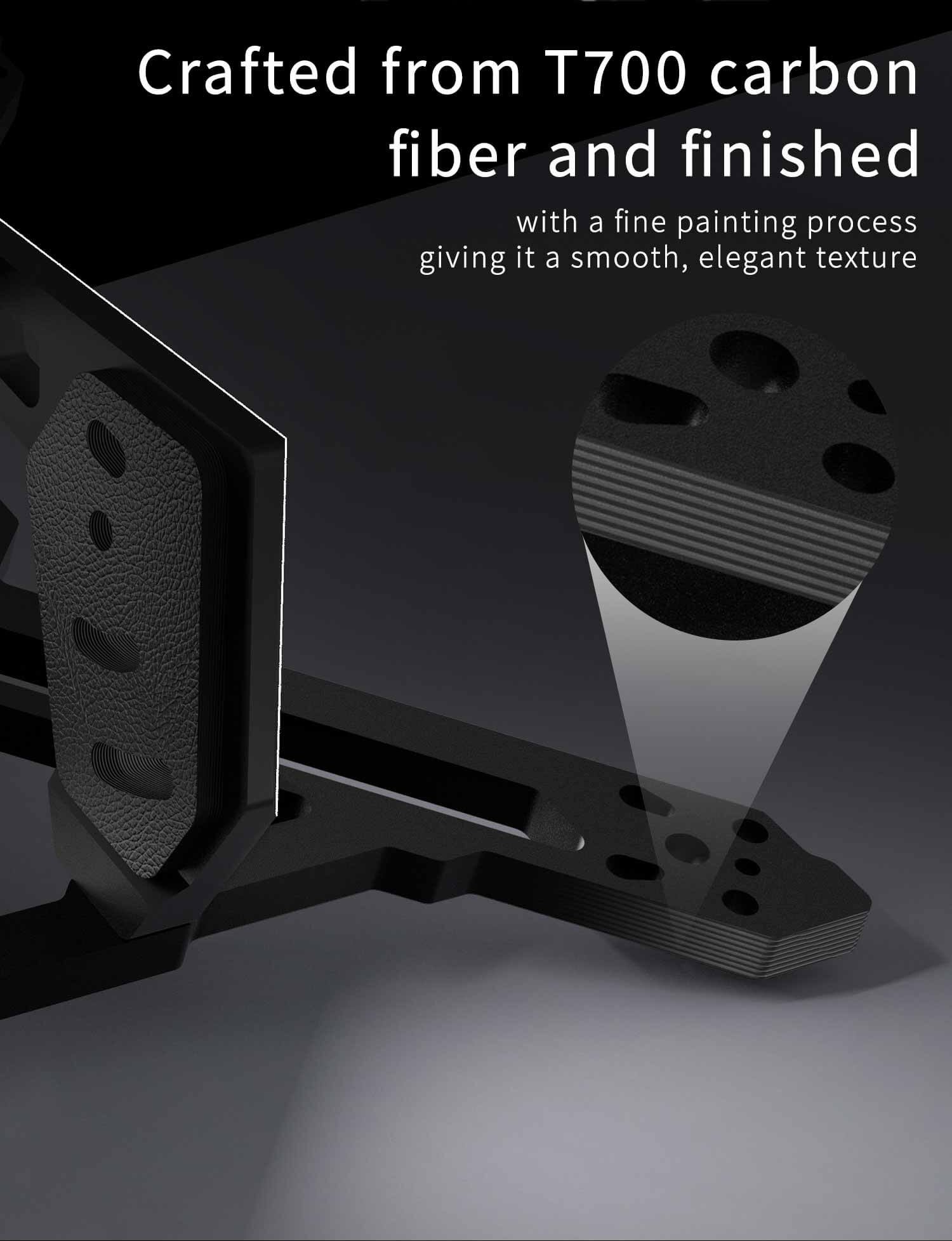

• T700 carbon fiber base plate, cut along the grain for extra strength.

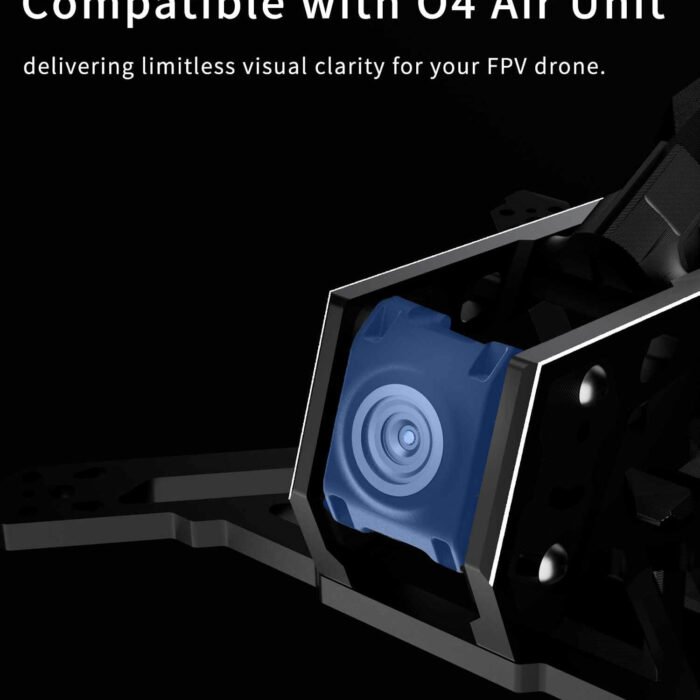

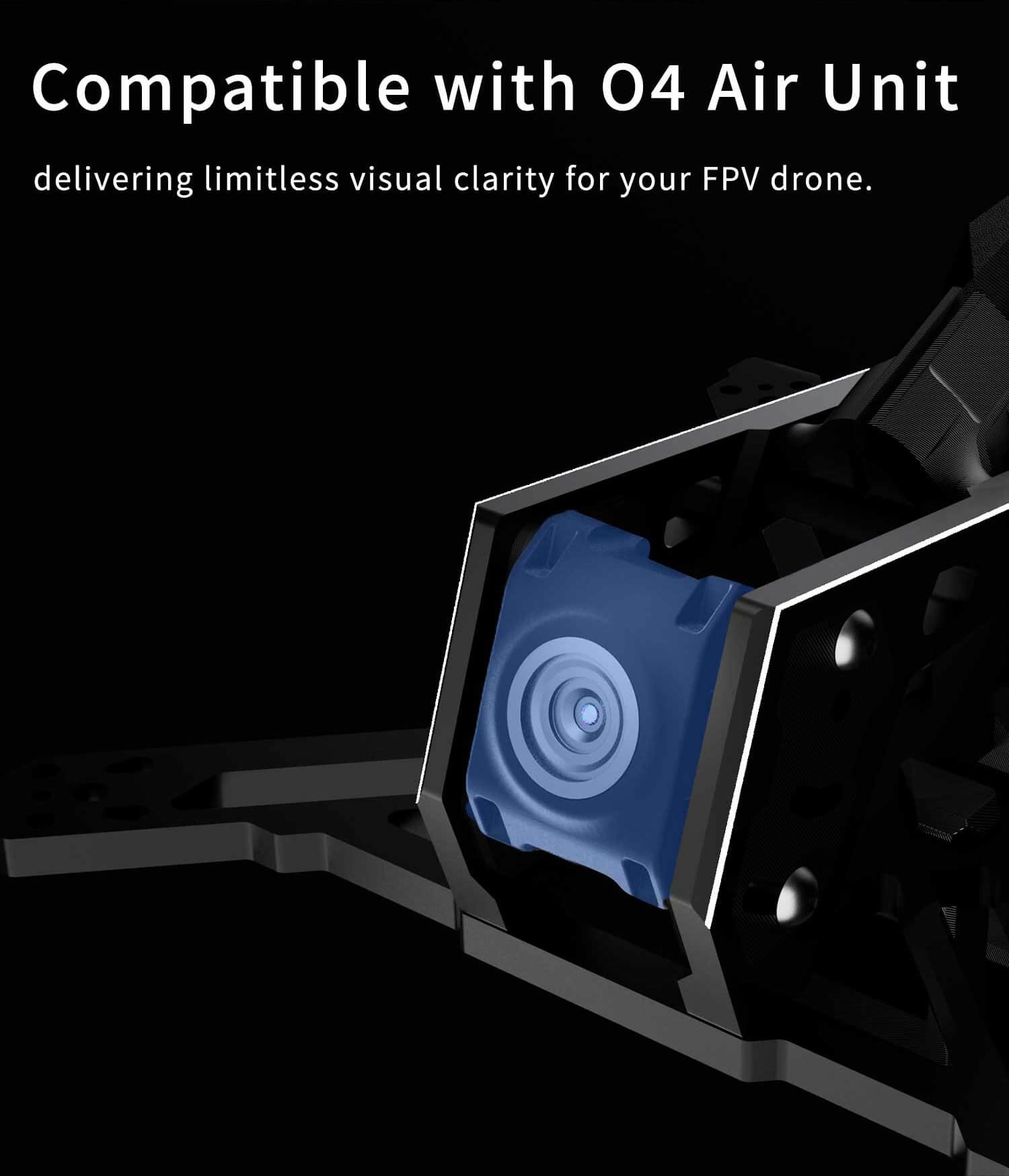

• Full compatibility with DJI O4 HD VTX systems — no limit on image quality.

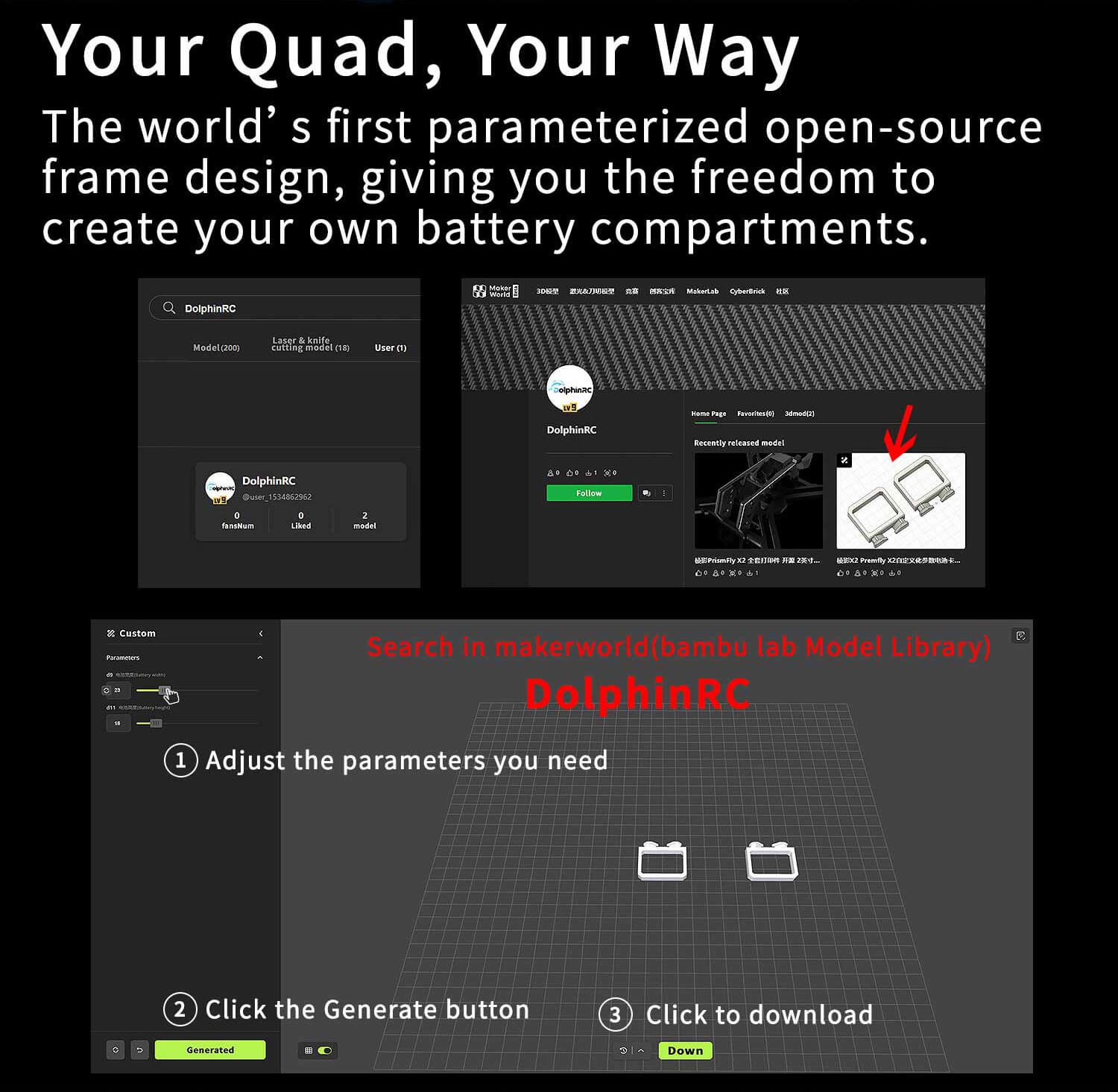

• Parametric battery mount design: customize the size and 3D print your own.

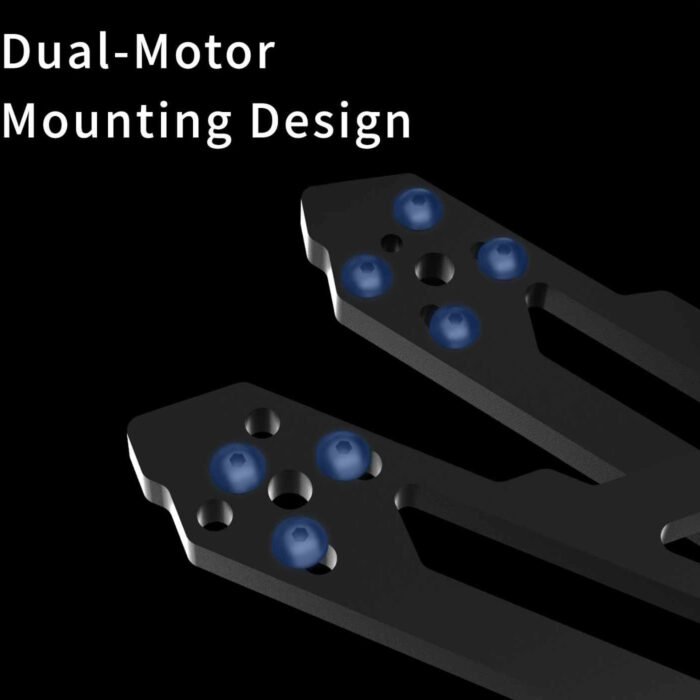

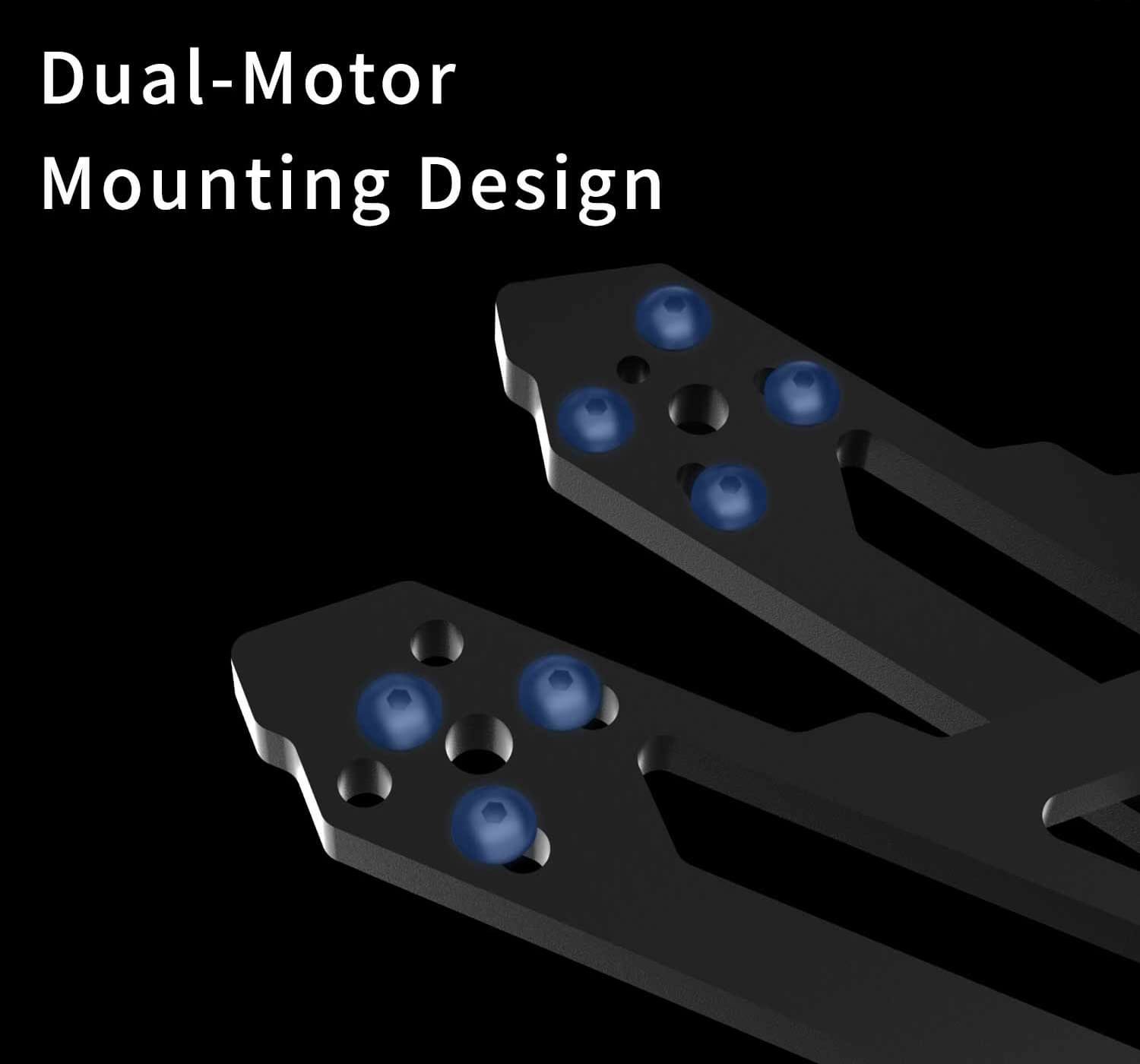

• Dual motor hole layout for maximum compatibility.

• Standard 25.5 mm AIO/FC/VTX mounting pattern.

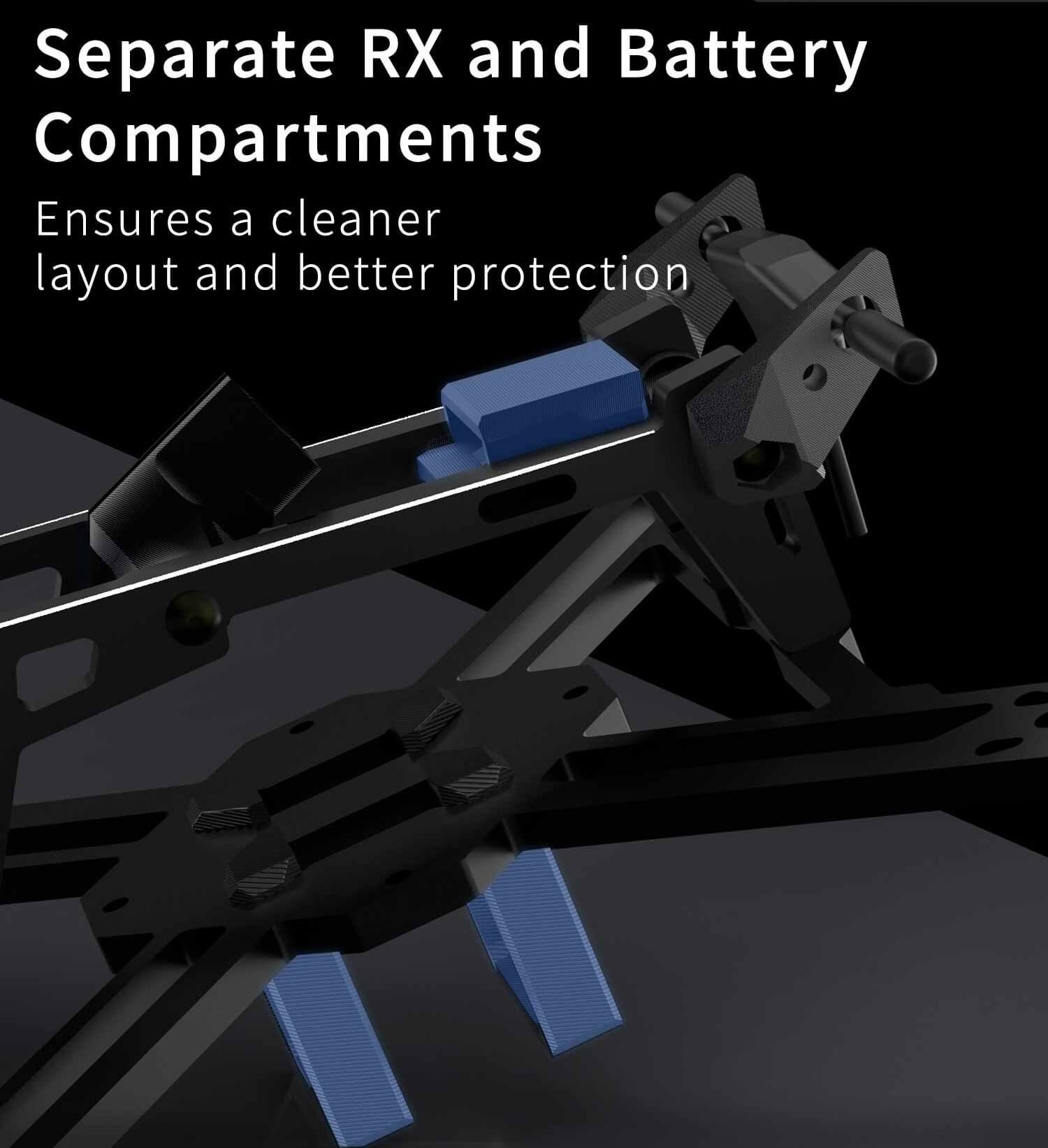

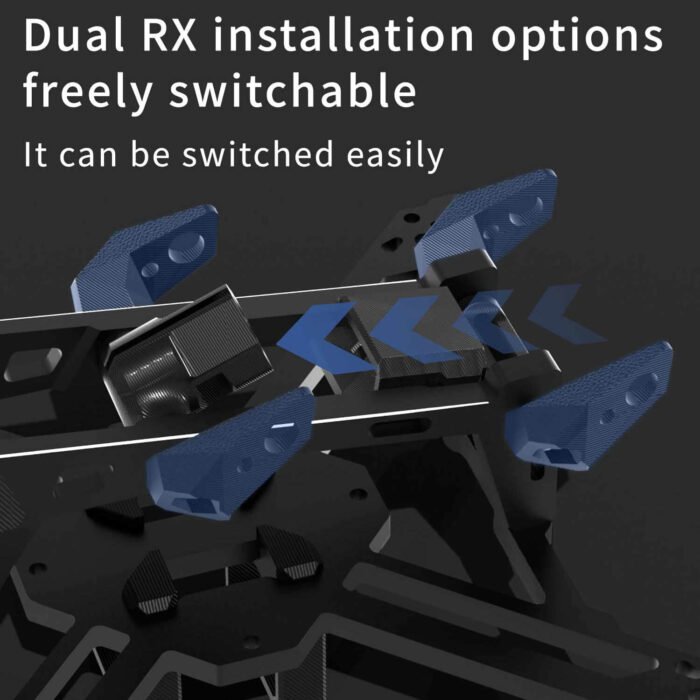

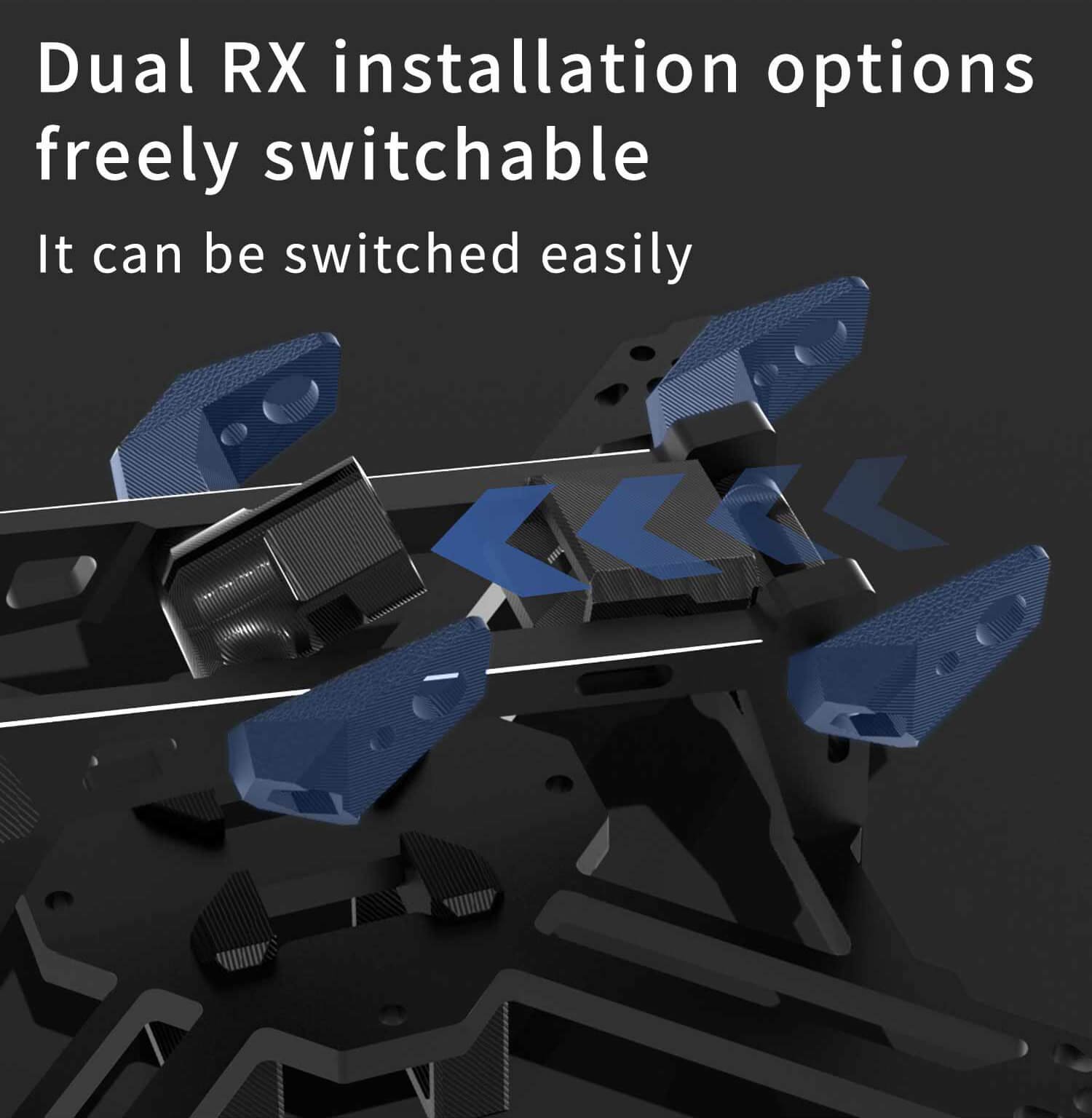

• Independent receiver and battery compartment for easier build and clean wiring.

Our Test Configuration

• Stack: AIO 45A

• Motors: 1103 8000KV

• Receiver: TBS Nano (Long T Antenna)

• VTX/Camera: DJI O4 Air Unit

• All-up Weight: 87.1 g

• Frame Weight: 27.0 ± 1 g

Flight Time Test Results

• Battery: Gens ace 450mAh 75C

  • Weight: 38.76 g

  • Flight Time: 5 min 20 sec

• Battery: Gaoneng 660mAh 90C

  • Weight: 47.92 g

  • Flight Time: 6 min 25 sec

• Battery: Gaoneng 720mAh 100C

  • Weight: 50.96 g

  • Flight Time: 7 min 19 sec

  • Notes: Longer endurance, but the quad feels noticeably sluggish.

If you need the installation manual, please check out this PDF link.
