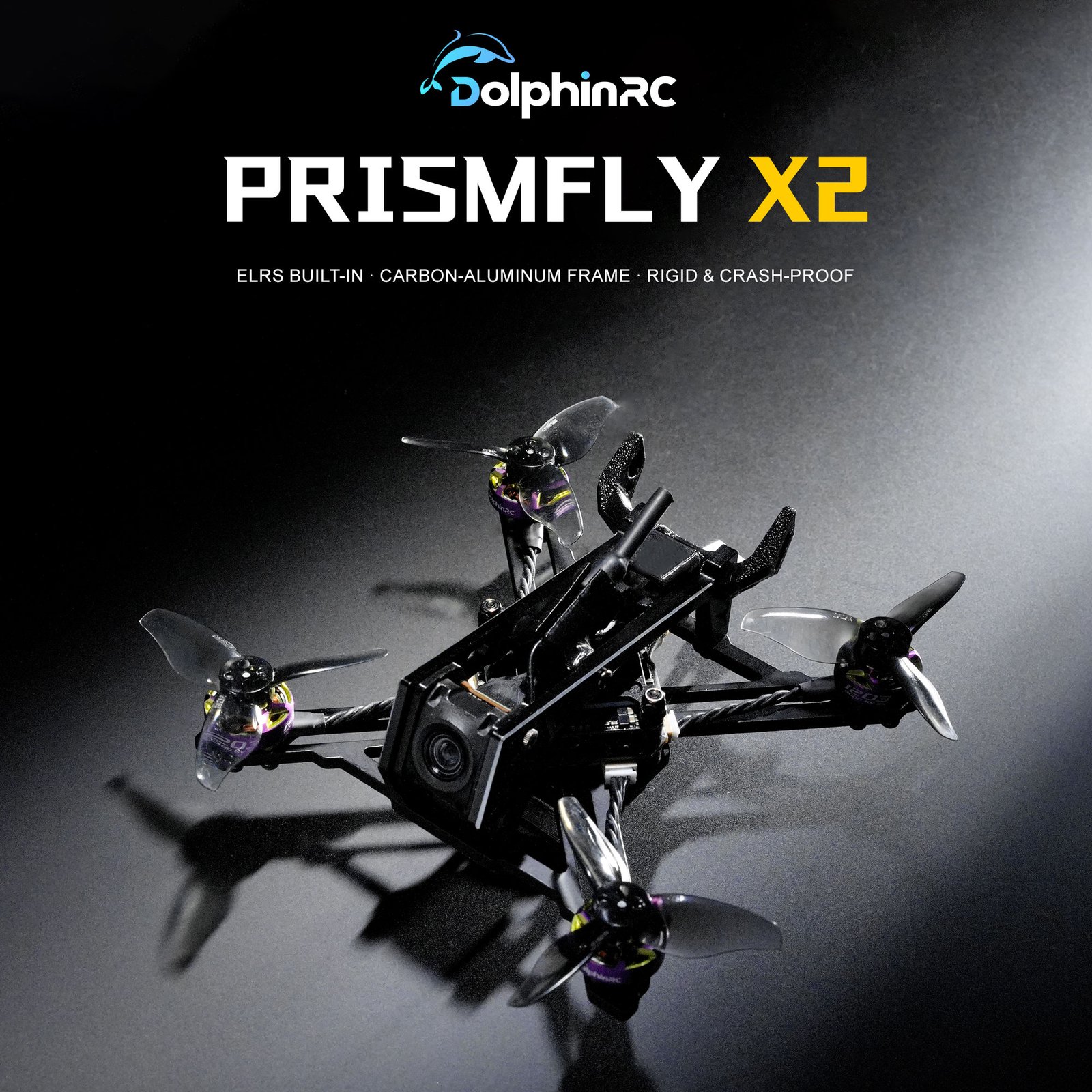

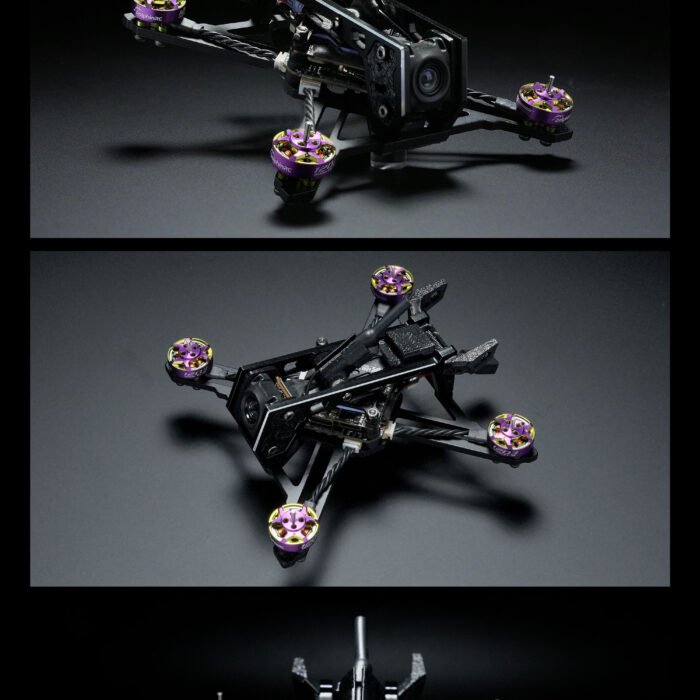

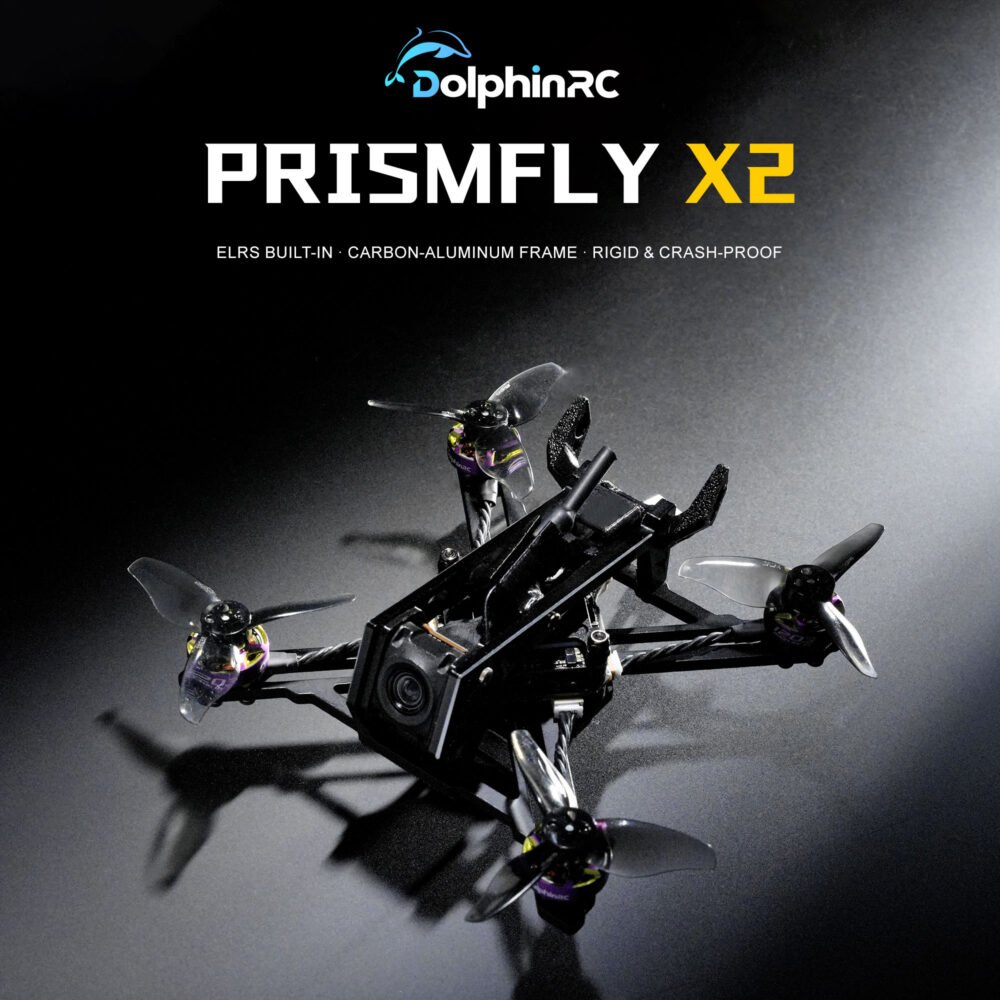

DolphinRC PRISMFLY X2 2Inch Frame Kit Combo w/ RCinpower GTS V3 1203 8000KV Motor (Purple-Green) & BETAFPV F405 AIO 20A Stack

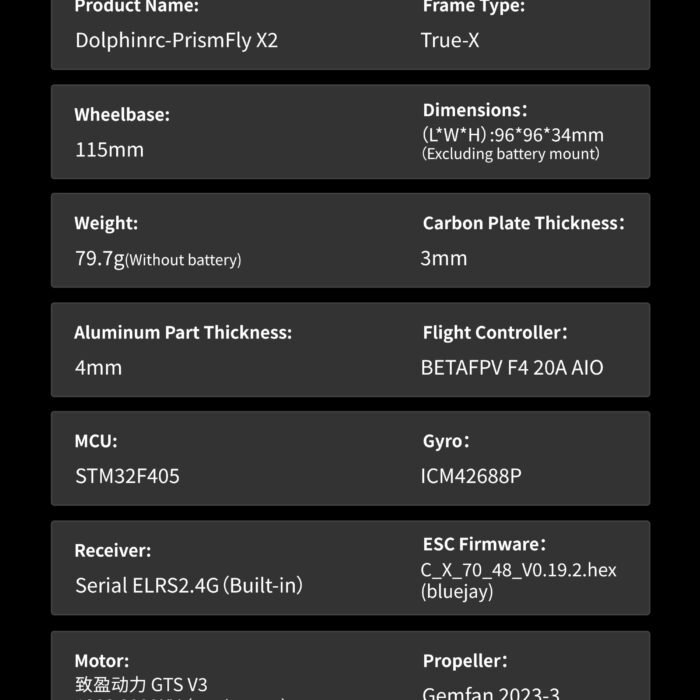

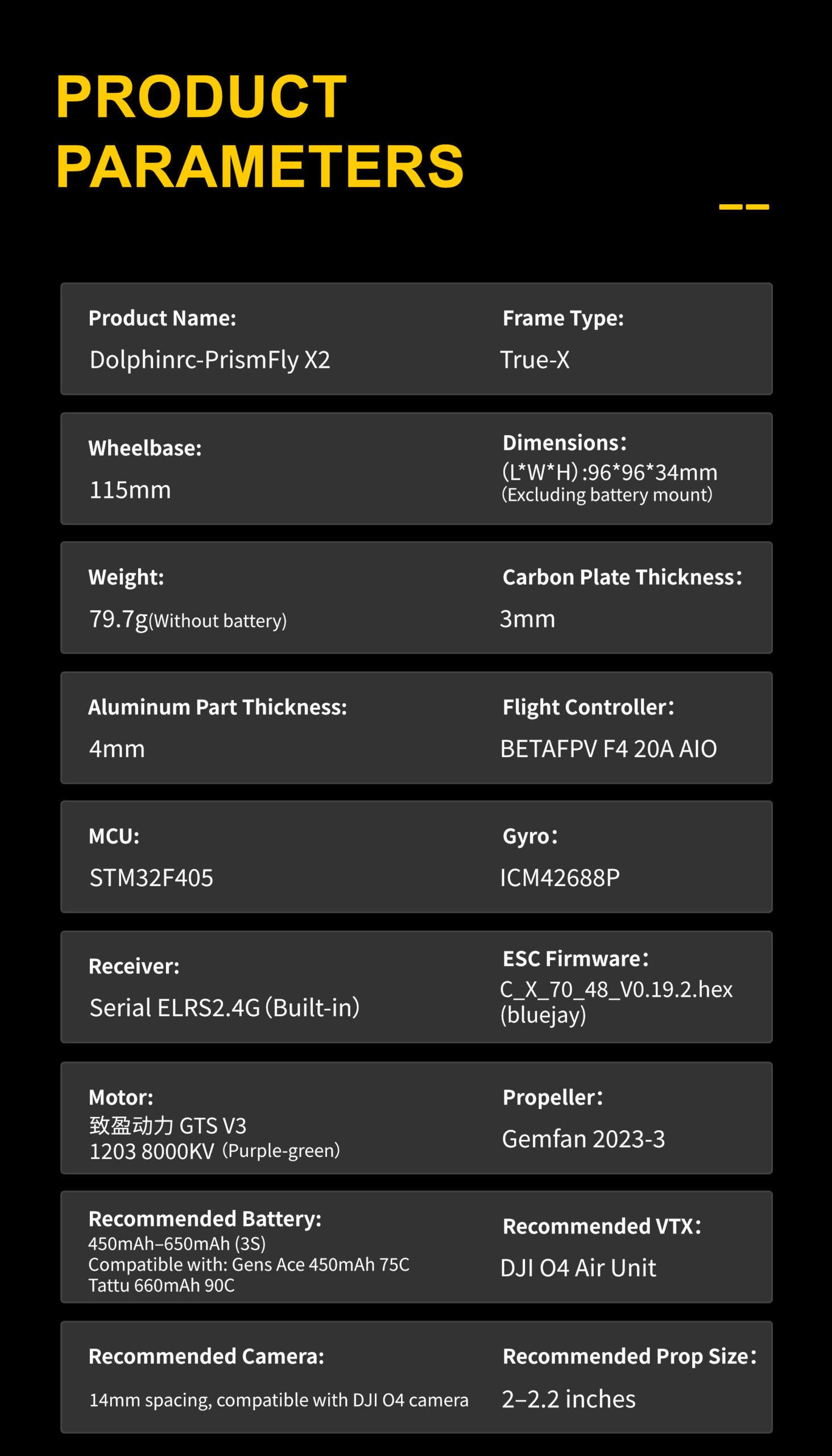

Product Parameters

• Frame: Dolphinrc PRISMFLY X2

• Model: True X

• Wheelbase: 115mm

• Dimensions (LWH): 96*96*34mm (Battery Mount Excluded)

• Weight: 79.7g (Battery Excluded)

• Carbon Plate Thickness: 3mm

• Aluminum Part Thickness: 4mm

• Flight Controller: BETAFPV F4 20A AIO

  • MCU: STM32F405

  • Gyro: ICM42688P

  • Receiver: Serial ELRS 2.4G (Built-in)

  • ESC Firmware: C_X_70_48_V0.19.2.hex (Bluejay)

• Motors: T-Motor GTS V3 1203 8000KV (Purple-Green)

• Propellers: Gemfan 2023-3

• Recommended Battery: 450mAh-650mAh (3S) Compatible with GNB 450mAh 75C, Tattu 660mAh 90C

• Recommended VTX: DJI O4 Air Unit

• Recommended Camera: 14mm Mounting Spacing, Compatible with DJI O4 Camera Lens

• Recommended Propellers: 2-2.2 inches

Product Features

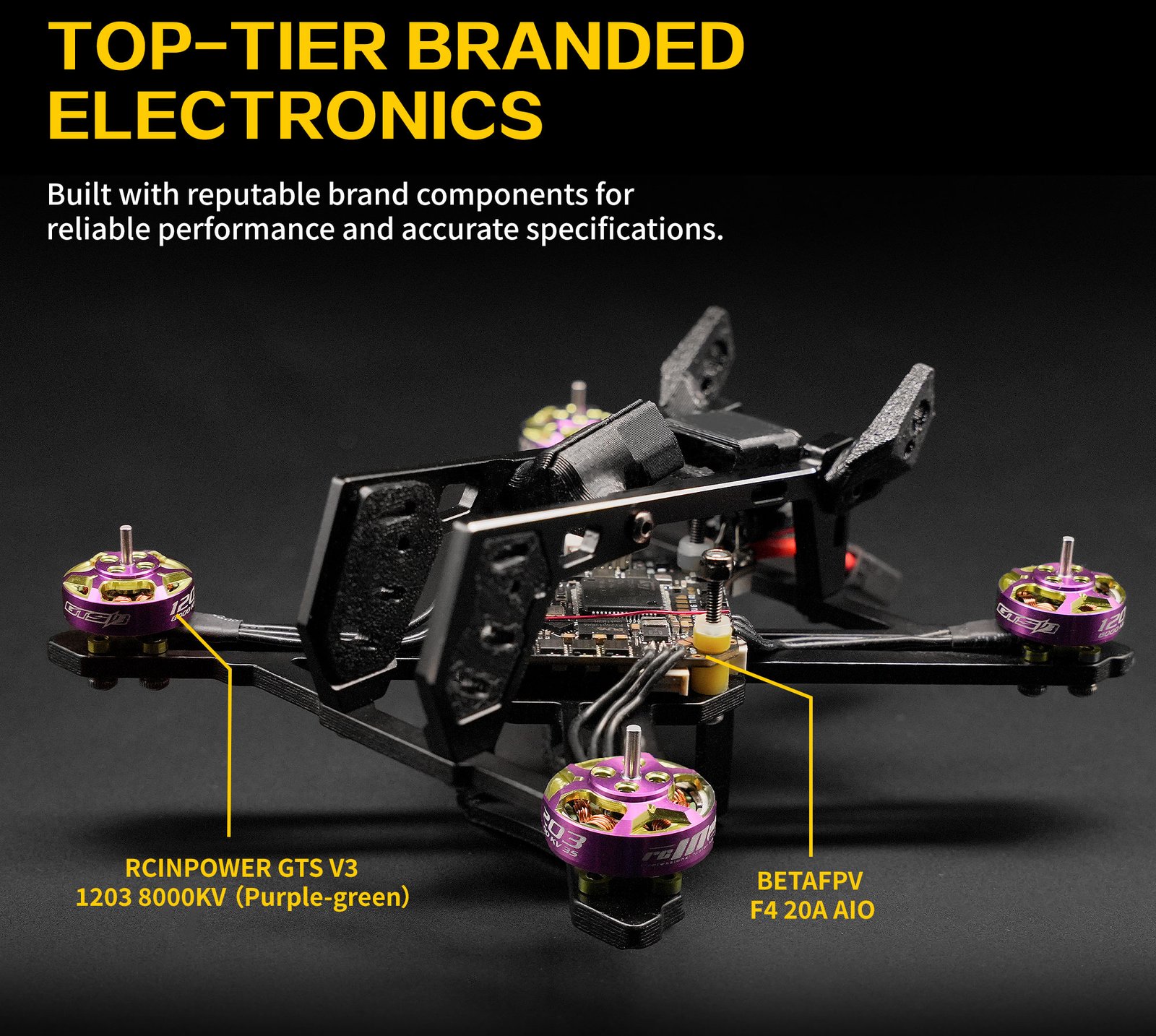

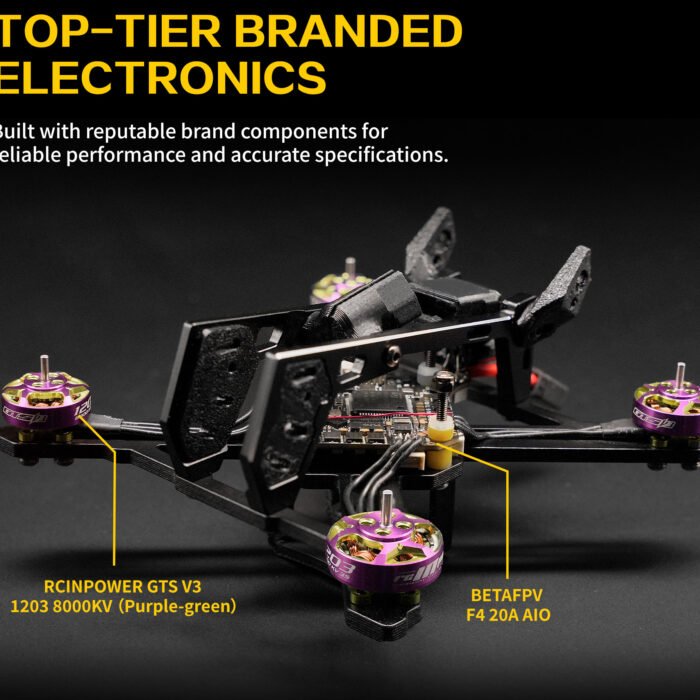

1. Top-Tier Components: Equipped with reputable brand parts, ensuring stable quality and reliable performance without exaggerated specifications.

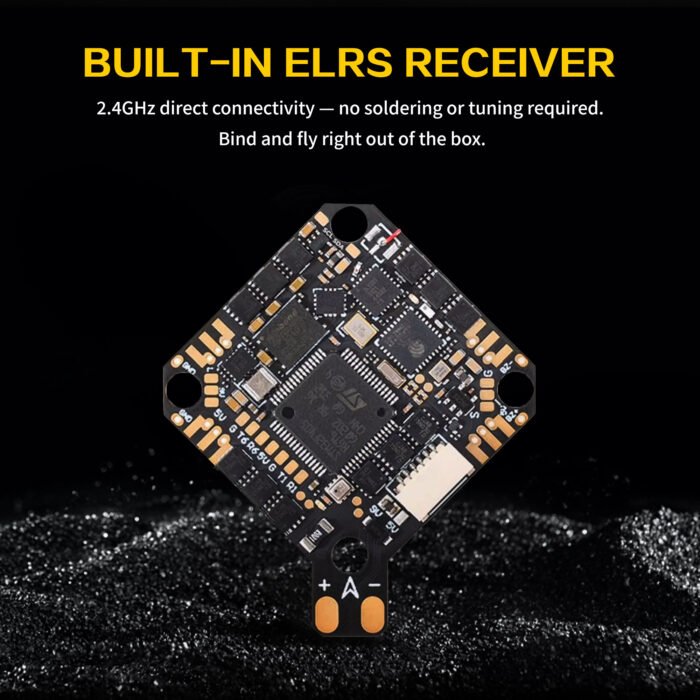

2. Built-in ELRS Receiver: Integrated 2.4G ELRS for a direct, strong signal connection. No soldering or complex setup required – just bind and fly.

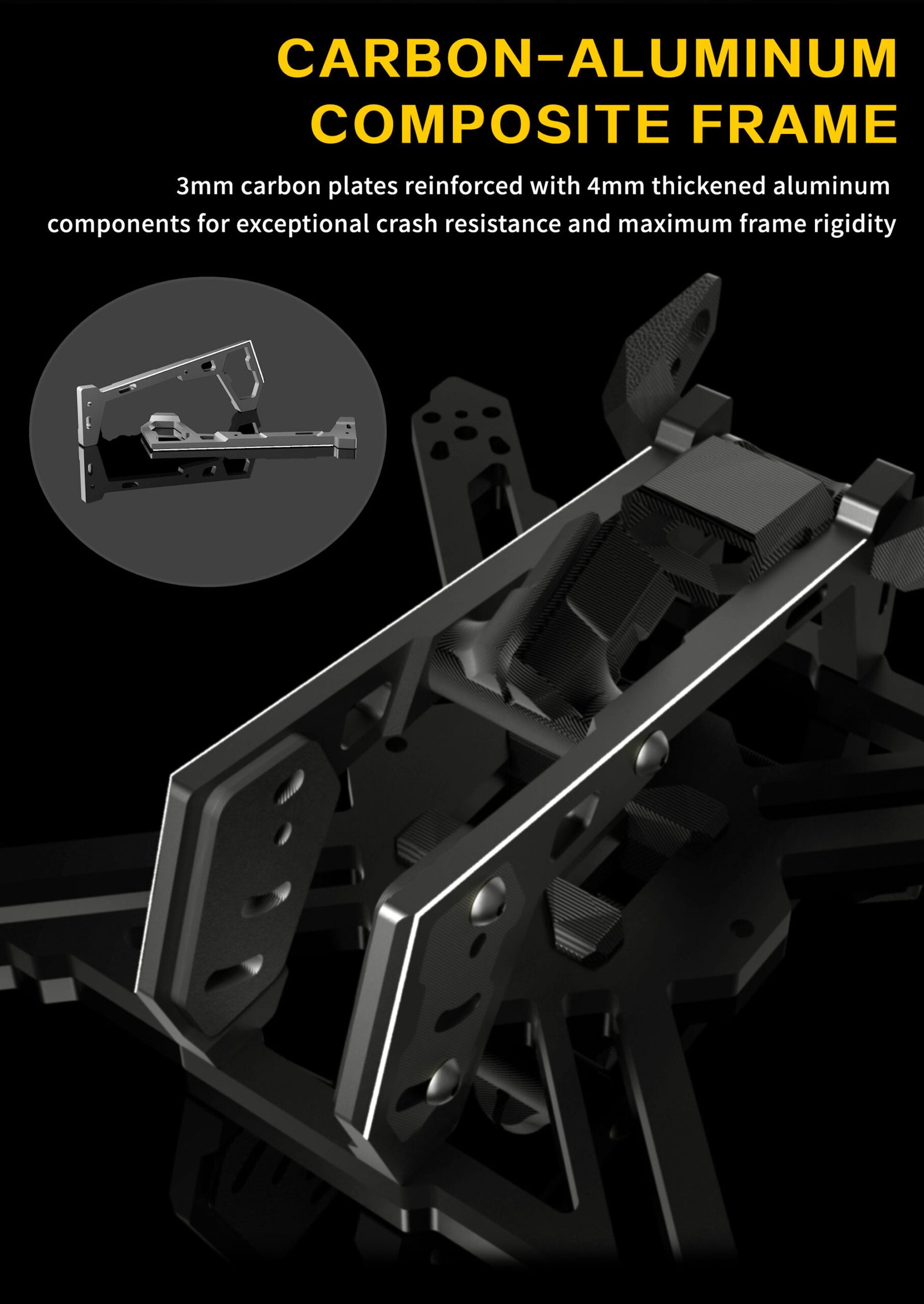

3. Hybrid Carbon-Aluminum Frame: Constructed with 3mm carbon plates and reinforced 4mm aluminum parts for exceptional durability and rigidity, built to withstand hard impacts.

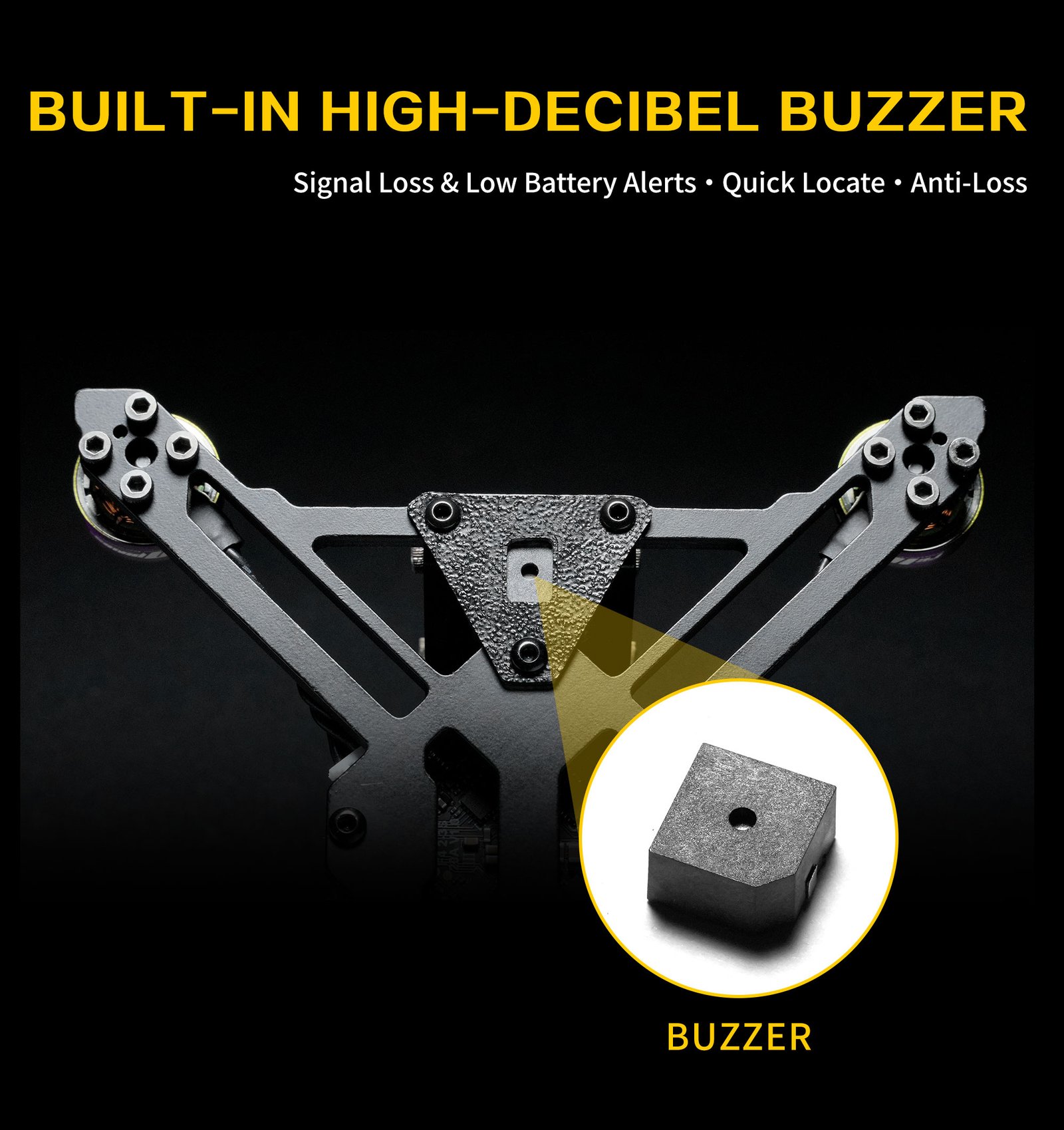

4. Integrated High-Decibel Buzzer: Provides precise audible alerts for low battery or signal loss, making it easy to locate your drone.

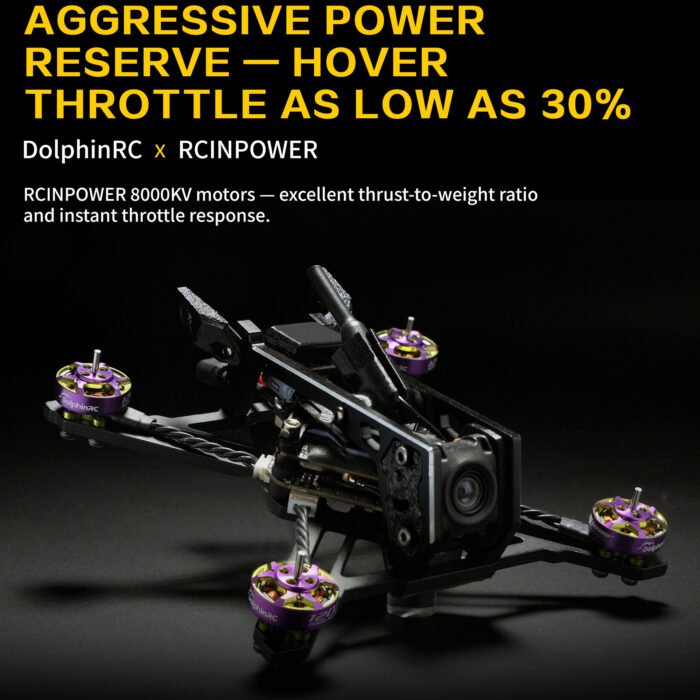

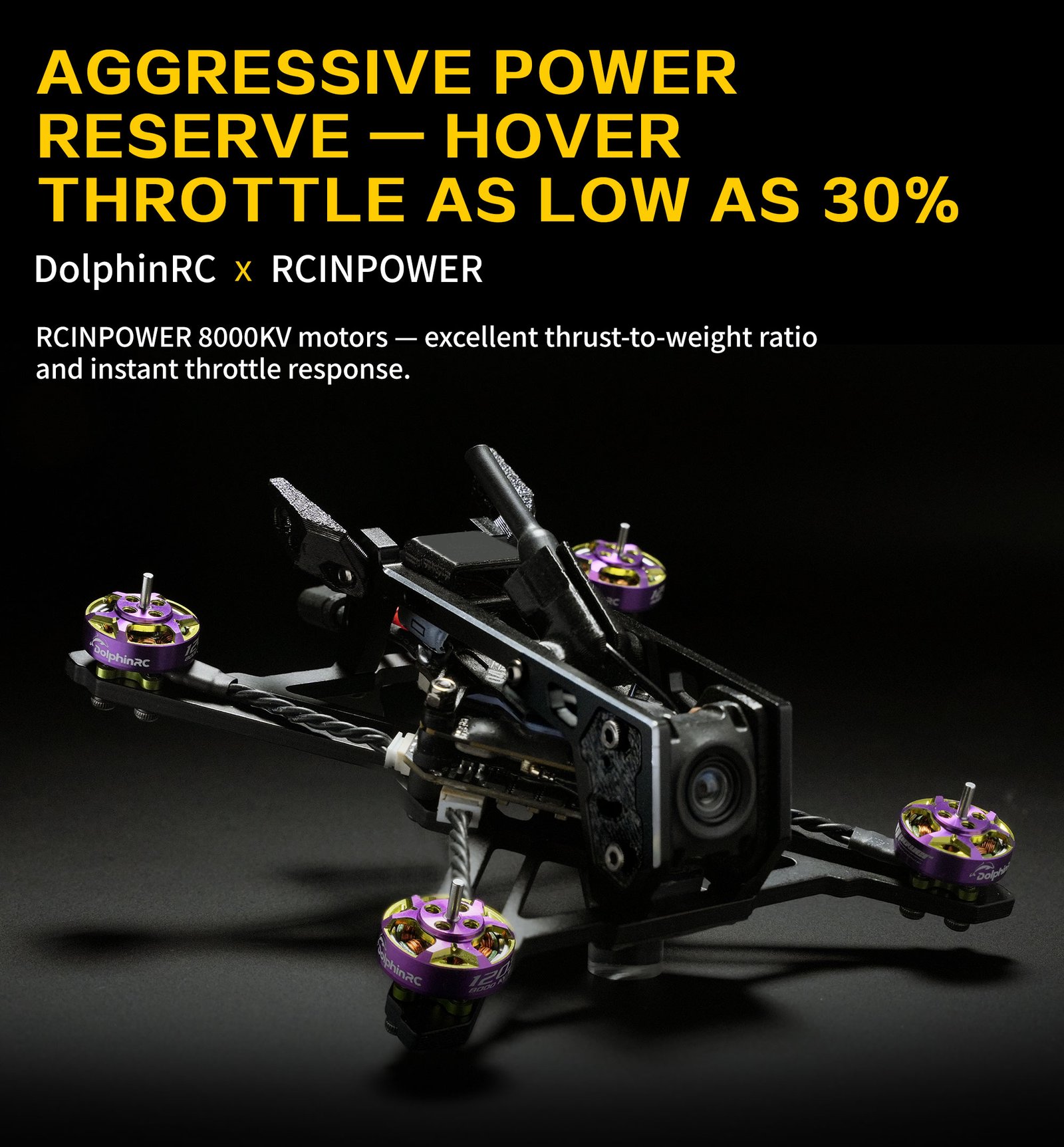

5. Extreme Power Reserve: Powered by high-efficiency 8000KV motors, delivering a hovering throttle as low as 30% for an outstanding thrust-to-weight ratio and instantaneous response.

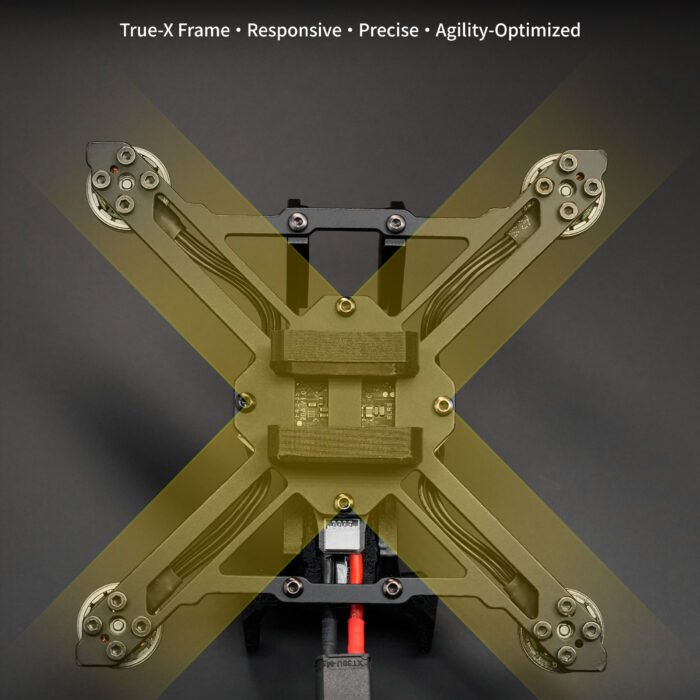

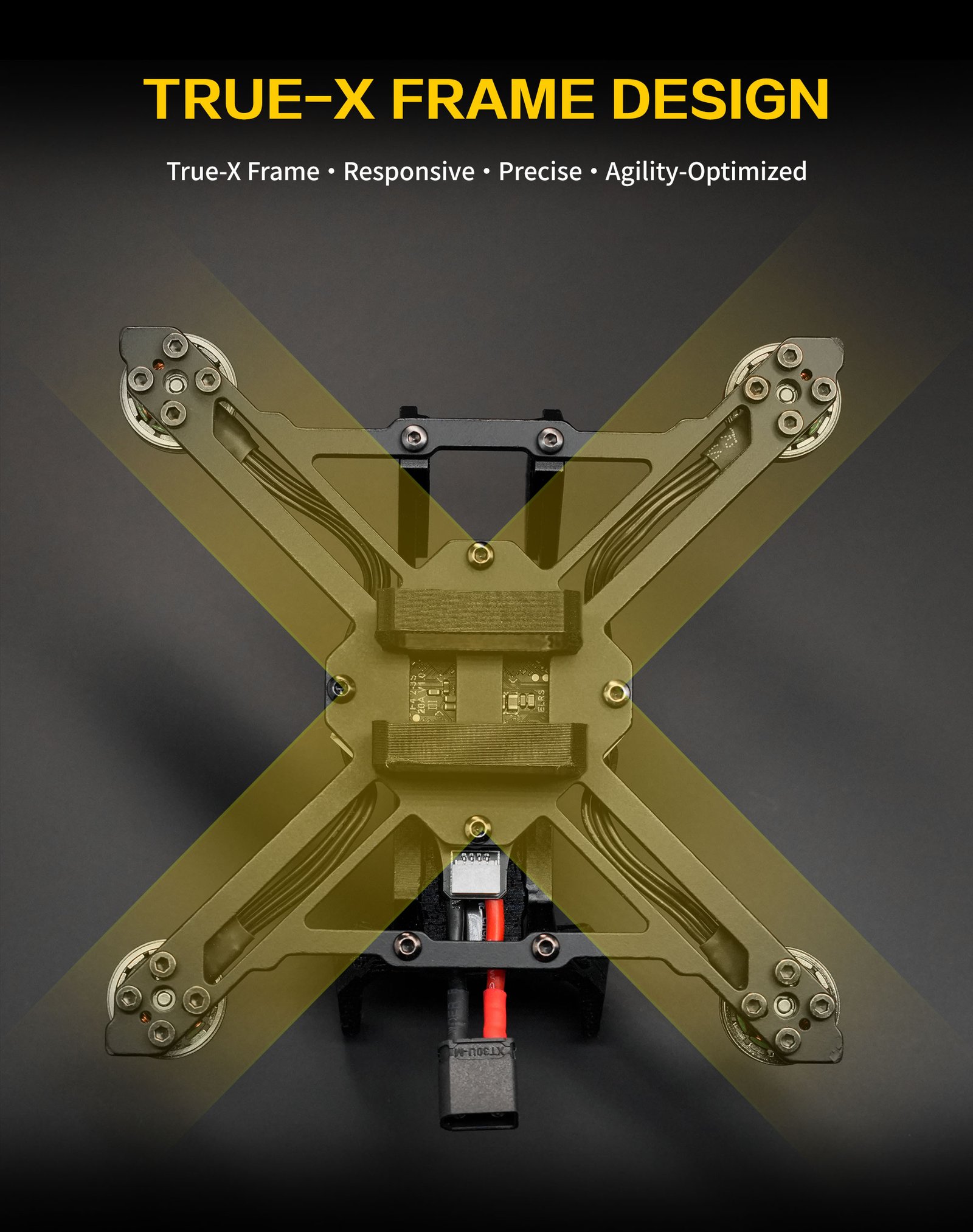

6. True X Configuration: Optimizes the center of gravity for a locked-in feel and ultra-responsive flight performance.

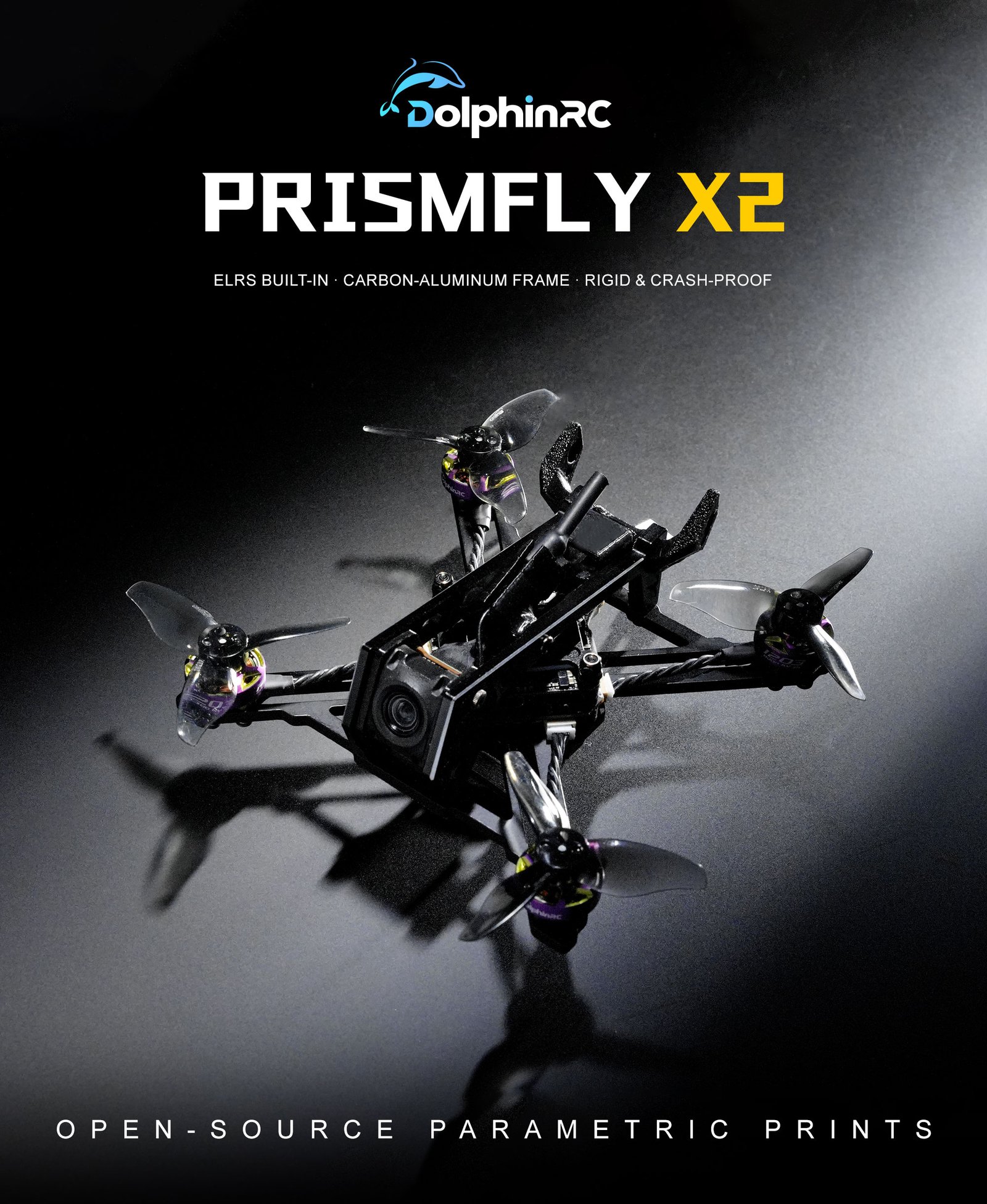

7. High Expandability: Open-source parametric 3D printable files available, making it easy to mount additional accessories like different sized batteries or a GPS module.

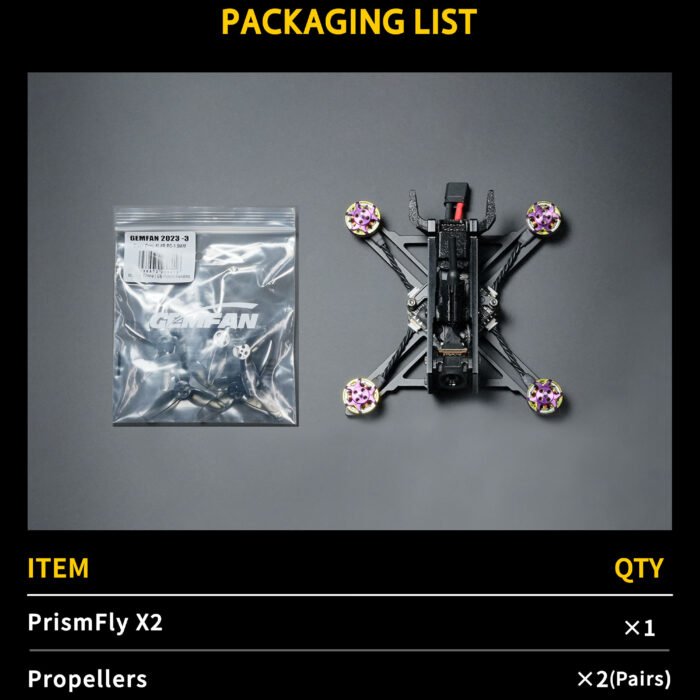

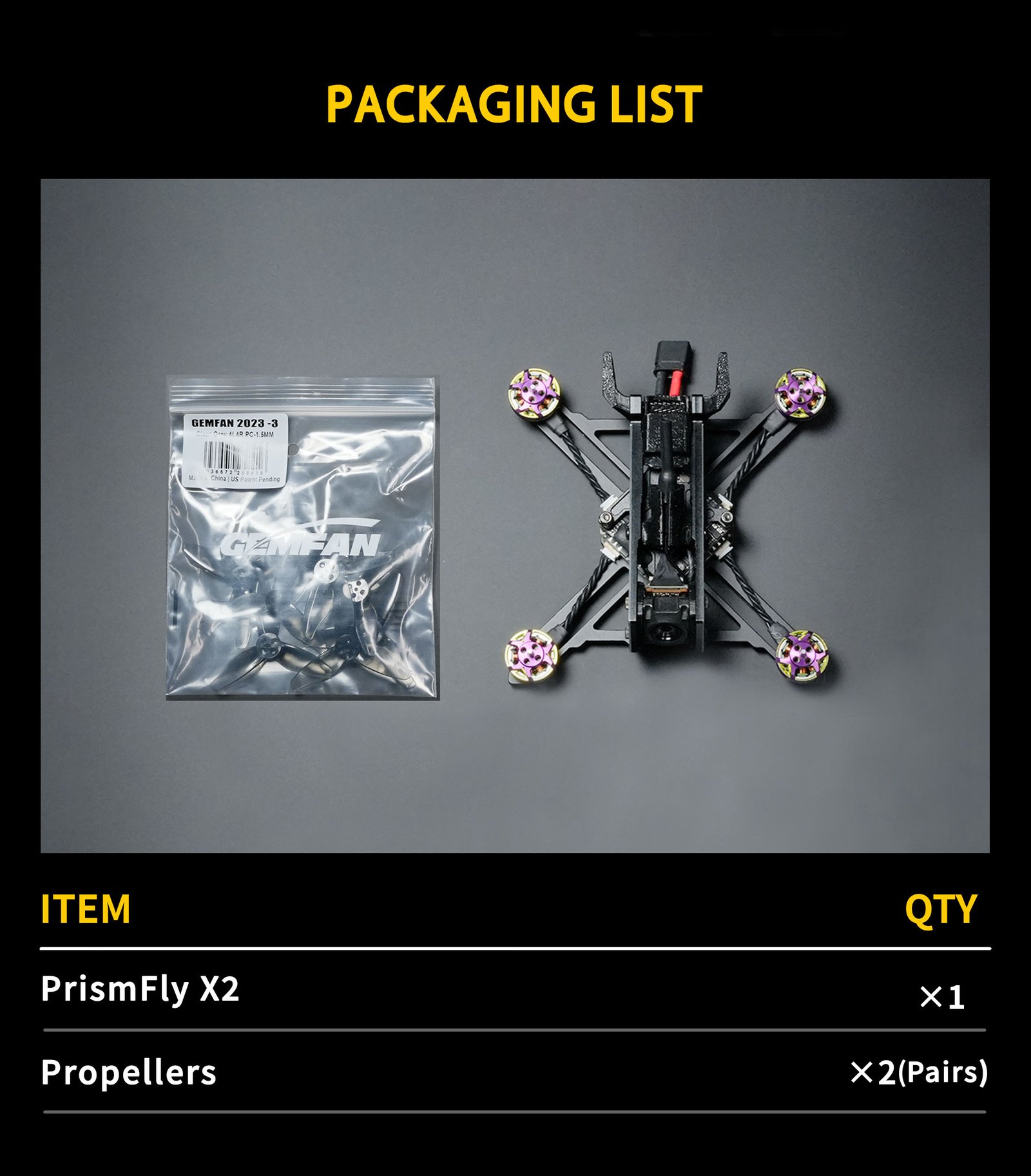

Package Includes

• 1 x PRISMFLY X2 BNF Drone

• 2 x Sets of Propellers
