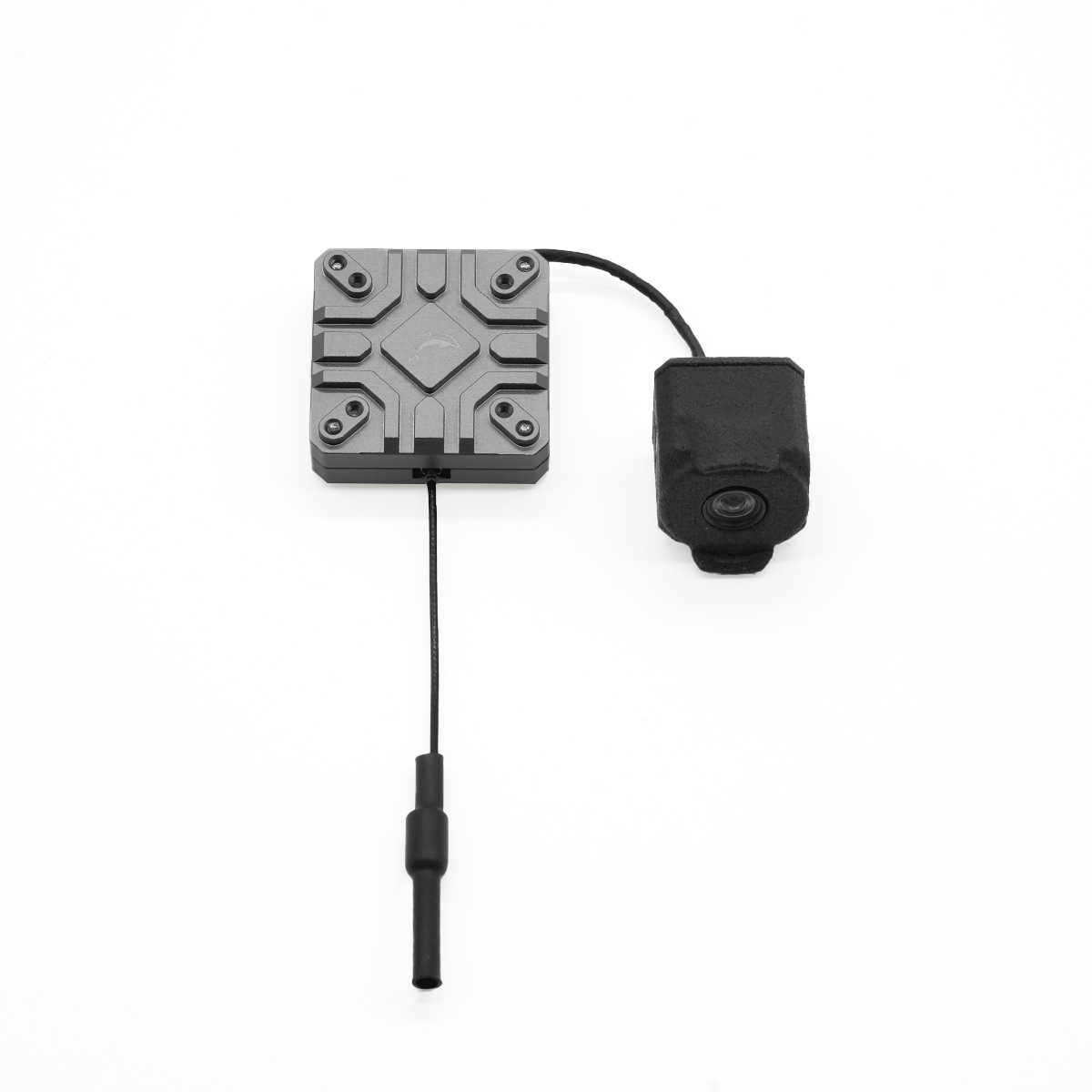

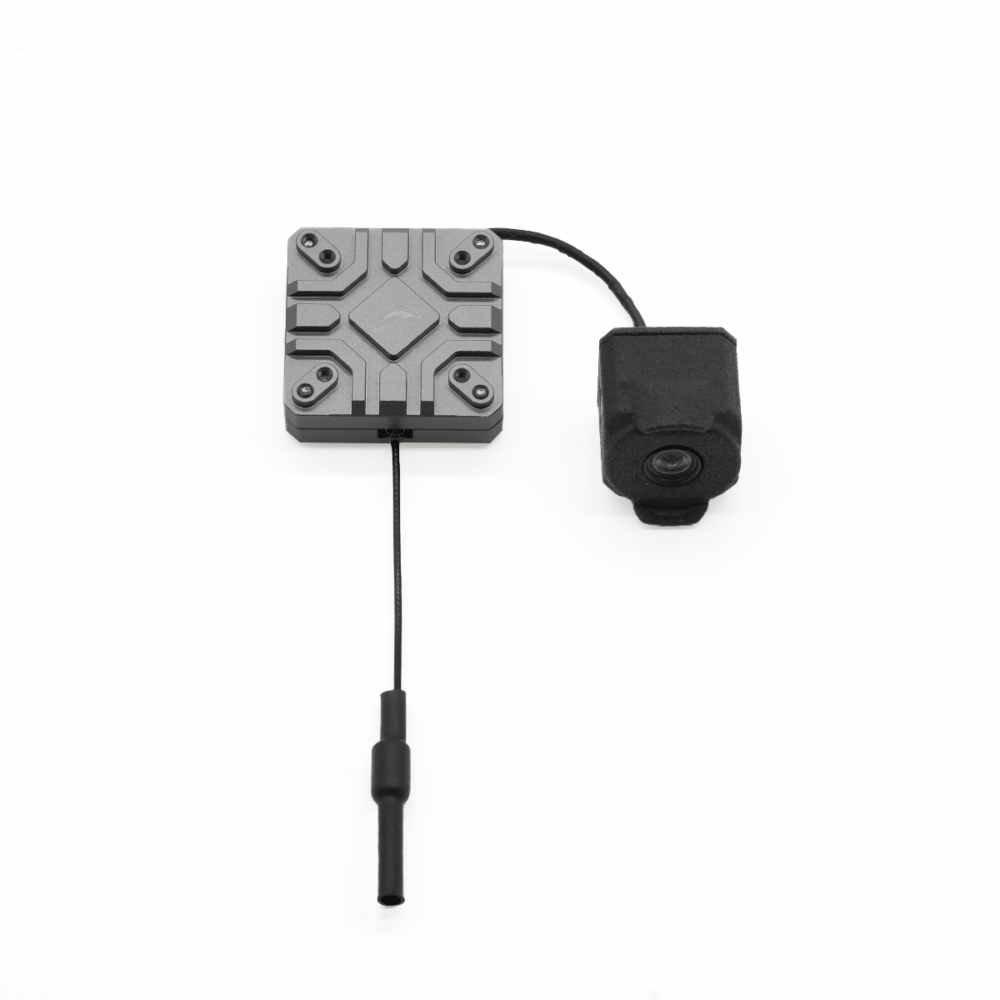

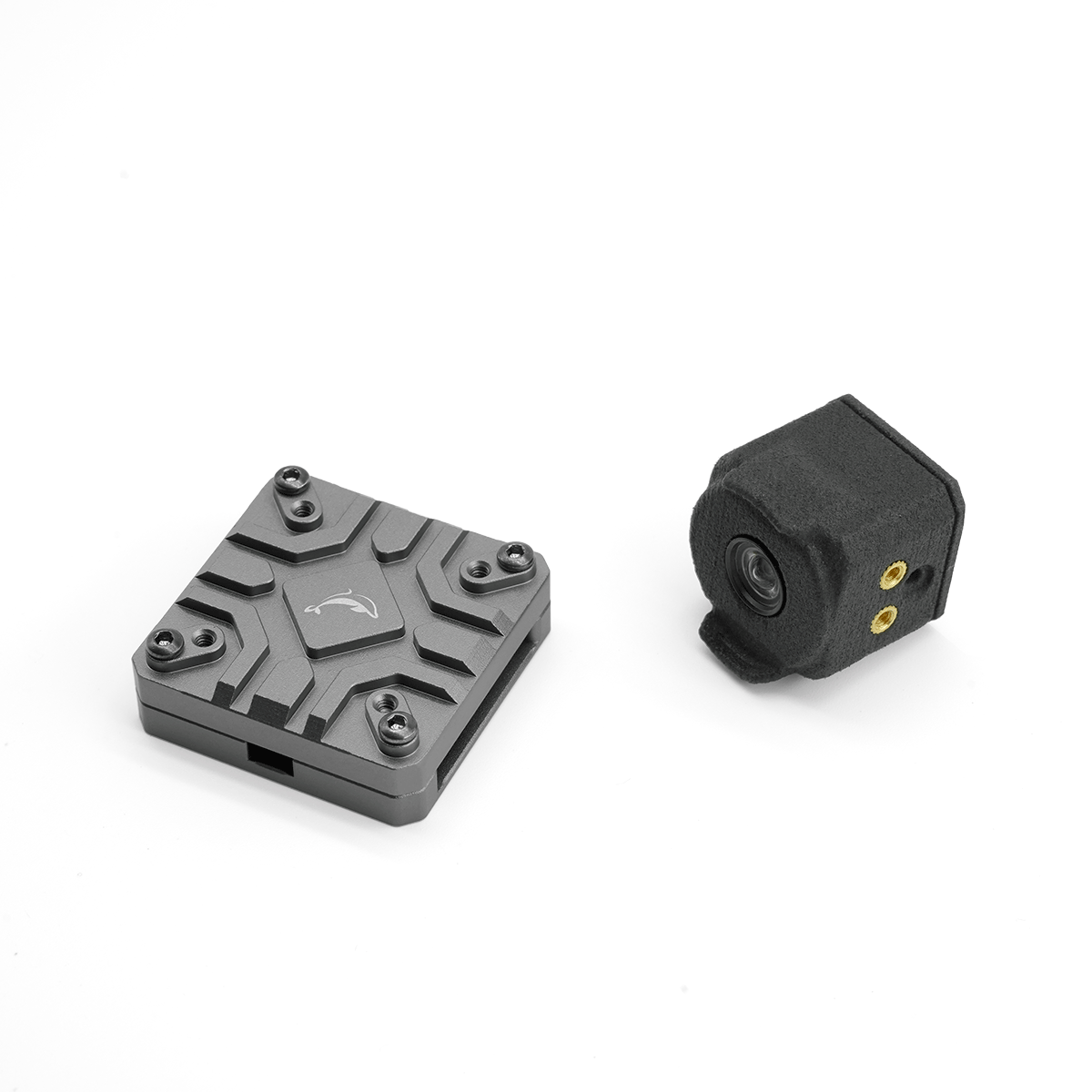

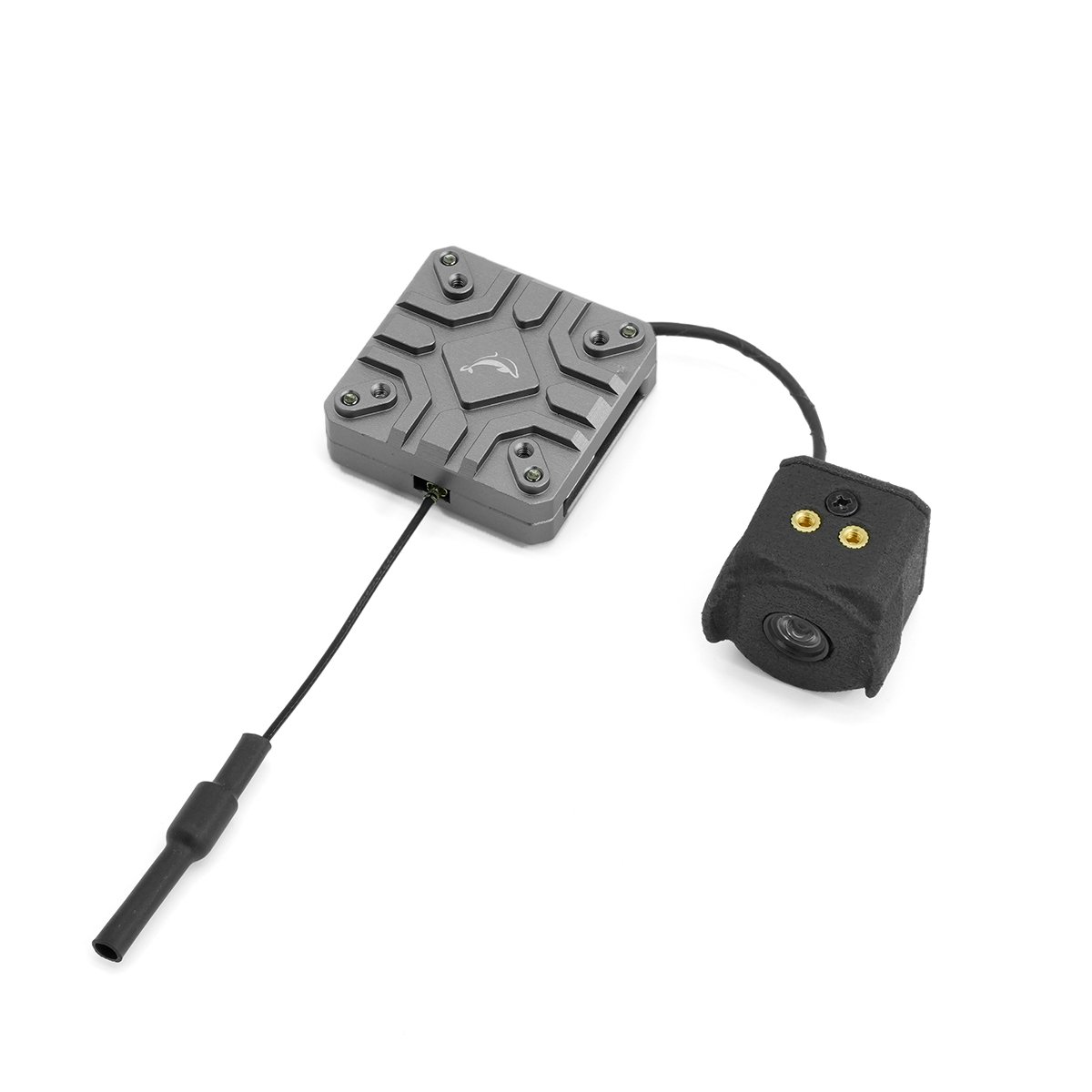

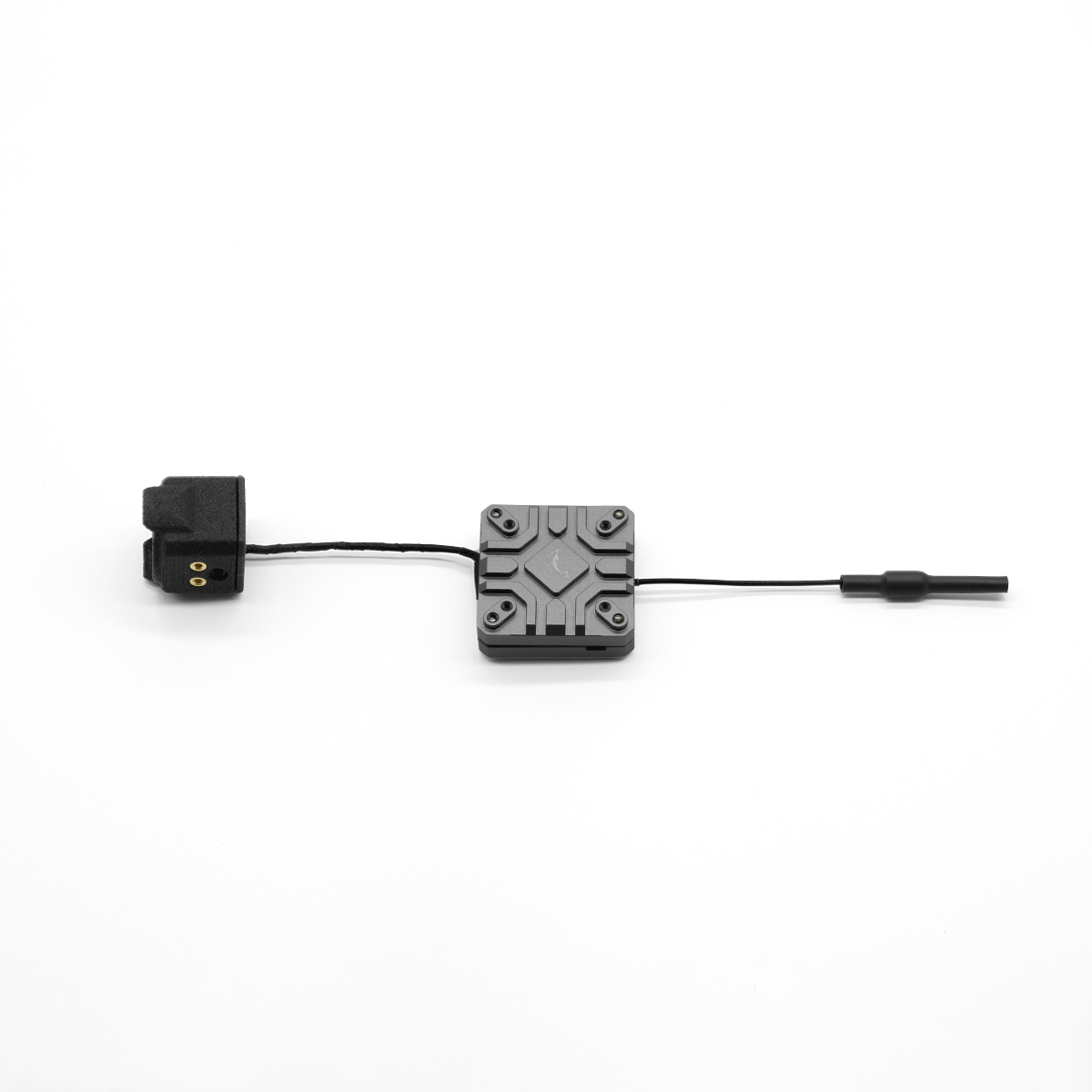

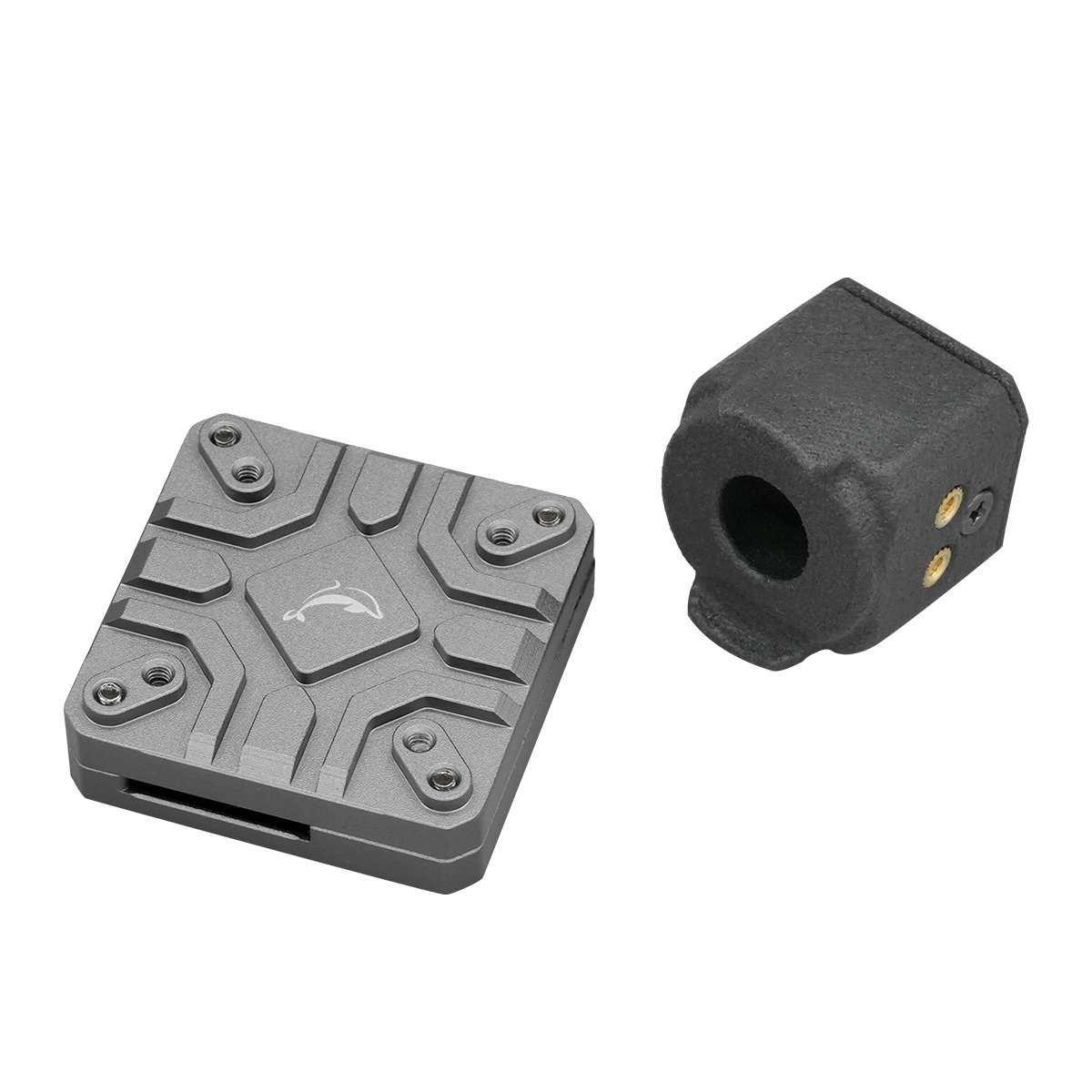

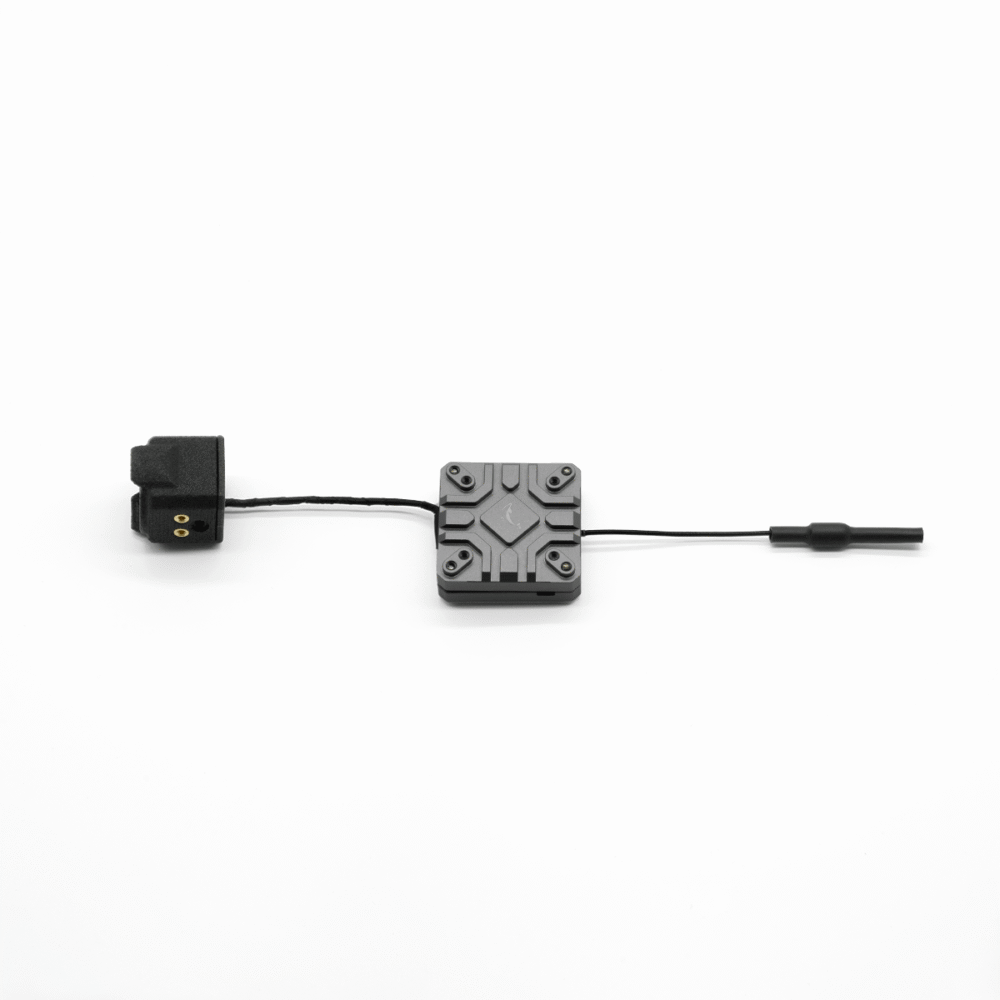

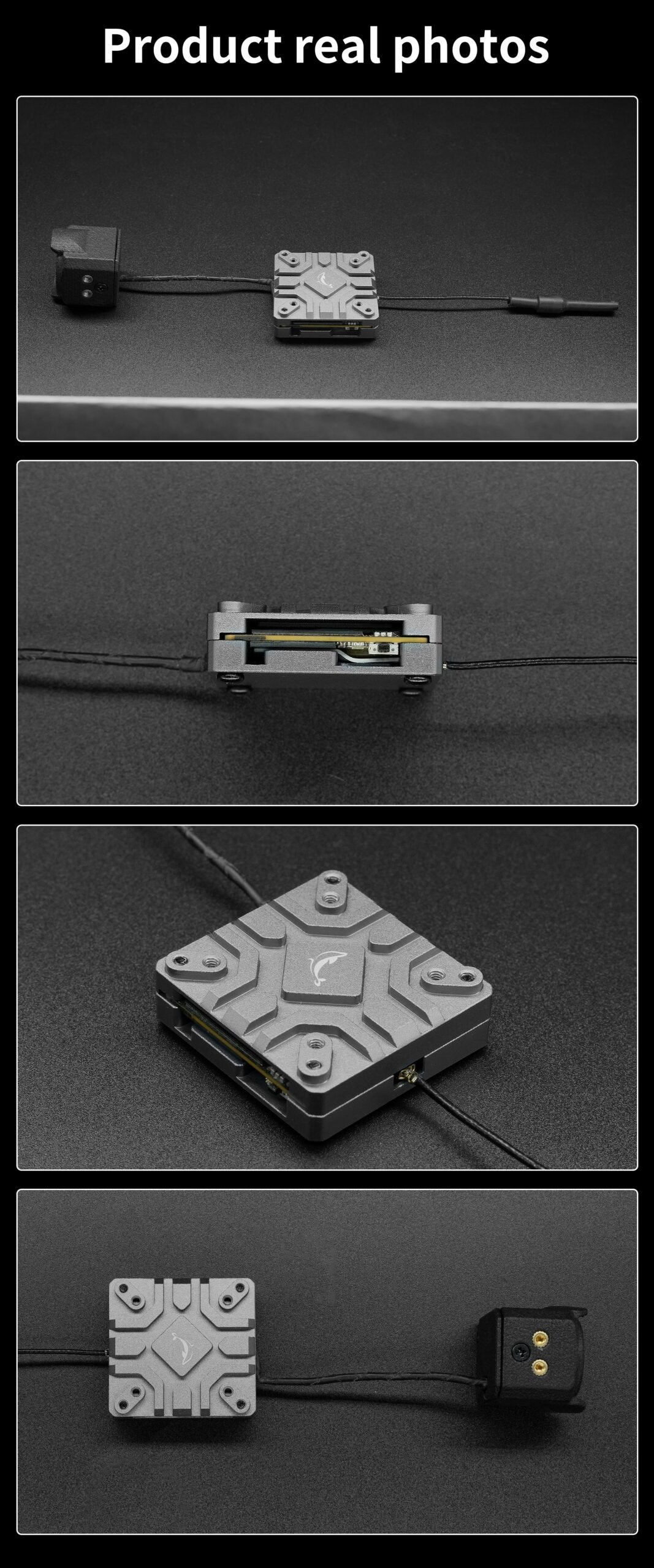

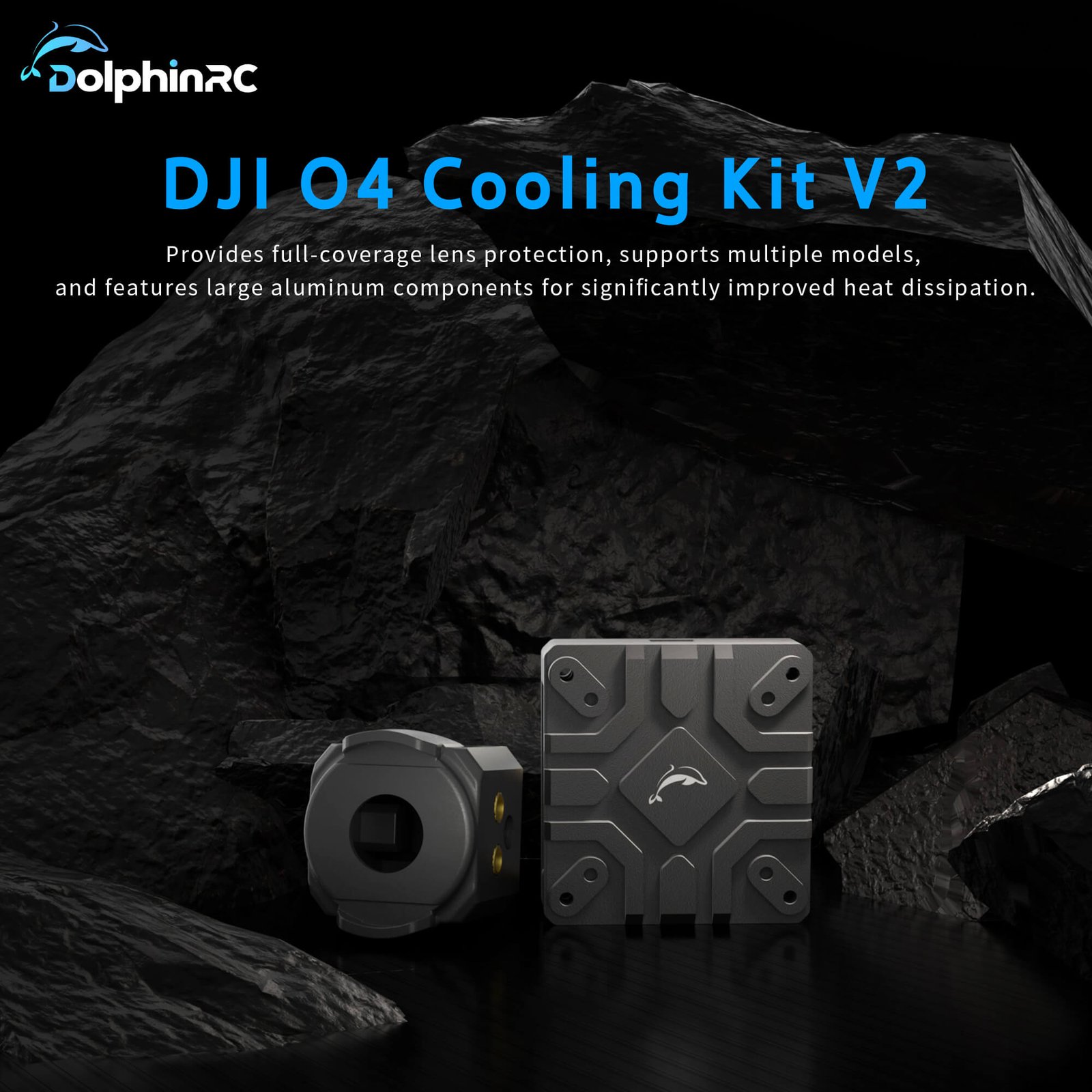

DolphinRC Heatsink for DJI O4 Unit

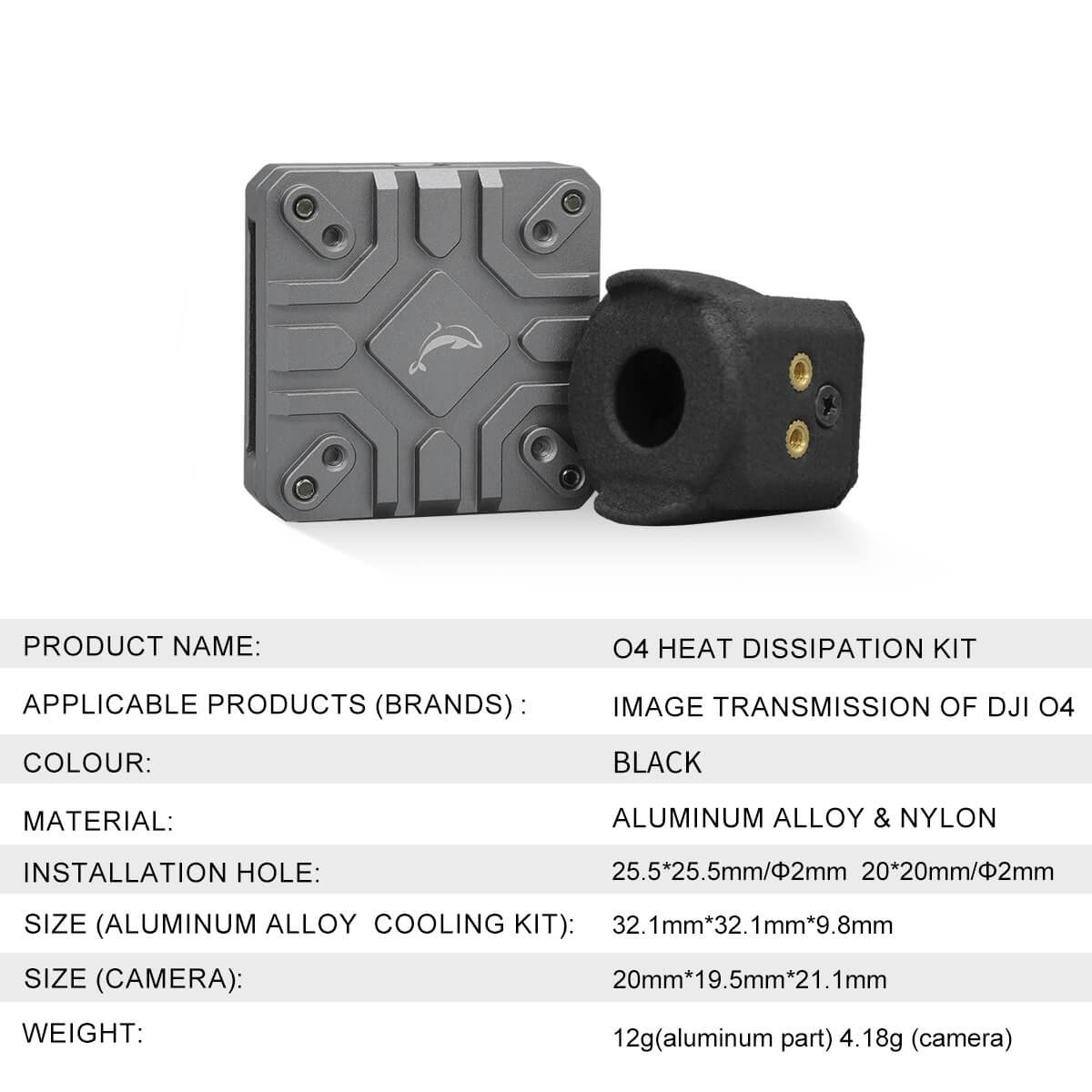

Product Name: O4 Unit Cooling CNC Kit(heatsink)
Applicable product: DJI O4 Unit
Colour: Black
Material: Aluminum alloy & nylon

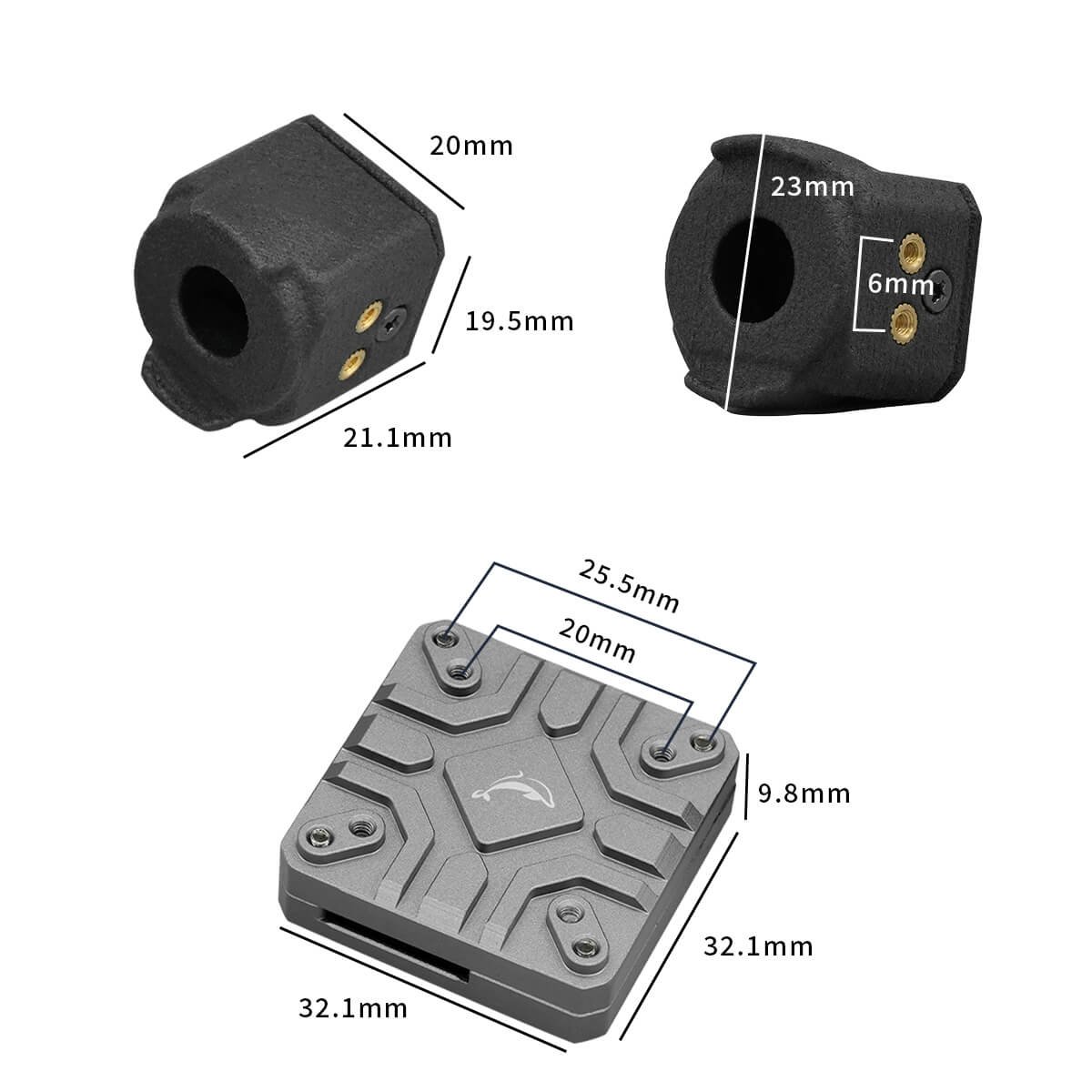

Dimensions: 32.1mm*32.1mm*9.8mm(heatsink), 20mm*19.5mm*21.1mm (camera)
Weight: 4.5g for lens case，11.98g for heatsink

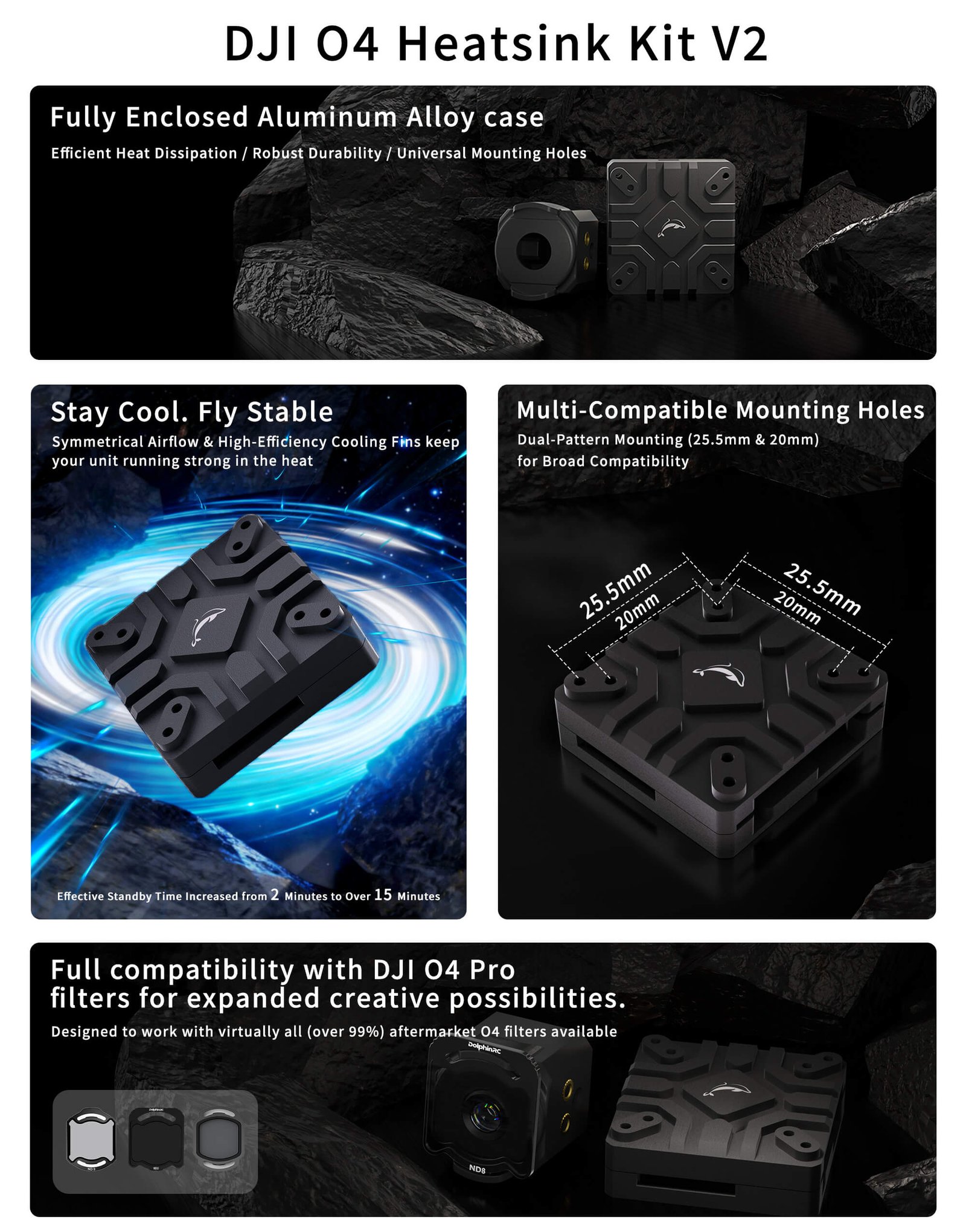

Product characteristics

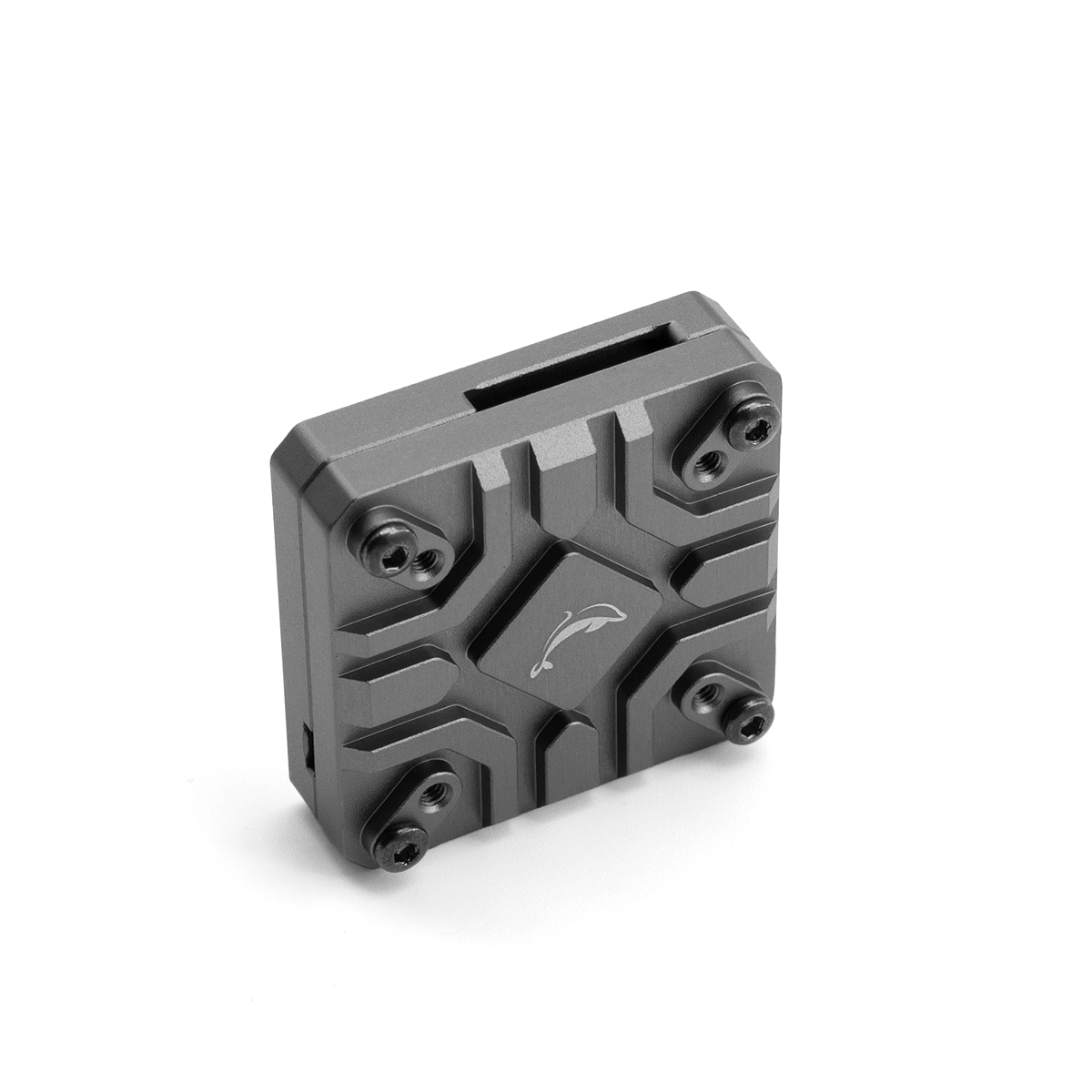

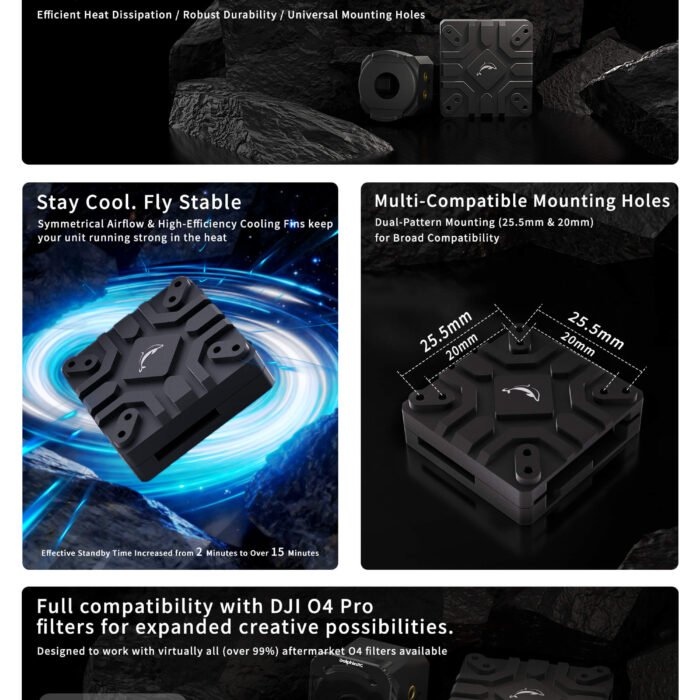

1. CNC customized aluminum alloy heat dissipation shell, efficient heat dissipation:
2. Fully wrapped with heat dissipation aluminum parts, it is sturdy and durable.

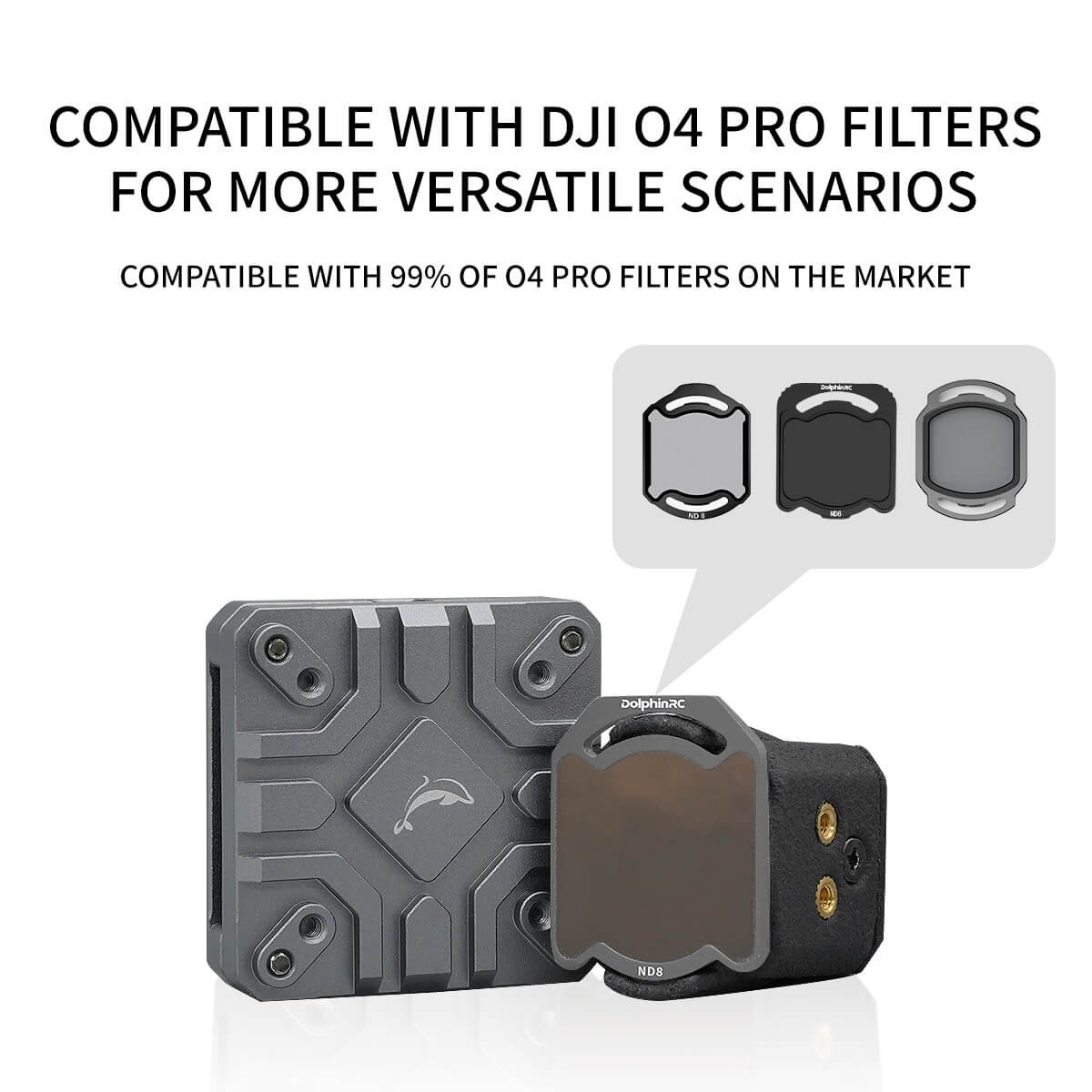

3. The 20mm lens is compatible with DJI O4 PRO ND filters and has a wider range of compatible scenarios;
4. Reserve a 20mm installation hole, which is more suitable for installation on smaller models.

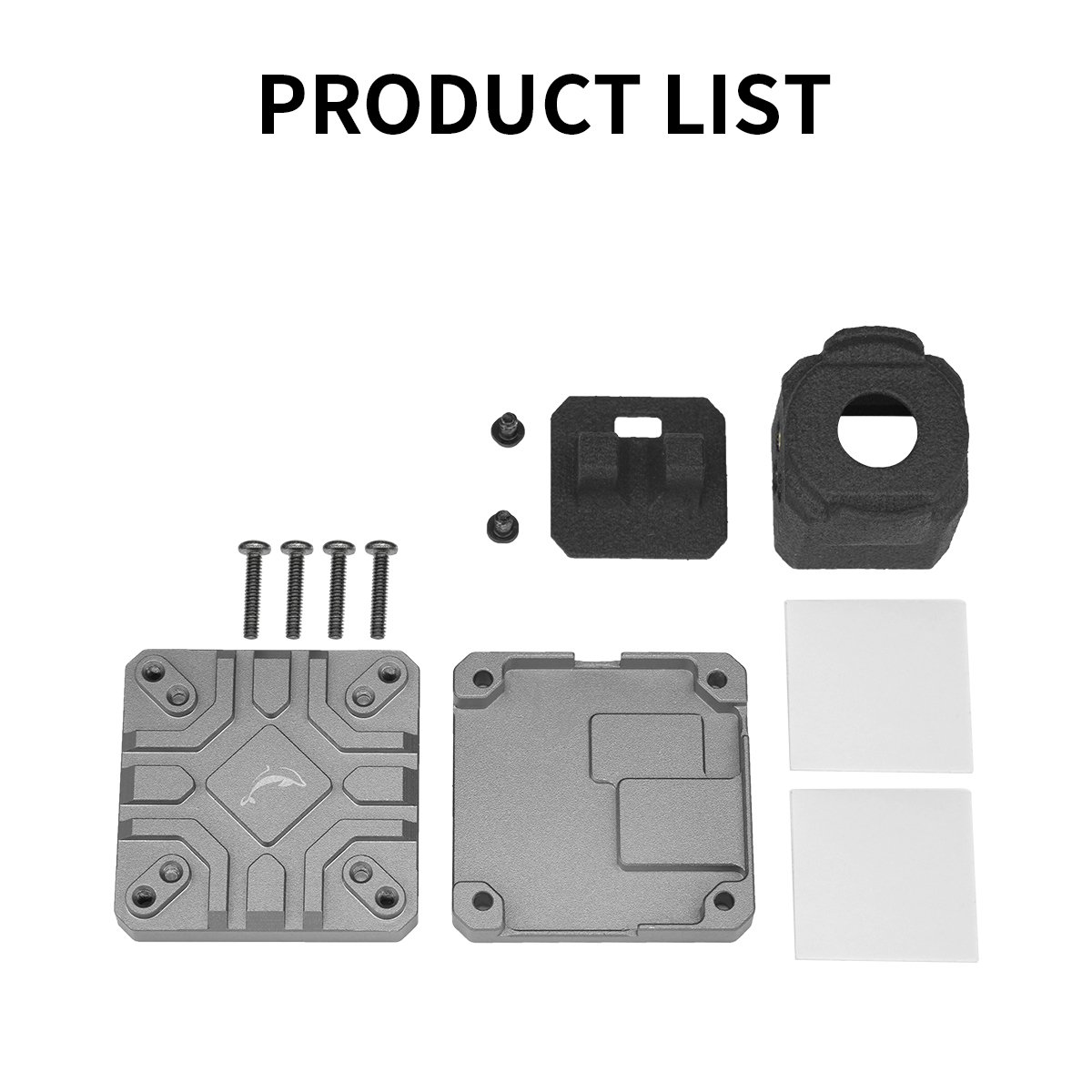

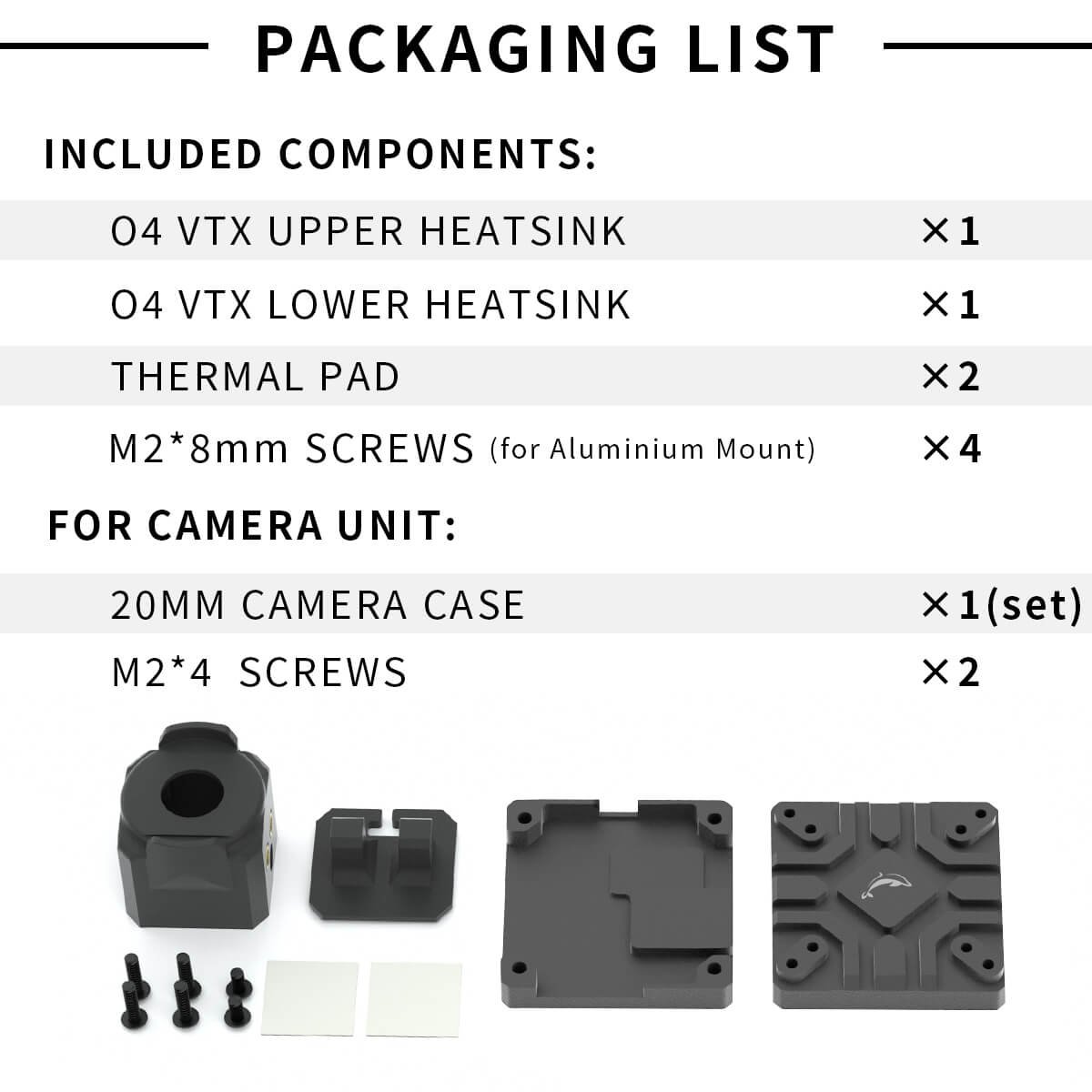

Packaging list

The heatsink package includes:

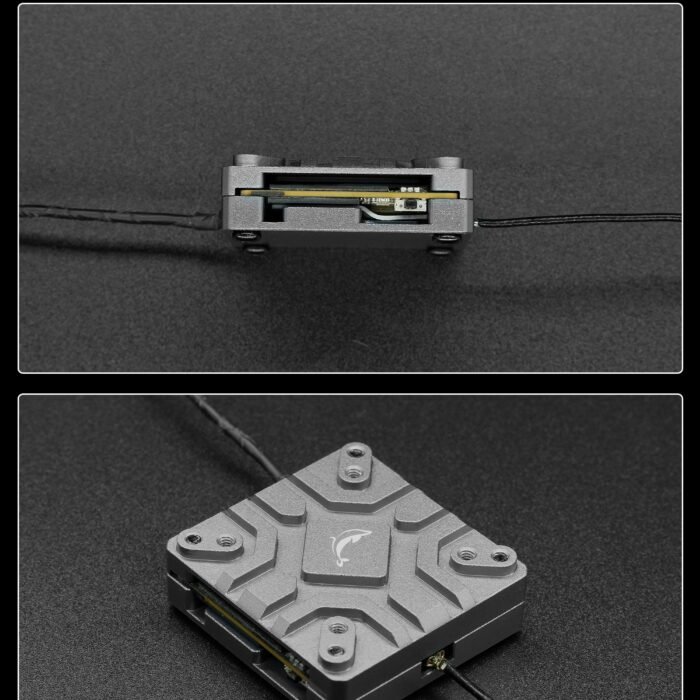

DJI O4 VTX heatsink upper cover ×1
DJI O4 VTX heatsink bottom cover ×1
Heat dissipation silicone grease stickers ×2
Aluminum parts fixed with M2*8mm screws ×4

The camera kit includes:

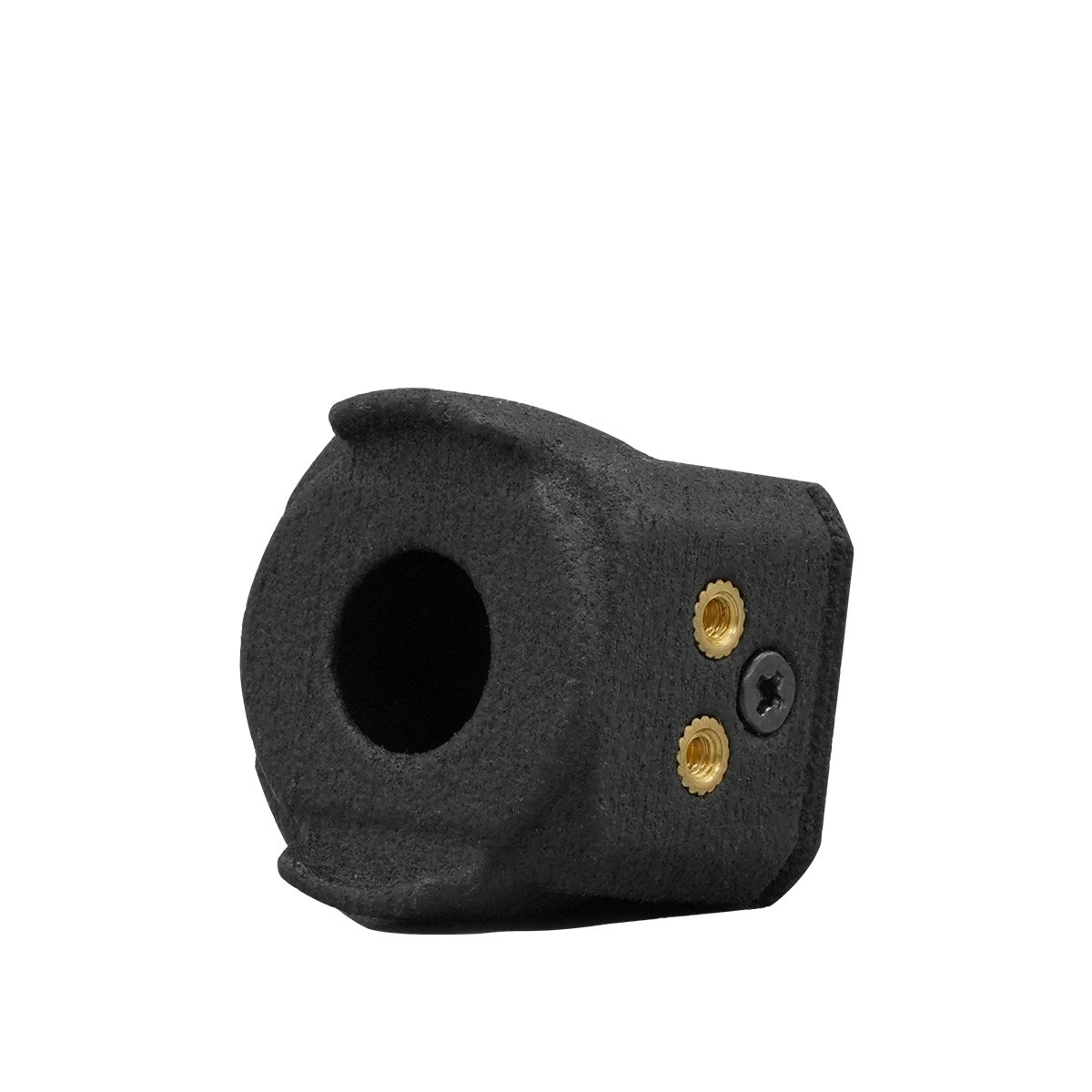

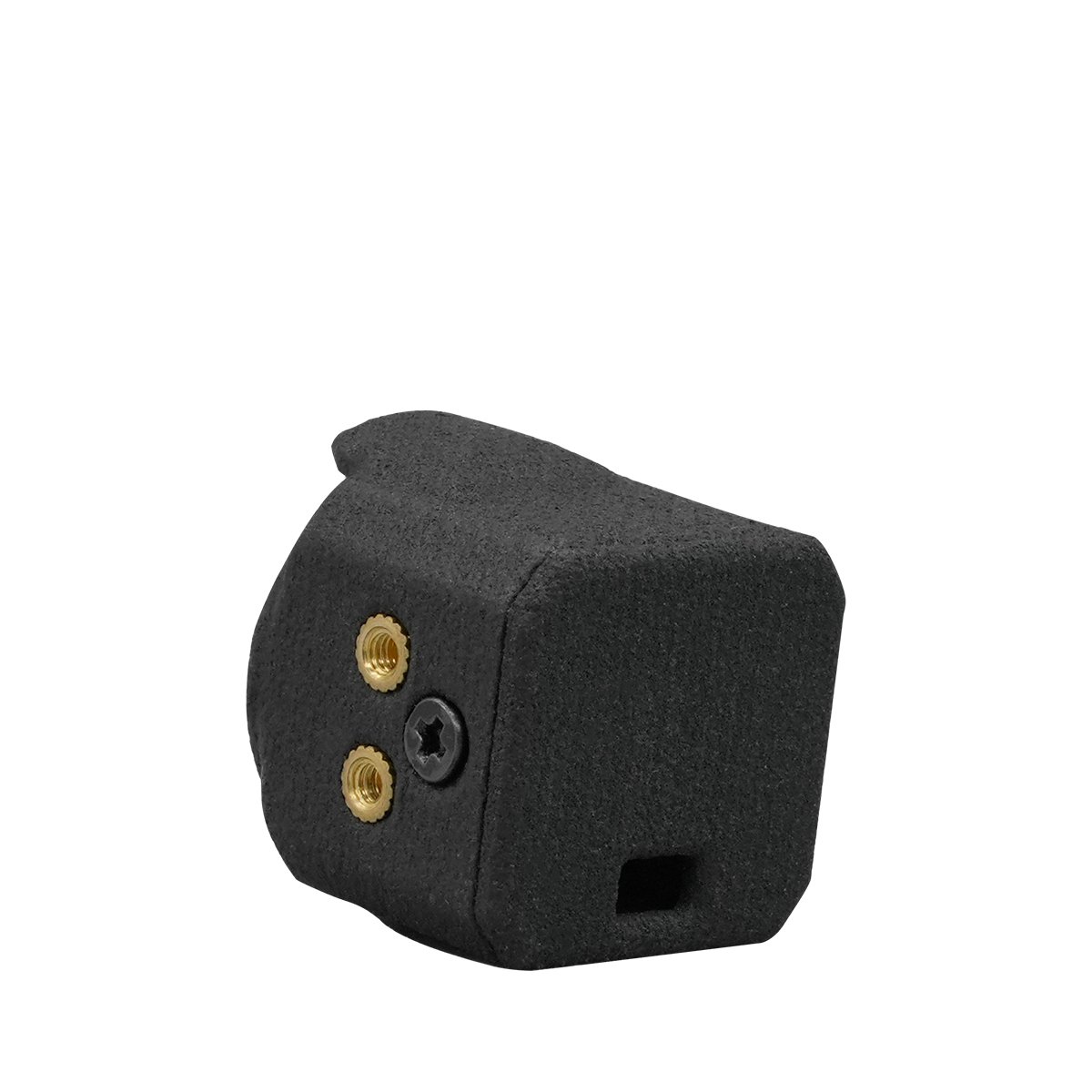

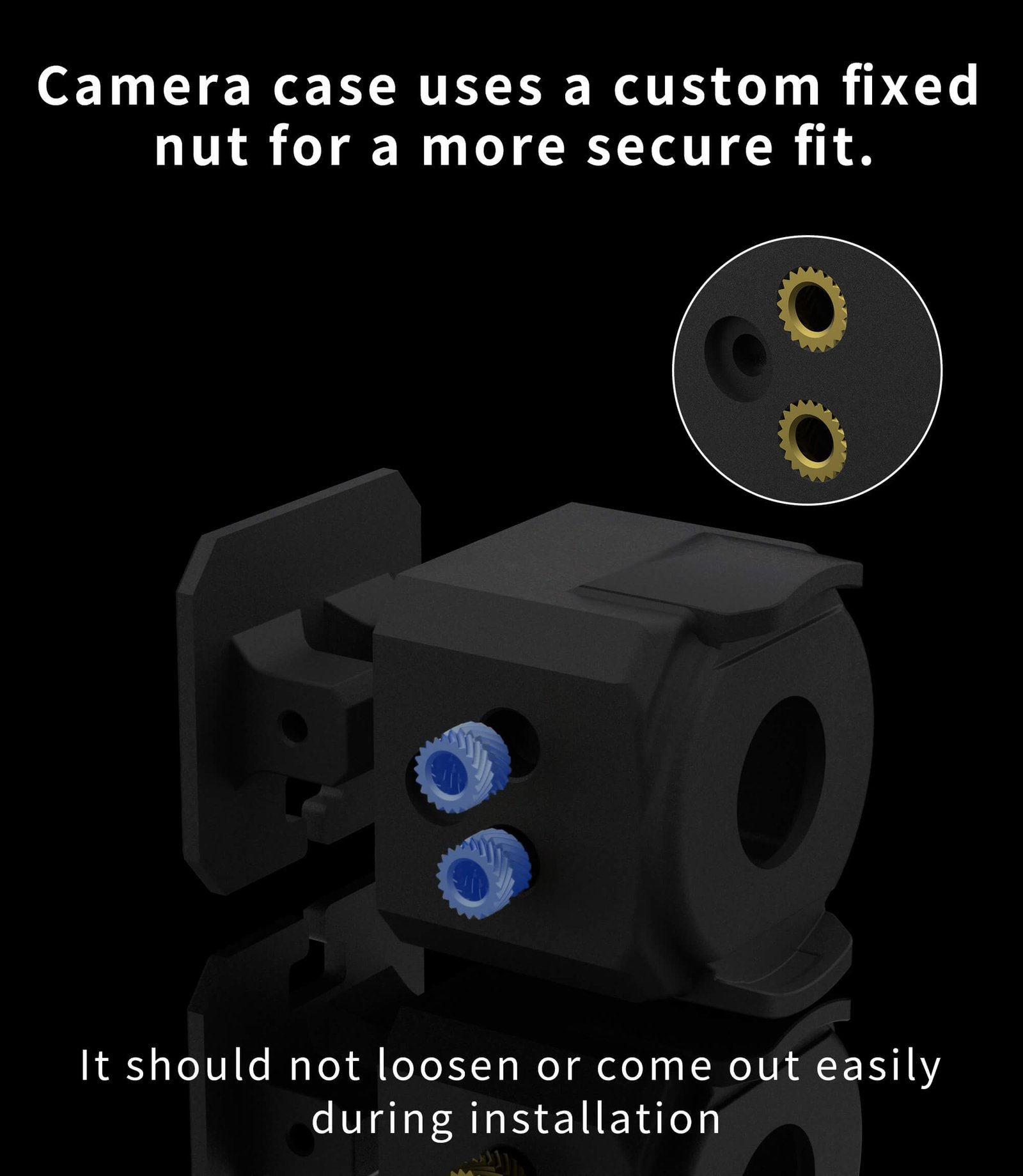

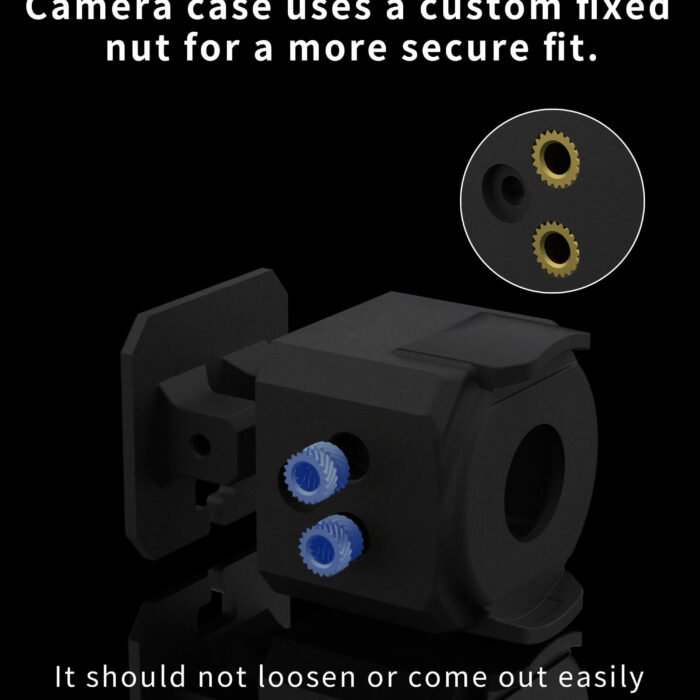

20mm camera case ×1 (set)

FAQ

What’s the size?
23.5 mm * 20.5 mm * 1.4 mm (heatsink)

When used in a 5-inch drone, is it necessary to replace the coaxial cable?
Yes，The original DJI coaxial cable short.

Which filter is suitable for the lens case?
As long as it is compatible with the O4 PRO lens, it is basically applicable.

What’s size of the fixed holes?
20mm*20mm, 25.5mm*25.5mm

What material is the lens made of?
Nylon
