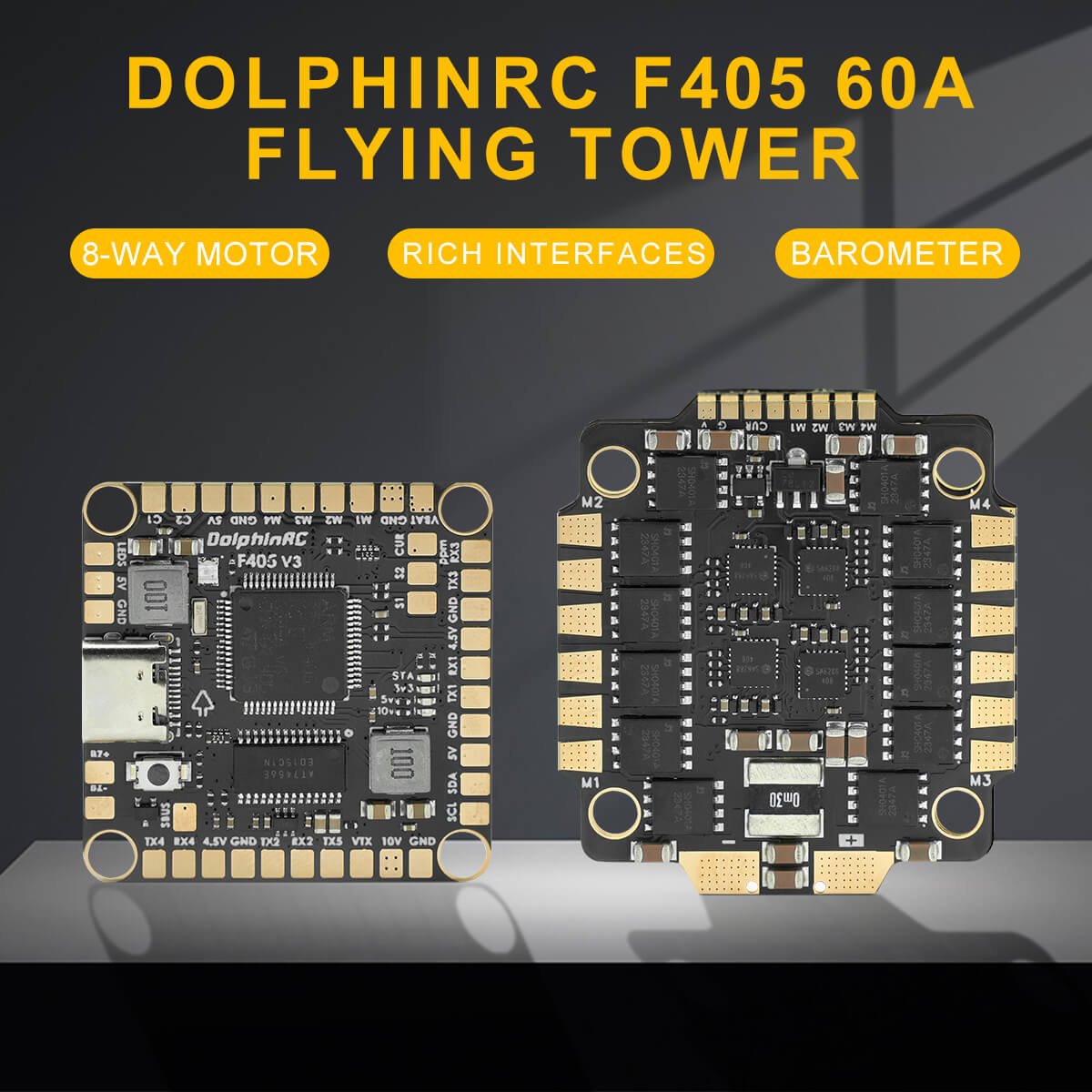

DolphinRC F405 V3 50A 60A STACK

About this FPV Stack

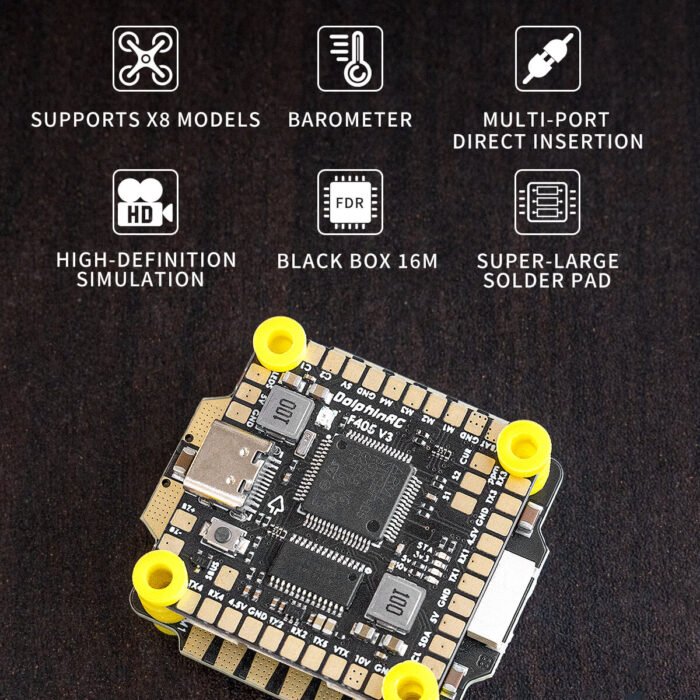

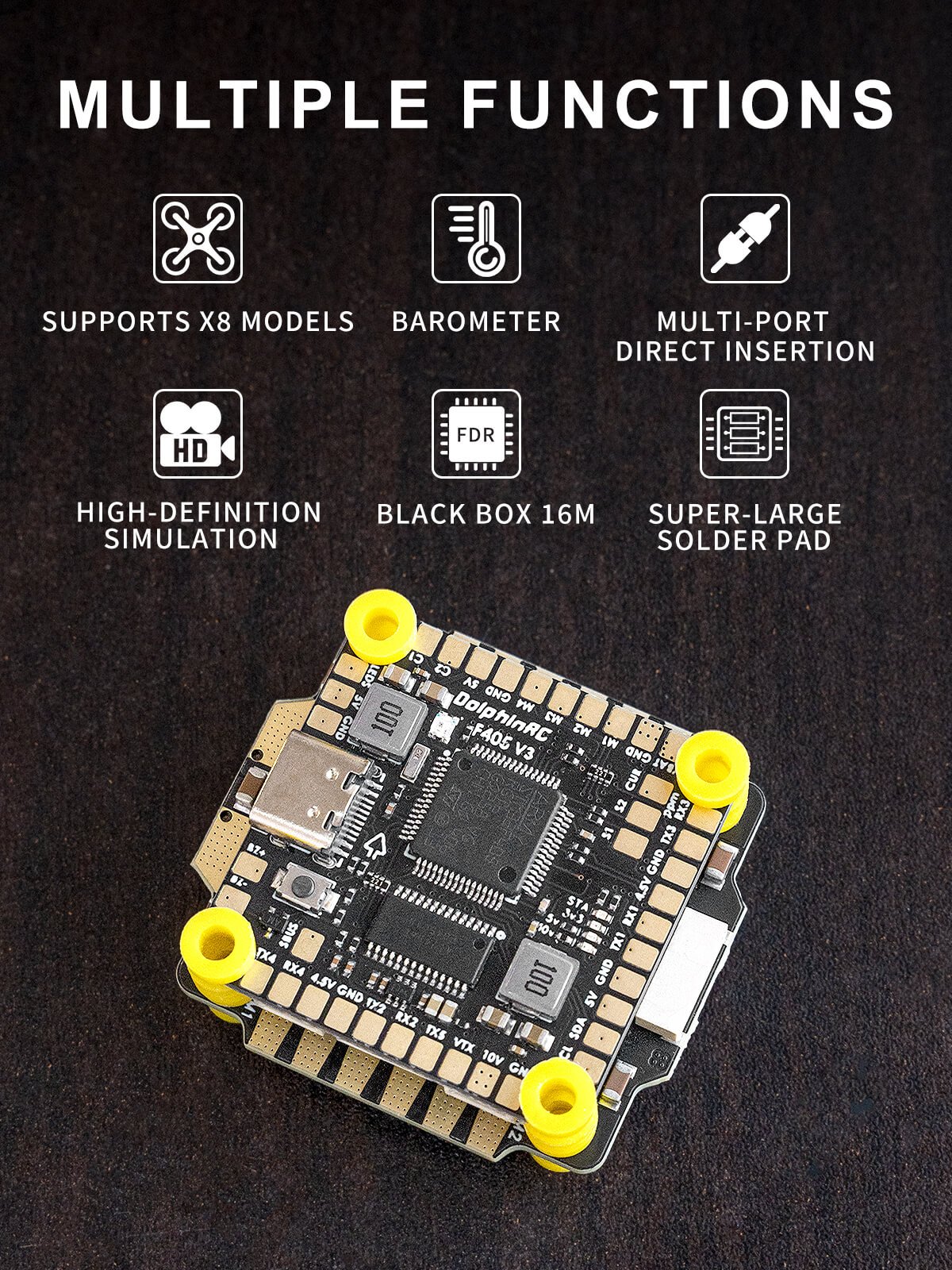

Features

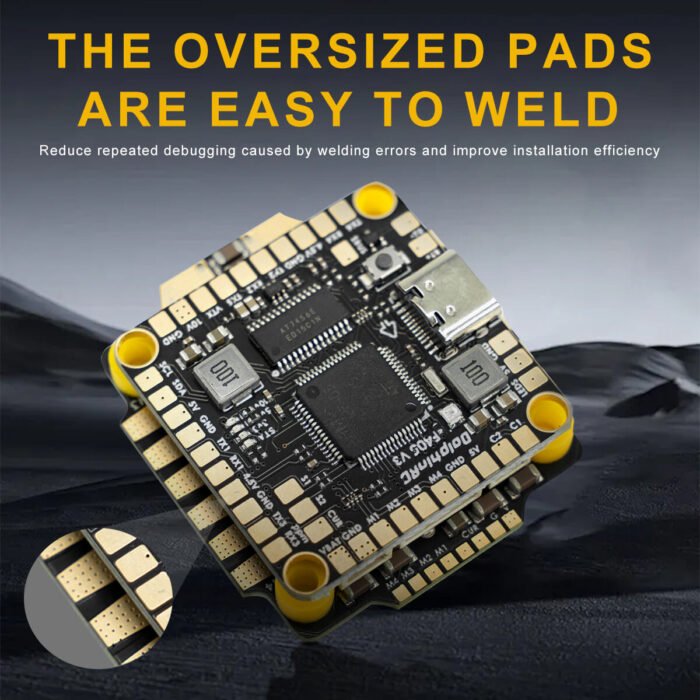

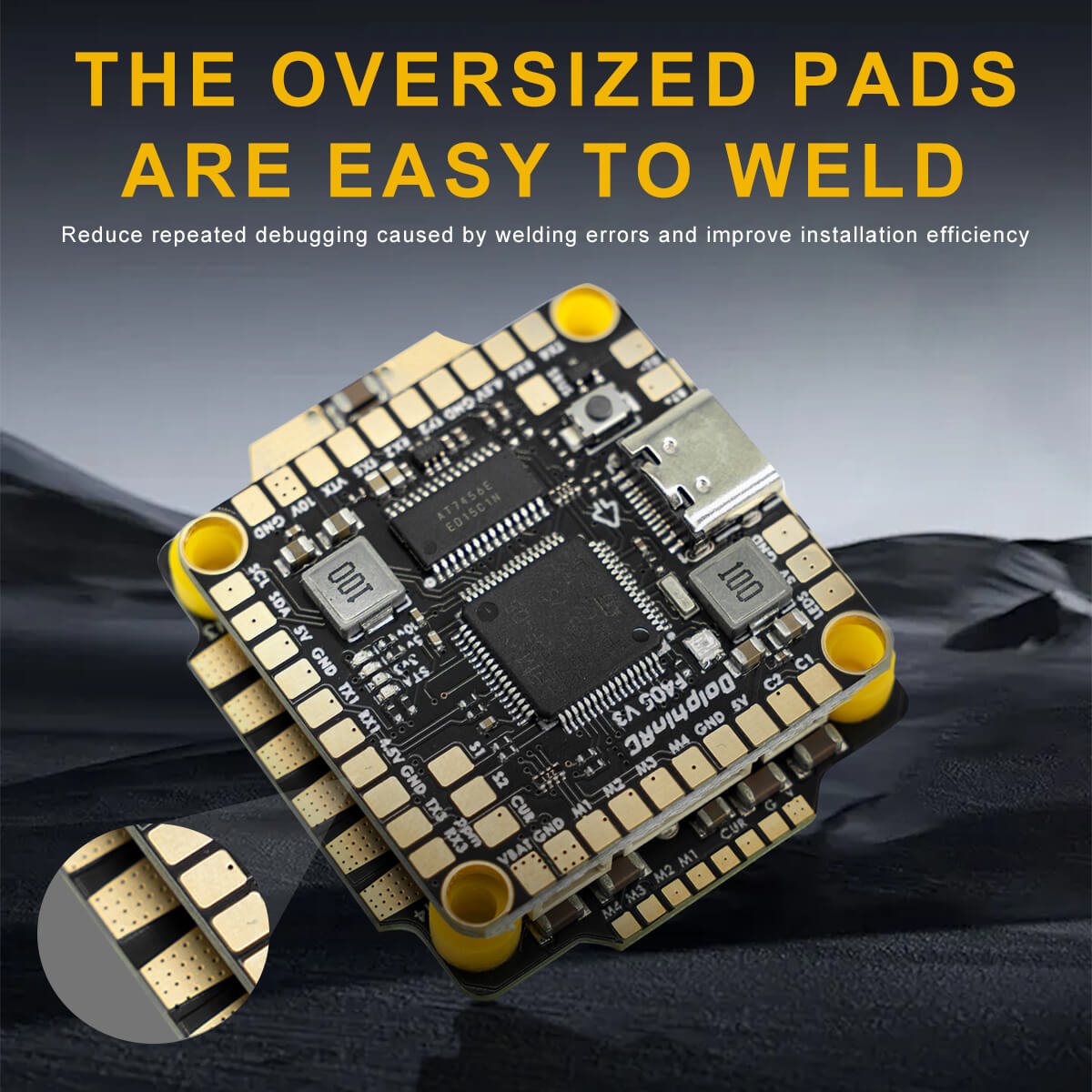

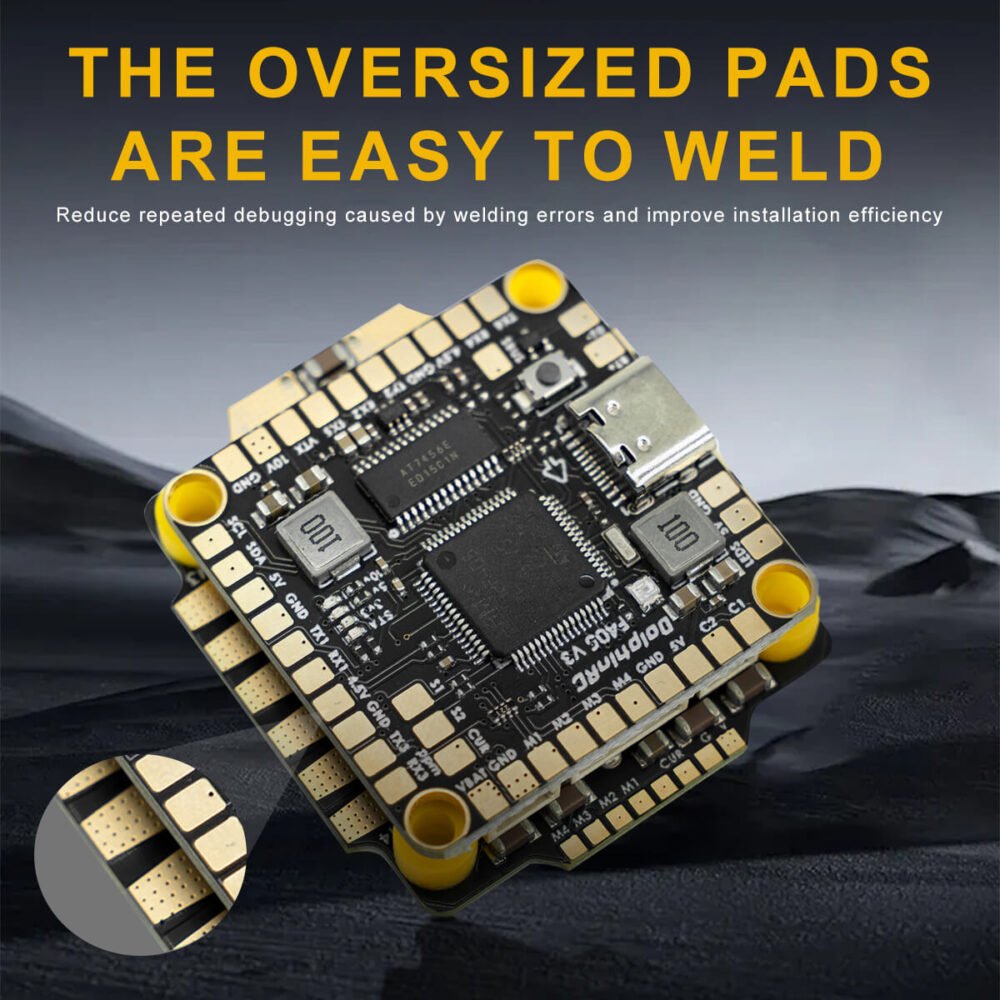

• Super large pads, easy to solder

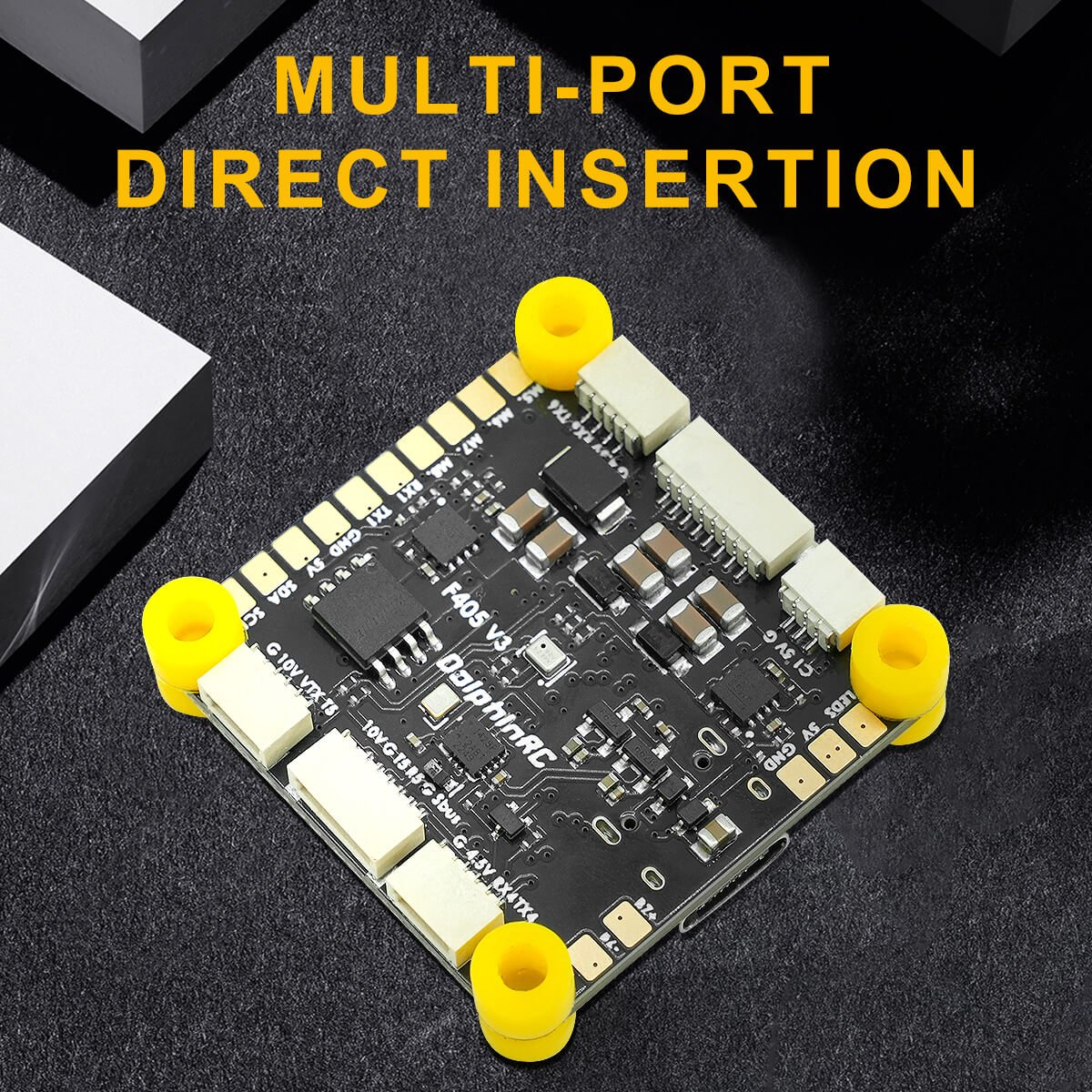

• Integrated quick release socket,Rapid deployment
• Customizable cable length and port sequence
• Latest Wiring Standard
• Compatible with Betaflight, INAV, and Ardupilot firmware
• On board FC and BEC status lights
• On board WS2812 LED
• BEC switch to slow down VTX heating
• PWM Outputs: 10x PWM outputs (8x Dshot compatible with BF/ArduPilot)
• Switchable Dual Camera Input
• FC and ESC have onboard TVS
• AT32F421 ARM® Cortex® runs up to 120Mhz
• Programmable PWM frequency of up to 48KHz
• Sytech 3OZ copper gold-plated PCB
• 40V top grade dual MOSFET 5*6mm package(60A version)

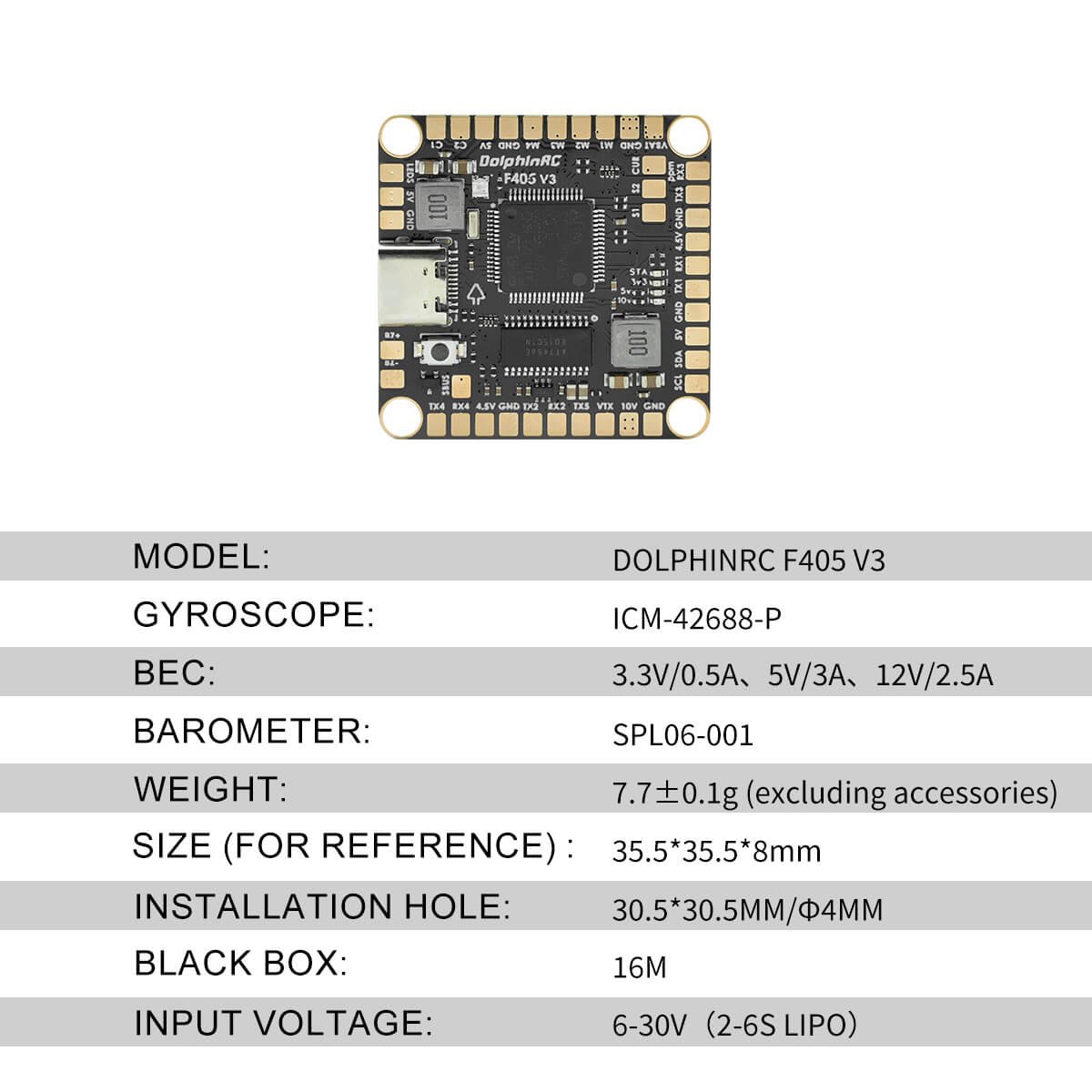

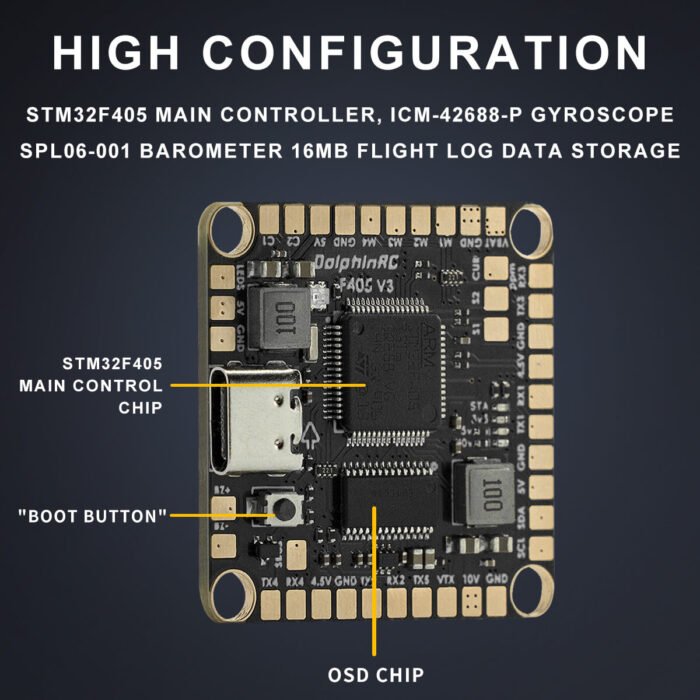

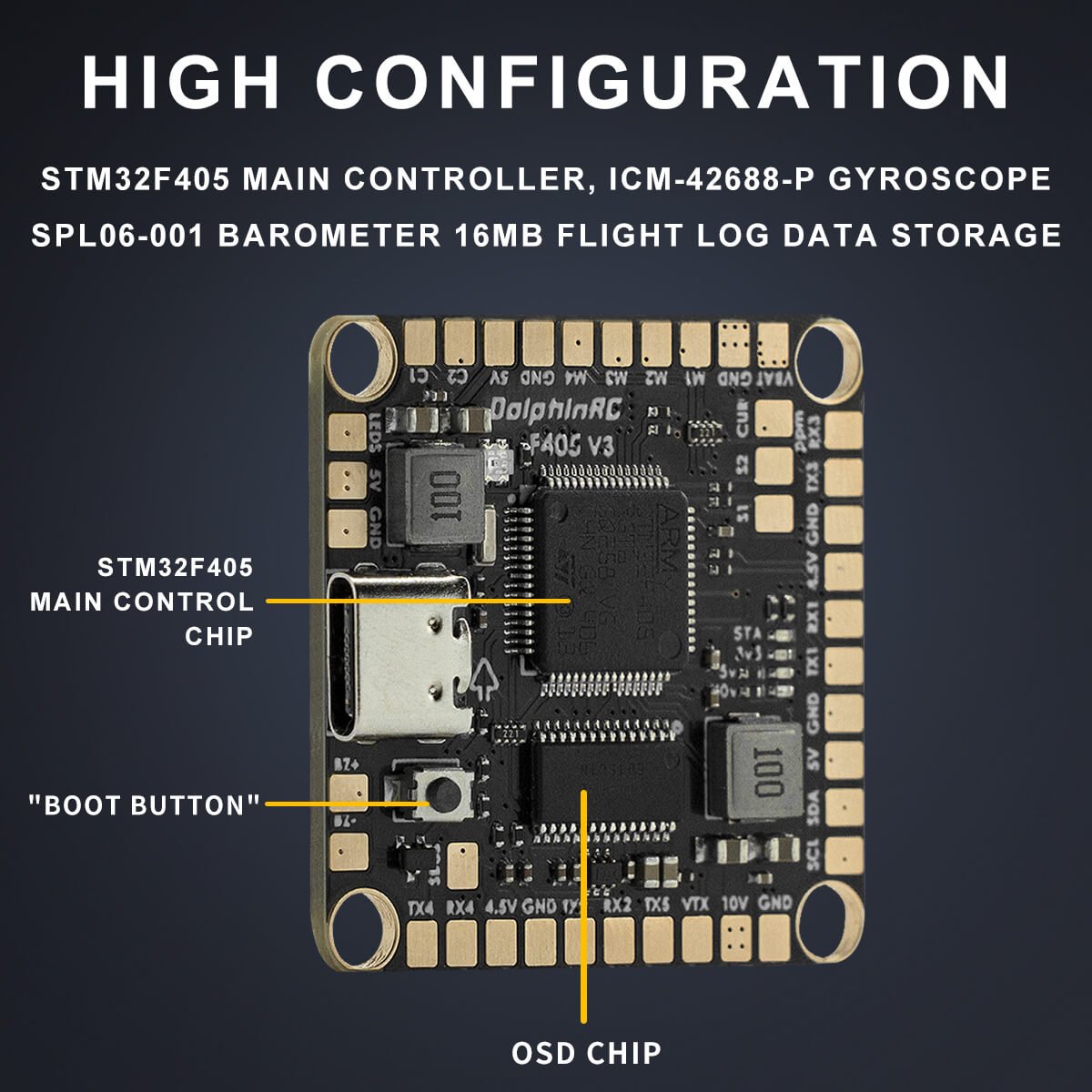

FC Specifications

• Model:DolphinRC F405 V3
• MCU: STM32F405RGT6Cortex® M4 @ 168MHz
• GYRO: ICM-42688-P
• Input: 6~30V (2~6S LiPo)
• OSD: AT7456E
• Blackbox: 16M Memory
• Barometer: SPL06-001
• TVS:SMBJ24A  26V
• UARTS: 6x UARTs, 1x Softserial_Tx option(INAV/BF)
• ESC Signal: 8 set
• BEC: 3.3V 0.5A & 5V 3A & 12V 2.5A(Or 10V 2.5A)
• ADC: 4 (VBAT, Current, RSSI, Airspeed)
• TVS: SMBJ24A  26V
• O4 AIR UNIT Port: Yes
• BECSwitch: Yes
• Camera:Switchable Dual Input
• Software: Betaflight(Default)/INAV/ArduPilot

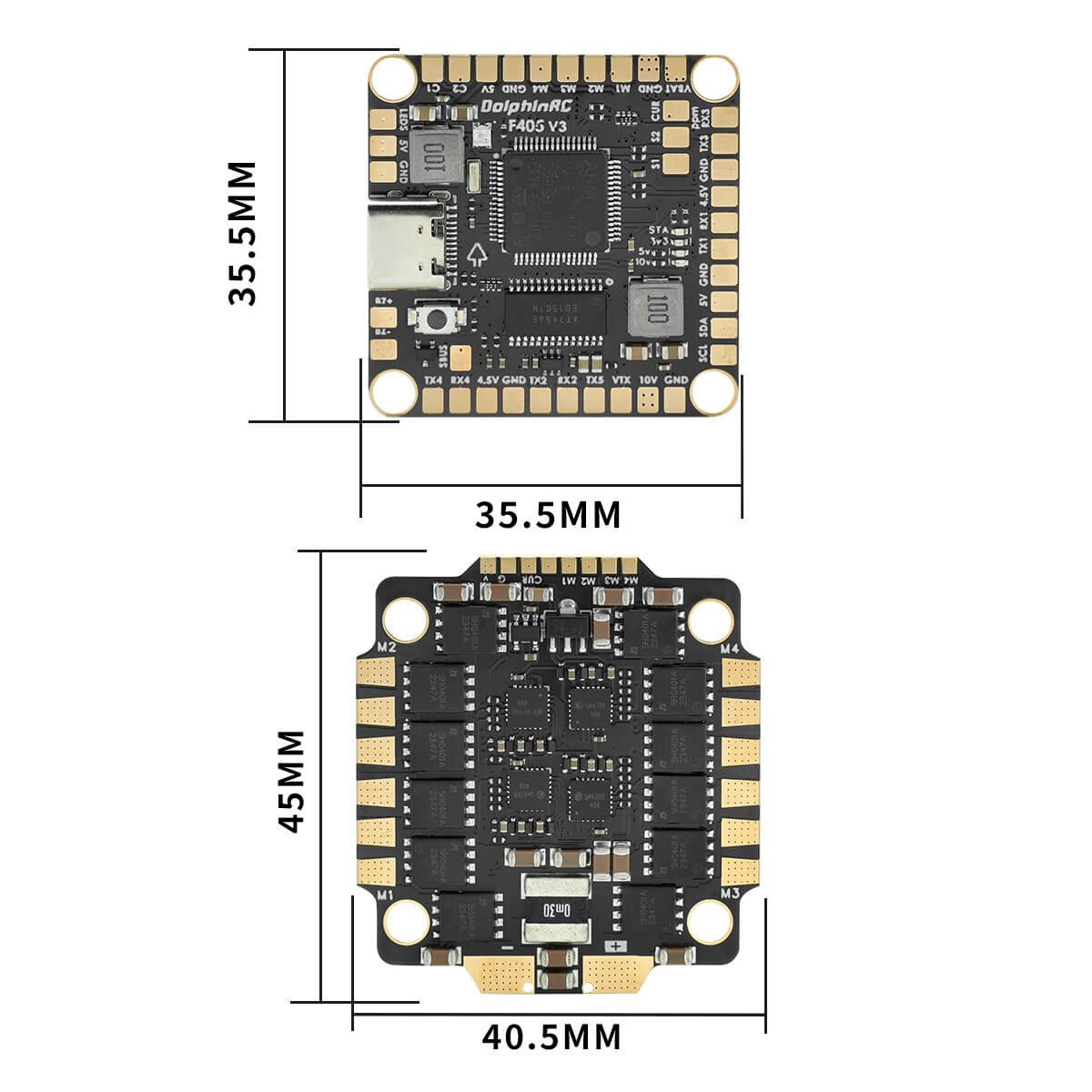

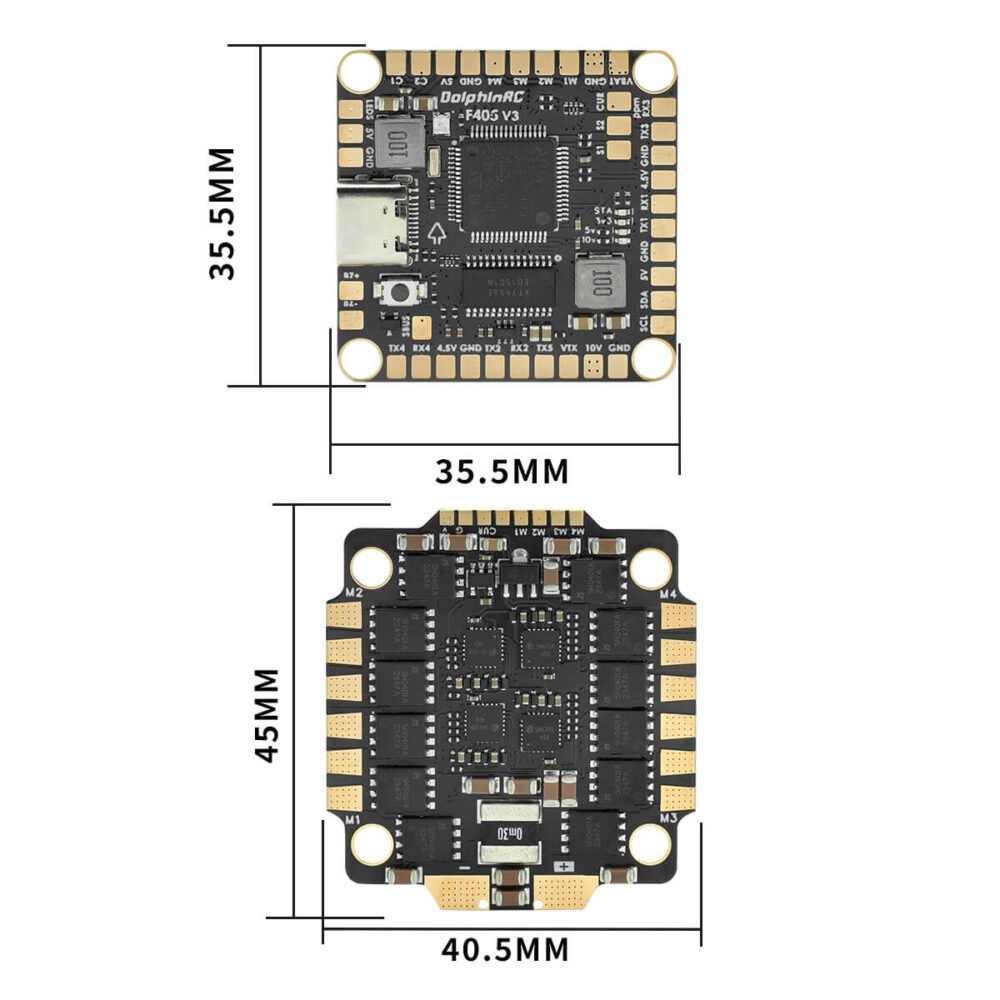

• Hole: 30.5×30.5/4mm
• Size: 36*36*8mm
• Weight: 8g

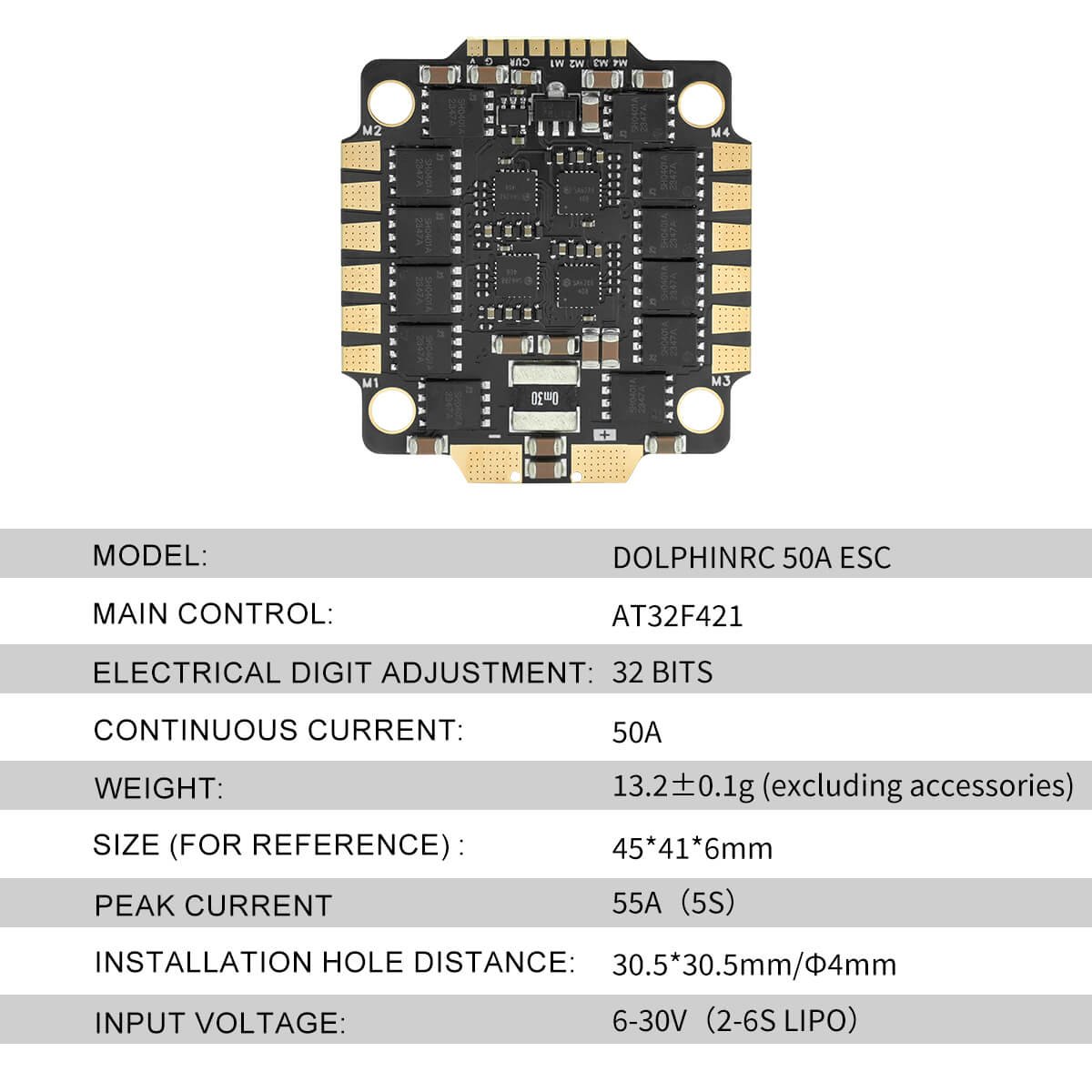

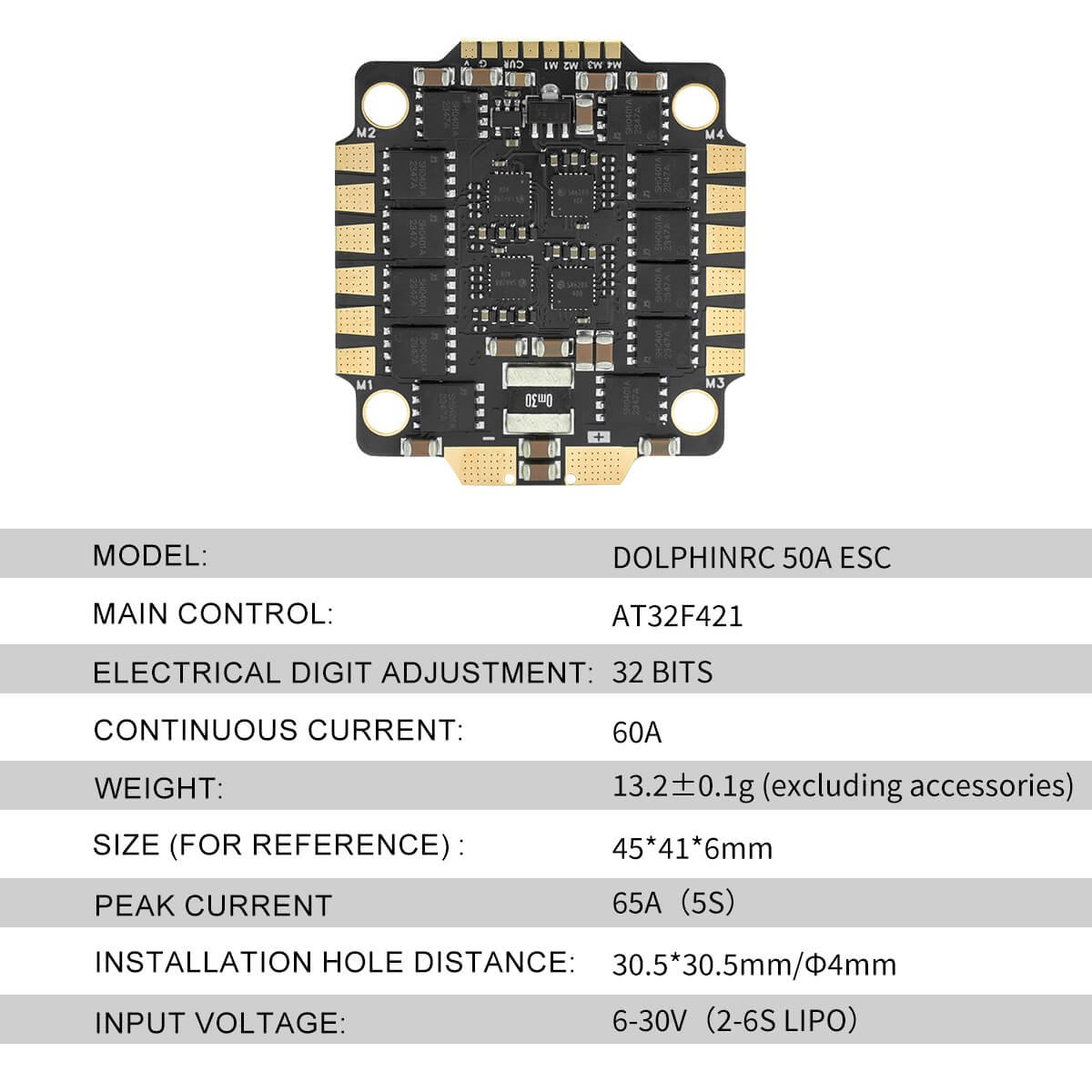

50A 60A ESC Specifications

• Model: DolphinRC AM32 ESC
• MCU: AT32F421120MHz
• Firmware: AT32DEVF421
• Input: 6~30V (2~6S LiPo)
• Current: 45&60A
• Peak Current: 50 &65A 10s
• TVS: SMBJ24A 26V
• Current Sensor: Support (Scale=150Offset=0)
• Hole: 30.5×30.5/4mm
• Size: 45*41*6mm
• Weight: 3g

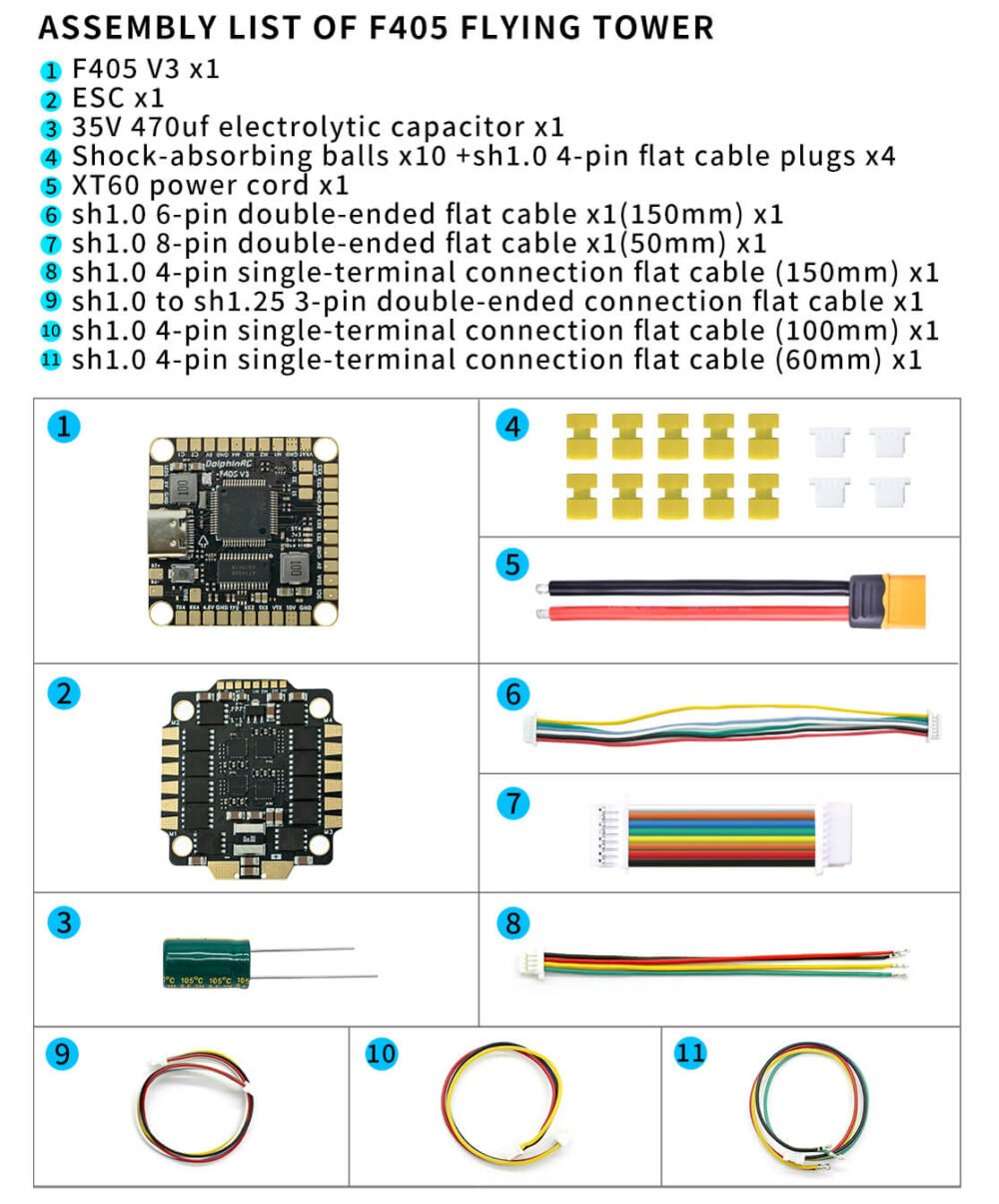

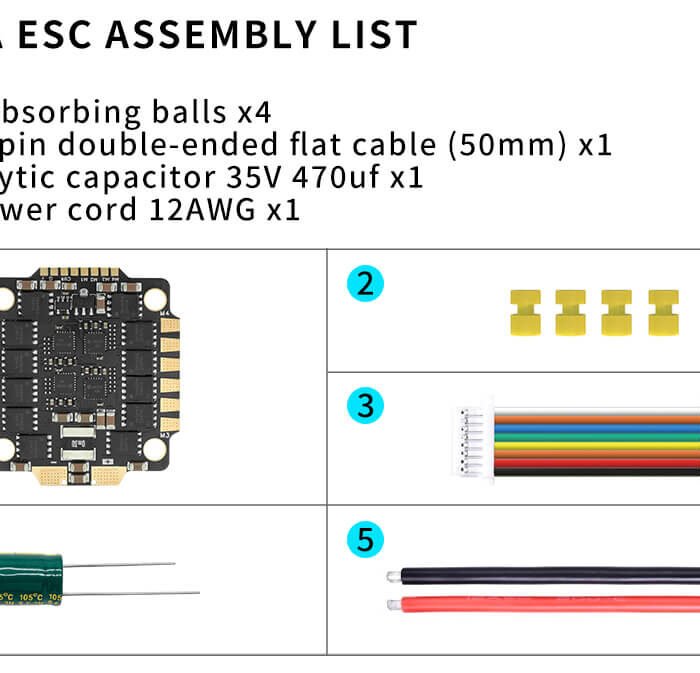

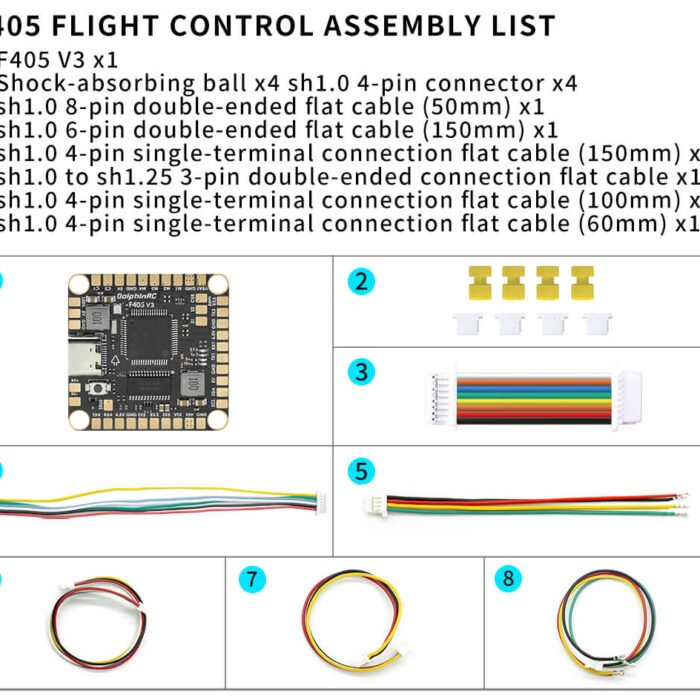

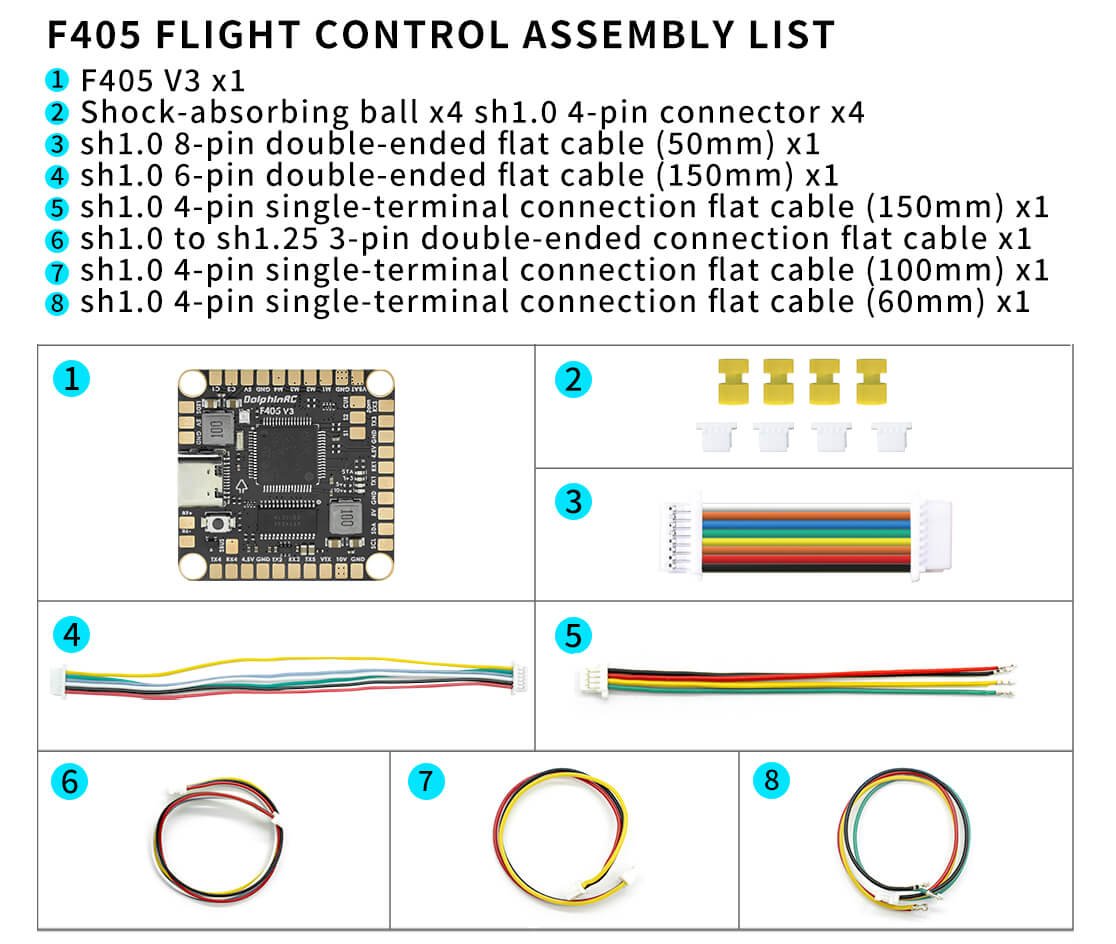

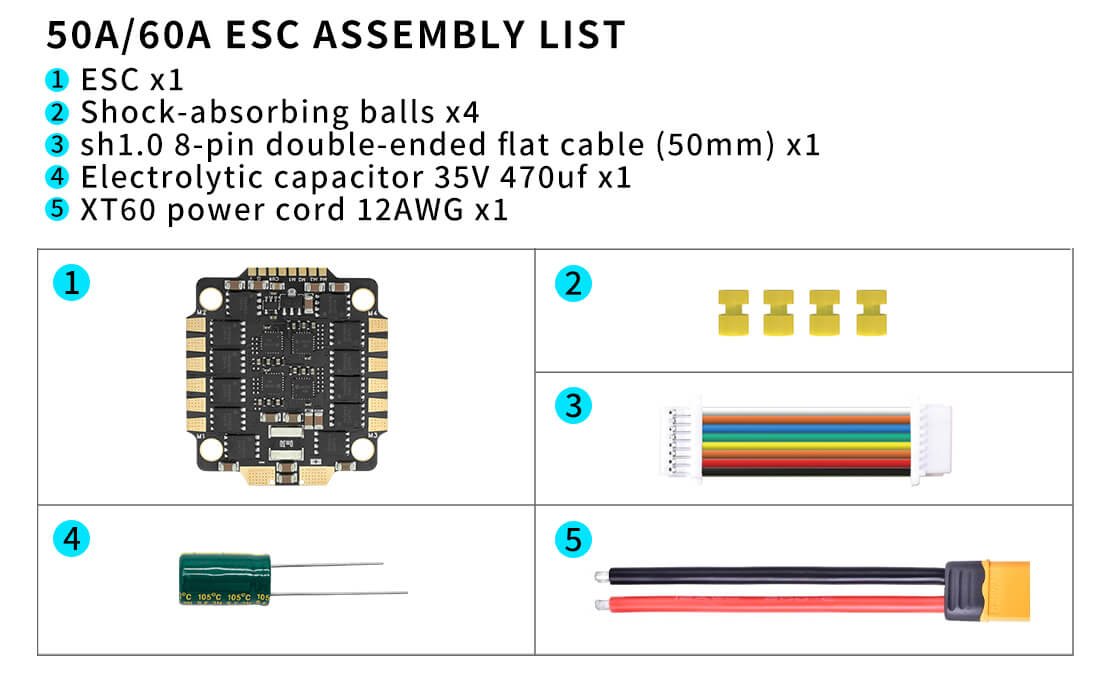

Includes

• 1x DolphinRC F405 V3 Flight Controller
• 1x DolphinRC AM32 ESC 50A 60A 4-in-1 ESC
• 1x 35V 470μFLow ESR Capacitor
• 5x M3*8mm Rubber(for FC)
• 5x M3*8.1mm Rubber(for ESC)
• 1x SH 1.0mm 50mm-length 8pin Cable(for FC-ESC connection)
• 1x SH 1.0mm 60mm-length 4pin Cable
• 1x SH 1.0mm 100mm-length 4pin Cable
• 1x SH 1.0mm 150mm-length 4pin Cable
• 1x 150mm-length 3pinAnalog Camera Cable
• 1x DJI 6pin Cable(150mm)
• 4x SH 1.0mm 4pin Shell Connector
• 1x Red&Black 12AWG 12cm Power Cable
• 1x XT60 Male plug
