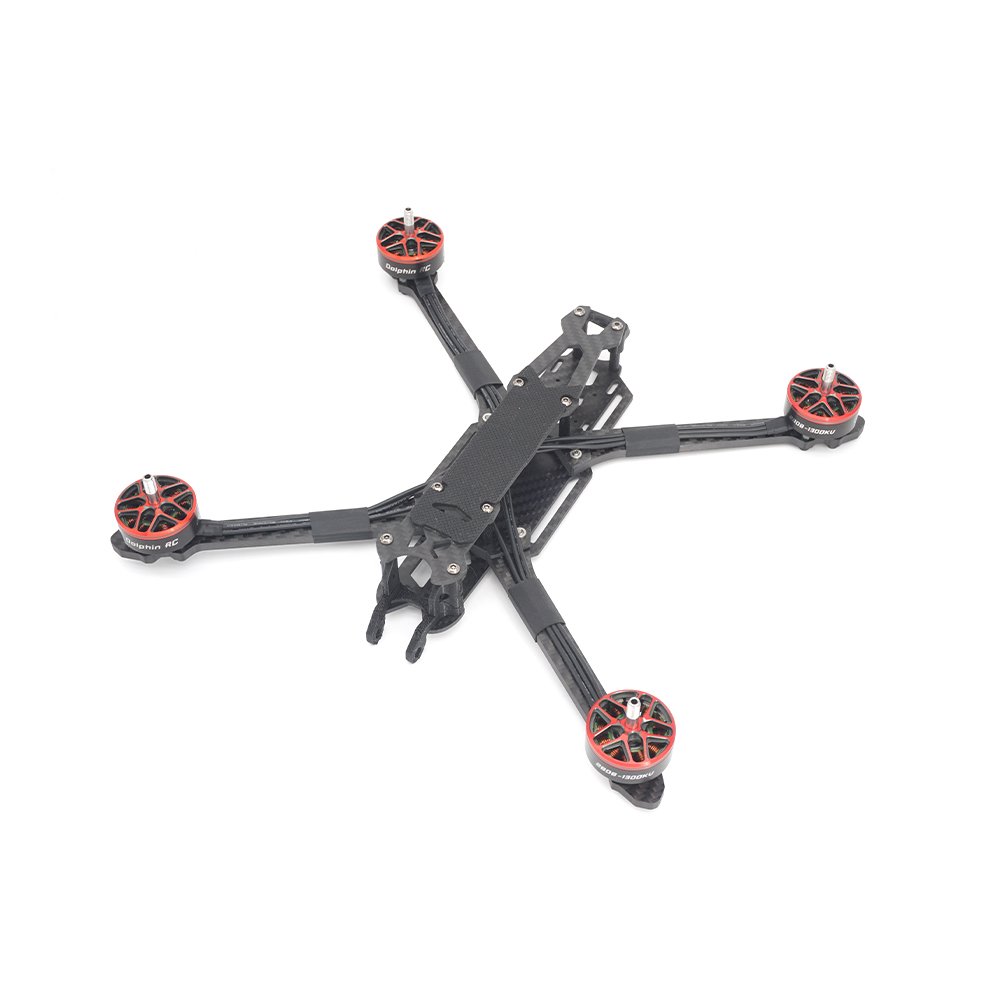

Dolphinrc 7 inch Drone Frame Kit with 2808-1300KV Motors Bulk

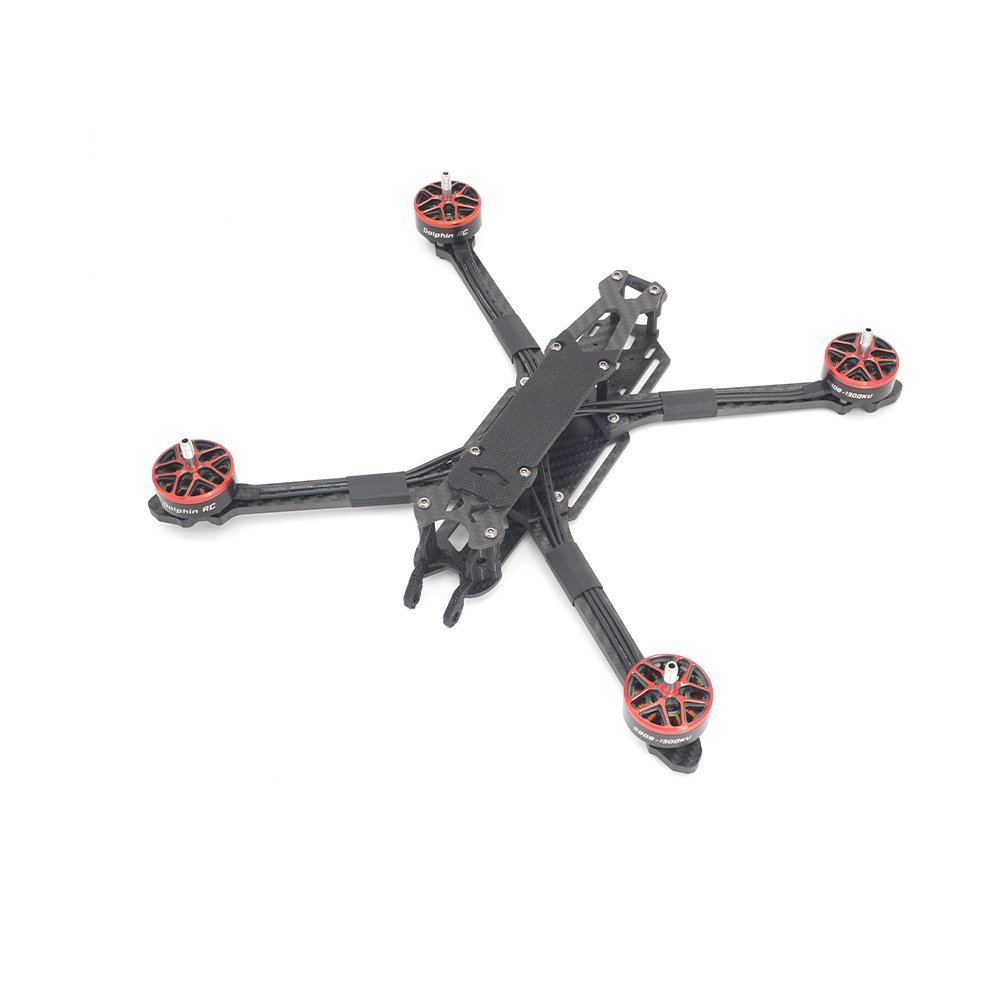

 7 inch FPV Frame Product Specs:

Name: Dolphinrc 7 inch 295mm
Propeller: 7 inch
Weight : 165g
Motor to motor: 295MM
Size: 193*223MM

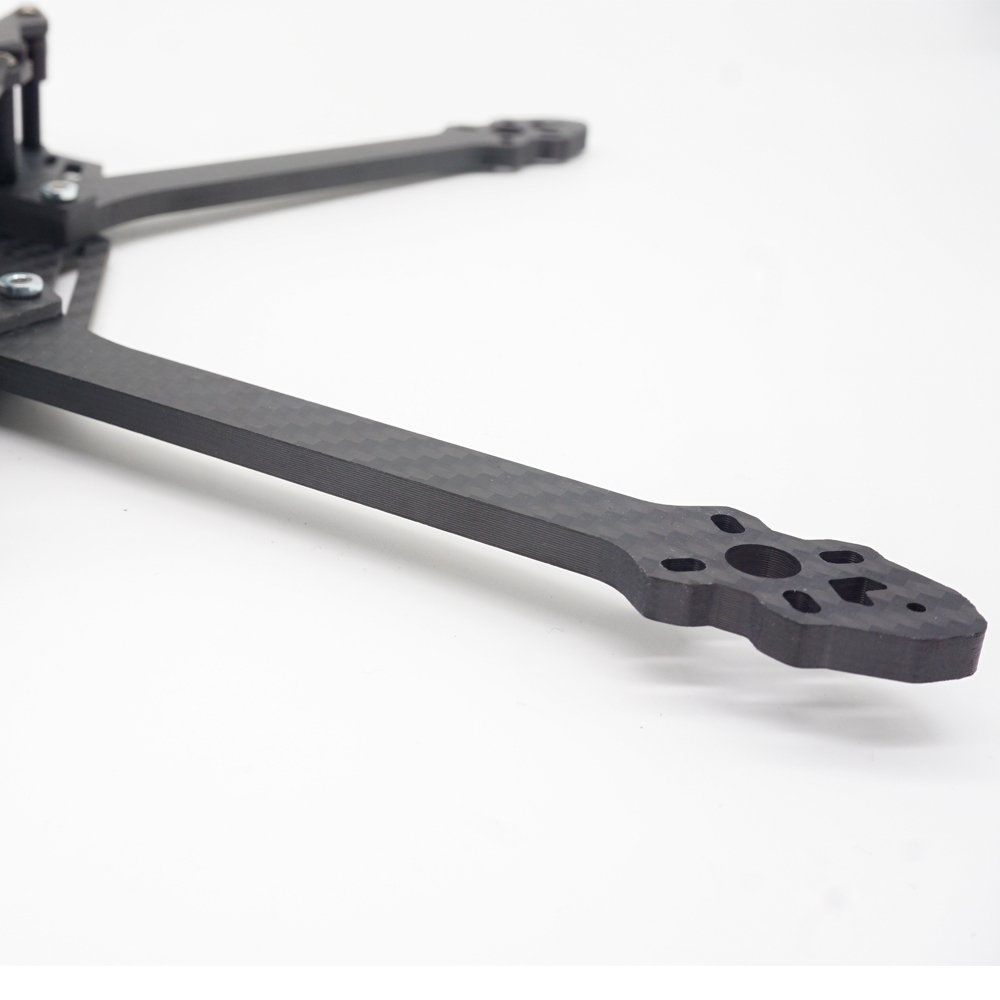

Arms thickness: 5MM
Top plate: 2.5MM
Bottom plate: 2.5MM
Side plate: 2.5MM

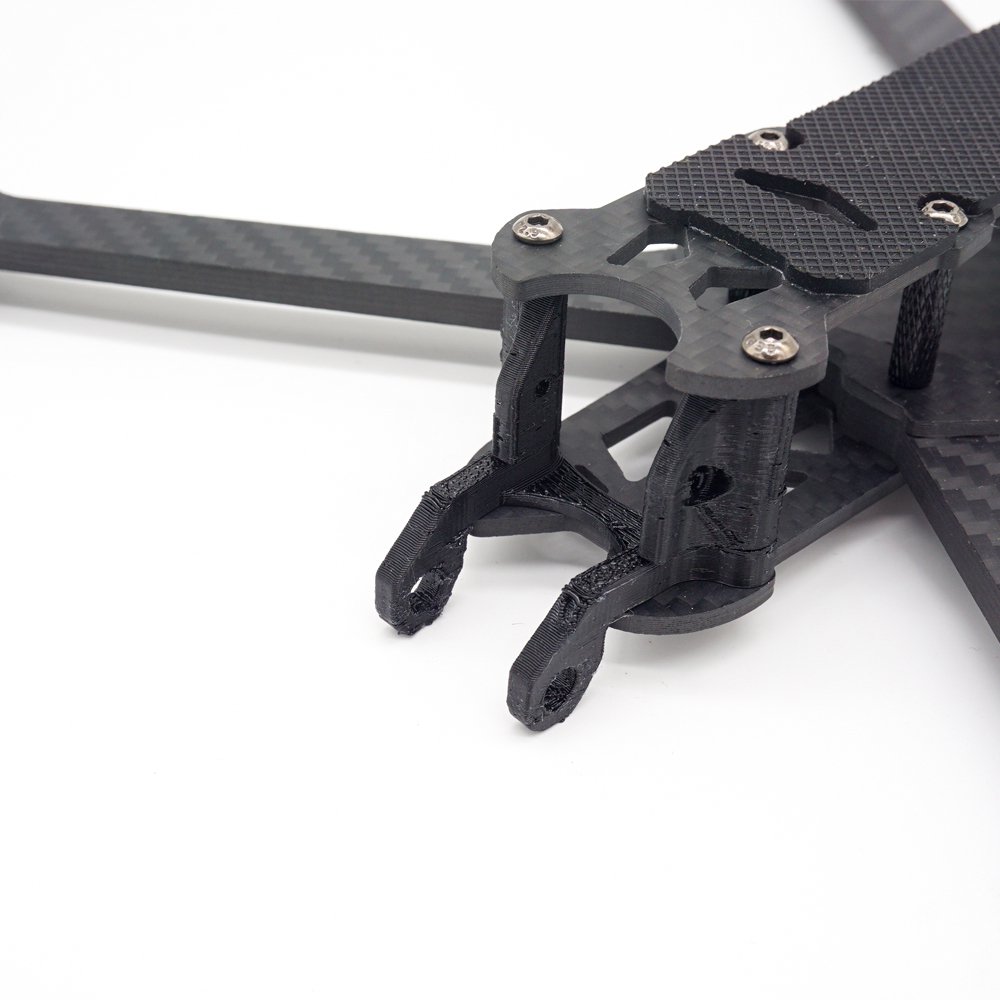

Camera mount size: 19*19mm
​

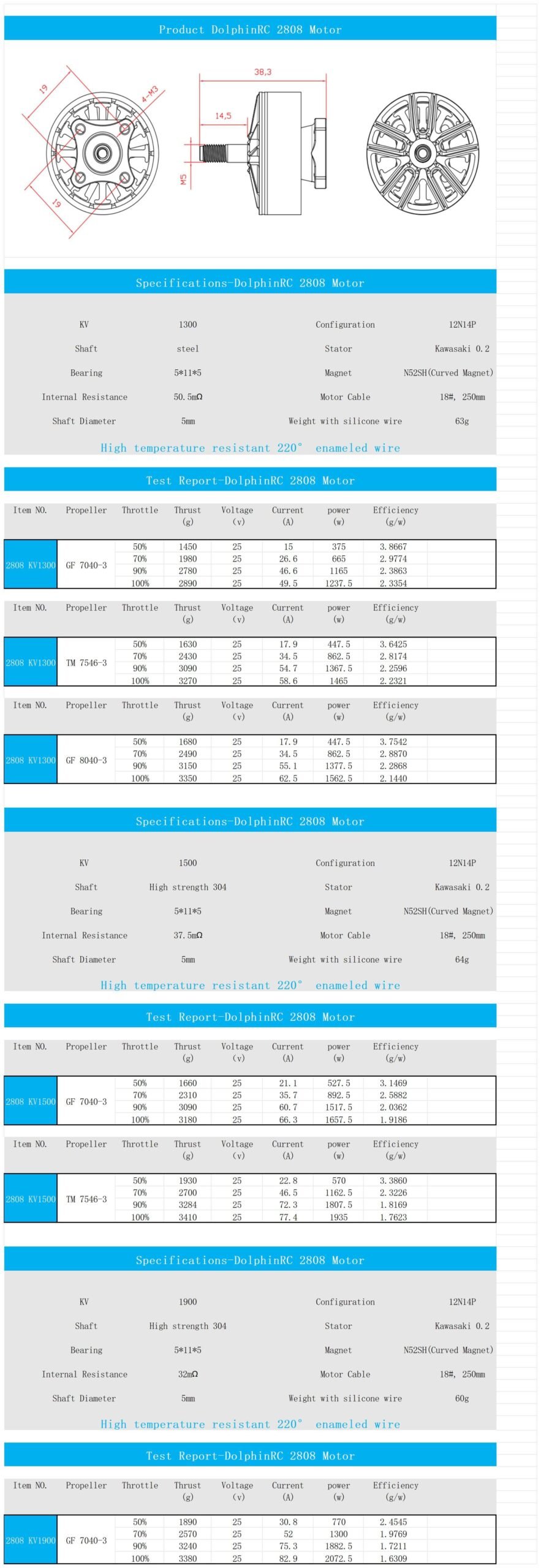

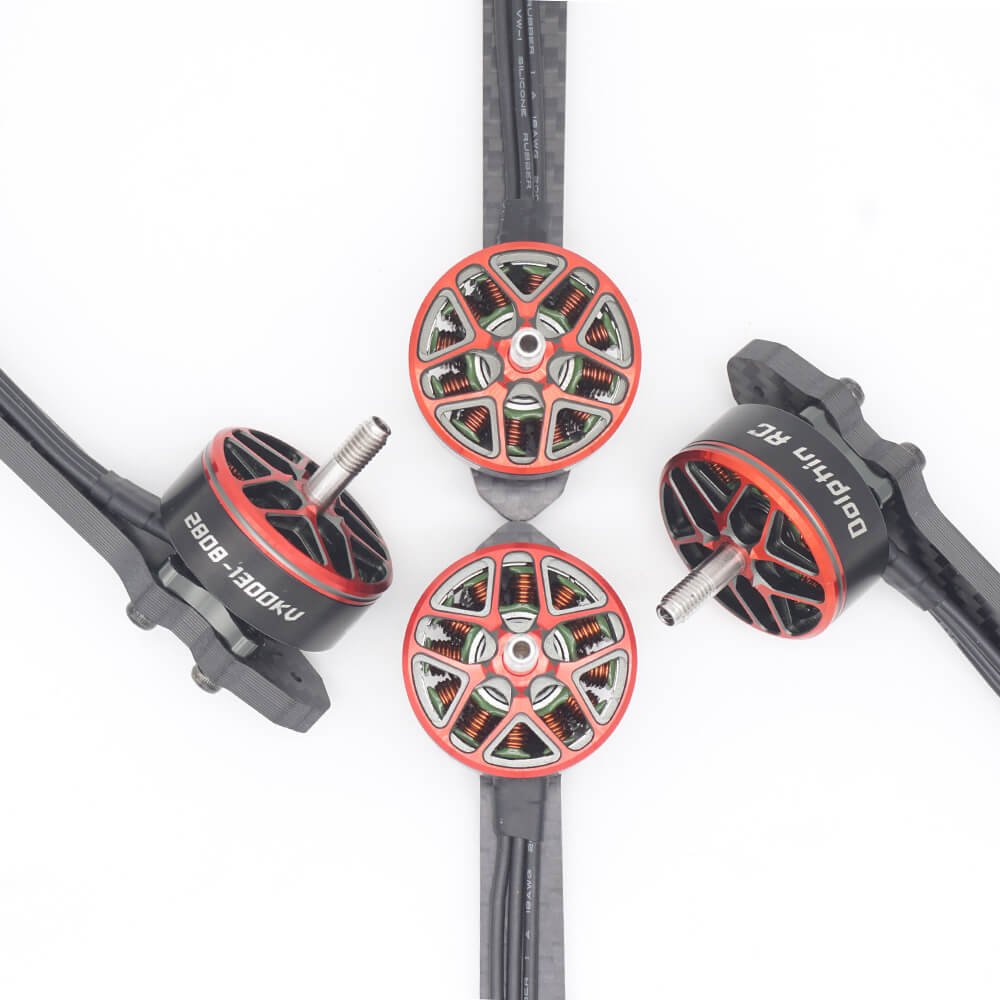

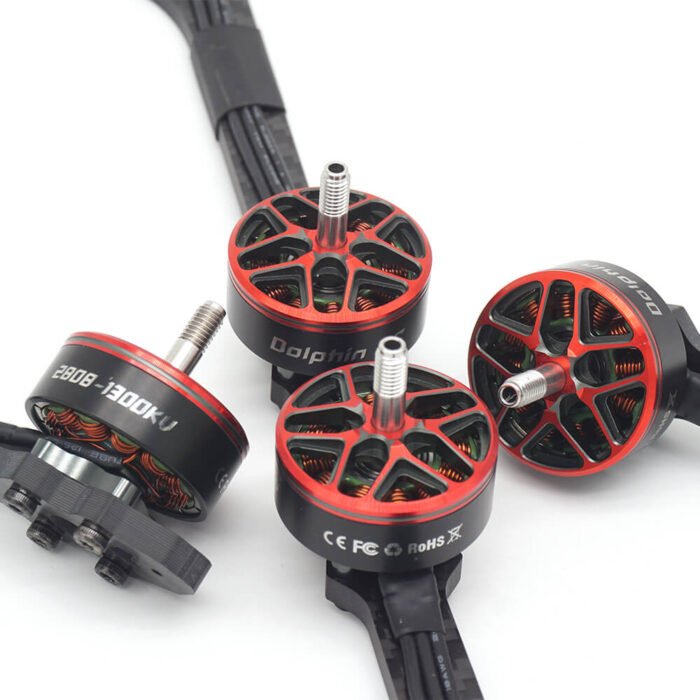

2808 1300KV Motor Product Specs：

KV:1300
Shaft:steel
Bearing: 5*11*5
Internal Resistance: 50.5mΩ
Shaft Diameter：5mm
Configuration: 12N14P
Stator：Kawasaki 0.2
Magnet：N52SH
Motor Cable：18#，250mm
Weight with silicone wire：63g

Frame: DolphinRC 7X
Color: Black
Frame Type: Long X
Wheelbase: 295mm
Frame Dimensions (LWH): 193*223*55mm
Camera Mounting Size: 19mm
Flight Stack Mounting Hole Spacing: 30.5*30.5mm/Φ3mm
VTX Mounting Hole Spacing: 20*20mm/Φ2mm, 30.5*30.5mm/Φ3mm
Motor Mounting Size: 19mm/Φ3mm*4
Top Plate Thickness: 2.5mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Arm Thickness: 5mm
Weight: 165g

Motor: DolphinRC 2808 1300KV
Color: Black-Red
Pole Count: 12N14P
Internal Resistance: 50.5Ω
Shaft Diameter: 5mm
Magnets: N52SH
Wire Gauge/Length: 20AWG/250mm
Motor Mount Hole Spacing: 19mm
Motor Weight (including wires): 63g

Recommended Battery: Lipo 6s 3300-5200mAh / Lion 6s 5000-6000mAh
Recommended Propellers: 7 inch
Flight Time: 15-30min

Product Features

• Long X Frame Layout: The long X structure balances long-range stability with responsive control, ensuring smoother long-distance flights.

• High Expandability: The frame offers ample space and various mounting holes, making it compatible with a wide range of devices and accessories for enhanced development potential.

• Lightweight Design: The frame weighs only 165g, maximizing weight reduction while maintaining high strength to improve flight efficiency and endurance.

• High Cost-Performance Kit: Comes standard with 2808 long-range motors, balancing power and efficiency without the need for additional purchases.

• Open-Source 3D Printable Parts: Open-source design files are available to meet various development and usage needs.

• High-Quality Grade 12.9 Thread-Locked Screws: High-strength grade 12.9 screws with pre-applied thread locker ensure a secure fit for worry-free flying.

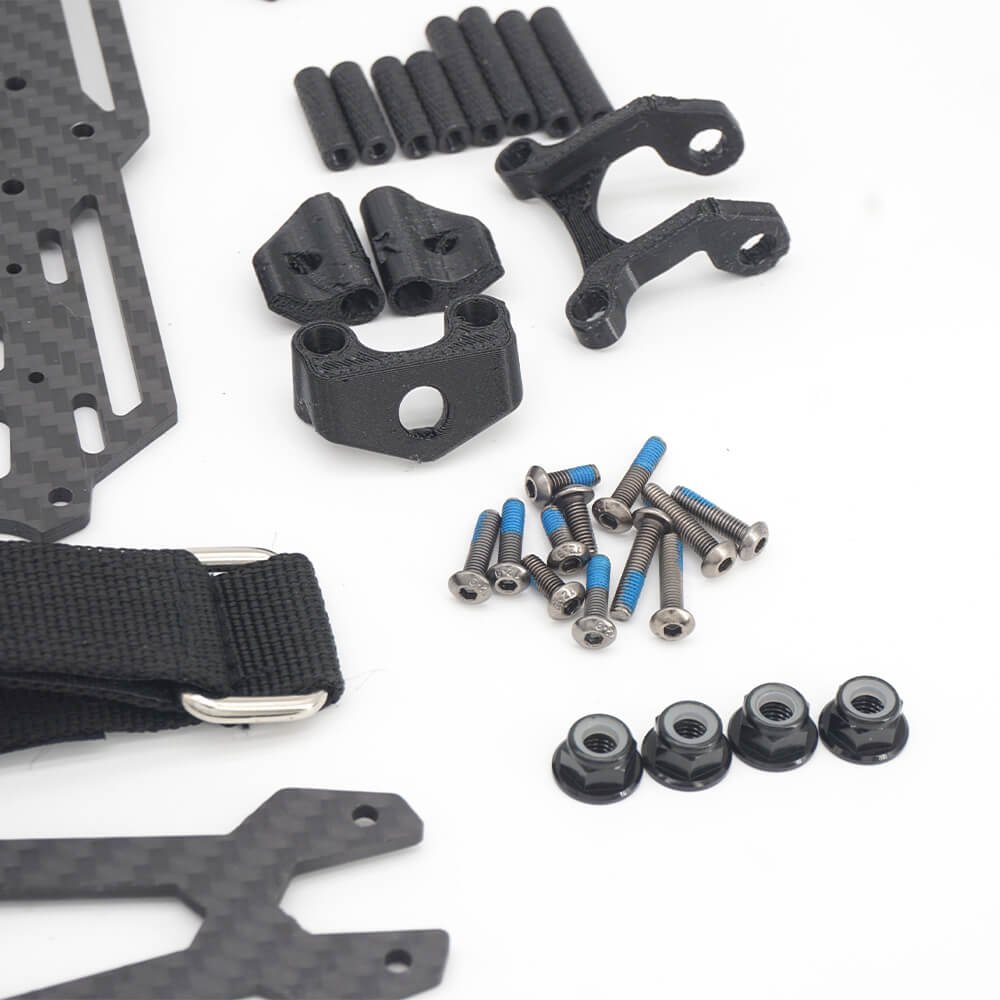

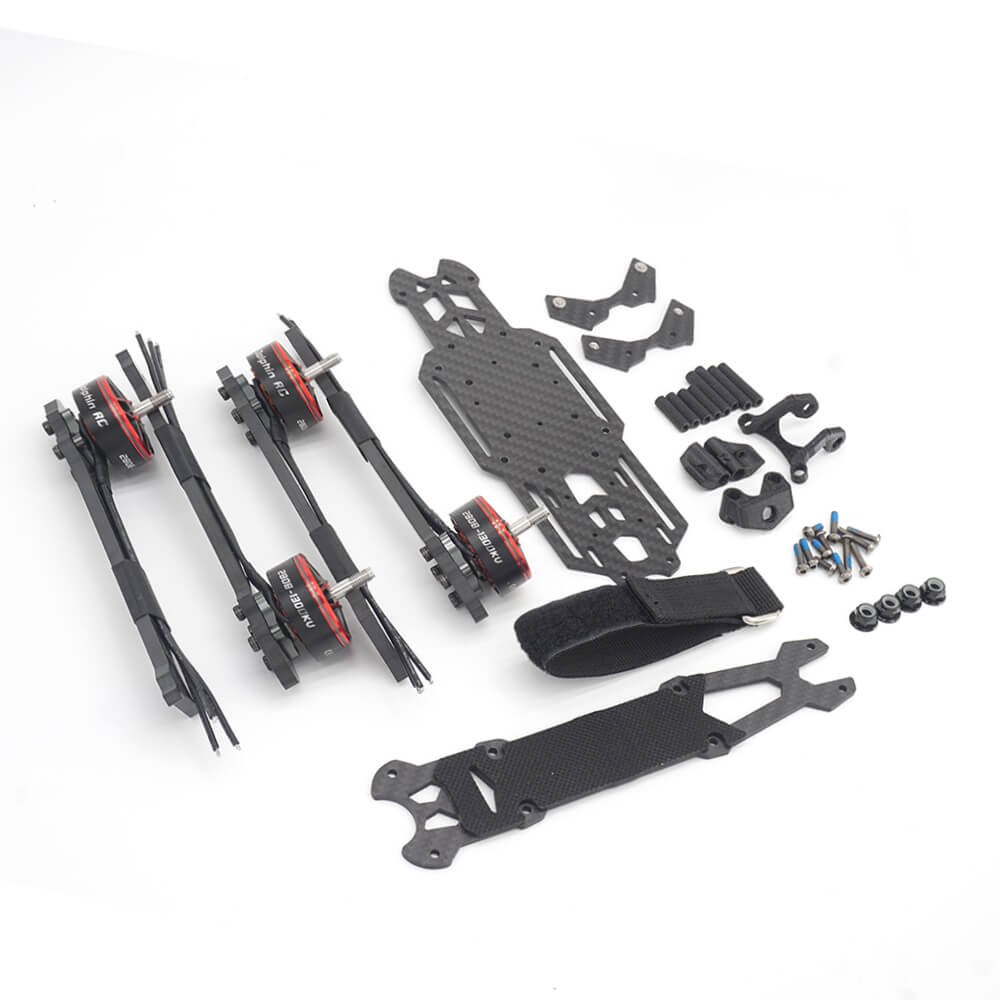

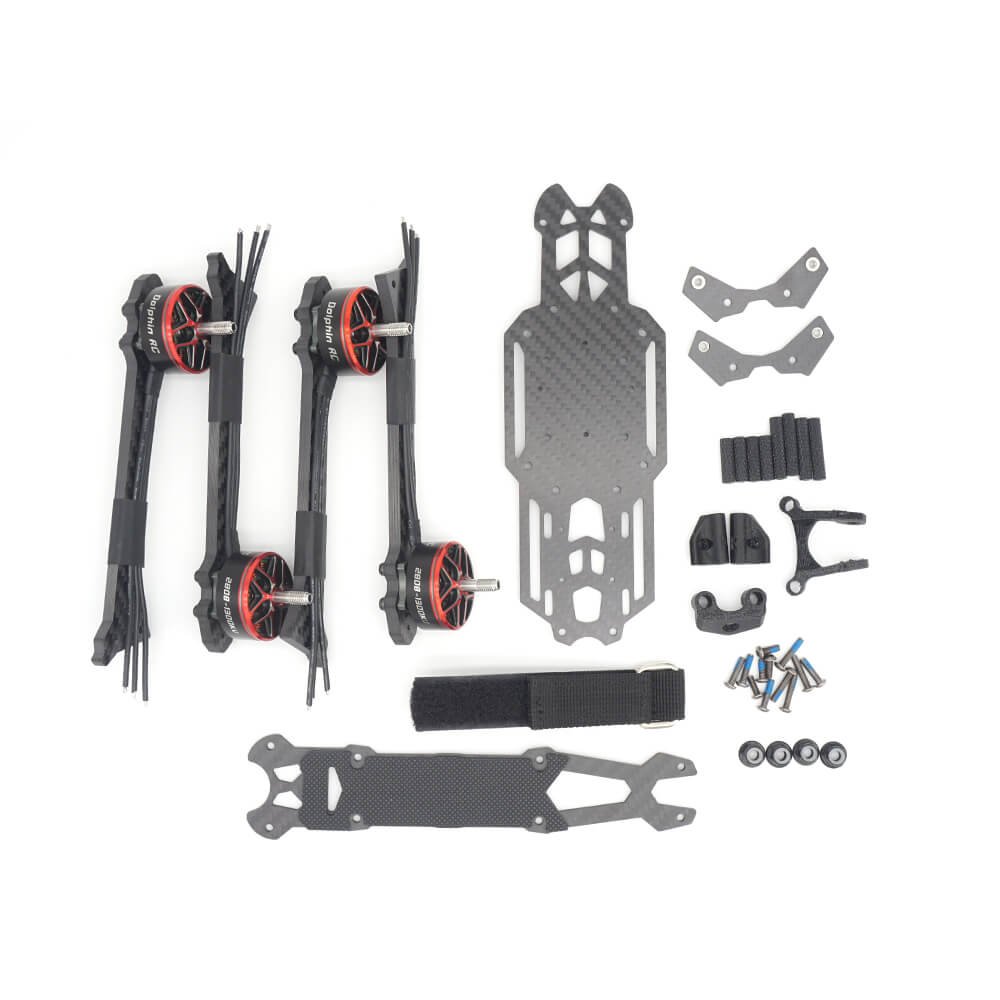

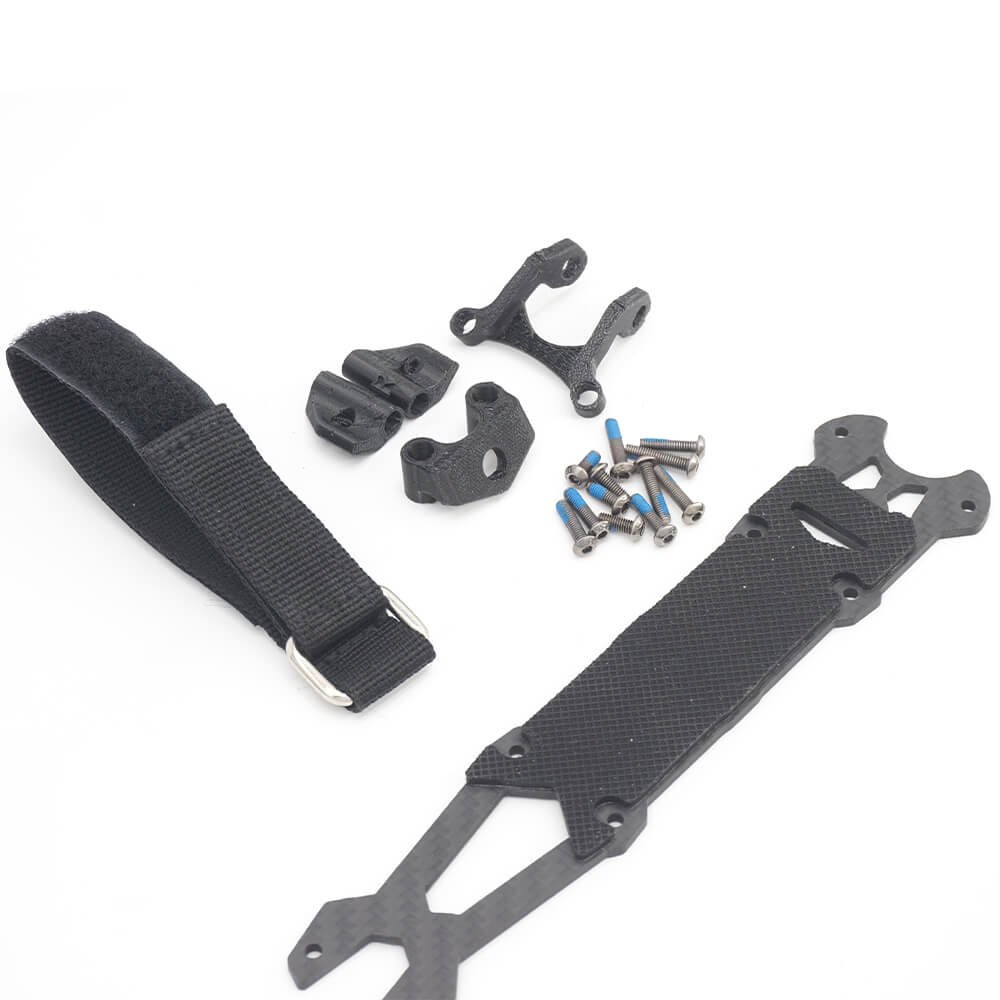

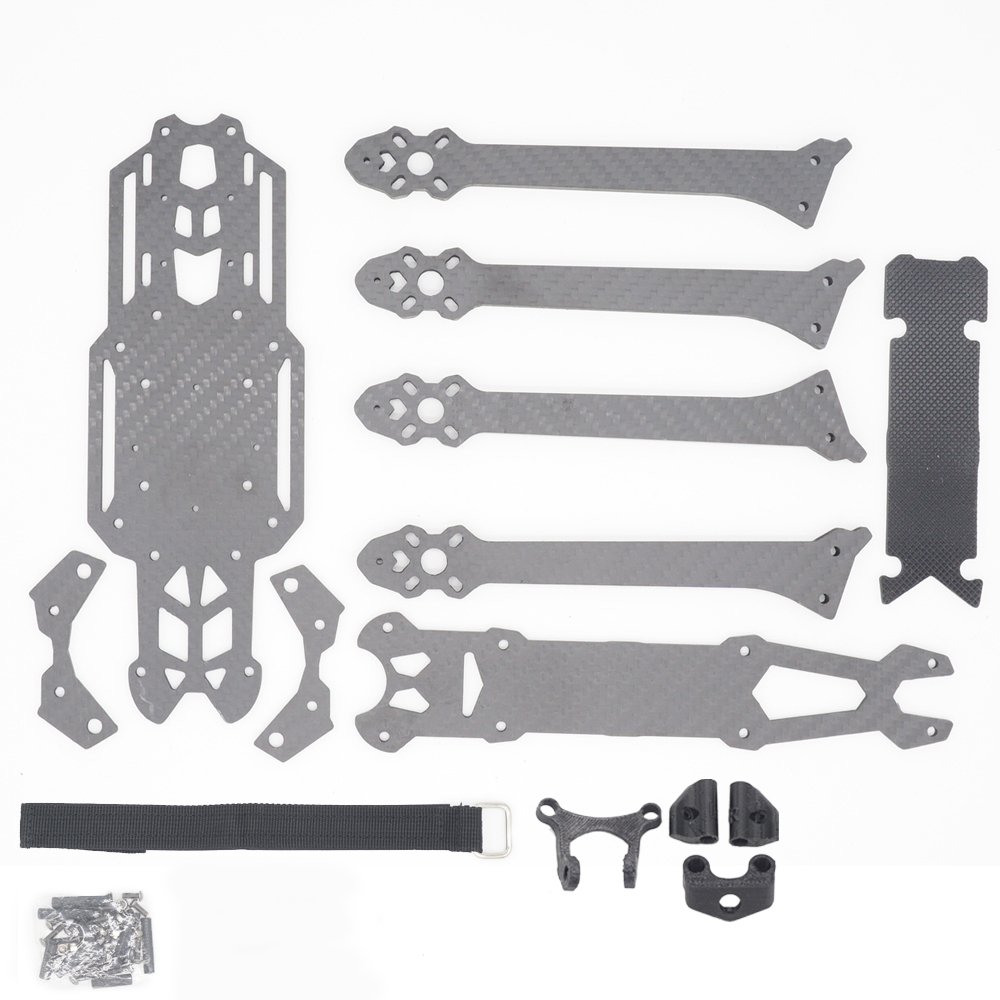

Package Includes

• 7-inch Frame x1

• 2808 Motor x4

• M5*250mm Battery Strap x1

• Battery Anti-Slip Pad x1
