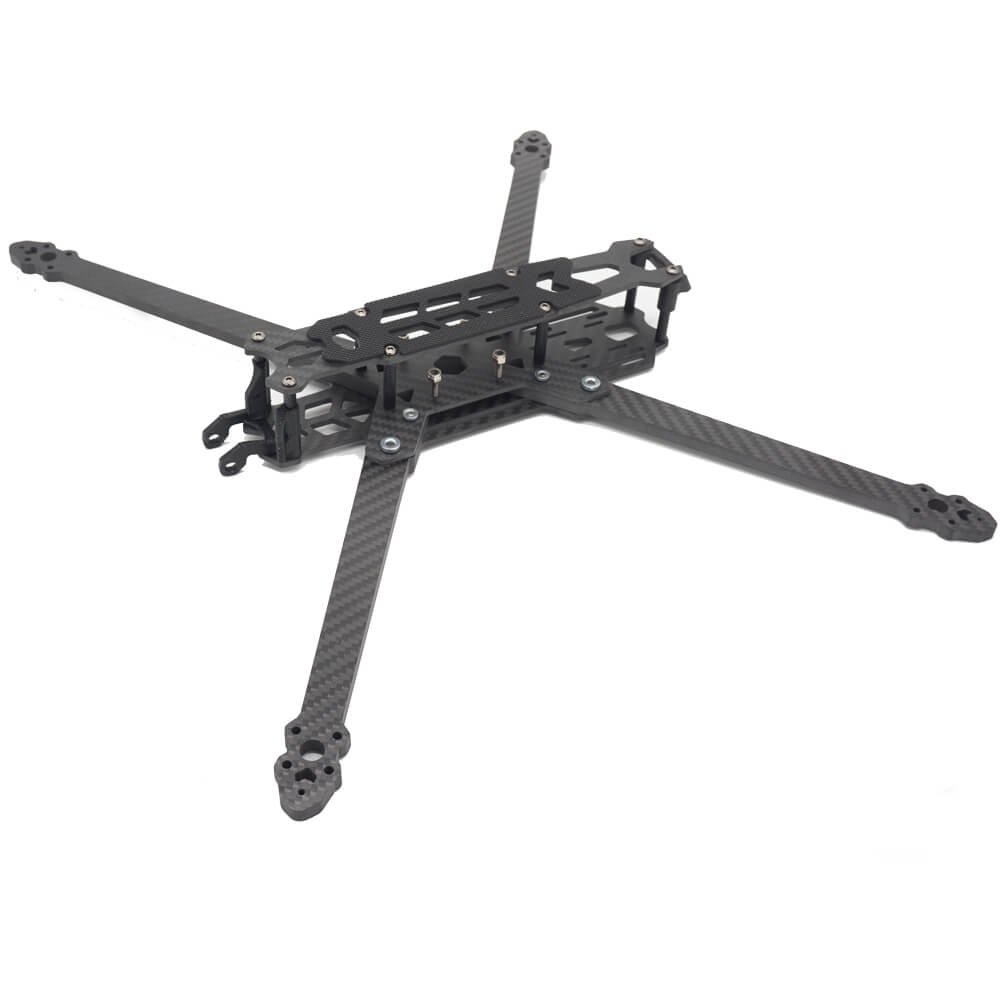

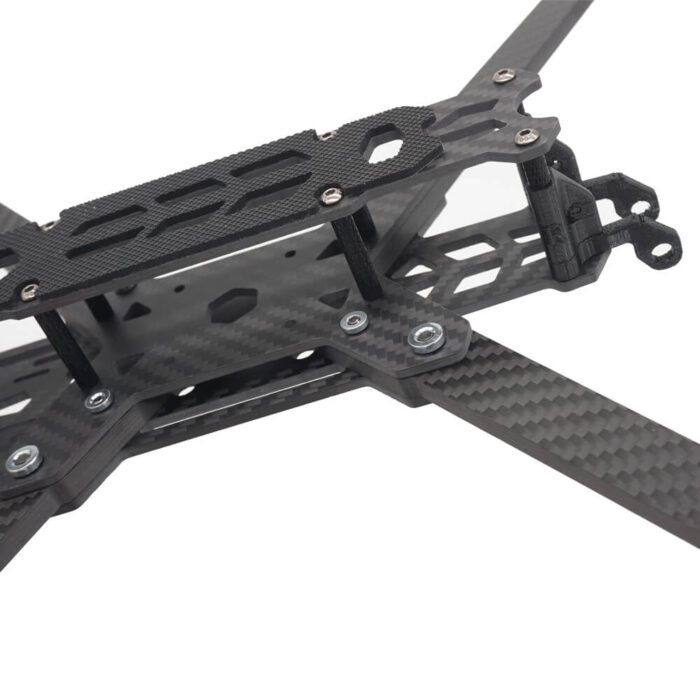

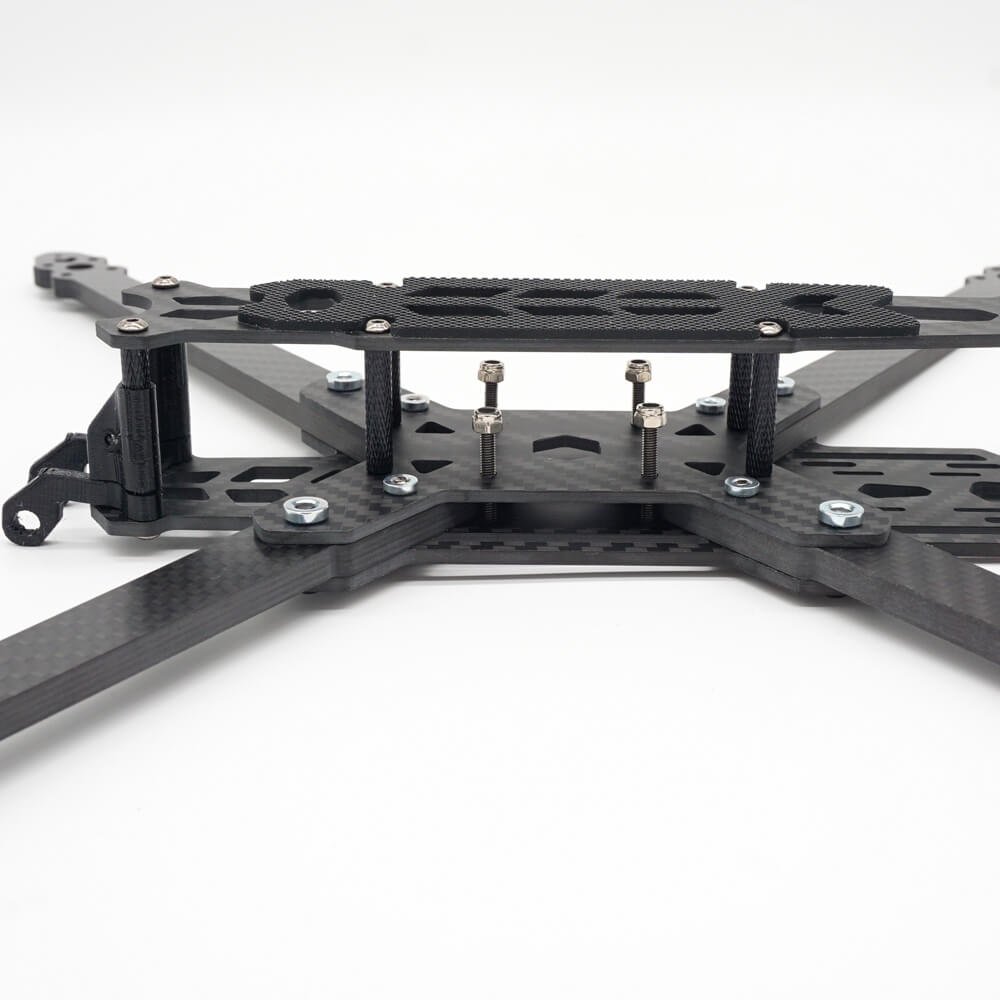

DolphinRC 10 inch FPV Frame Kit

Feature

– This frame is specially designed for 10-inch Freestyle and Cine.

– True X design is silky smooth and more stabled which more suitable for cinematic shooting

– The frame adopts the innovative structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.

– The frame is compatible with 19MM wide FPV camera. Now upgraded the print section, the lens is fixed more firmly, no jelly.

– The motor mounting holes are M3*16/19mm, Dolphin RC 3115 900kv, and 10″ propellers are recommended.

Recommended Configuration

Frame：Dolphin RC 10 inch

FC&ESC: Dolphin RC F405 60A Stack

Motor：Dolphin RC 3115-900KV motor

propeller：GEMFAN 1050

Camera：384 Thermal imaging FPV Camera

Connector：Default XT90. optional XT60

Install the antenna first and then power it on

​SPECS：

Name: 10 inch fpv frame kit

Propeller: 10 inch

Weight : 278g

Wheelbase:415mm

Arms thickness:6MM

Top plate: 2.5MM

Bottom plate: 3MM

Side plate: 2MM

Camera mount size: 19*19mm

Product list

1x TOP plate

1x Bottom plate

1x side plate

4x Arms

4x Aluminum column m3*25mm

4x Aluminum column m3*34mm

2x Camera screw m2*5mm

12x Screw m3*8mm

4x Screw m3*14mm

4x Screw m3*16mm

4x Screw m3*25mm

4x Screw m4*14mm

4x Lock nut m3

4x Riveted nut S-M3-2

4x Riveted nut S-M4-2

1x Printout camera left

1x Print copy camera right

1x Print T antenna

1x Print SMA antenna

1x Non-slip mat

2x Cable strap 25mm x 300mm
