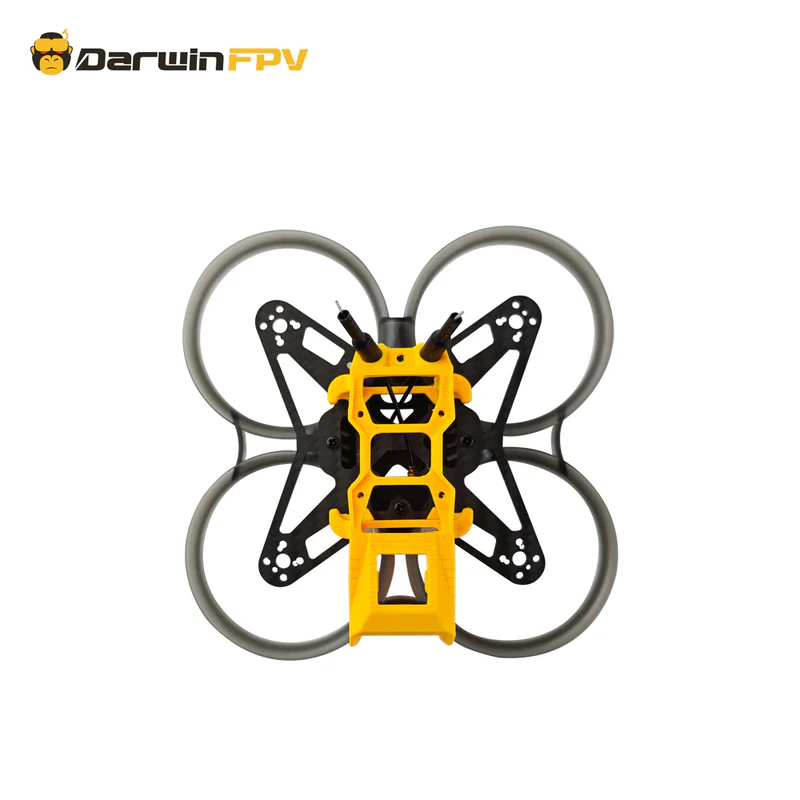

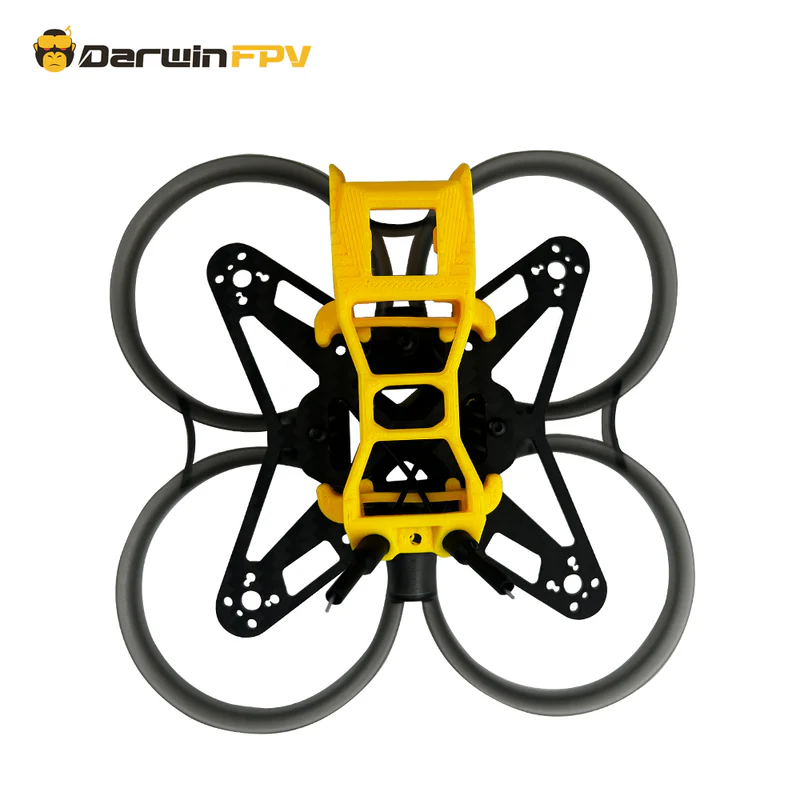

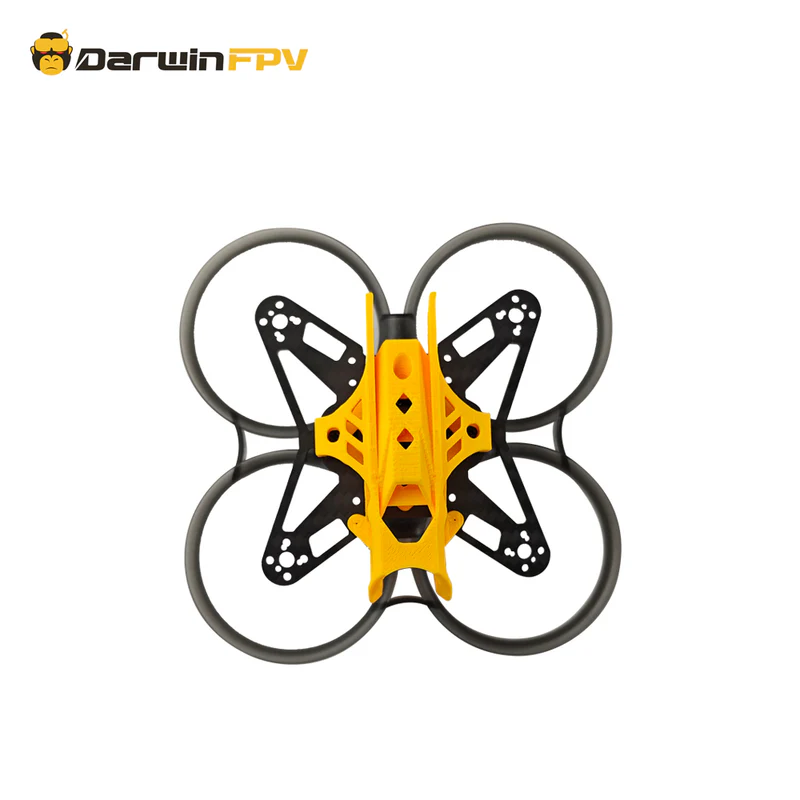

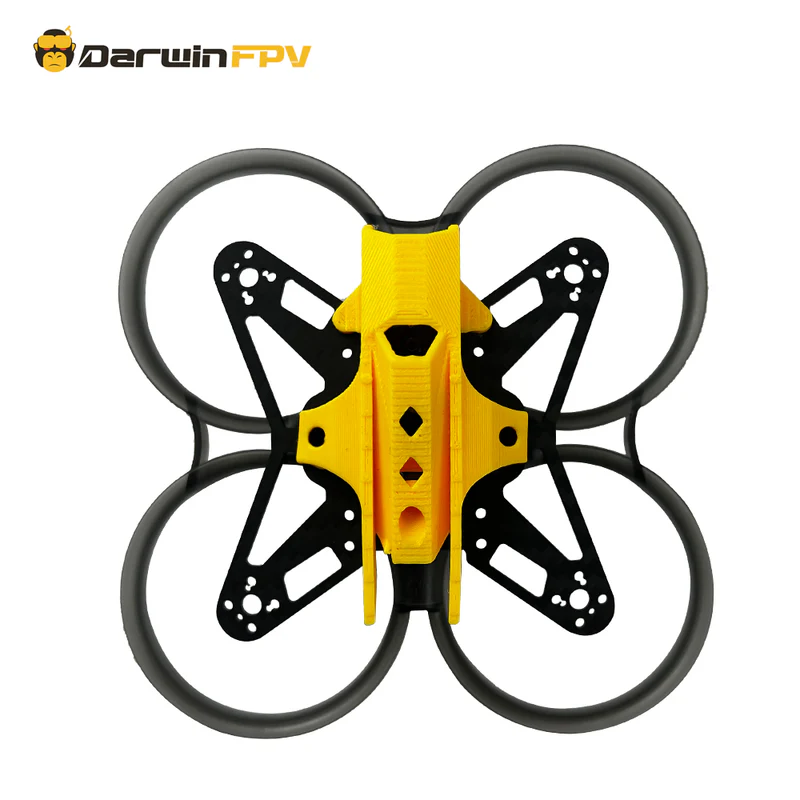

The DarwinFPV CineApe20 is a 2-inch whoop-style FPV drone frame designed for enthusiasts of small drones. It weighs less than 100g, is compact and portable, and complies with the drone regulations of all countries. Whether in the narrow indoor spaces or the open outdoor areas, it can perform perfectly.
During the process of FPV flights, especially when beginners are operating, collisions or drops are inevitable. Therefore, we have made careful selections and designs in terms of materials and structures. The fuselage adopts an integrated and enclosed design combining carbon fiber and high-strength PC protective guard, remaining intact even when hitting a wall at full throttle.
In terms of detail processing, the CineApe20 frame has also achieved the ultimate level. Multiple hole positions are reserved, making it compatible with all VTXS such as analog VTXS, O3, RunCam Link, Walksnail, OpenIPC, and the yet-to-be-released DJI O4, satisfying the personalized needs of different users.
All in all, the CineApe20 frame is an outstanding product that combines portability, high performance, and durability. Whether you are a professional drone pilot or a beginner who has just started, it can meet your needs and bring you a brand-new flying experience.
Features
1：The CineApe20 is merely pocket-sized, which makes it extremely portable. It weighs less than 100g and complies with the drone regulations of all countries；
2：Different from the Pavo20, the CineApe20 is made of TPU material. It can filter low-frequency vibrations without the need for shock-absorbing balls, getting rid of the rolling shutter effect. Moreover, TPU is softer and tougher, and it can better protect the O3 from being damaged in the event of a crash；
3：The carbon plate has two sets of reserved adjustable hole positions at the front and back. When installed in the front hole position, the protective guard won’t be visible even in the O3 ultra-wide-angle mode；
4：The frame features an integrated and enclosed design with smooth lines, enabling smoother flights. Meanwhile, it reduces the risk of damage caused by foreign objects entering and is more durable；
5：The top plate has two kinds of reserved hole positions, 20×20 and 25.5×25.5, which can be used to install analog vtxs, as well as popular HD vtx such as the O3, RunCam Link, Walksnail, OpenIPC, and the yet-to-be-released DJI O4.；
6：An additional GPS installation position is added to reduce the risk of losing the drone during outdoor flights.；
7：It is compatible with the commonly used motor installation hole positions of both three holes and four holes；
8：The open battery strap is compatible with batteries of various sizes.
Packing list
1 x Top plate
1 x Bottom plate
1 x Protective guard
1 x EVA anti-collision strip
1 x Battery anti-skid pad
2 x Battery strap 12 x120mm
1 x Screws pack
5 x M2 nylon nuts
1 x Head cover TPU
1 x Sticker
1 x Accessories pack
