3.5Ghz 2.5W VTX VRX

DolphinRC 3.5Ghz 2.5W VTX VRX Transmitter Receiver For RC Long Range

3.5G VRX Features:

Blackout memory

Small size and light weight, only 36g

3.5G VRX Specs：

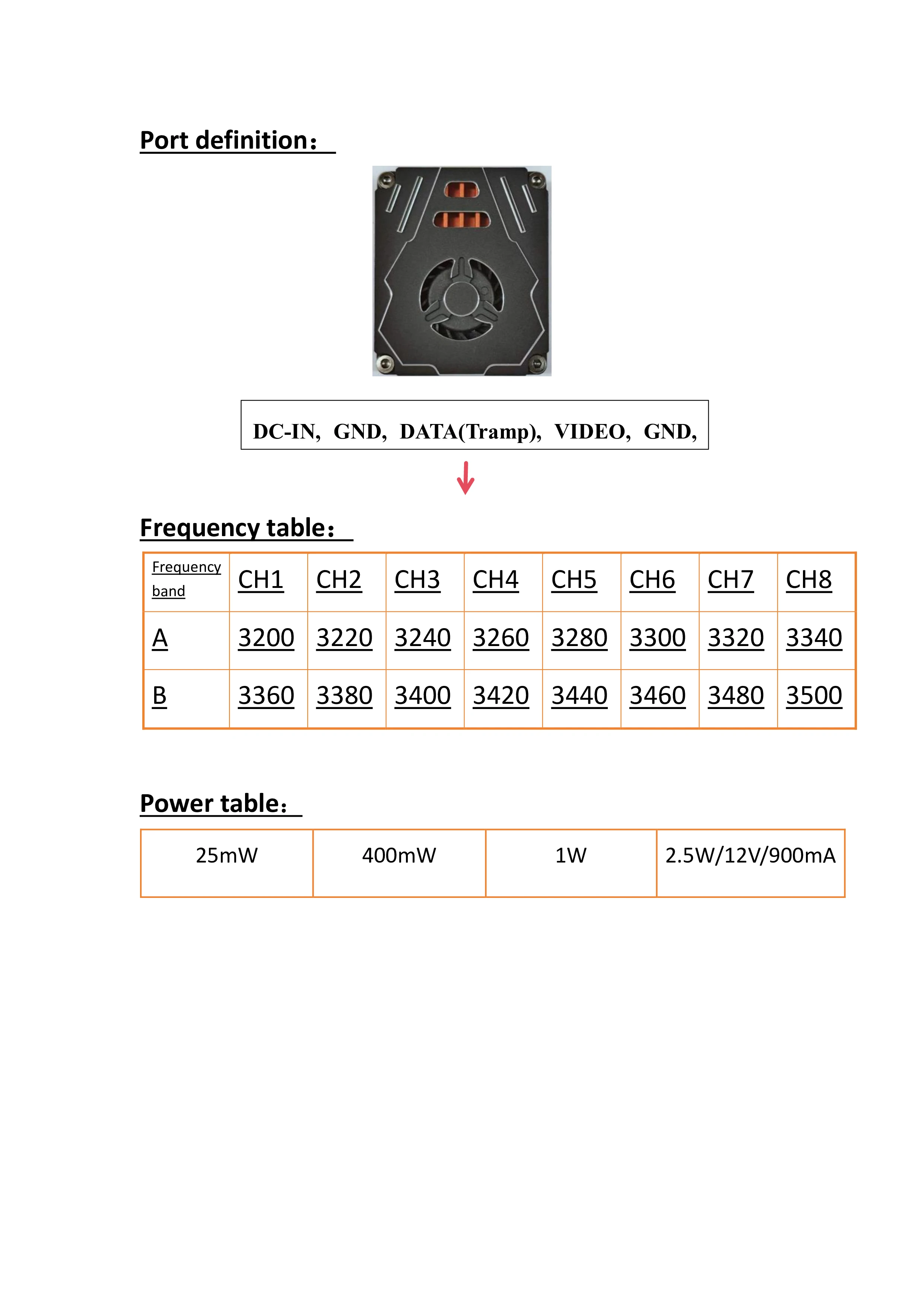

Number of Channels：3.5G band；A、B frequency groups, 16channels(A :3200MHz-3340MHz, B: 3360MHz-3500MHz)

Antenna interface：Standard SMA

RF impedance：50Ω

The input voltage：2S-7S

Current consumption：150mA/12VDC

Receiving Sensitivity：-95dBm

Video Output impedance：75Ω

Video format：NTSC/PAL

Video Output Level：CVBS 1.0~1.4VP-P

Power cord：DC3.5*1.35mm to DC5.5*2.1mm

Video cable：4-pole 2.5mm headphone plug to RCA

Working Temp：-10_60℃

Mounting hole：M6

Dimension（L*W*H）：85mm*40mm*11mm

Weight：36g
