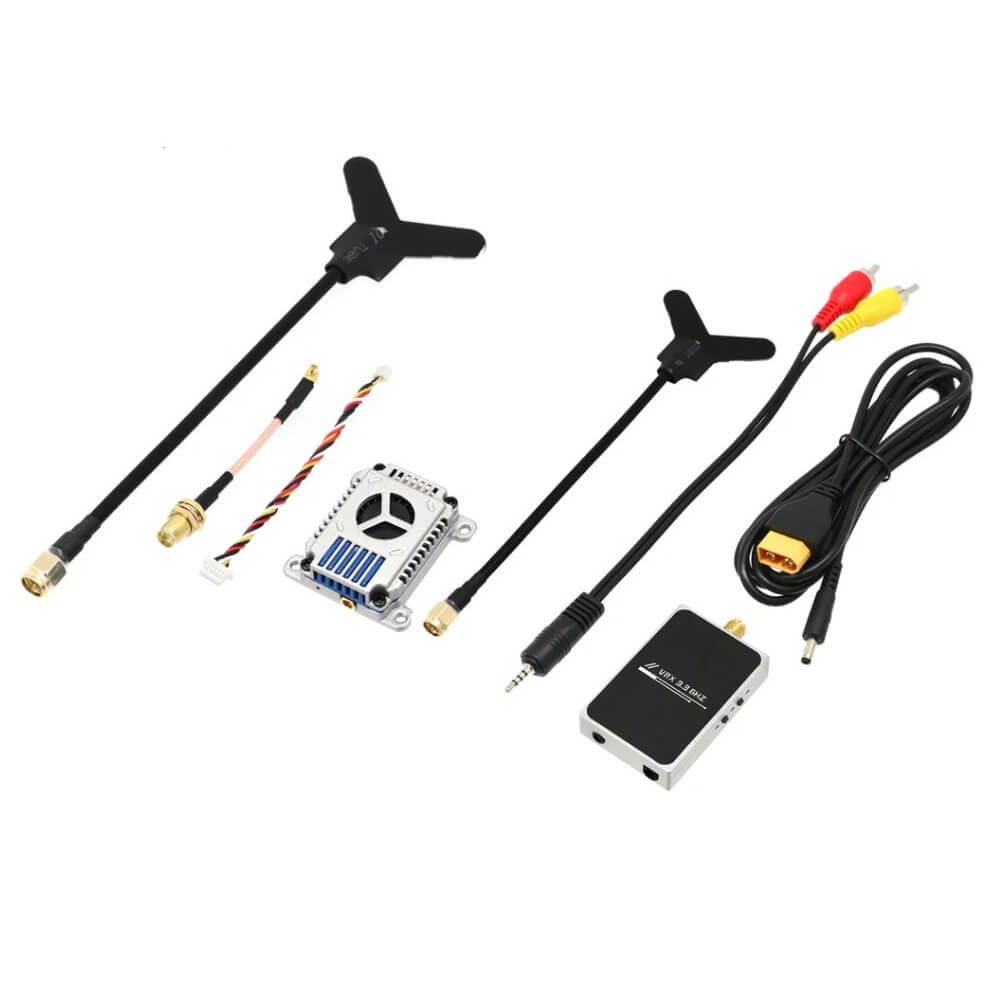

3.3G 3W VTX VRX

Notes: Both of the VTX and VRX has the antenna included.

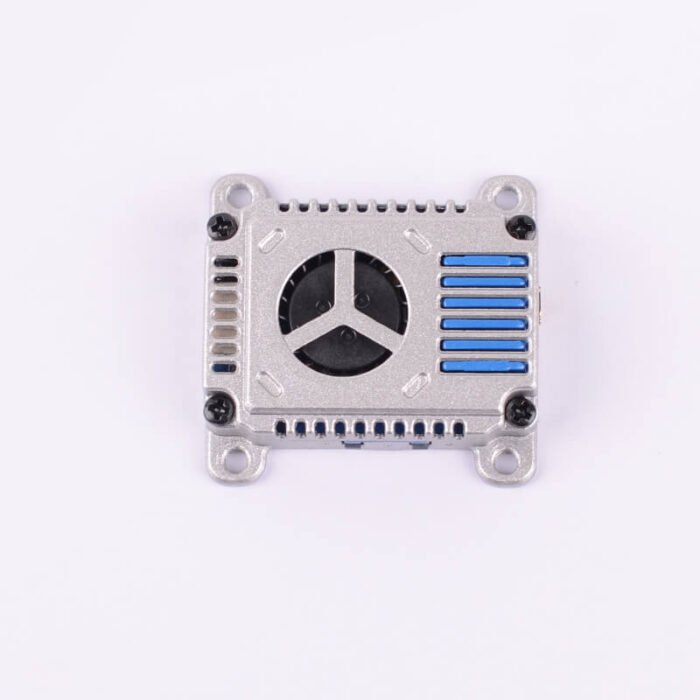

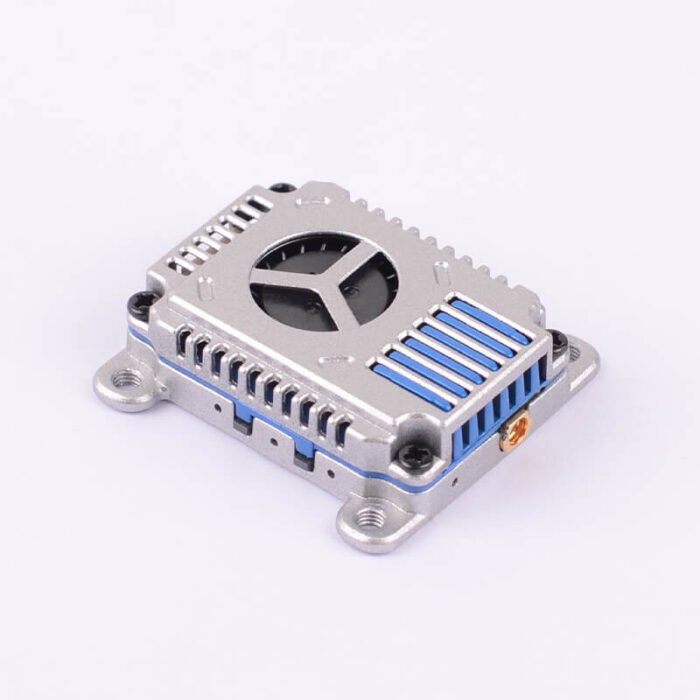

3.3G VTX

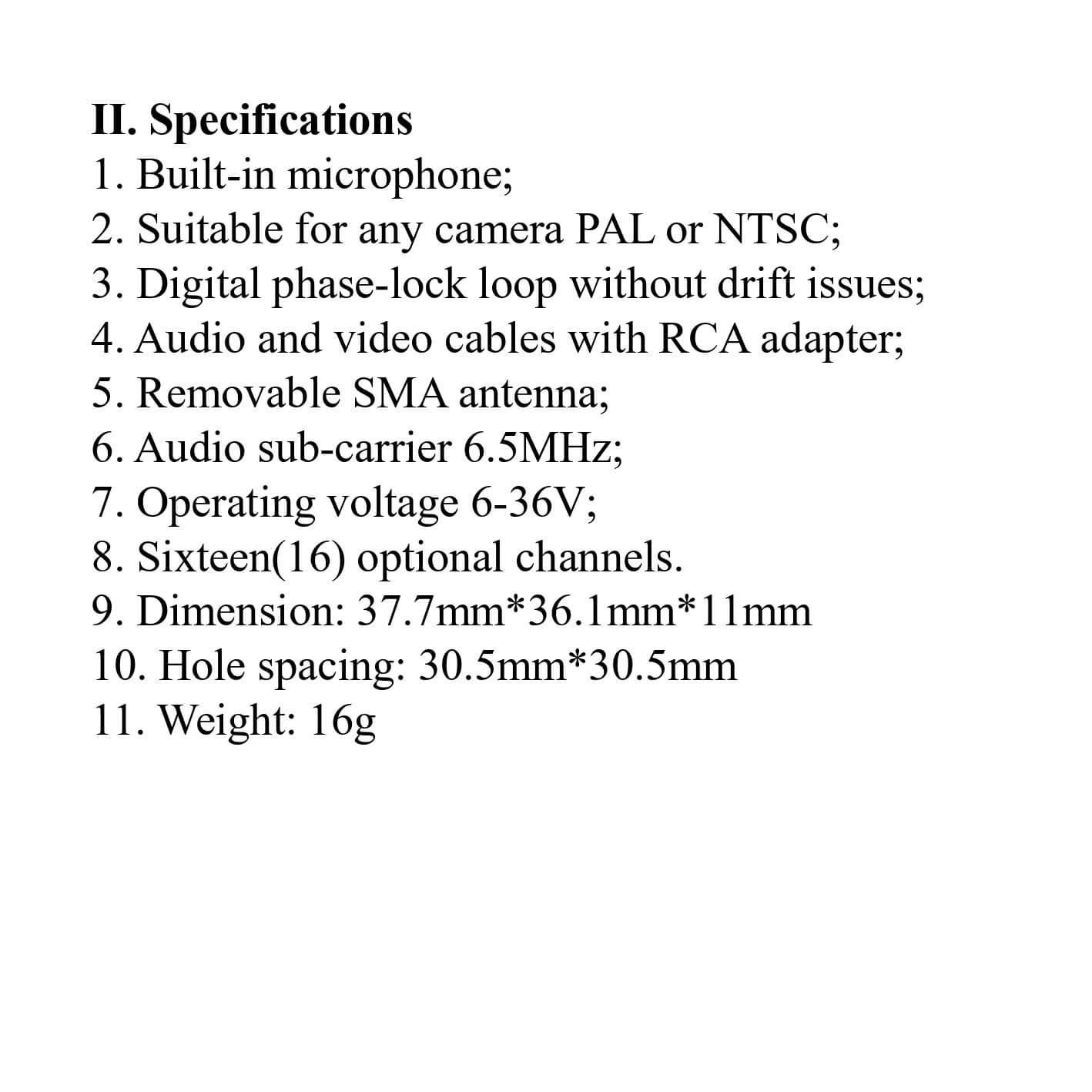

II. Specifications

1. Built-in microphone;

2. Suitable for any camera PAL or NTSC;

3. Digital phase-lock loop without drift issues;

4. Audio and video cables with RCA adapter;

5. Removable SMA antenna;

6. Audio sub-carrier 6.5MHz;

7. Operating voltage 6-36V;

8. Sixteen(16) optional channels.

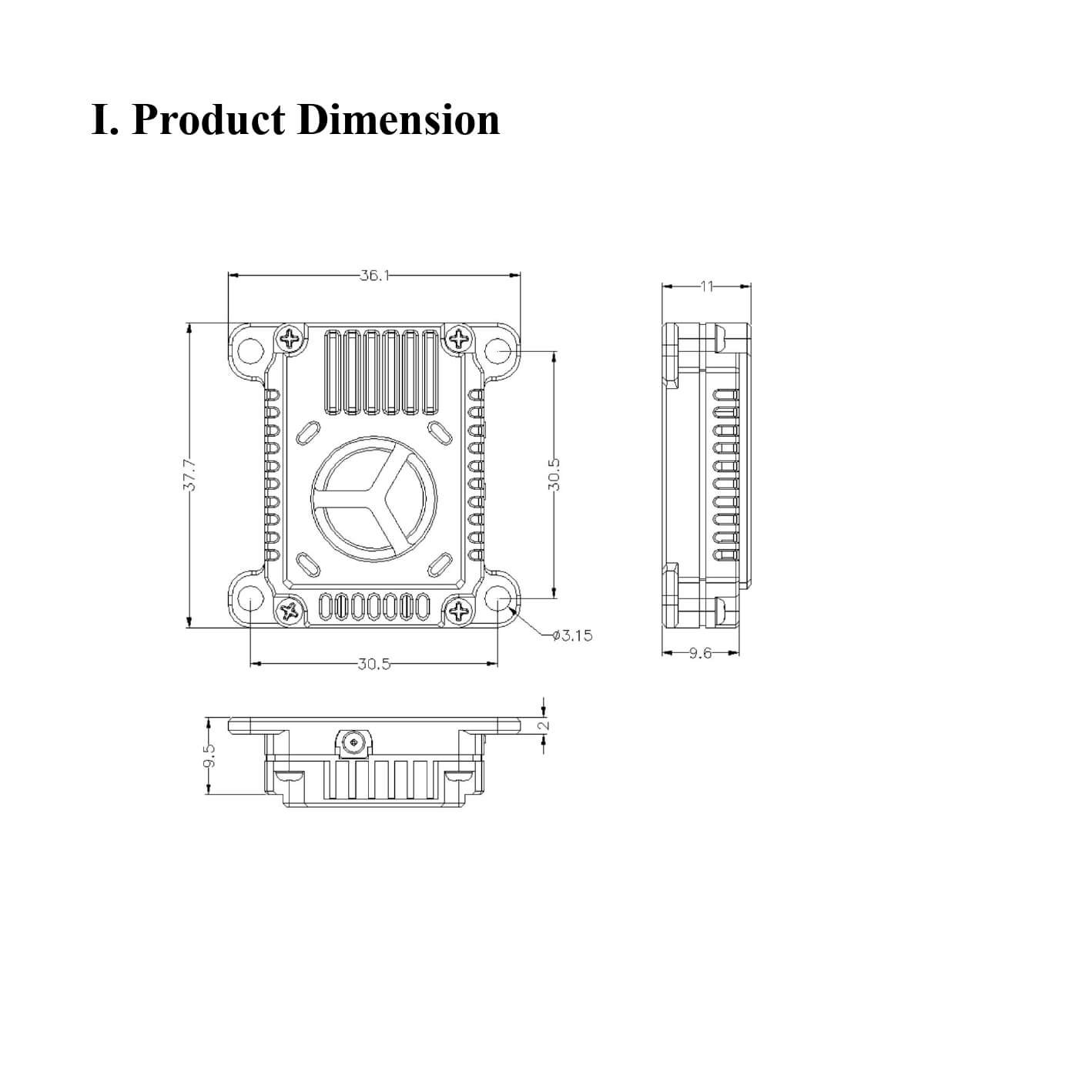

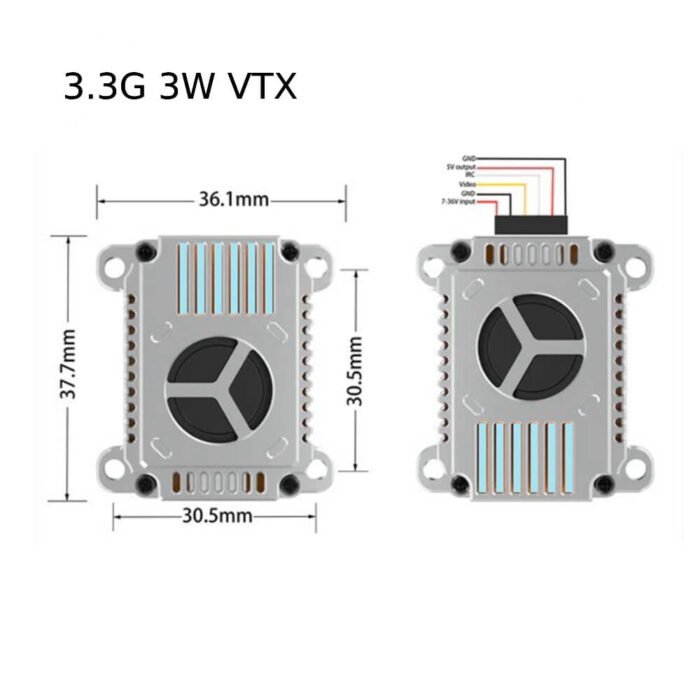

9. Dimension: 37.7mm*36.1mm*11mm

10. Hole spacing: 30.5mm*30.5mm

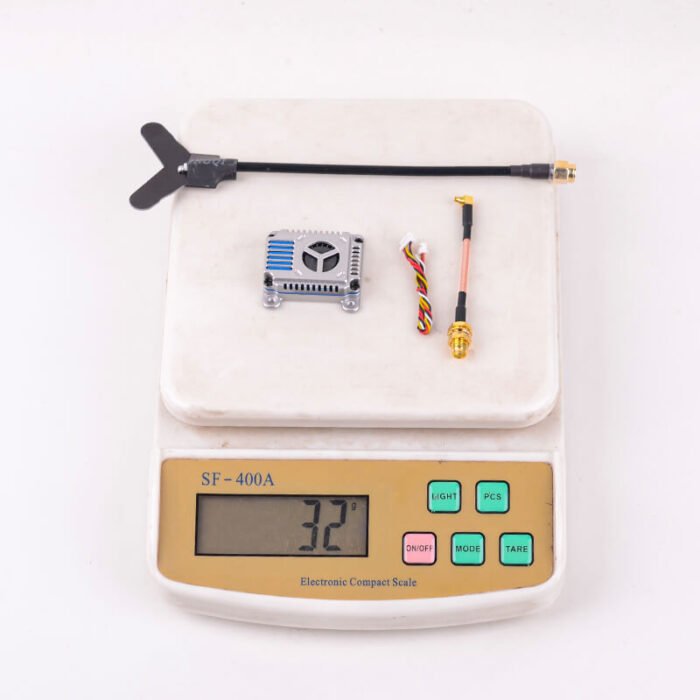

11. Weight: 16g

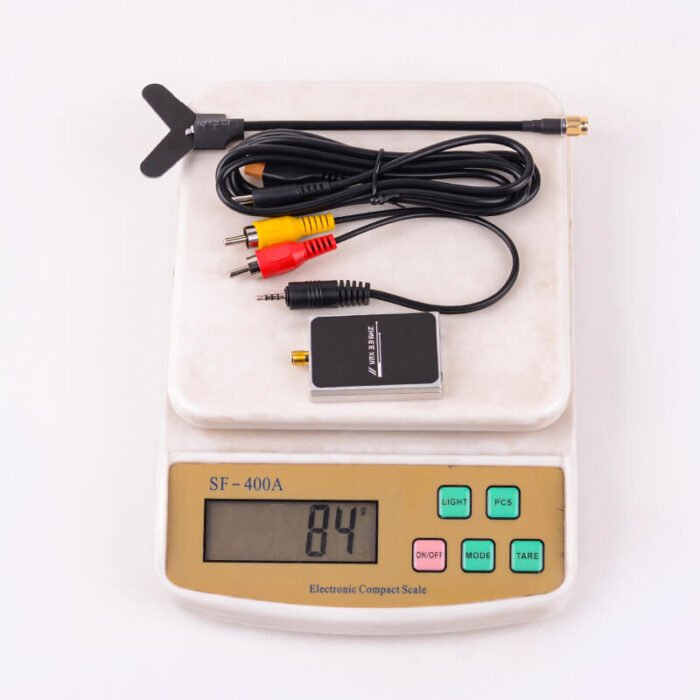

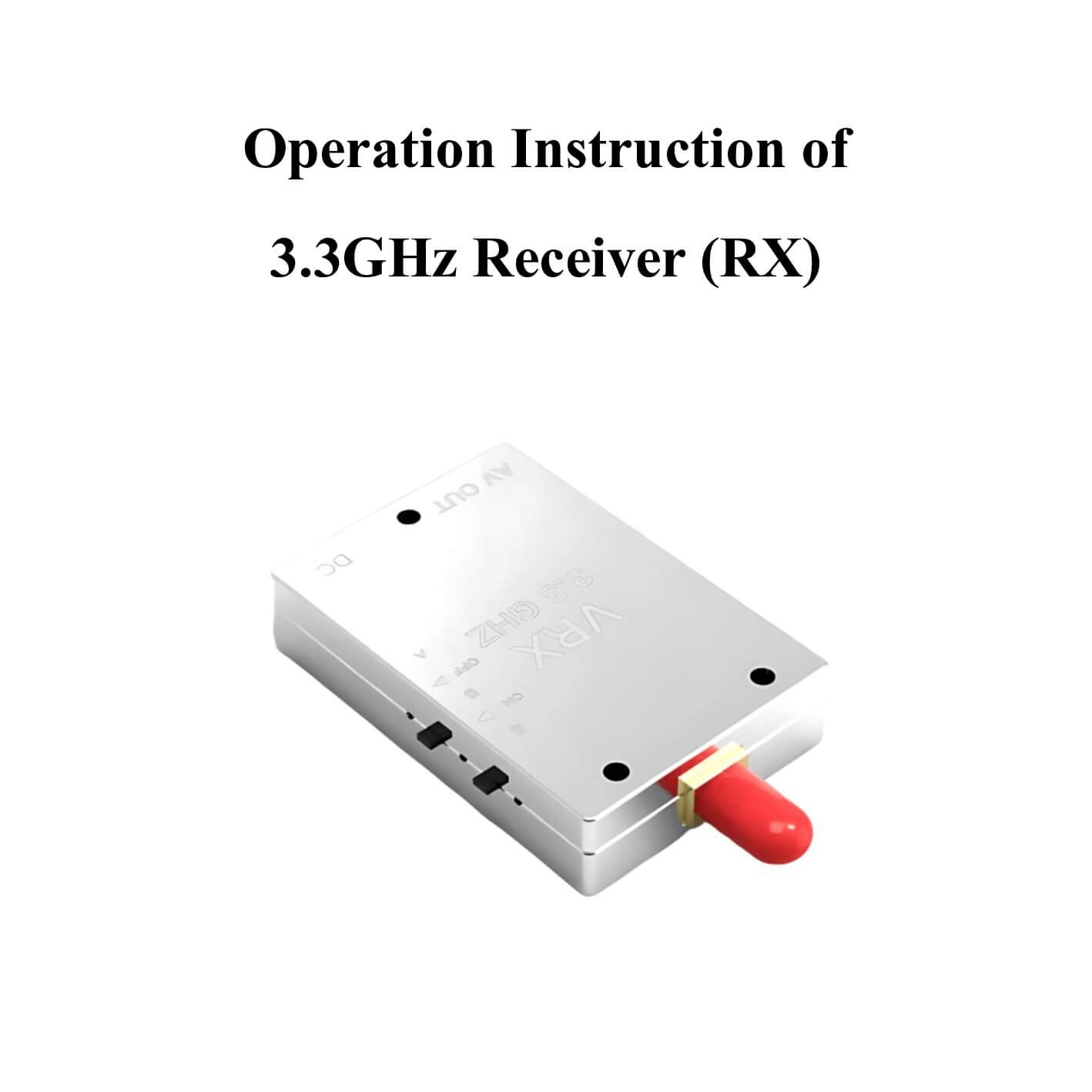

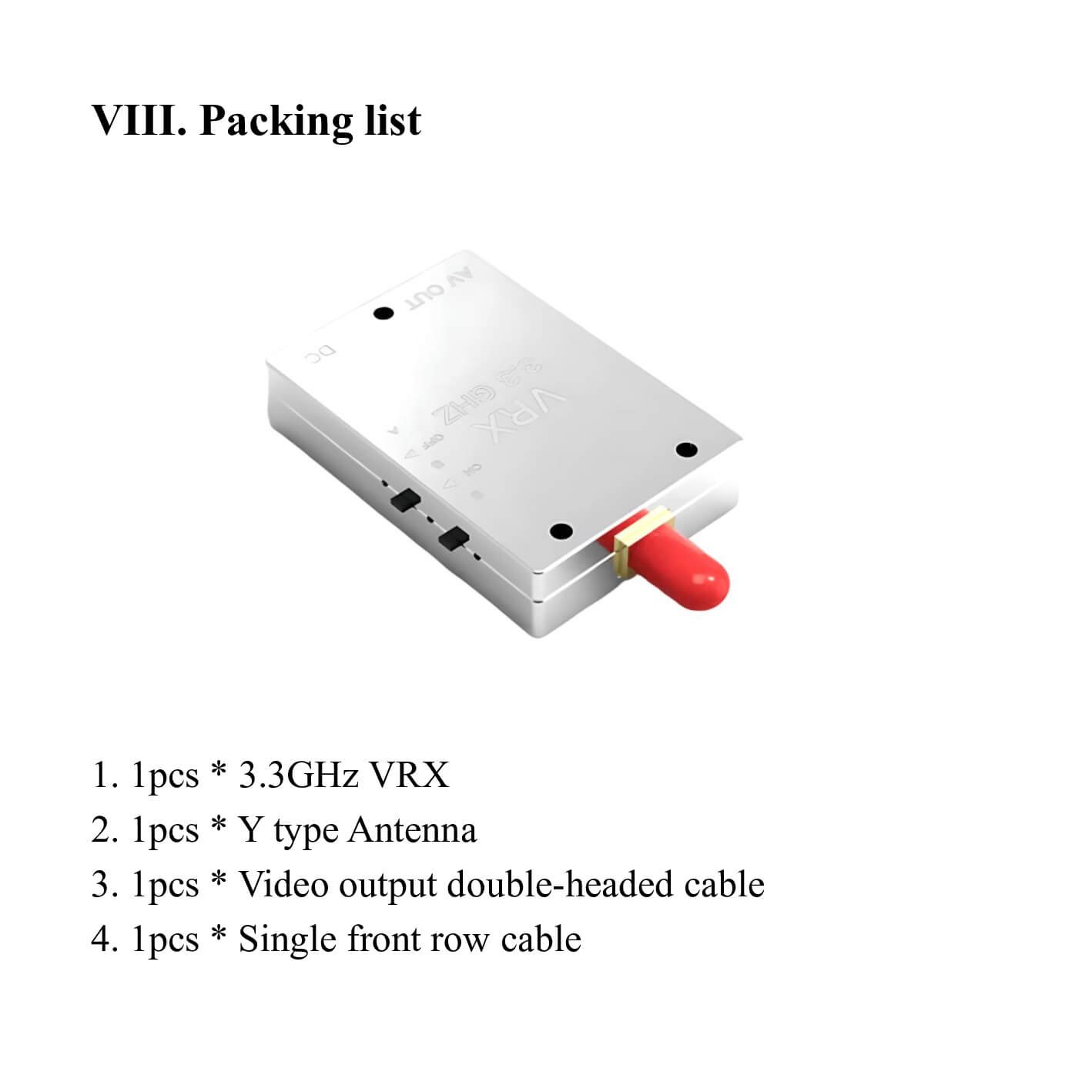

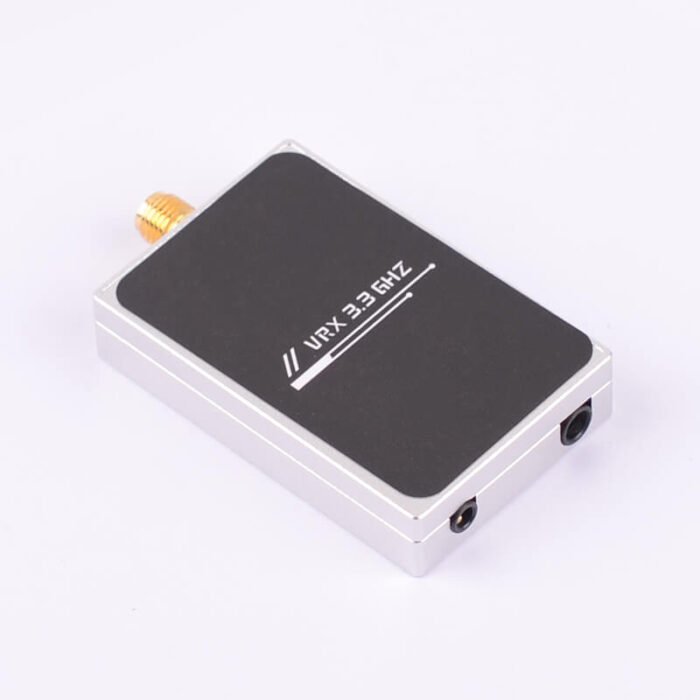

3.3G VRX

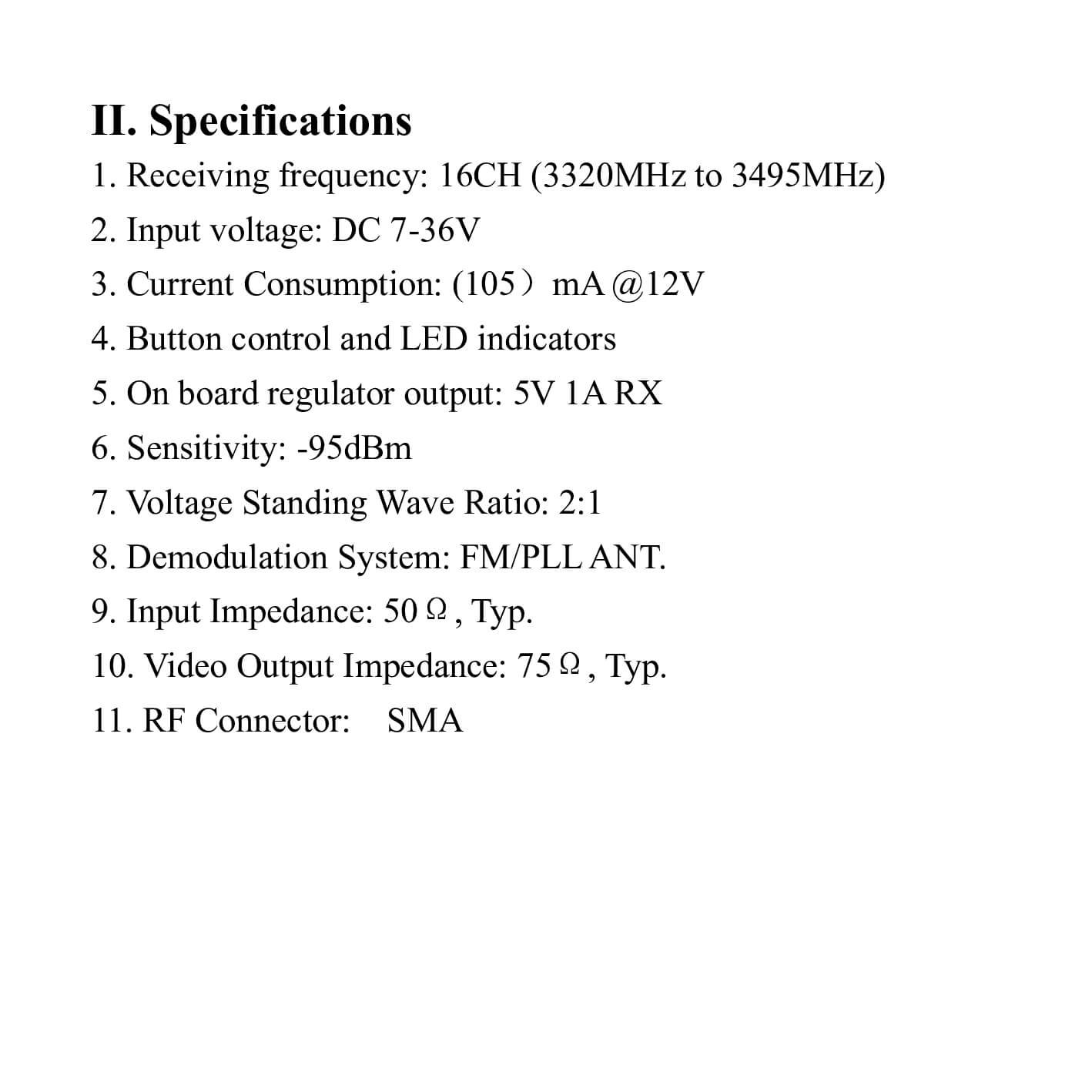

II. Specifications

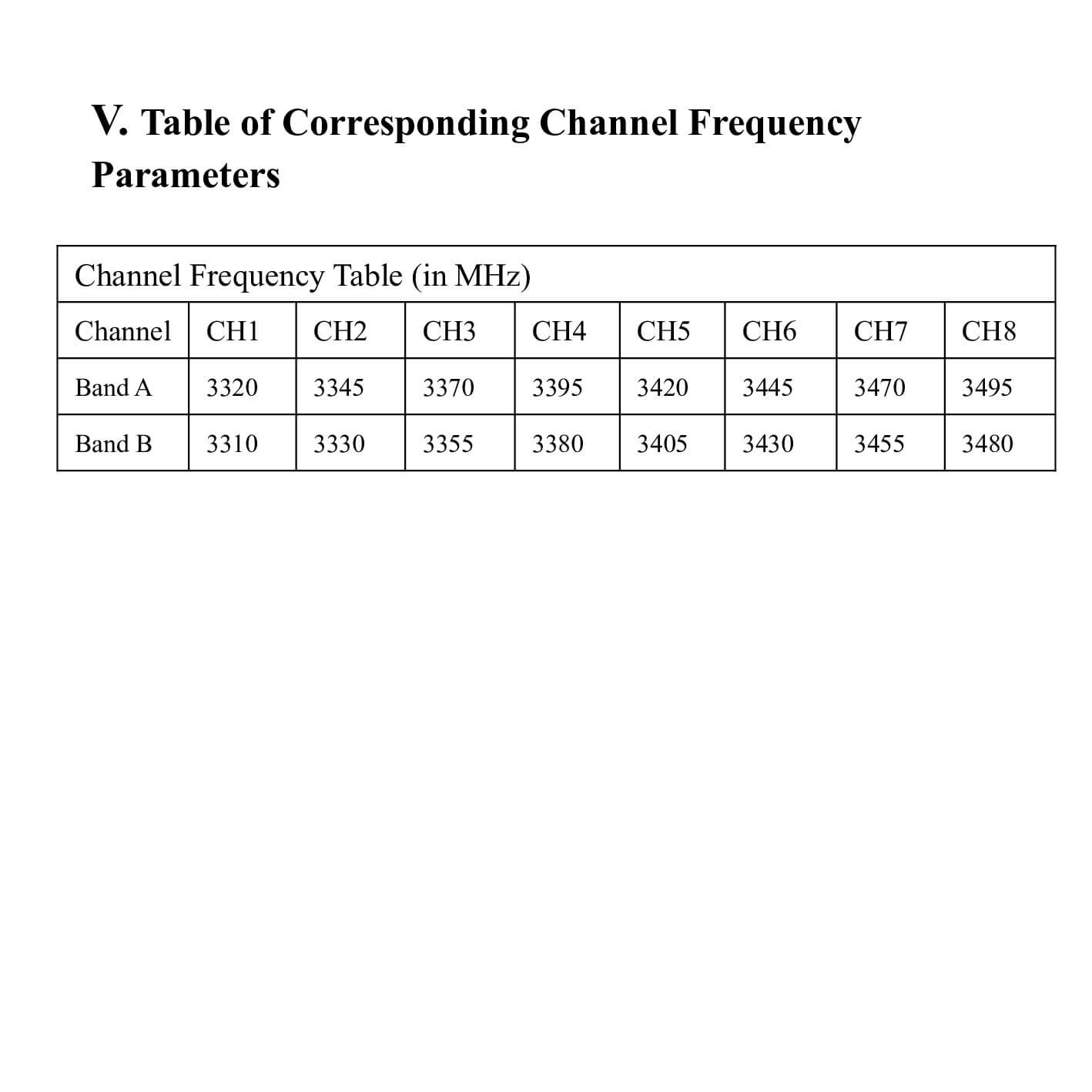

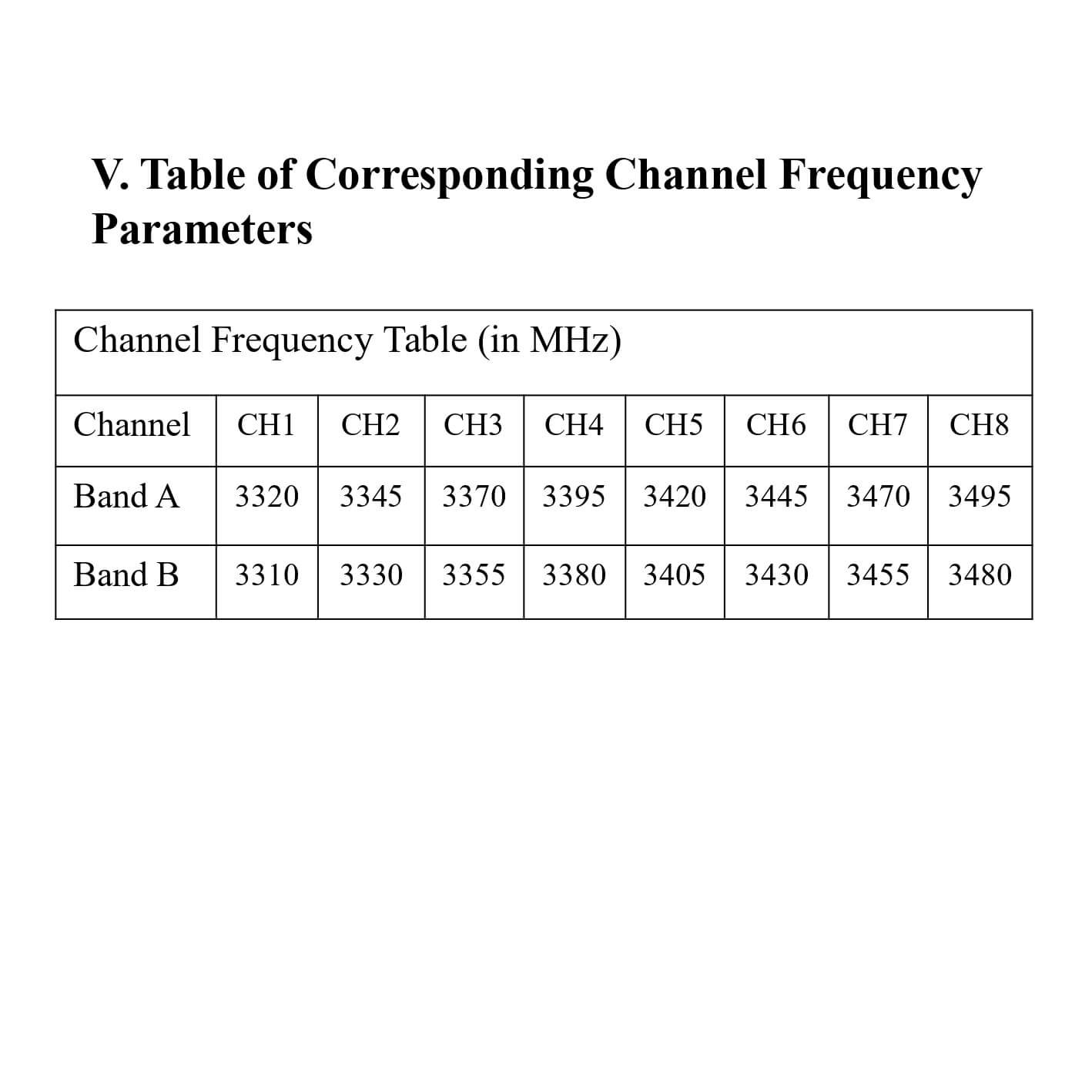

1. Receiving frequency: 16CH (3320MHz to 3495MHz)

2. Input voltage: DC 7-36V

3. Current Consumption: (105）mA @12V

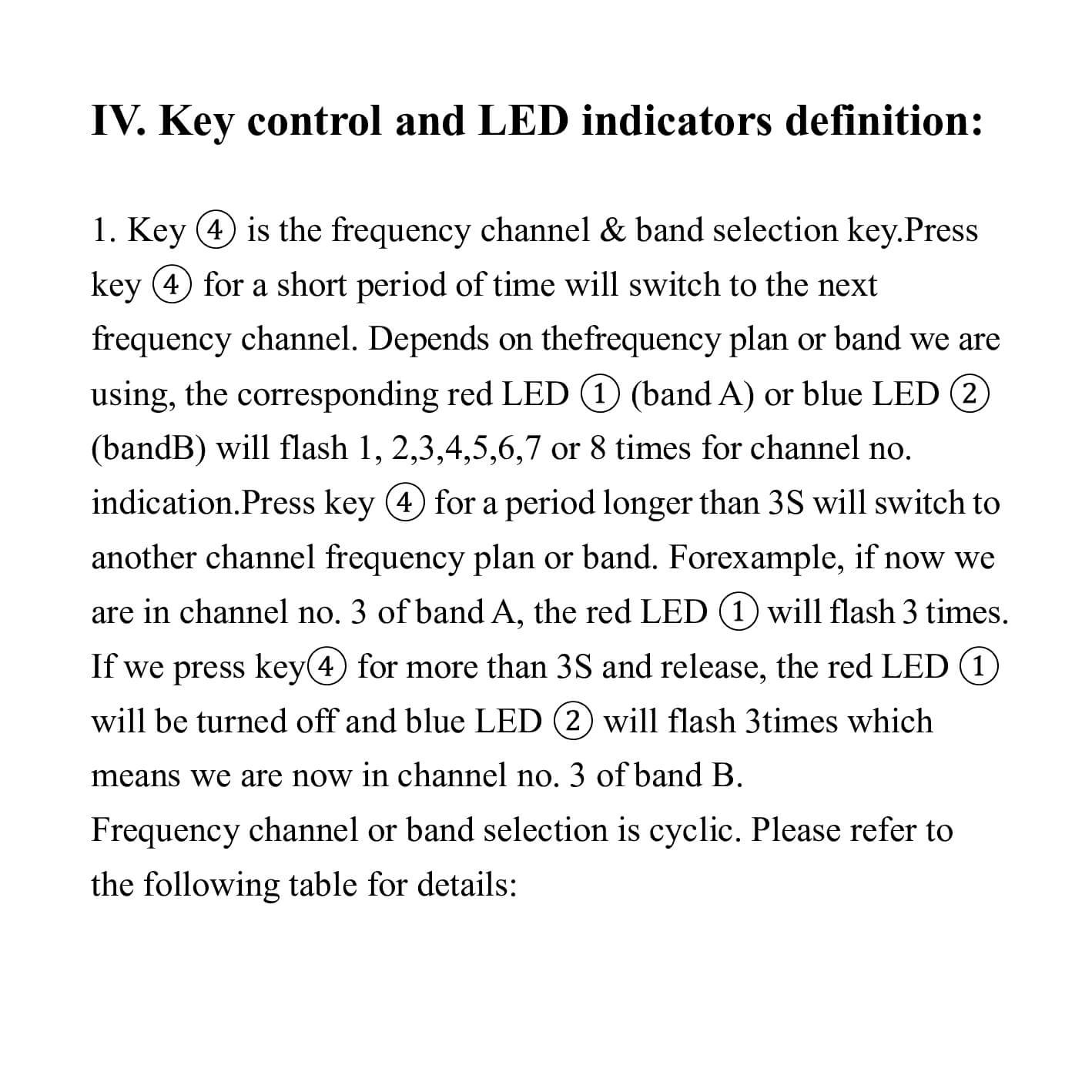

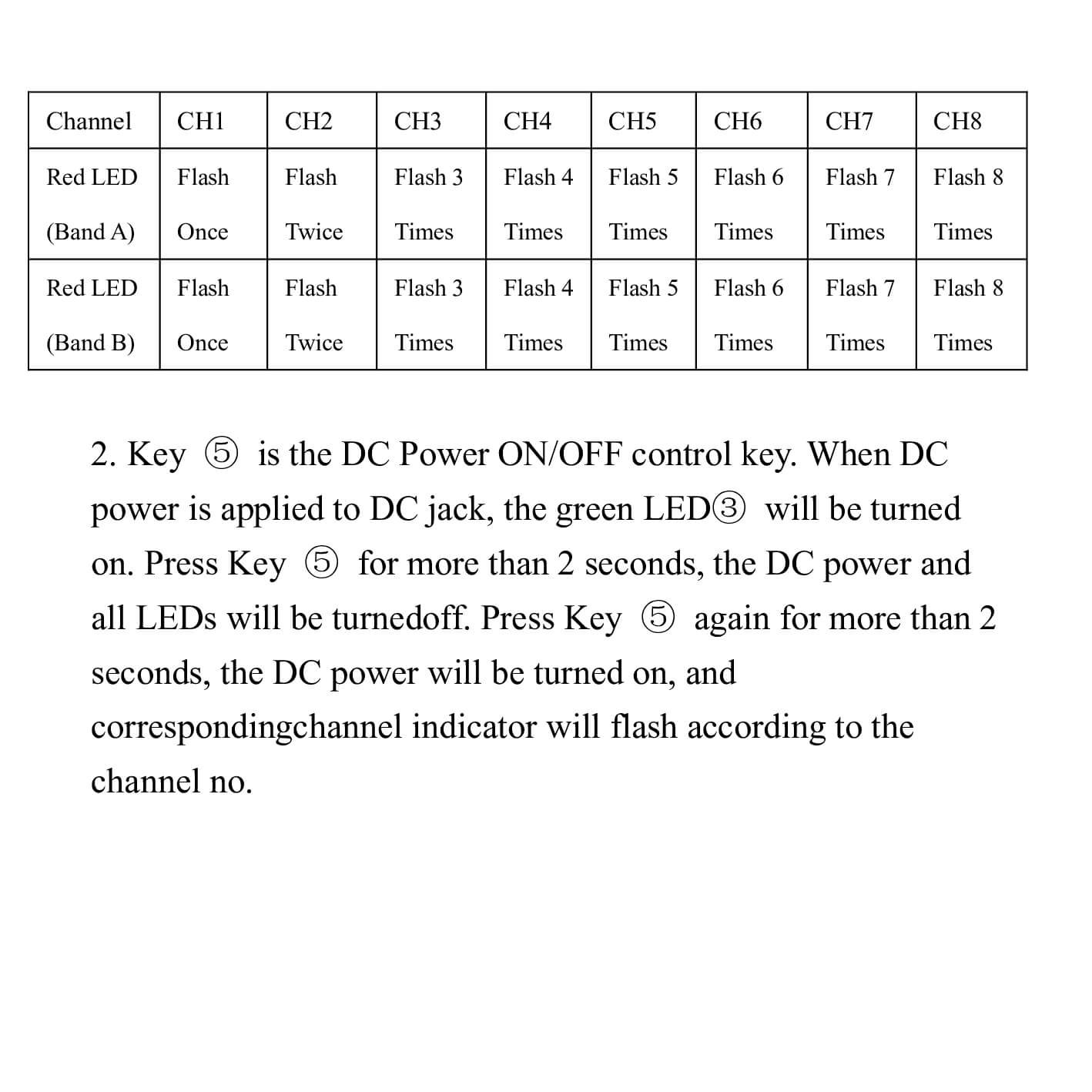

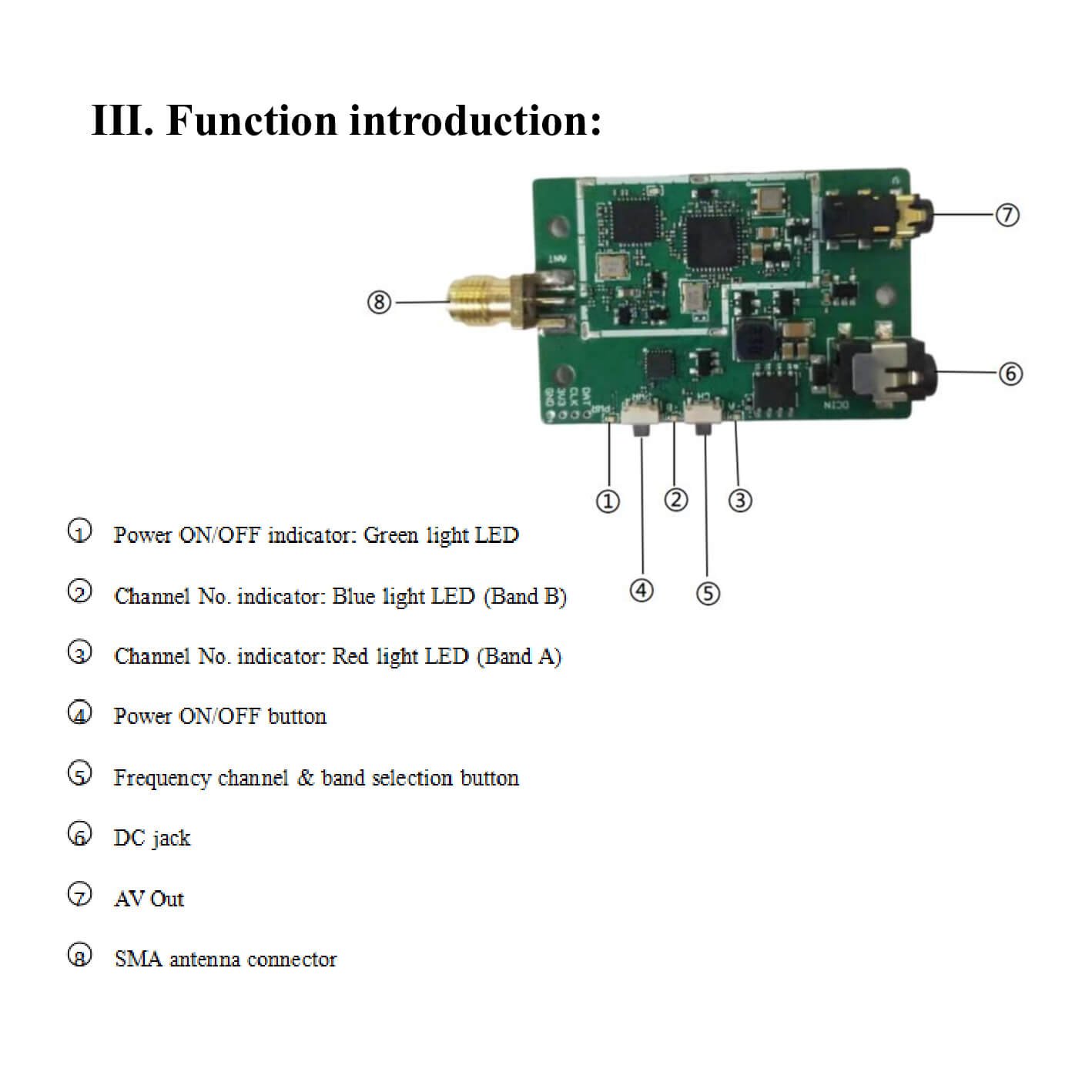

4. Button control and LED indicators

5. On board regulator output: 5V 1A RX

6. Sensitivity: -95dBm

7. Voltage Standing Wave Ratio: 2:1

8. Demodulation System: FM/PLL ANT.

9. Input Impedance: 50Ω, Typ.

10. Video Output Impedance: 75Ω, Typ.

11. RF Connector: SMA
